Điều khiển cửa garage thông minh chất lượng cao B 's

Giới thiệu Điều khiển cửa garage thông minh chất lượng cao B 's

Colour: Black

Remote control distance: 50m

Working voltage: 12v

Working frequency: 433.92MHZ

operating:

1. Pre-copy operation

Clear code first:

Press the A button and the B button simultaneously for two fingers. After about 2 seconds, the LED light flashes rapidly for 3 times. Release the A button (B button can not be released), release the A button and press 3 again. The light will flash quickly and continuously, and the two fingers can be released. At this time, pressing any button on the remote control, the LED lights are not lit, indicating that the clearing is successful; if any button of the remote control is pressed, the light is on. , indicating that the original code has not been cleared successfully! Need to re-clear.


2. Start copying:

The new remote control and the old remote control are discharged together, start the copy operation, press and hold the new remote control A button, and then press any button of the old remote control (what button you want to copy the old remote control button), press When you live in the new remote control, the new remote control LED will flash multiple times when you copy, and keep pressing the new remote control LED. At this point, after pressing the button after learning success, the light is displayed on, indicating that the code of the first button of the original remote controller has been copied by our copy remote controller. The same method is to copy the second key, the third key, and so on. If the copy is successful, the remote control function after copying is the same as the function of the matched remote control button.


3. Recovery:

When you accidentally clear the code of the remote control, you can press the bottom two keys of the remote control at the same time, the LED light will flash quickly, and then press any key again, the light will be on, indicating that the remote control is activated. The code of the device is restored. Before using our copy remote to copy, please be sure to clear the existing code of the remote control.


4. The following is the method to test whether the existing code of the remote control has been successfully cleared: when you finish the clearing action, you can press any key of the copy, if the LED is not lit at this time, then It means that the code for copying is completely removed. If the LED is in a long light state, the code for copying still exists.



5. The old and new remote controllers can be copied at the same frequency. 433 can only copy 433 frequencies (Note 433 and 433.92 are the same frequency, but the name is different)

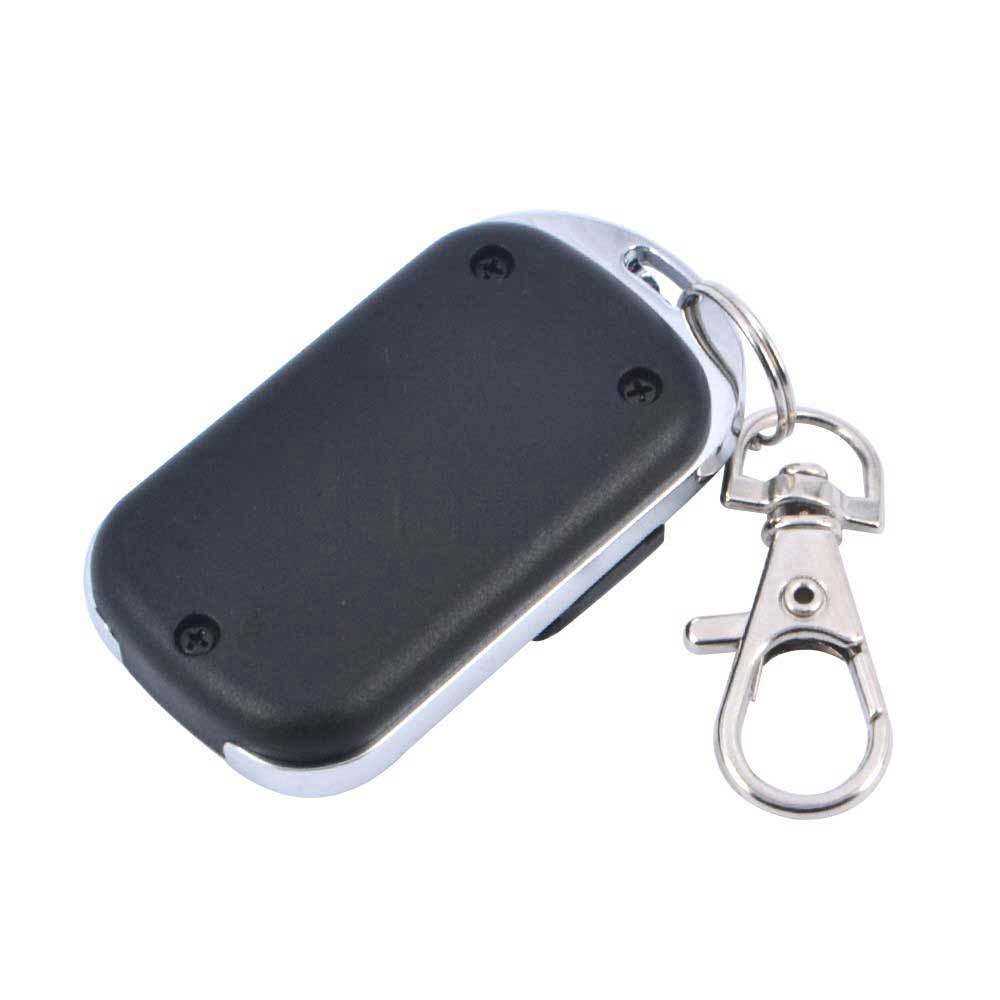

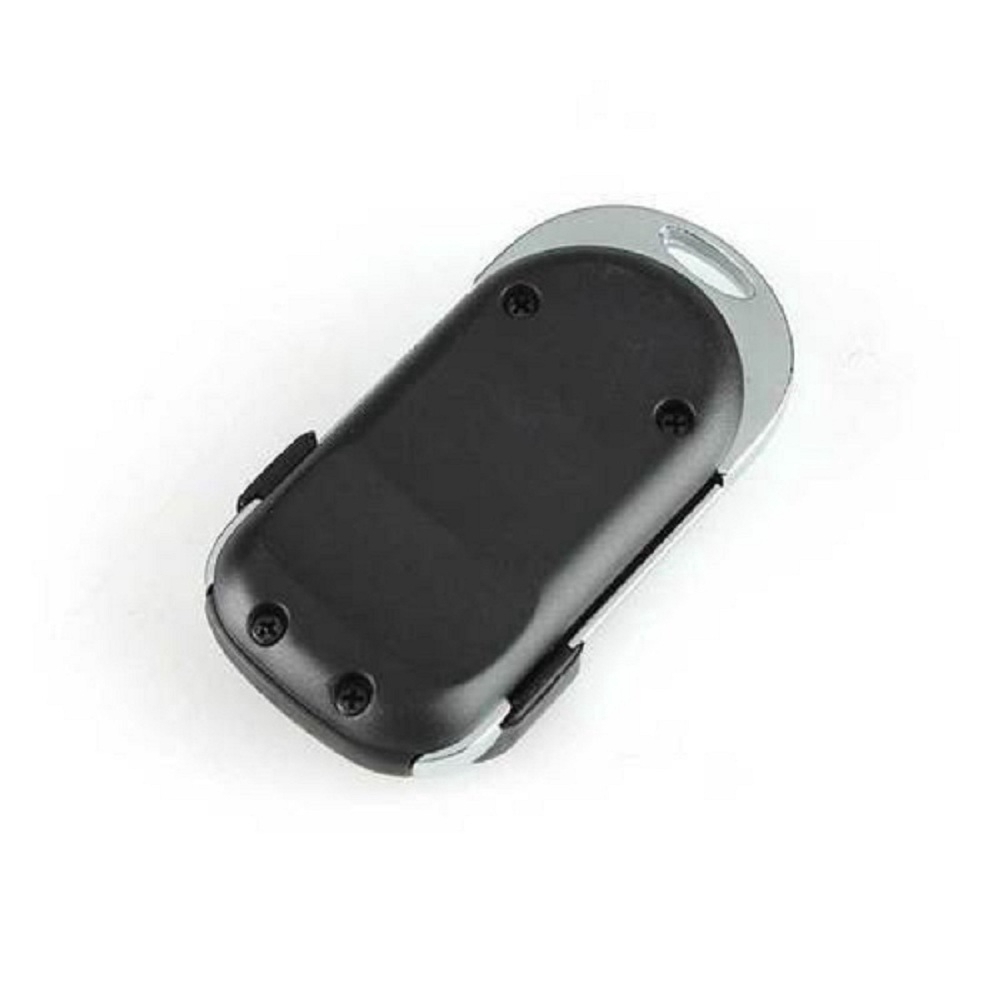

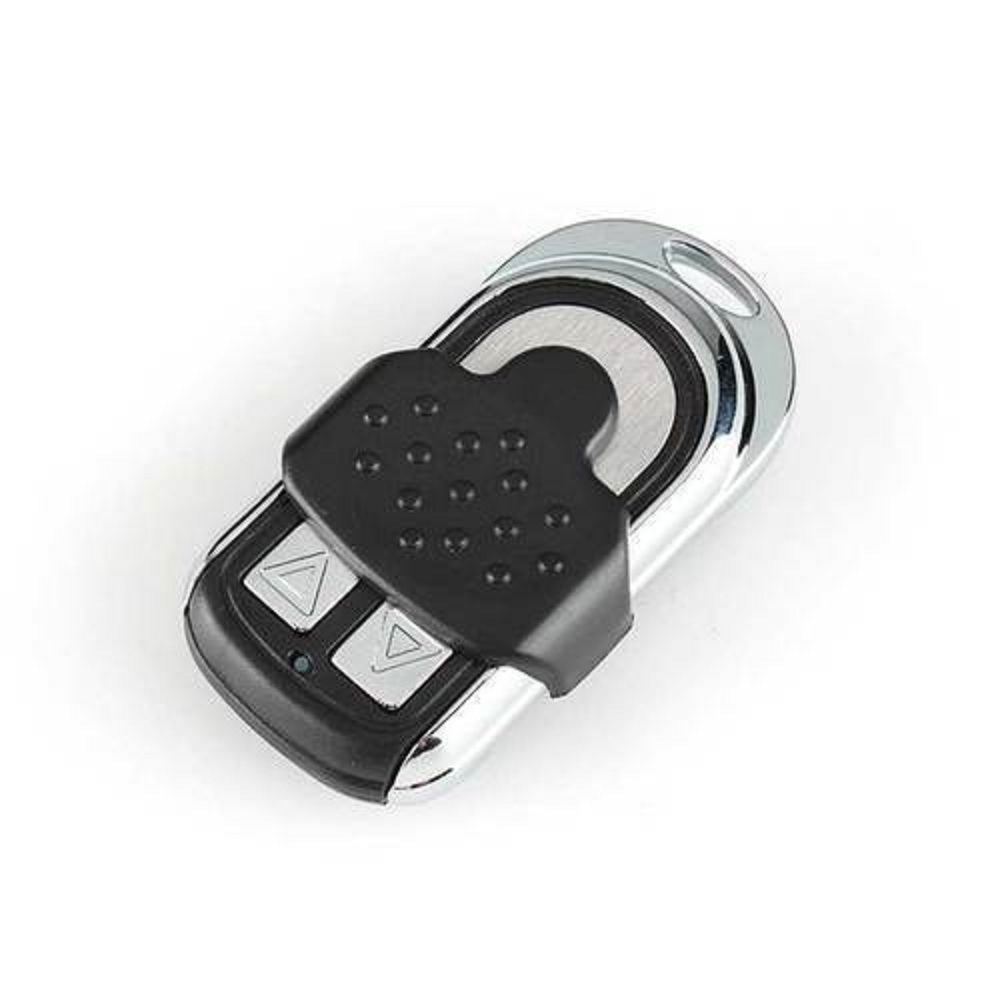

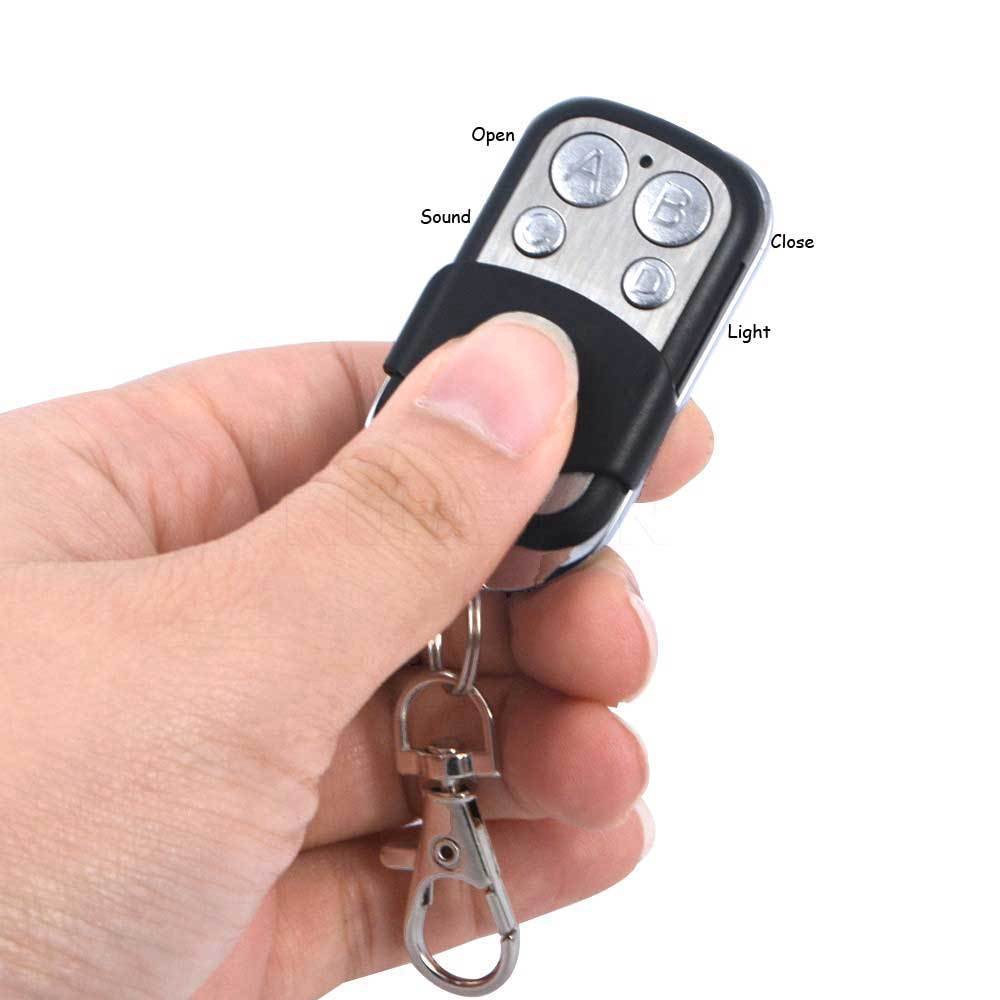

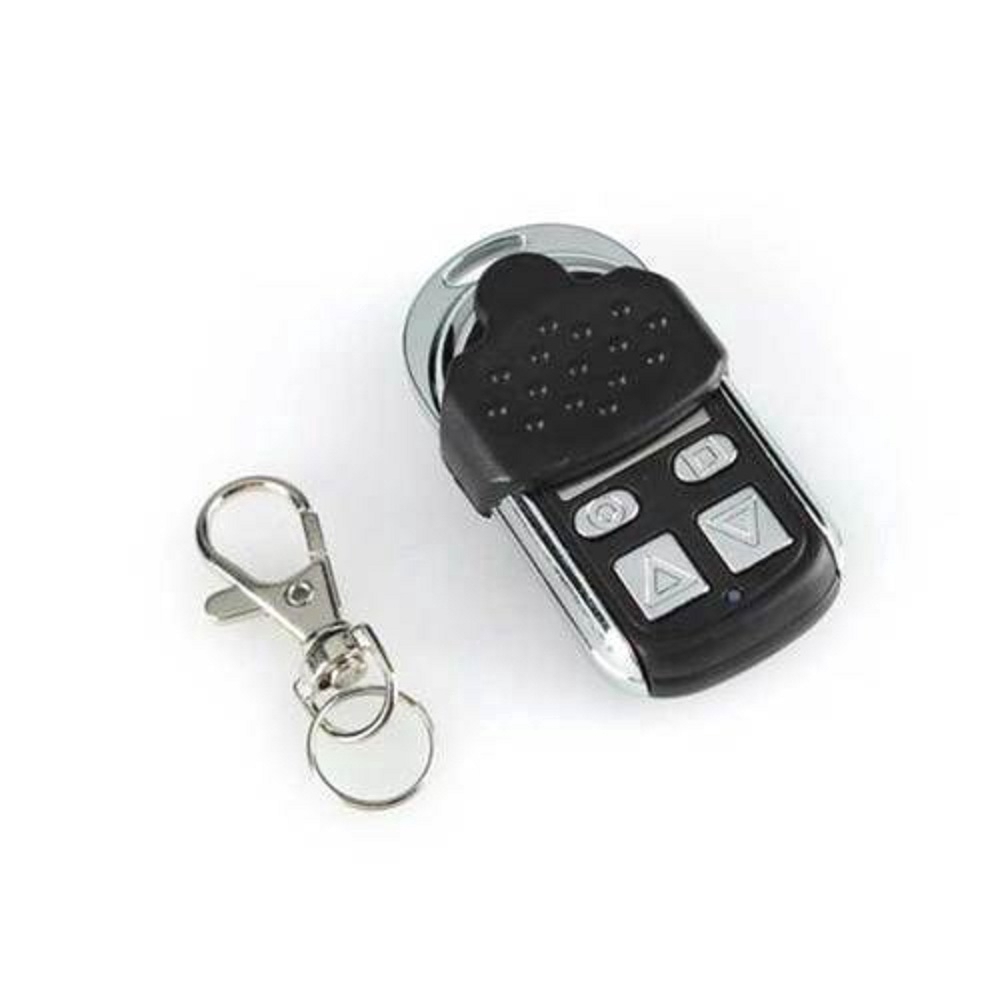

Hình ảnh sản phẩm

Giá QBT
