Giới thiệu Điều Khiển Từ Xa Không Dây Redkee 433mhz Dc 12v 1 Kênh
Dear, welcome to Redkee, here are the latest season products for you to choose, the hottest products, the best prices, we also provide 291H online Q & A, if you have any questions, please consult our customer service, for more information about the product, Please read on ~Features:
1. This controller is controlled by intelligent microprocessor, which can be used in the control of garage door, lighting control, curtain control, door control system, etc.
2. Easy to install, small size, safe and reliable.
Specifications:
Operating voltage: DC 12V
Operating temperature: -40~80 degrees
Operating frequency: 433MHZ
Receive sensitivity: ≥-95dB
Working Mode: jump switch, point action, self locking, and interlocking(adjustable)
Remote control distance: 20-40m/65.61-131.23ft
Product size:
Switch size: approx. 40 x 40 x 25mm/1.57 x 1.57 x 0.98in
Remote Control size: approx. 50 x 40 x 12mm/1.96 x 1.57 x 0.47in
Product weight:
Control panel weight: approx. 24g
Remote control weight: approx. 20g
Material: ABS
Operation Manual:
Press the learn button for 2 or 3 seconds, lights out (that has entered the state of learning), Release the learning button, press any key of the remote control, and the indicator light flashes 5 times to show the success of the study.
Note: The controller can learn the fixed code / learning code, total 16 different encoding, arbitrary button remote control, and beyond will be cleared in the early learning of remote control.
Removal method:
Continue to hold down the learning button for about 8 seconds. The indicator light is extended from extinction to success.
Work mode switching:
Connect a 12V DC output: the learning of the single remote control switch 12V input, connect a 12V DC power supply, the output from 12V positive public end, often beginning the positive on the output side of the light bulb, the bulb of the cathode received power of the cathode, a simple control light bulb circuit is designed.

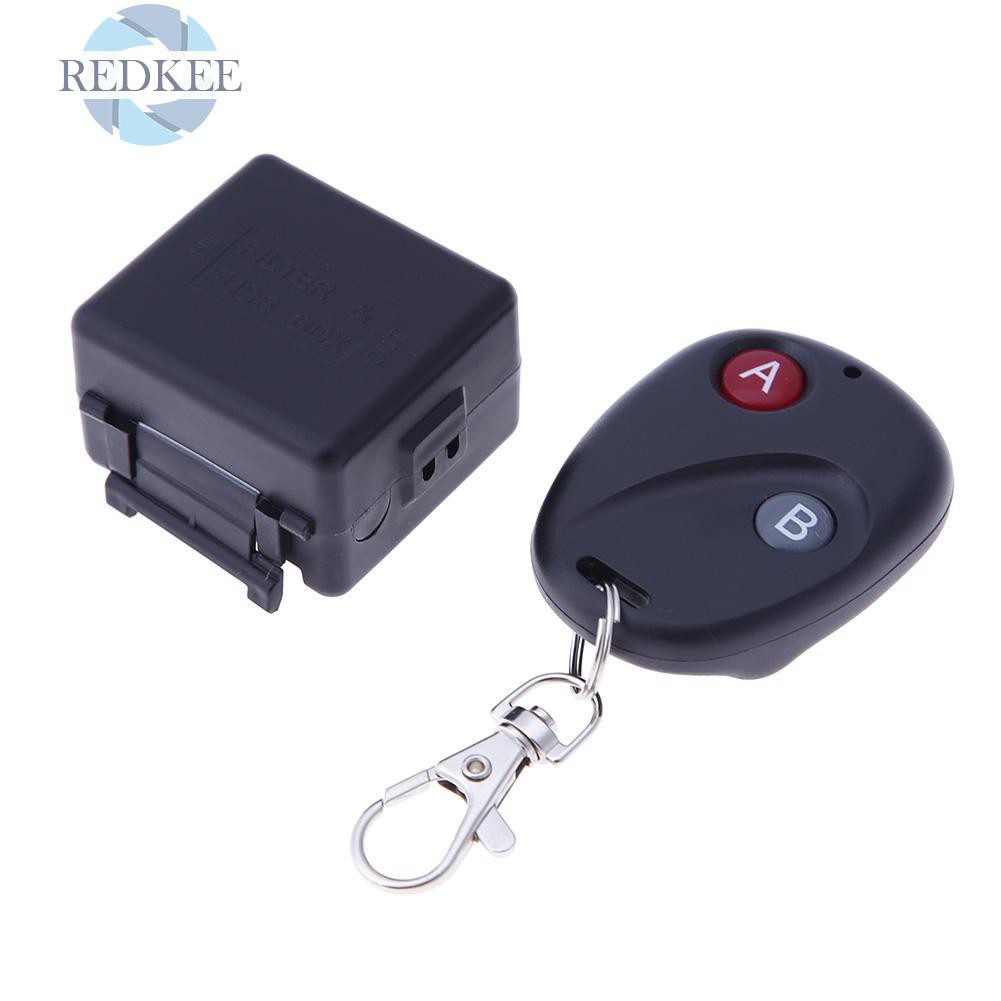

Included:

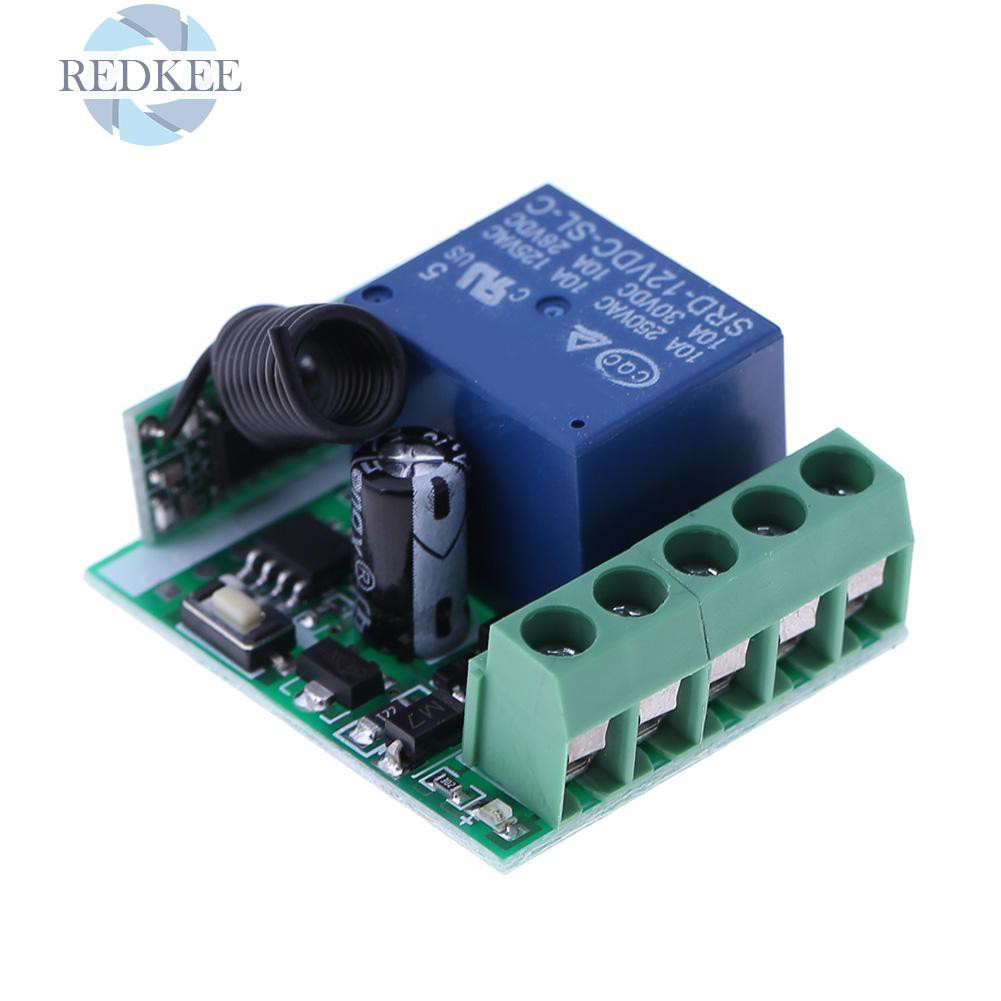

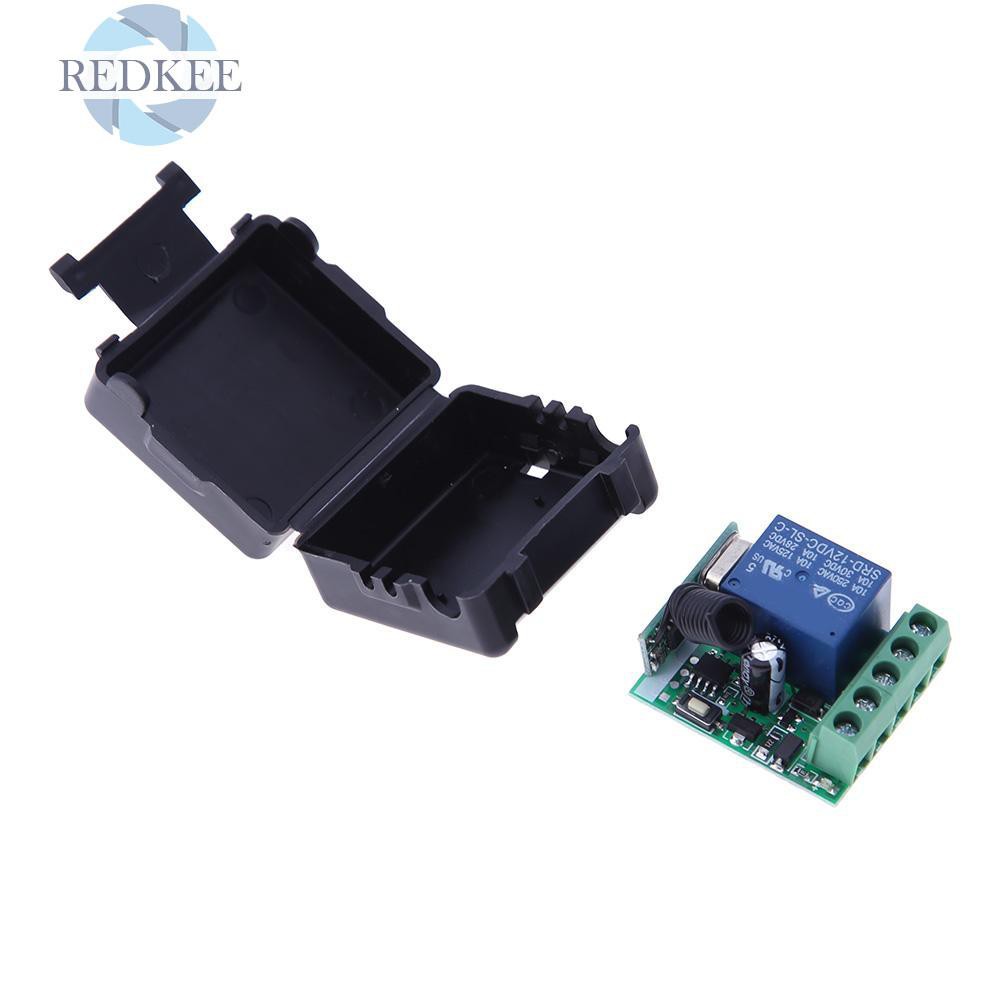

1 x DC 12V 1 Channel Switch

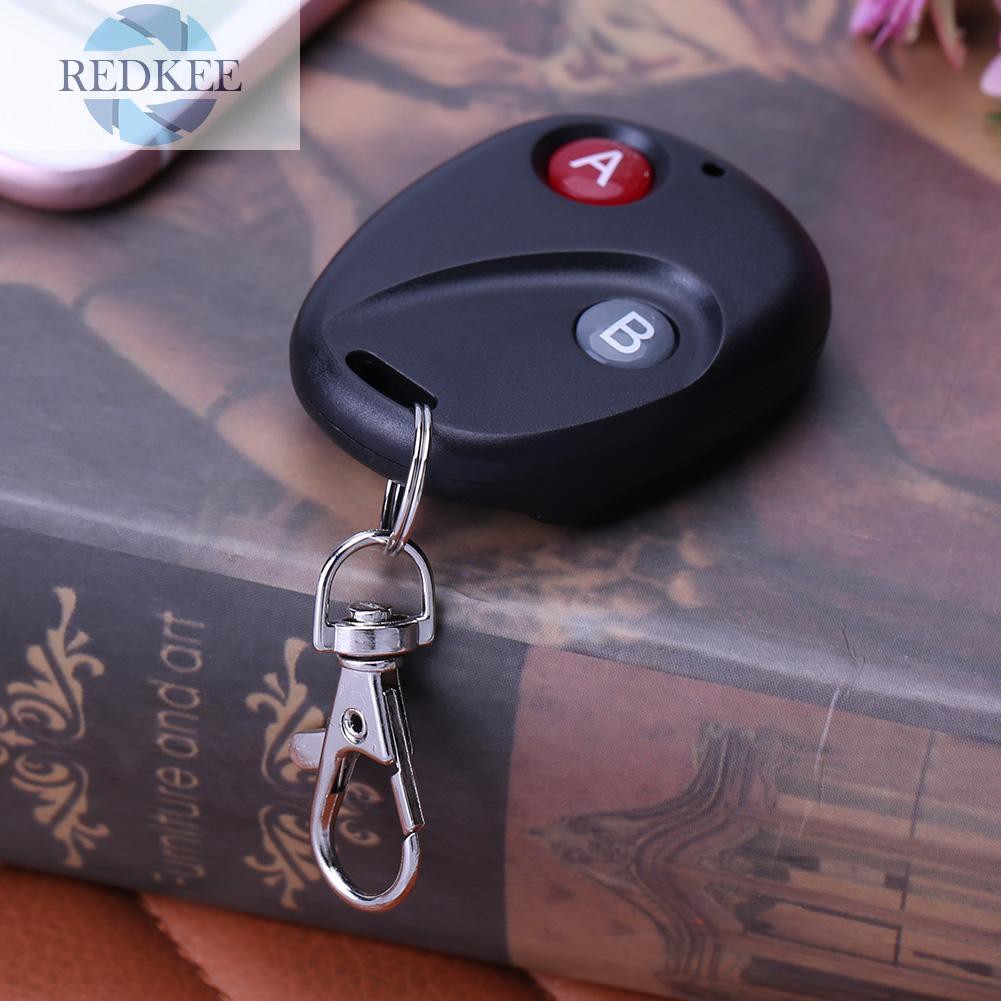

1 x Double Keys Remote Control
