Giới thiệu DOH_HDMI to USB 3.0 Audio Video Capture Card Game Recording Box Transcribe Tools
Specifications:This video capture can capture both HDMI video and HDMI audio.
It can send audio and video signals to computers and push to online live broadcast platforms.
The item is suitable for high definition acquisition, teaching recording, medical imaging, etc.
The product supports most acquisition software, suitting for VLC, for OBS, for Amcap, and supports for Windows and for MacOS.
It conforms to USB Video UVC standard and USB Audio UAC standard.
Without external power supply, it is compact and portable.
Connection and Operation:
Connect the UHD signal source to the HDMI input of the video capture with one HDMI cable.
Connect the computer to the USB port of the video capture with USB cable.
Operation steps for USB video capture(OBS): Open the software, Choose sources of "Video capture Device", Set the size of image, Choose "Studio Mode"(double windows), and Choose "Start Recording".
Item Name: Audio Video Capture Card
Material: Metal
HDMI Resolution: 3840x2160@30HZ
Support Video Format: 8/10/12bit
Video Output Format: YUV, JPEG
Video Output Resolution: 1920x 1080@30HZ
Support Audio Format: L-PCM
Max Working Current: 0.4A/5VDC
Operating Temperature Range: -10 to 55 Degree Celsius
Features: Portable, Audio Video Capture, Easy to Use
Input Cable Distance (AWG26 HDMI Standard Cable): 15m/590.55"(Approx.)

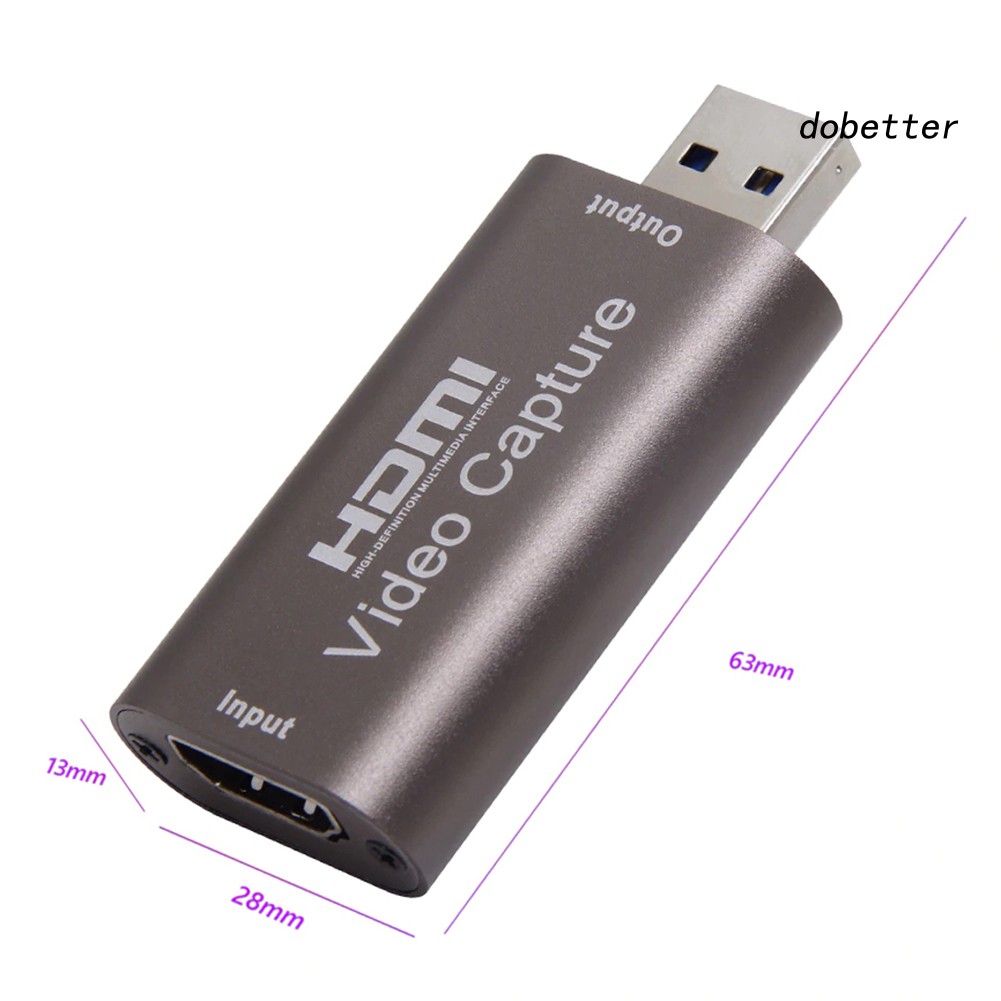

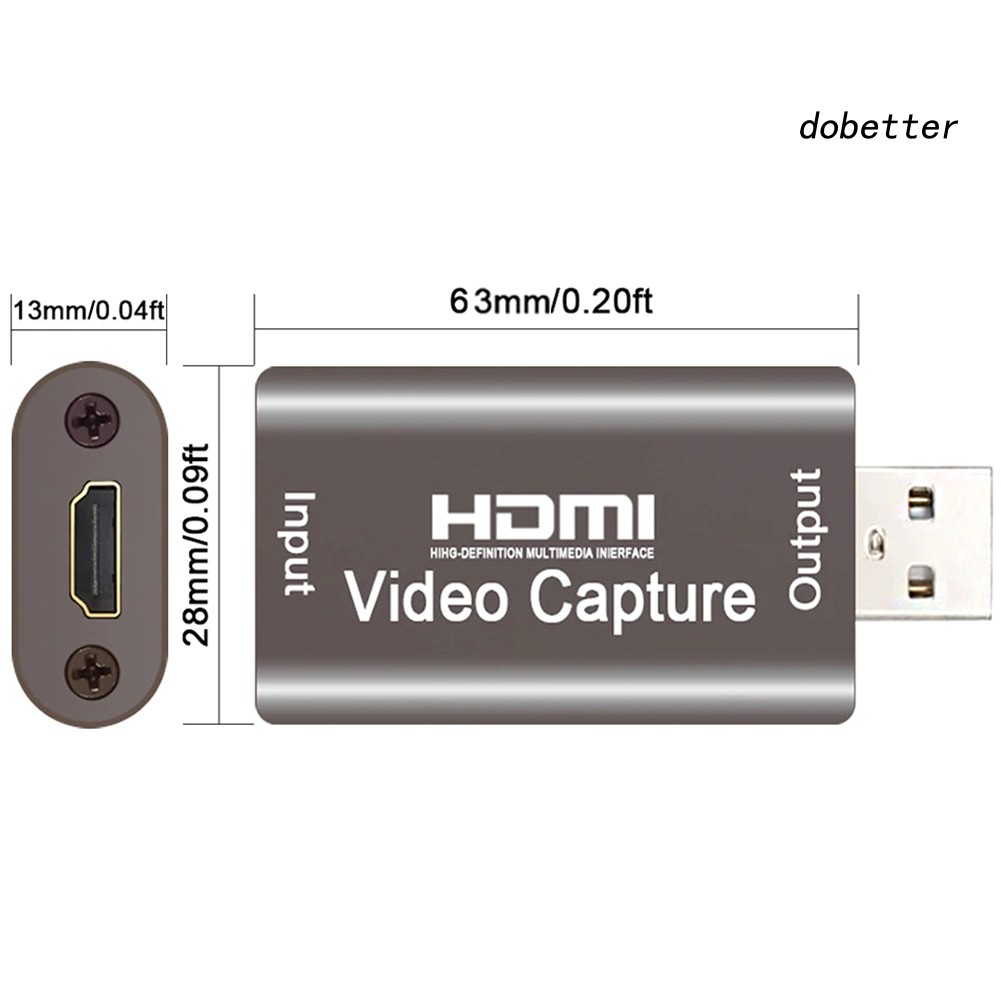

Size: 6.4cm x 2.8cm x 1.3cm/2.52" x 1.1" x 0.51"(Approx.)
Notes:
Due to the light and screen setting difference, the items color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
HDCP Content (Encryption HDMI Devices) is not allowed for capture.
Computer hardware must satisfy the following configuration requirements:
CPU: PC i5-3400 or above, NB i7-3537U 2.0GHZ or above
Graphics Card: PC NVIDIA GT630 or above, NC NVIDIA GT735M or above
Run Memory: 4G RAM
Android Phone need to have OTG Function, Android 9.0+.
Please ensure your computer or Android phone can run OBS,VLC,VMIX.
Package Includes:
1 x Audio Video Capture Card
1 x User Manual
