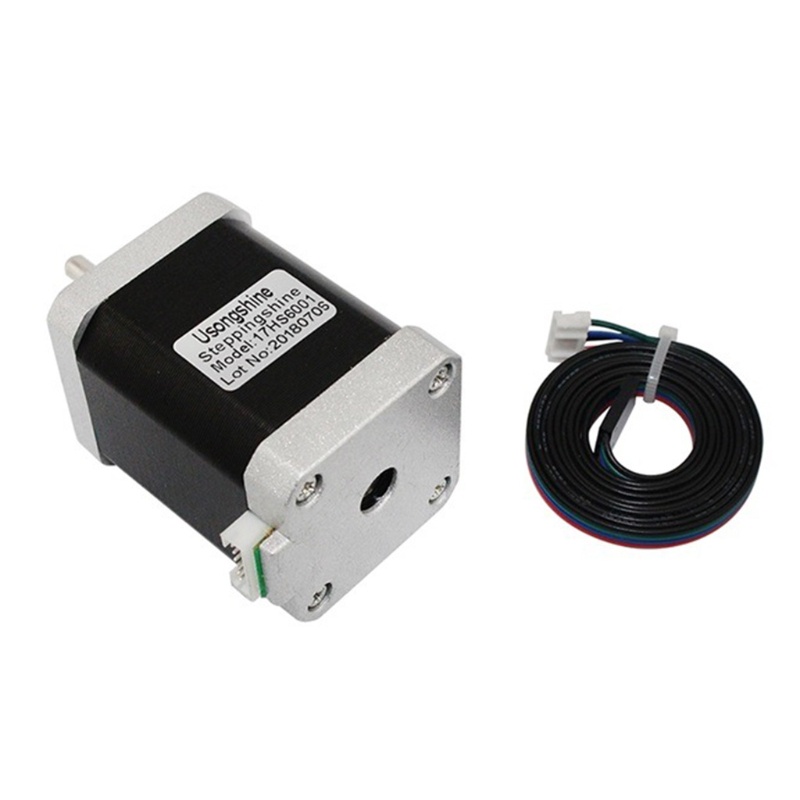

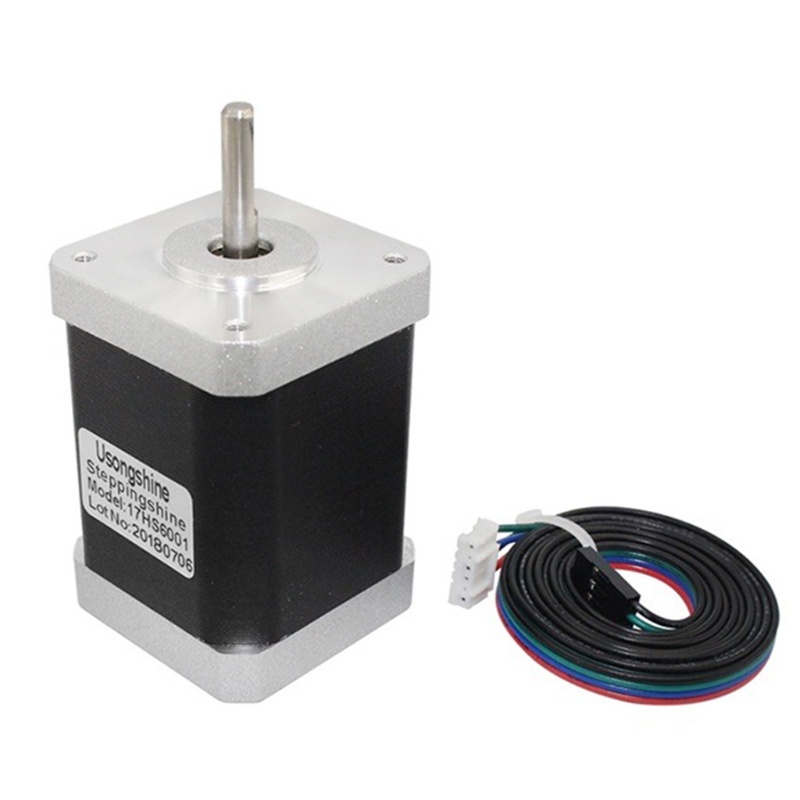

Động cơ bước máy in 3D Nema 17 1.8 độ 2 pha

Giới thiệu Động cơ bước máy in 3D Nema 17 1.8 độ 2 pha

2 Phase 3D Printer Motors Nema 17 Stepper Motor 1.8 Degree Uniform Speed
Features: 100% brand new and high quality
Uniform wiring: The coil is made of pure copper enameled wire, which is wound with imported technology. The copper wire is evenly arranged, and it will not have problems such as excessive temperature, torque decline, and increased noise after long-term operation.
High-quality bearings: The surface of the rotor is coated with epoxy resin to prevent the adsorption of burrs on the Biot surface of the rotor. The field of the motor is more stable, the operation is smoother, the noise is lower, and the service life is longer.
Fully automatic welding: The circuit board is welded by a fully automatic welding machine, and the welding point has high accuracy. Compared with the traditional process, the distribution of the welding points is more uniform, firmer and more beautiful.
High-quality copper material: stable chemical properties, non-magnetic, and can be recycled and reused. It is a metal material with a virtuous cycle.
Mature technology: The copper profile adopts two processes of heat and cold in the production process, which has strong corrosion resistance.

Specification: Material: Plastic

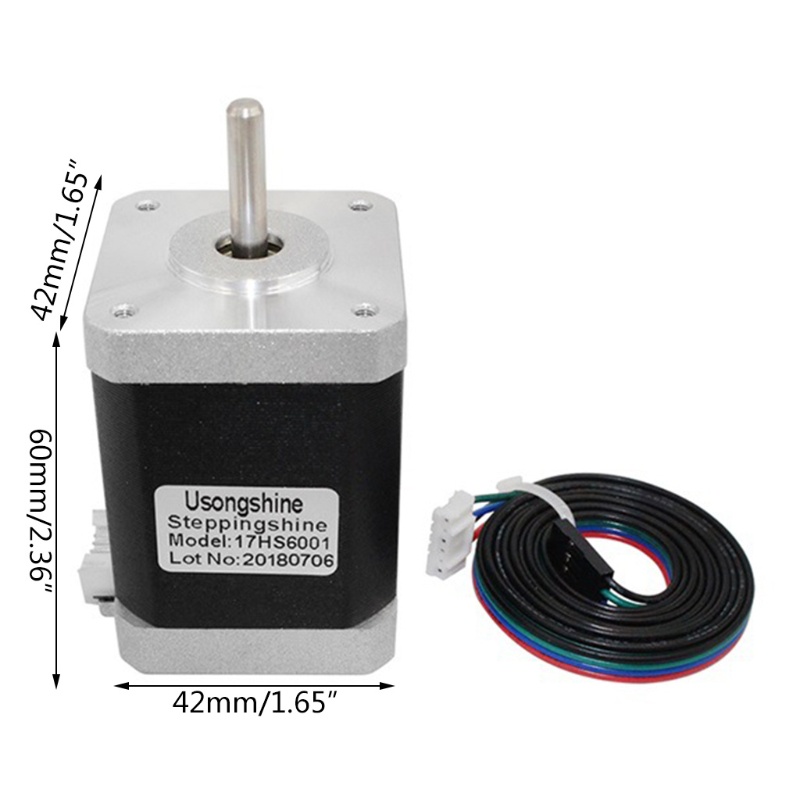

Size: Approx. 42x42x60mm/1.65x1.65x2.36inch
Voltage: 12-24V
Current: 2.3A
Resistance: 1.1 Ohm ± 10%
Inductance: 2.1mh ± 20%
La Togque: 0.7NM
Insulation Class: B
Number of Phases: 2
Step Angle: 1.8°±5%
Rated Power: 4.624W
Rated Current: 1.7A
Rated Voltage: 2.72V
Rated Torque: 0.7NM

Package Includes: 1x Stepper Motor
1x Cable

note: 1.Please allow 1-2cm errors due to manual measurement, make sure that you do not mind before you order.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item.
