Động Cơ Không Chổi Than 3100KV 3650 Chống Thấm Nước 60A ESC 5.8V 3A BEC Cho Xe Điều Khiển Tỉ Lệ 1 / 8 1 / 10

Giới thiệu Động Cơ Không Chổi Than 3100KV 3650 Chống Thấm Nước 60A ESC 5.8V 3A BEC Cho Xe Điều Khiển Tỉ Lệ 1 / 8 1 / 10

Features:

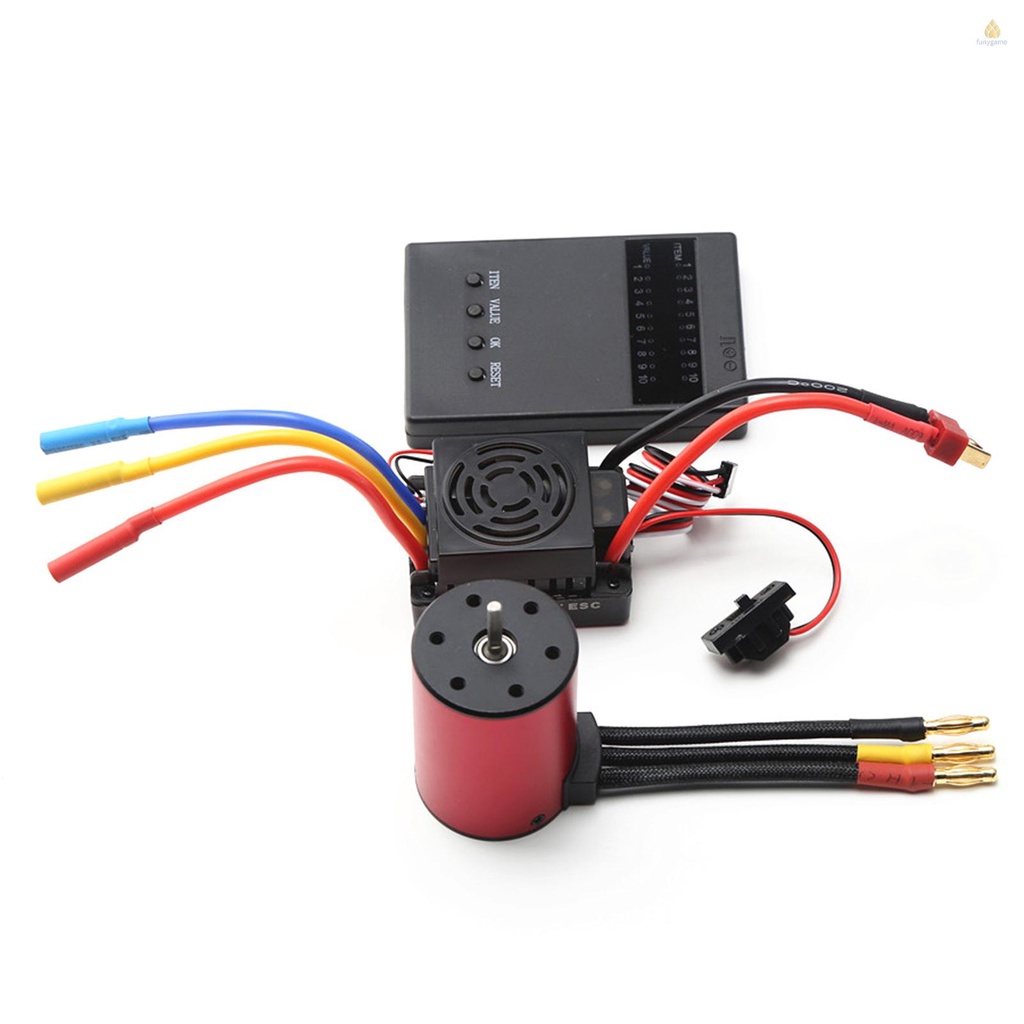

The set includes a 3100KV brushless motor, a 60A ESC and programming card, which is perfectly fit for the 1/8 1/10 RC car and is designed to provide both quality and performance at an affordable price.
The ESC
Features enhanced throttle response, excellent acceleration, strong breaks and throttle linearity. Supports program card to make adjustments.
High purity windings maximize efficiency, a precision-balanced rotor, smoothness for best reliability and maximum RPM.
Efficient and high-speed ball bearings, precision-engineered for maximum energy conversion.
Multiple protection
Features: Low voltage cut-off protection for lithium battery, Over-heat protection, Throttle signal loss protection, motor blocked protection.

Specifications:
Name: 3650 RC Brushless Motor and Brushless 60A ESC
3650 RC Brushless Motor:
KV(RPM/Volt): 2300KV/3100KV/3900KV4300KV Optional
Watt: 850
Max RPM: 60000
Max Voltage: <8.4V
Max Amps: 100A
Rotor Poles: 4

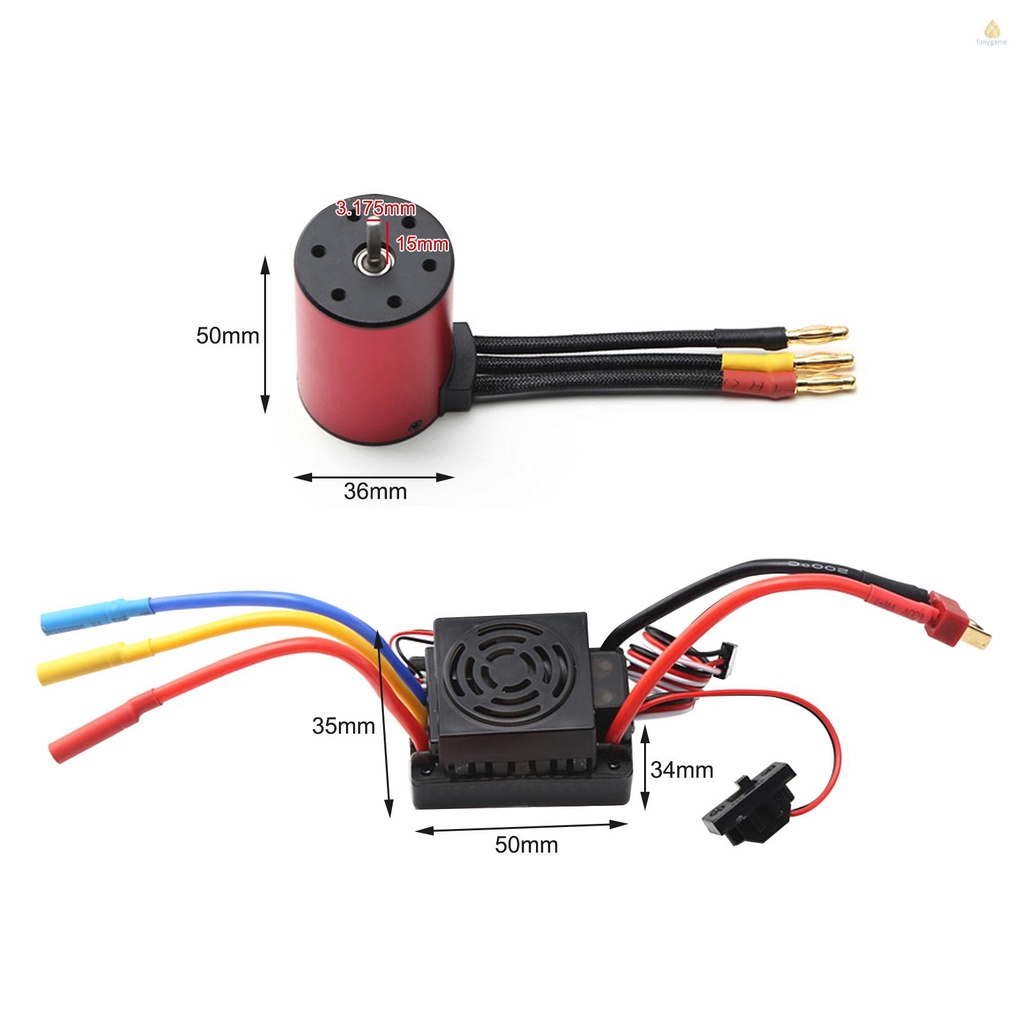

Diameter: 36mm
Length: 50mm
Shaft Length: 15mm
Shaft Diameter: 3.175mm
Connector: 4.0mm Gold
Weight: 165g
Brushless 60A ESC:
BEC: 5.8V/3A
Continue Current: 60A
Burst Current: 320A
Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd
Power Supply Plugs: T Plug Male
Motor Plugs: 4mm Banana Plug Female
Size: 50 * 35 * 34mm(without cables)
Weight: 82g (with Cables)
Programming Card:
Low Voltage Cut Off: 3.1V/Cell 2.8V/Cell 3.3V/Cell No Cut-off
Start Mode: Medium, Soft, Strong
Max Brake Force: 25%, 50%, 75%, 100%
Max Reverse Force: 25%, 50%, 75%, 100%
Neutral Range: 6%, 9%, 12%, Work State
Package Information:
Package Size: 12*8*4.5cm
Package Weight: 286g
Plastic Package
Packing List:
1* 3100KV Brushless Motor
1* 60A ESC
1* Programming Card
