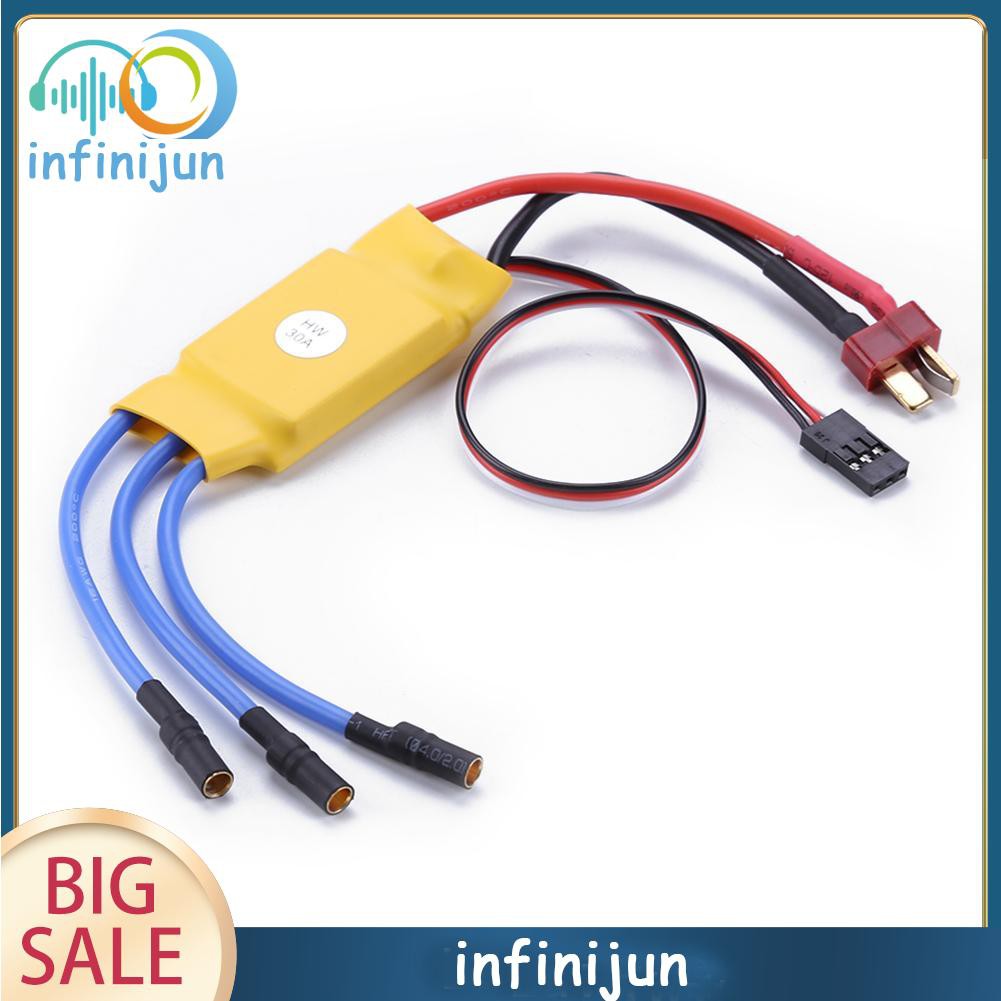

Động Cơ Không Chổi Than Điều Khiển Tốc Độ 30a

Giới thiệu Động Cơ Không Chổi Than Điều Khiển Tốc Độ 30a

Product function:
1. Safe power-on function: When power is switched on, no matter where the throttle rocker is, it will not start the motor immediately to avoid causing personal injury.
2. Accelerator stroke adjustment function: adapting to different remote control oils.
improve the linearity of throttle response, with smooth and delicate speed control feel and first-class speed control linearity.
3. Programming items:
Brake setting: no brake/with brake, factory default value is no brake.
Battery type: Li-xx (lithium battery)/ Ni-xx (nickel cadmium or nickel hydrogen), default value is Li-xx (lithium battery).
Low Voltage Protection Mode: Reduce Power/Close Output, Default Value is Reduce Power.
Low voltage protection threshold: low/medium/high, default value is medium cut-off voltage.
When Li-xx battery is used, the number of lithium electrons is automatically judged. The cut-off voltage of each battery is 2.6V, 2.85V and 3.1V respectively in low/medium/high conditions.
When the Ni-xx battery is set, the voltage of the battery pack is automatically detected when the battery is turned on. The cut-off voltage in low/medium/high conditions is 0%, 45% and 60% of the input voltage when the battery is turned on (0% means no low voltage protection).
Start mode: normal/soft/super-soft start, default value is normal start.
Ordinary startup is suitable for fixed wing and can start motor quickly in 0.2 seconds.
Soft start/super-soft start is suitable for helicopters; soft start and super-soft start have relatively low initial speed, which takes 1 second and 2 seconds respectively from start to full speed, but if the throttle is closed after start, it will start again in normal mode within 3 seconds, so as not to cause a crash due to slow reaction in some special action flight.
Inlet angle: low/medium/high, default value is mid-angle.

Generally speaking, low angle can adapt to more motors, but in order to improve efficiency, it is recommended to use low angle for 2-pole motors and medium angle for 6-pole motors. In order to increase the speed, the inlet angle can be set to a high one. After changing the angle settings, it should be tested on the ground before flying.
Restore factory default value.
4. Comprehensive protection function:
Under-voltage protection: set by user through program.
Overvoltage protection: input voltage over 18 volts does not start, automatic protection, while sending out a rapid "beep" alarm.
Overheat protection: built-in temperature detection circuit, when the temperature of MOS transistor is too high, the electric regulation is automatically turned off.
The remote control signal loss protection: the power is reduced after the remote control signal loss for one second, and the output is closed when there is no remote control signal for another two seconds.

Process craft:
1. The input terminal of power supply adopts ultra-low impedance and large capacity electrolytic capacitor, which greatly improves the anti-interference ability.

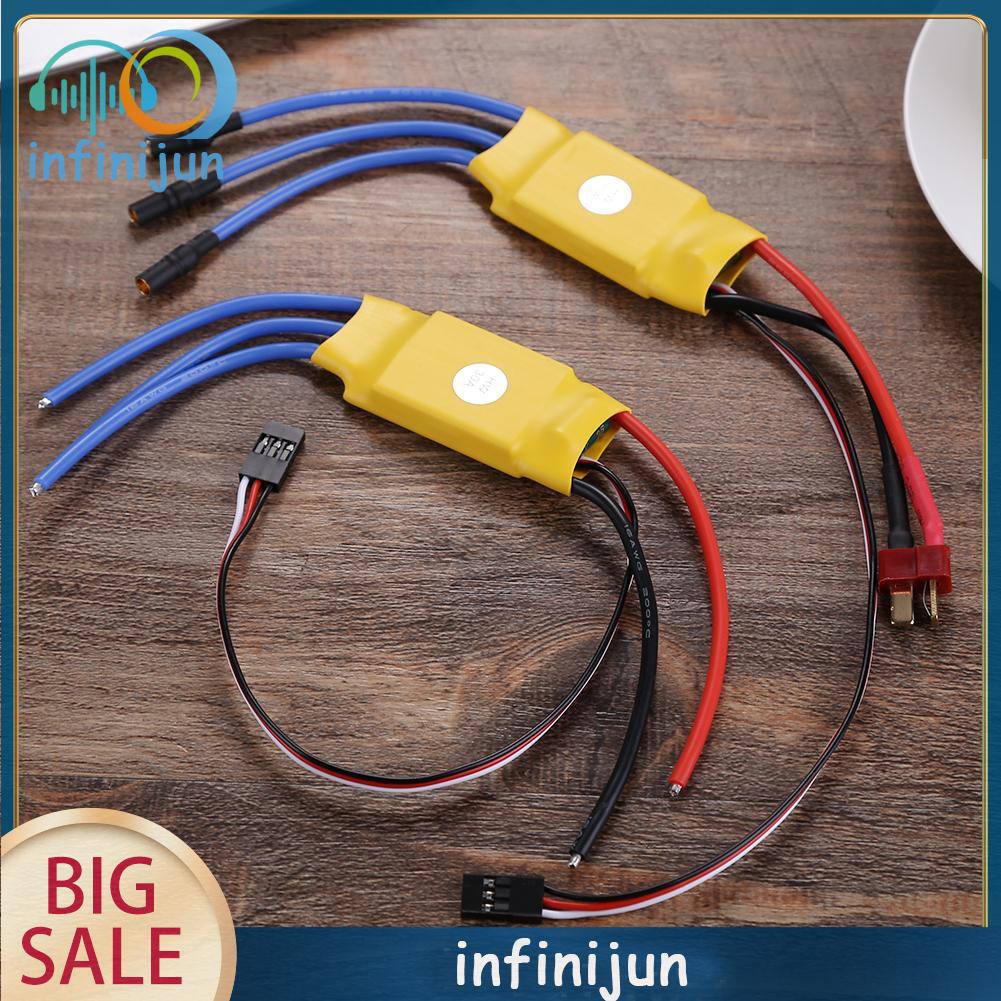

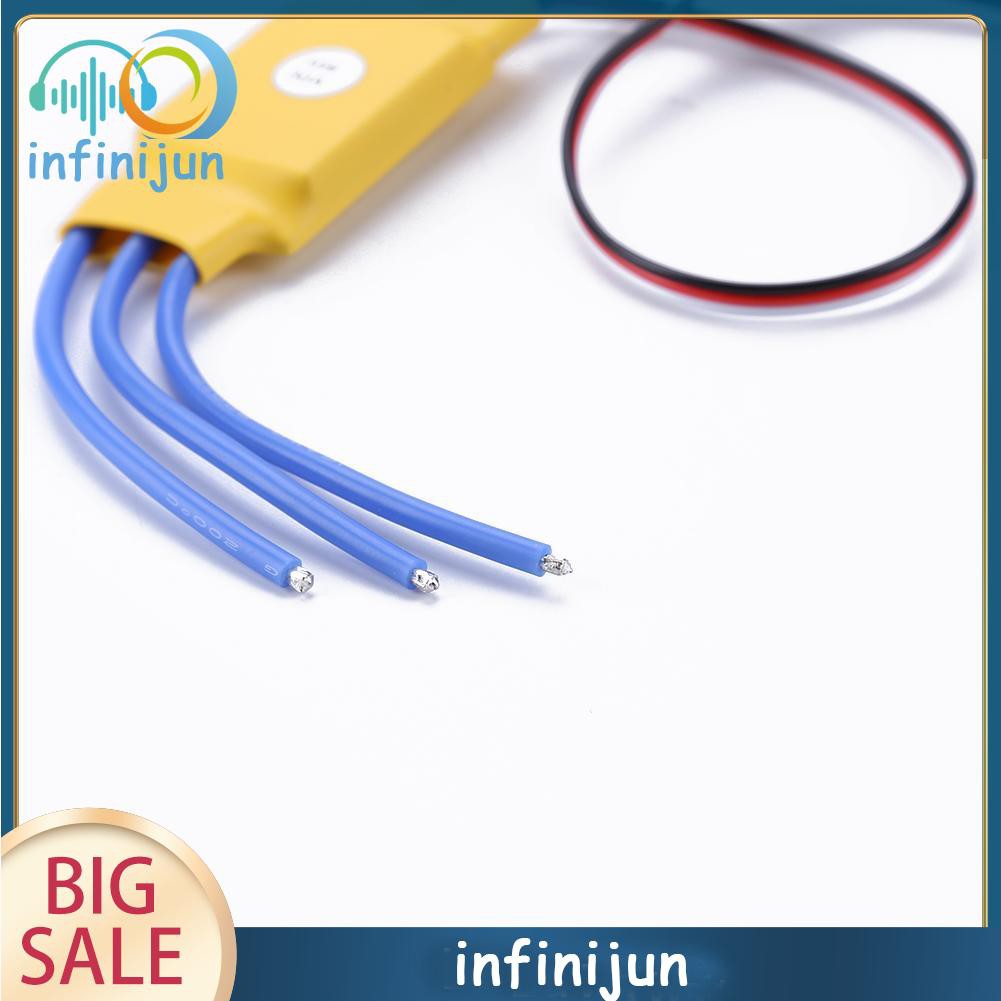

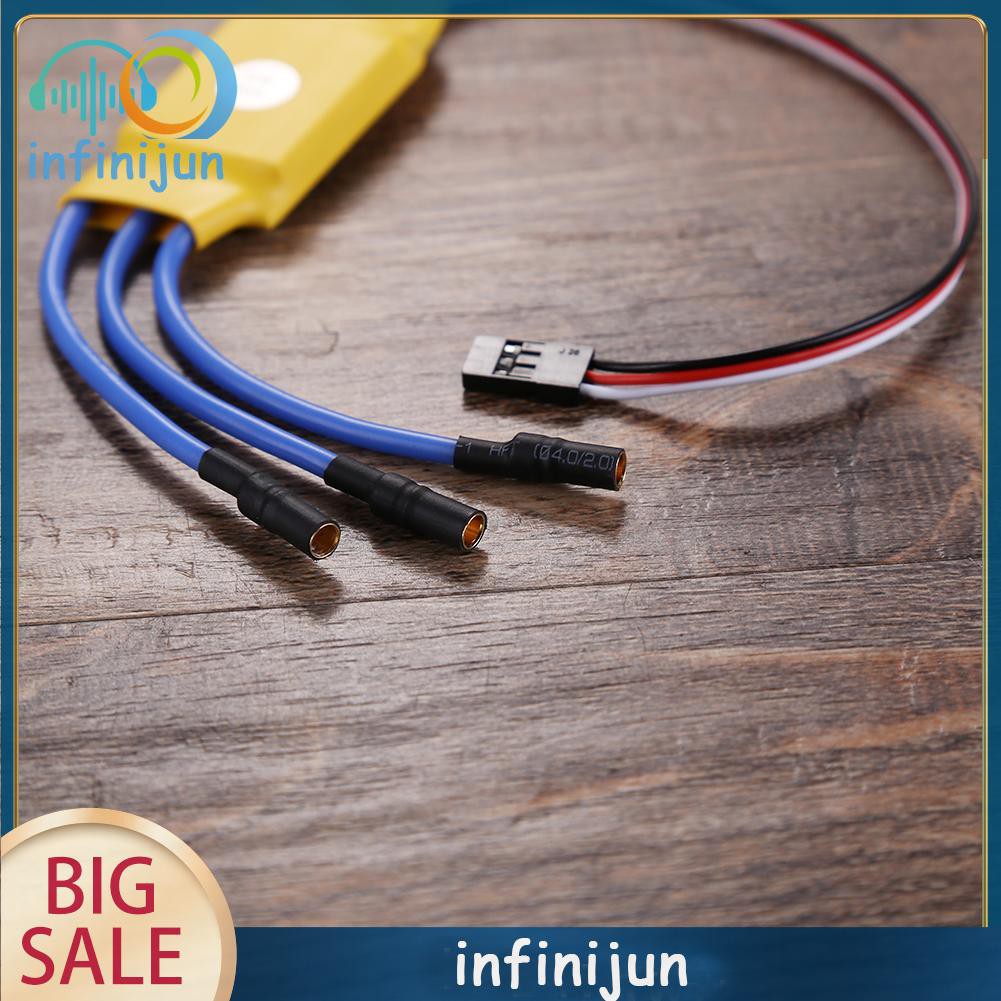

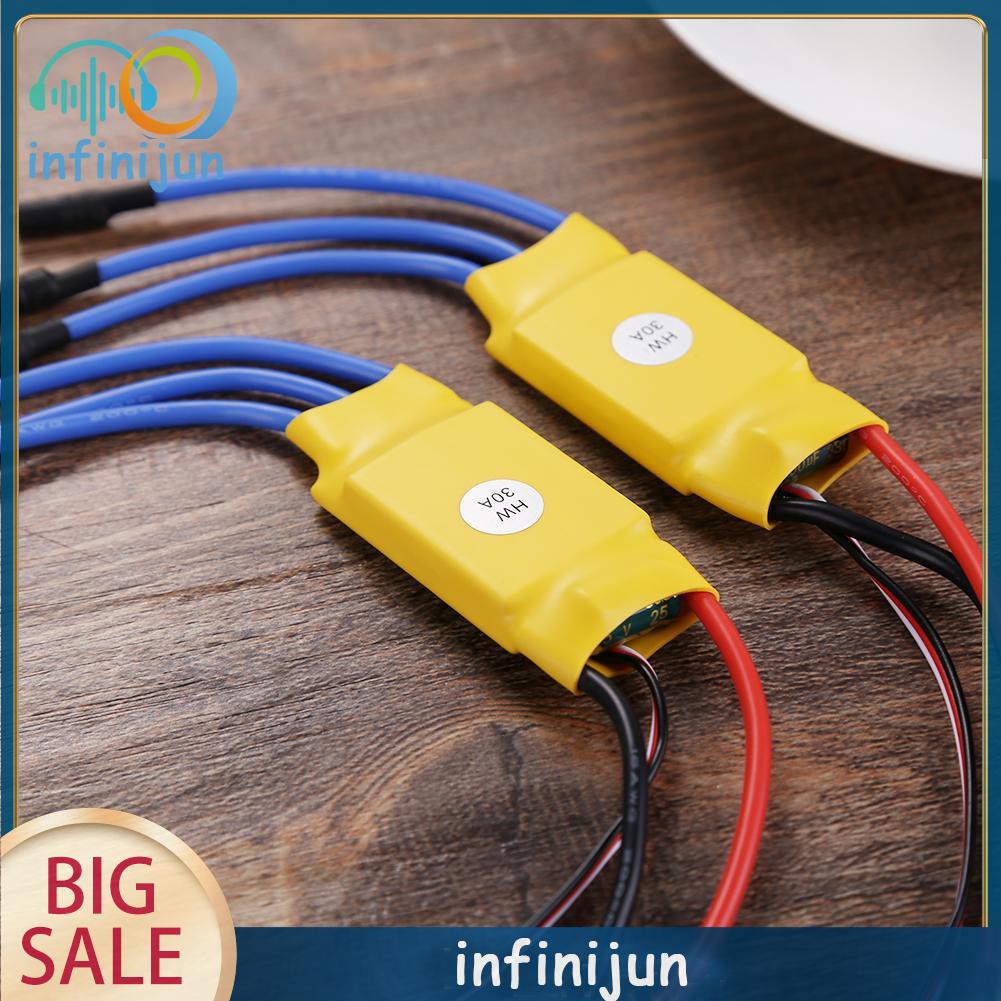

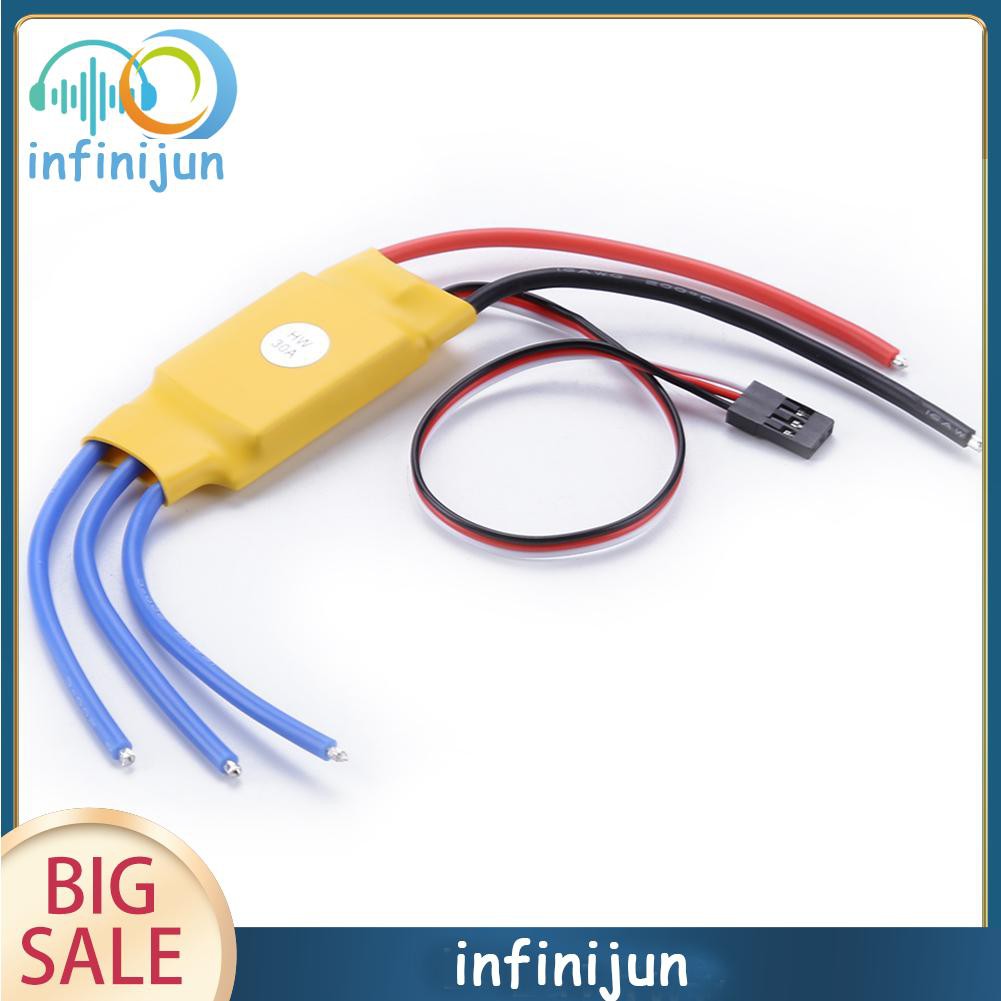

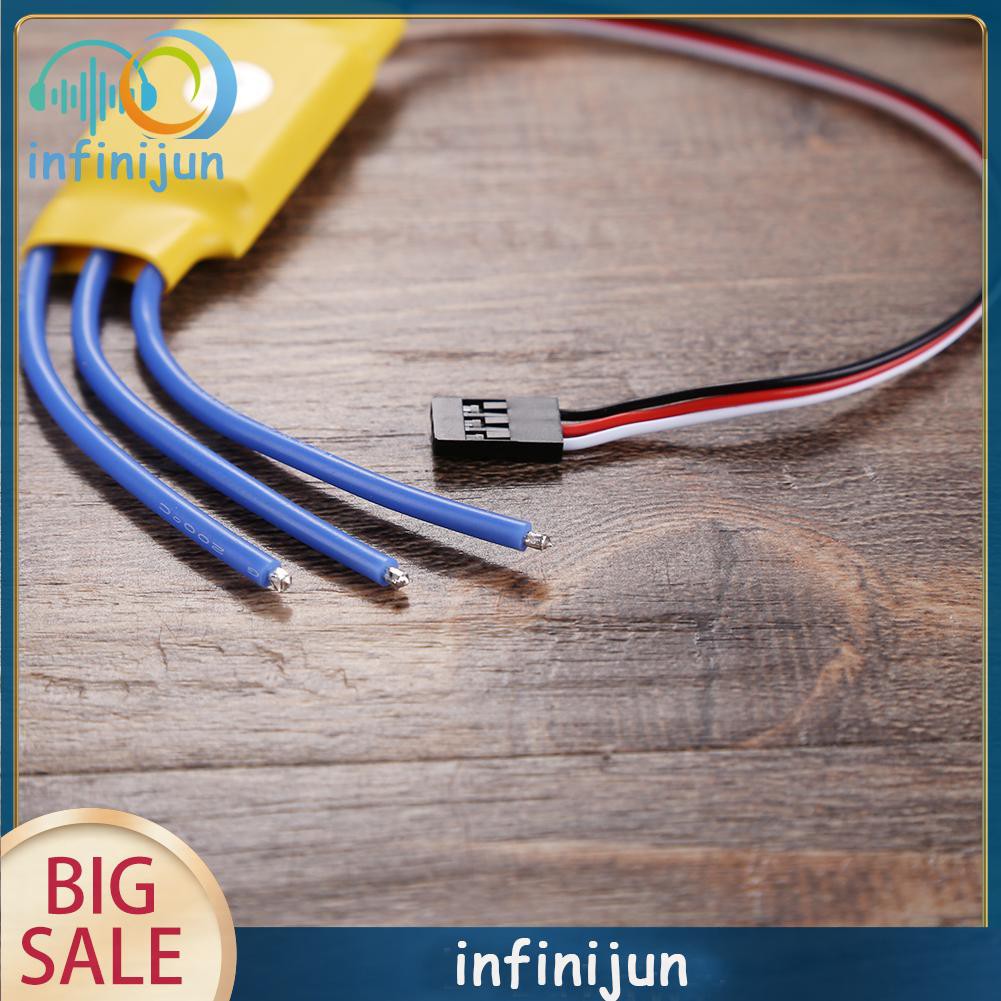

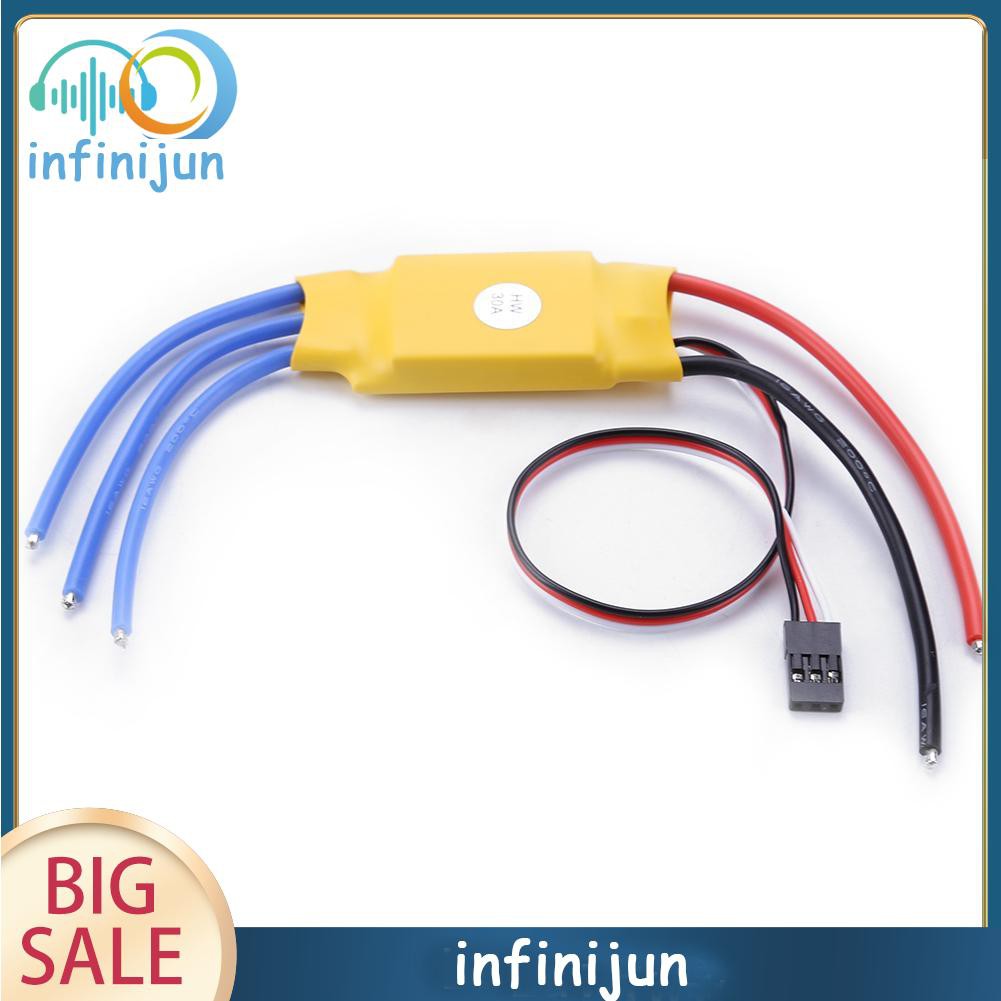

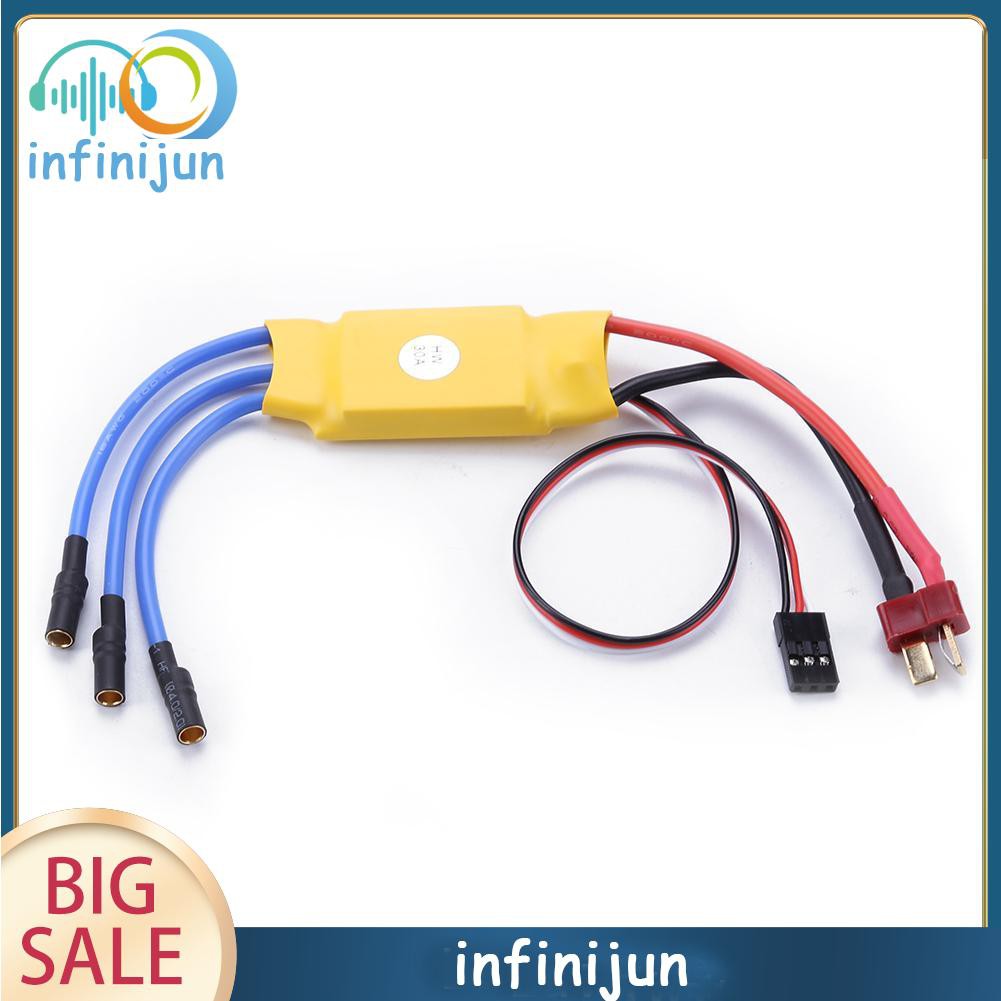

Hình ảnh sản phẩm
