Động Cơ Không Chổi Than S2430 7200KV 25A ESC 2.2kg Cho Xe Điều Khiển Tỉ Lệ 1 / 14 1 / 16 1 / 18

Giới thiệu Động Cơ Không Chổi Than S2430 7200KV 25A ESC 2.2kg Cho Xe Điều Khiển Tỉ Lệ 1 / 14 1 / 16 1 / 18

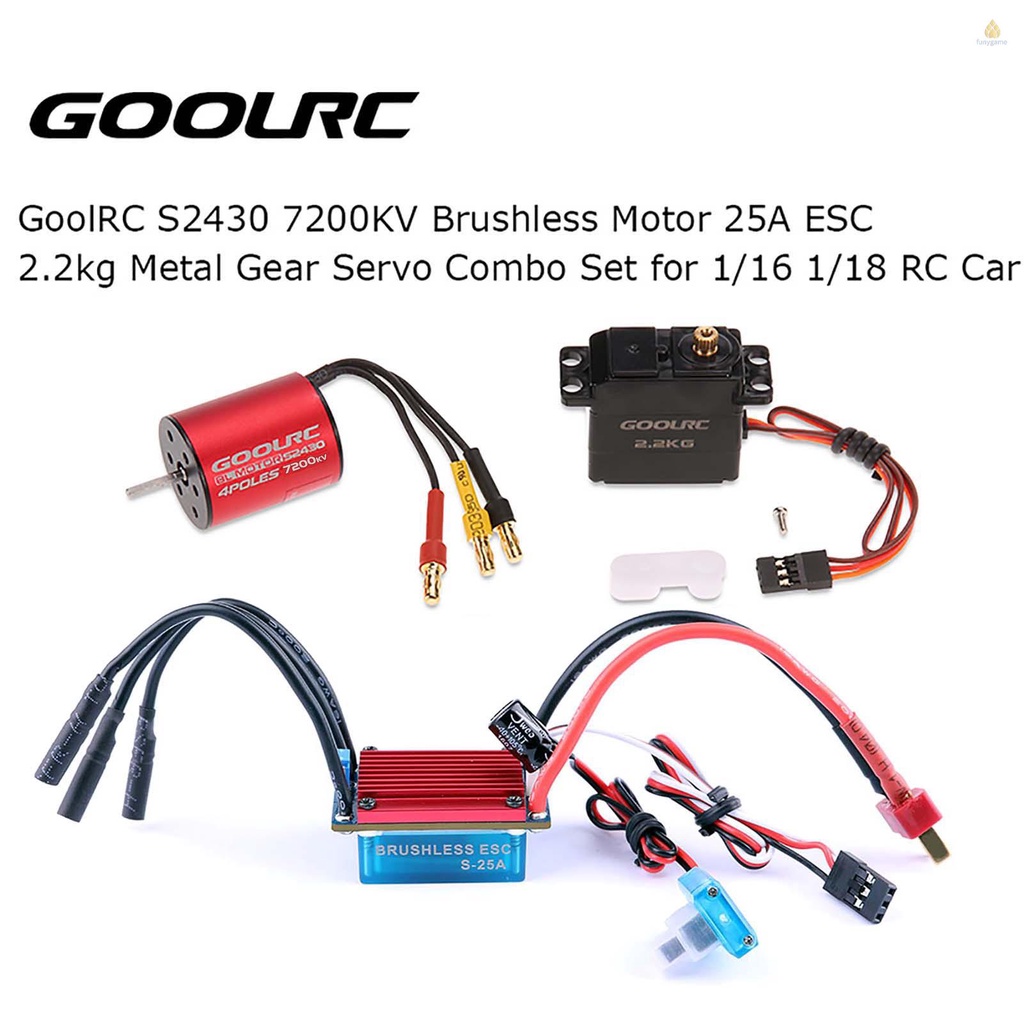

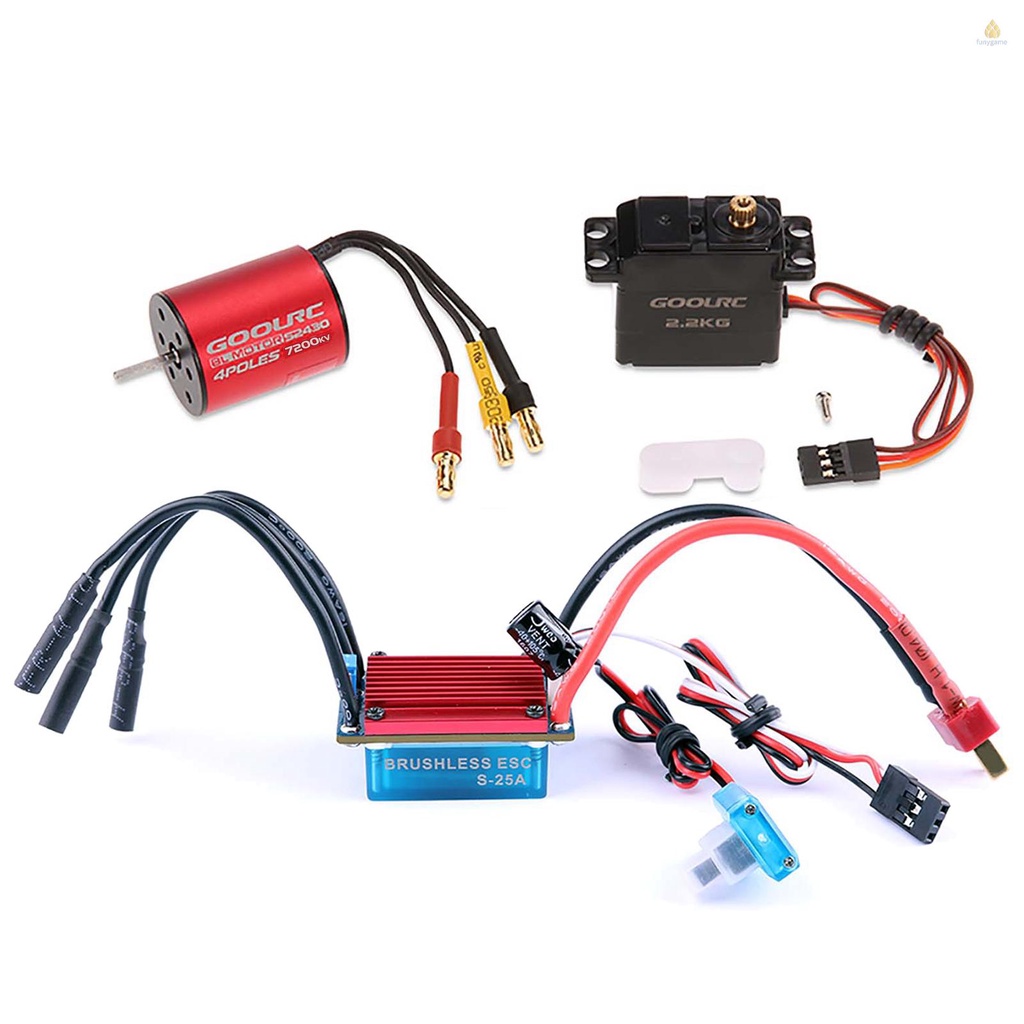

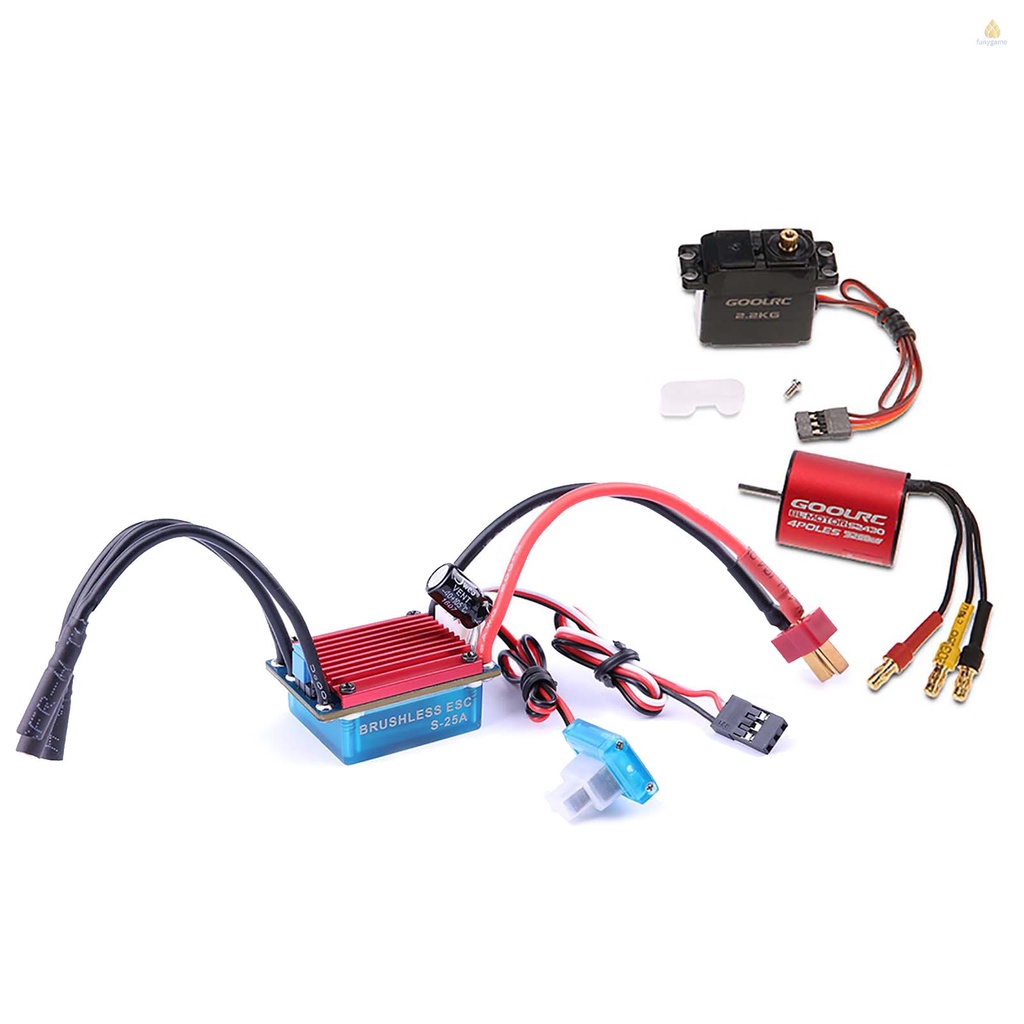

The set includes a S2430 7200KV brushless motor, a 25A ESC and a 2.2kg servo, which is perfectly fit for the 1/16 1/18 RC car. What you needed is all included in the combo, specially for RC car DIY hobbies.

Features:
High purity windings maximizes efficiency. Precision engineered for maximum energy conversion.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
Low heat production, long lifetime, strong overload protection. Super smooth and accurate throttle linearity.
Mutiple protection
Features: Low voltage cut-off protection for lithium or nickel battery, Over-heat protection, Throttle signal loss protection, Motor blocked protection.
High precision metal gear. Suit for 1/16 1/18 scale RC car.

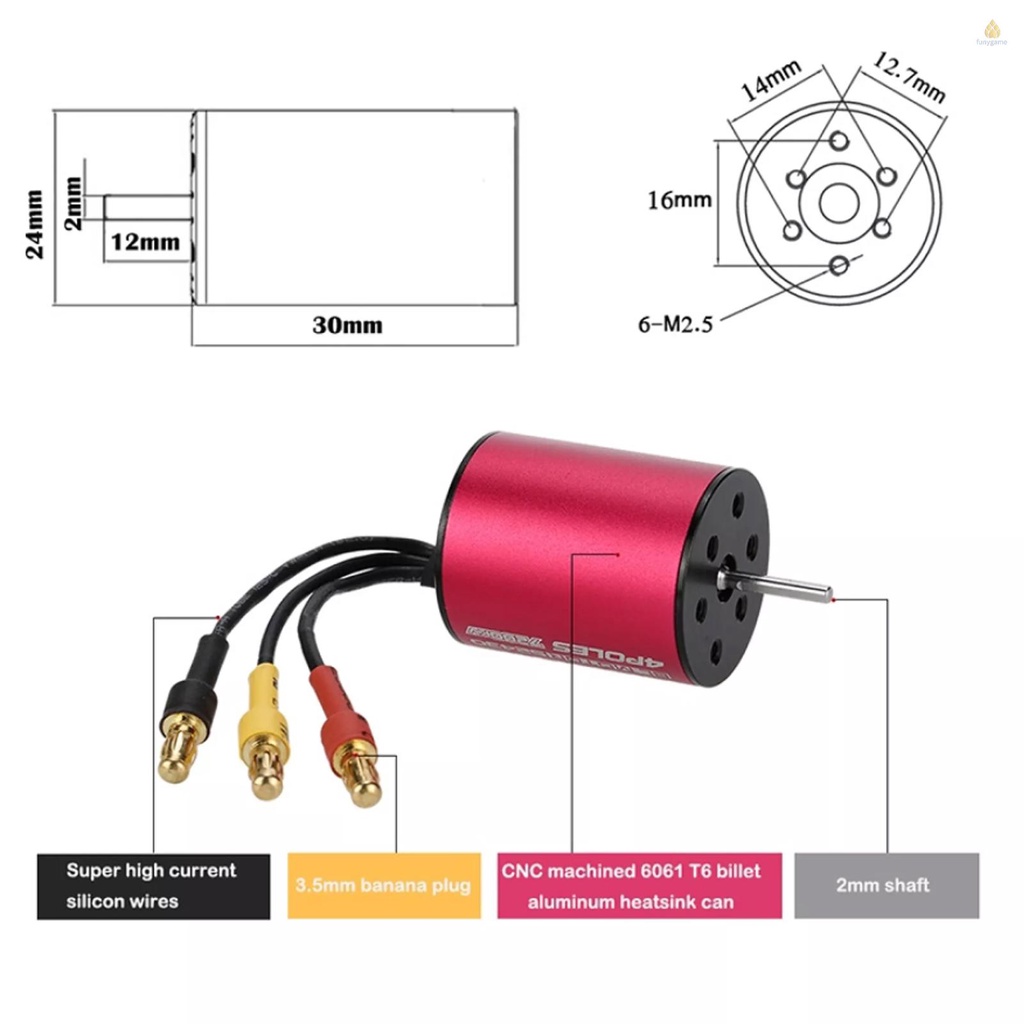

Motor
Specifications:
Brand: GoolRC
KV(RPM/Volt): 7200KV
Max RPM: 60000
Max voltage: <8.4V
Max amps: 24A
Resistance: 0.0068
Diameter: 24mm
Length: 30mm
Shaft length: 12mm
Shaft diameter: 2mm
Screw hole: 6 * M2.5
Connector: 3.5mm golden banana plug
Item weight: 44g

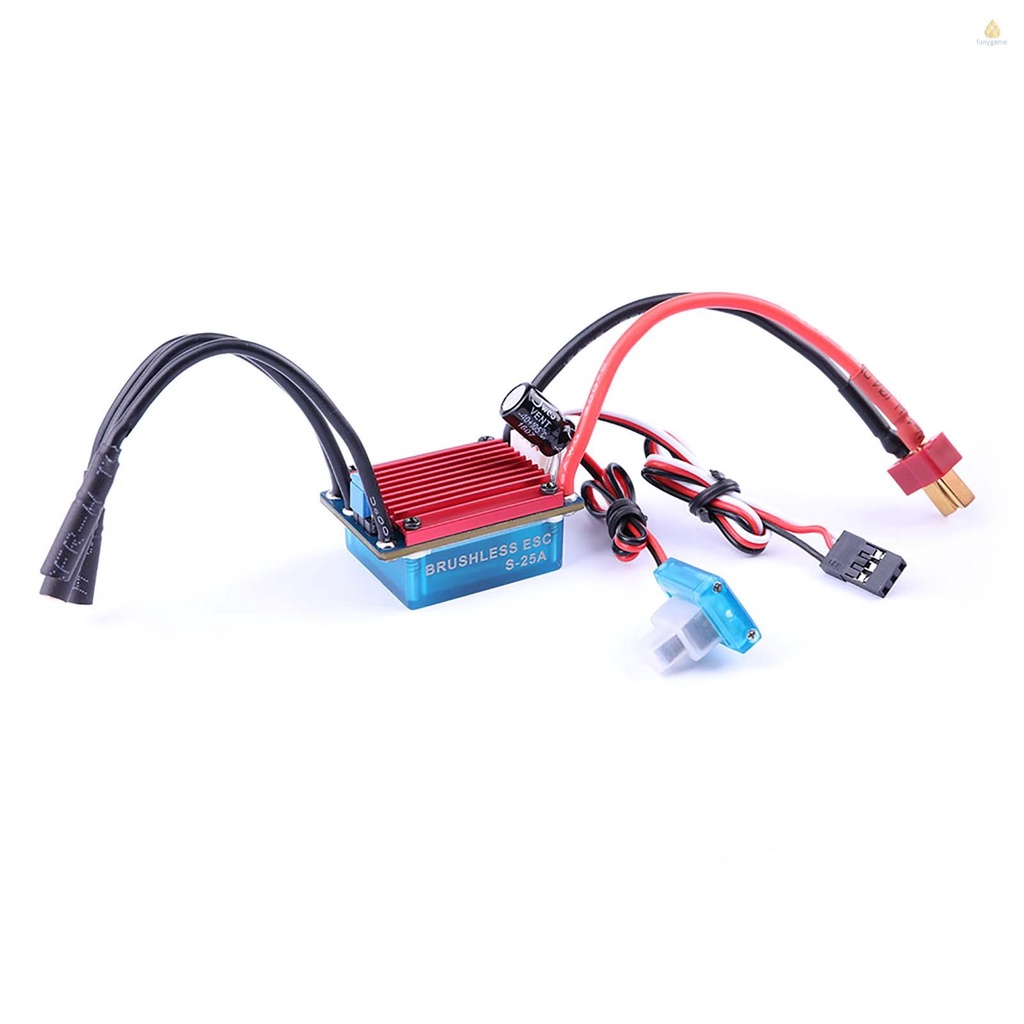

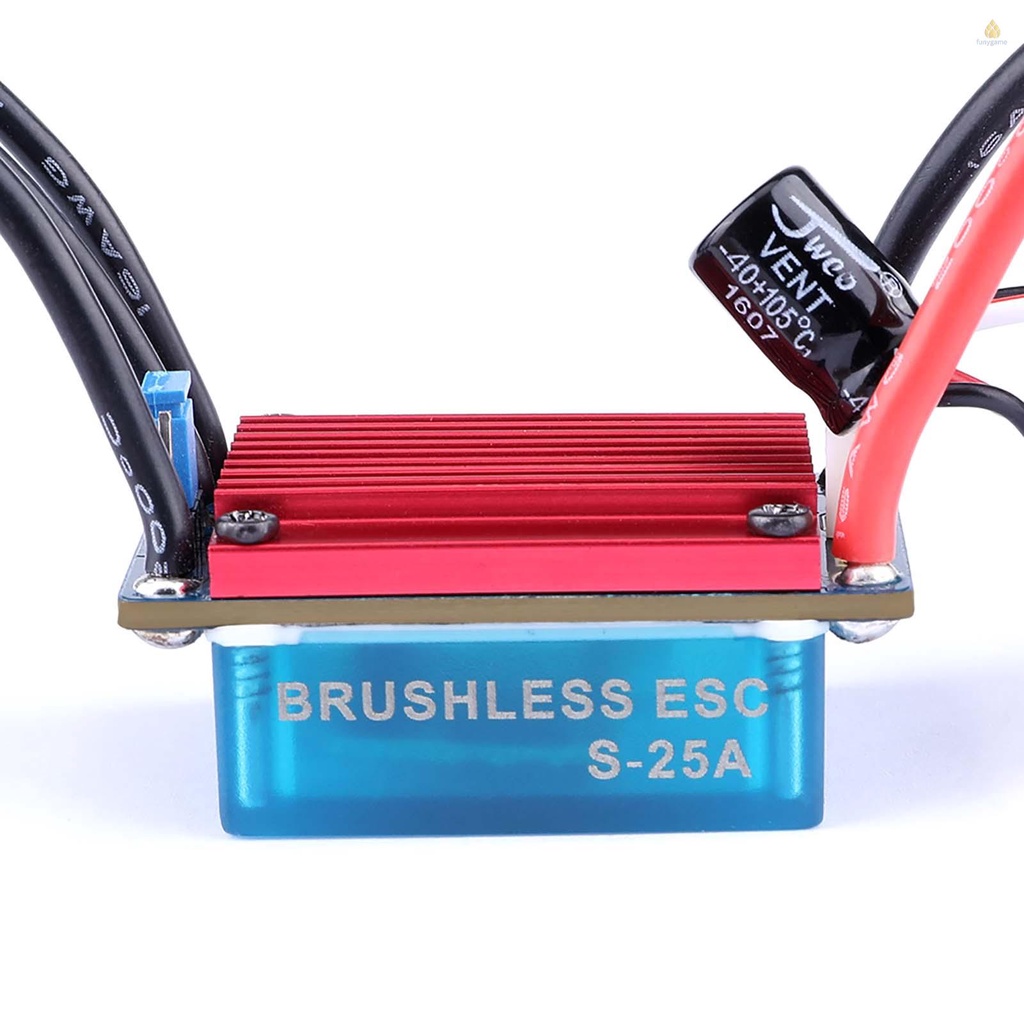

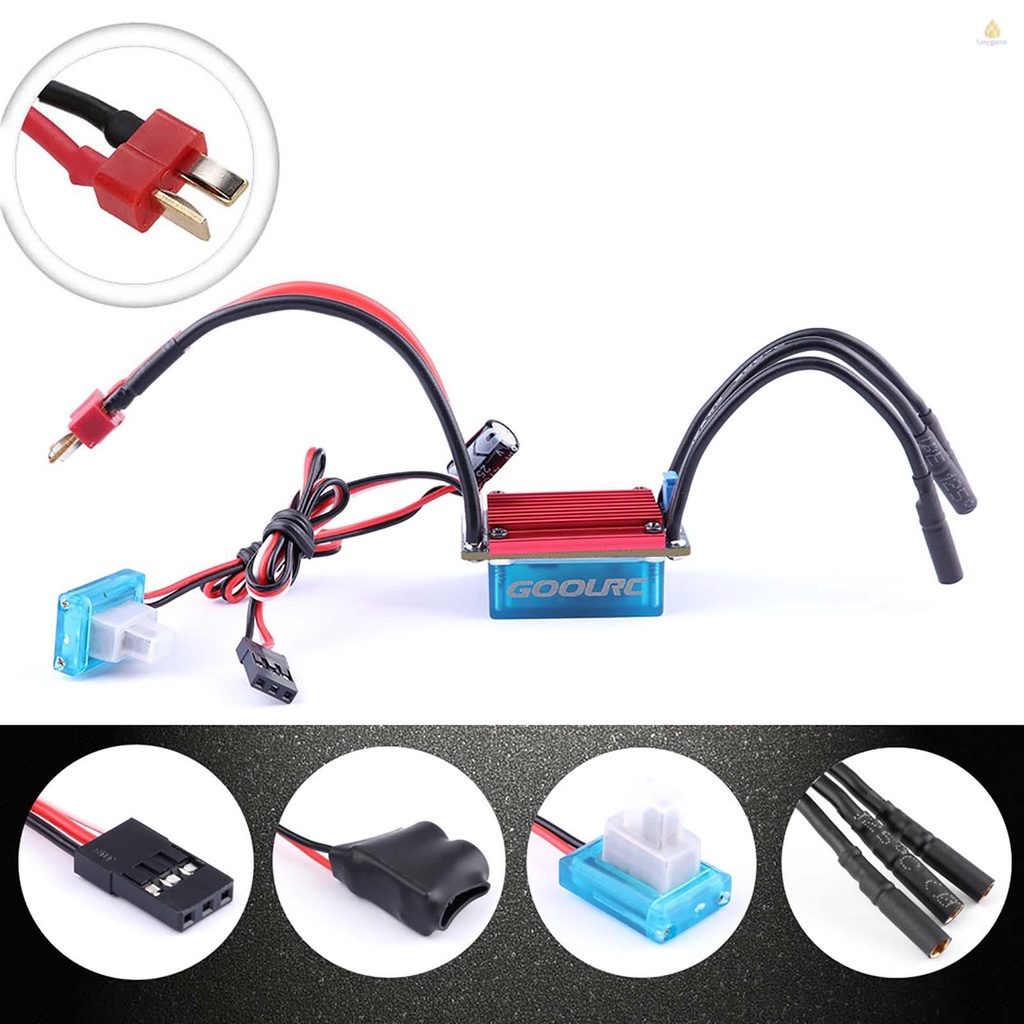

ESC
Specifications:
Constant current: 25A
Burst current: 90A / 10sec
Battery: 2S Li-Po / 4-6S Ni-Mh
BEC Output: 5V / 2A
Power supply plugs: T plug male
Motor plugs: 3.5mm banana plug female
Item size: 37 * 26 * 15mm
Weight: 30g
Servo
Specifications:
Operating Voltage: 4.8V-6.0V
Operating Speed (4.8V): 0.10sec/60° at no load
Operating Speed (6.0V): 0.08sec/60° at no load
Stall Torque (4.8V): 1.4kg.cm
Stall Torque (6.0V): 1.8kg.cm
Item size: 43 * 15 * 30mm (L * W * H)
Package Information:
Package size: 8 * 6.5 * 5.5cm
Package weight: 170g
Brand gift box package

Package List:
1 * GoolRC S2430 7200KV Motor
1 * GoolRC 25A ESC
1 * GoolRC Servo
