Đồng hồ đo áp suất jis m22-14 đa dụng chất lượng cao

Giới thiệu Đồng hồ đo áp suất jis m22-14 đa dụng chất lượng cao

Usage Introduction:

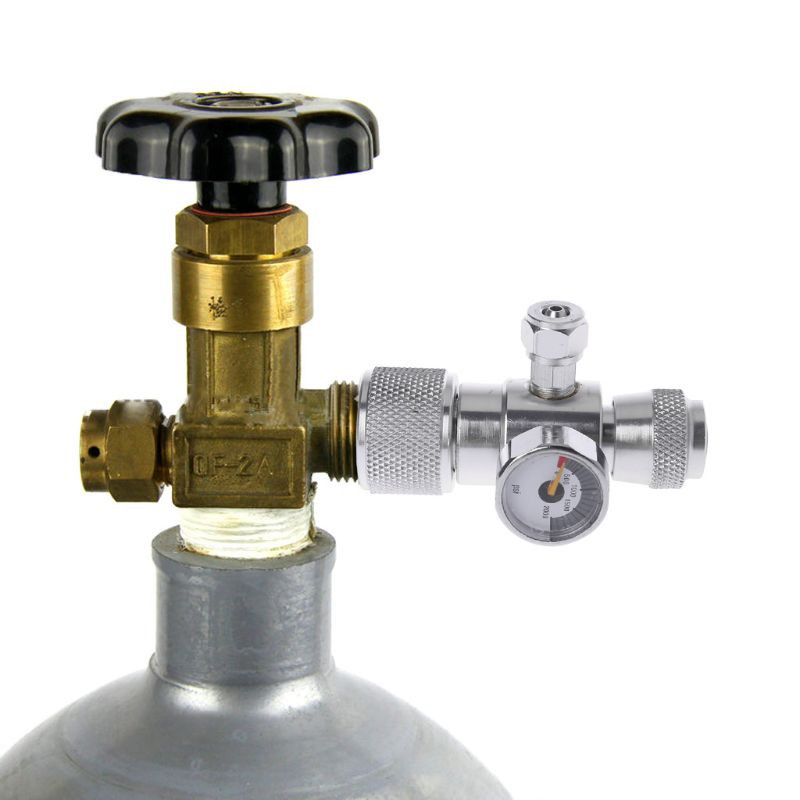

1. Make sure that the cylinder is stationary and locked tightly.
2. Please do not add any lubricant.
3. Please do not disassemble the device.
4. With the check counter bubble gauge, the reading is accurate, the built-in check reverse backflow can prevent the backflow phenomenon when the cylinder pressure decreases.

Adjustment Method:
Close CO2 gauge, install pressure reducing valve, connect equipment.
Open the relief valve trim switch, and adjust the gas output. Smaller than required.
Adjusting pressure reducing valve 8 hours later.

Warm Tips:
Please note this m22-14 do not fit cylinder in USA and Canada.
The thread is made according to UK, Europe, Japan and Taiwan standard (JIS m22-14), 22mm in diameter.

Specifications:
Material: Aluminium Alloy
Color: Silver
Thread Diameter: 22mm/0.87"
Input pressure: 0-10mpa
Intake link: GB cylinder interface G5/8
Outgassing link: M10x1 outer filament
Output pressure: Fine tune out bubble seconds calculation
Quantity: 1 Set

Notice:
Please allow 1-3cm error due to manual measurement and make sure you do not mind before ordering.
Please understand that colors may exist chromatic aberration as the different placement of pictures.

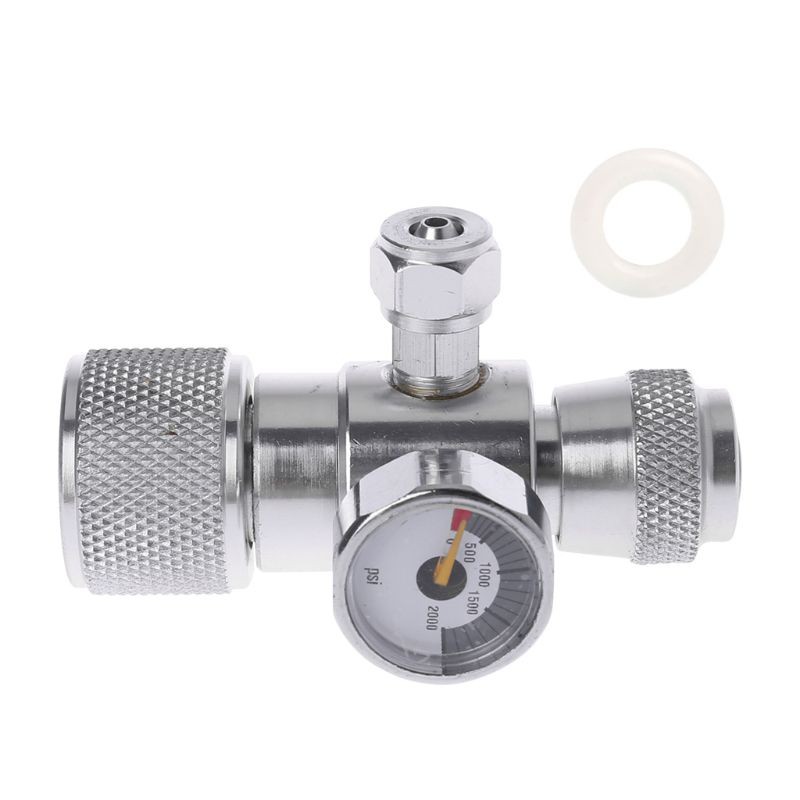

Package Includes:

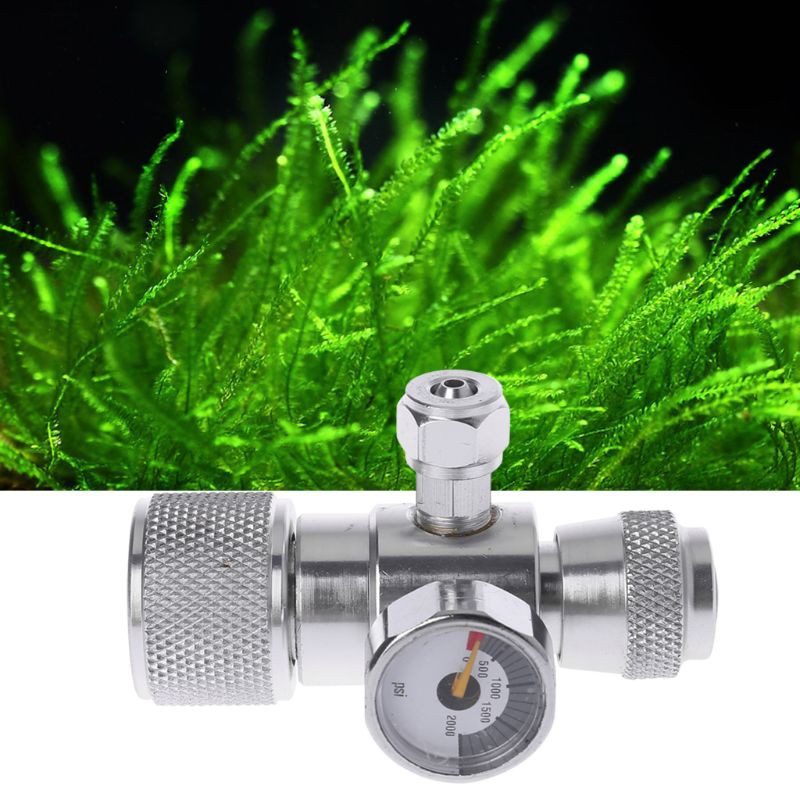

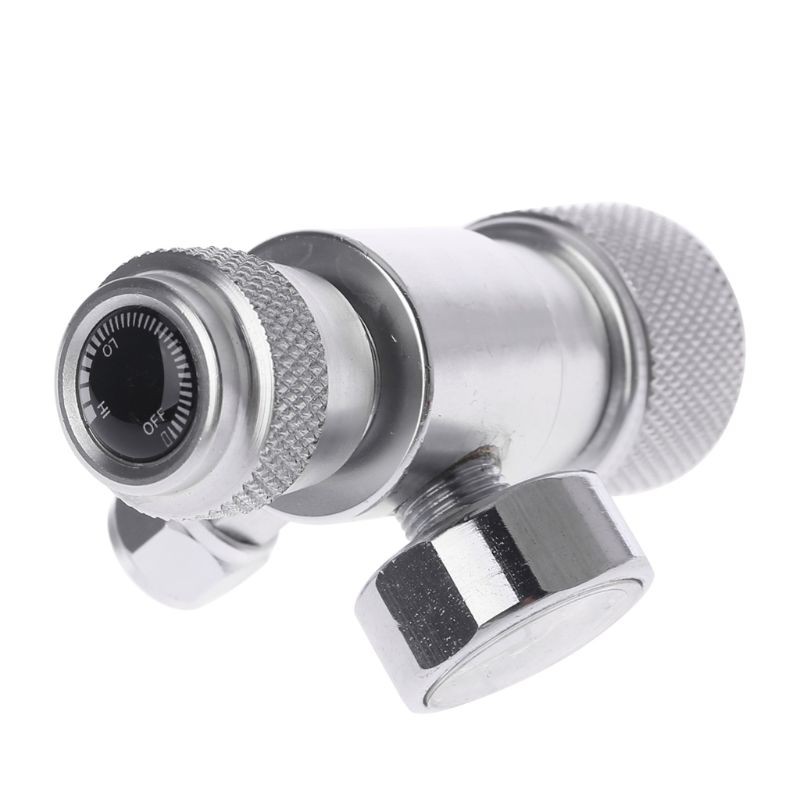

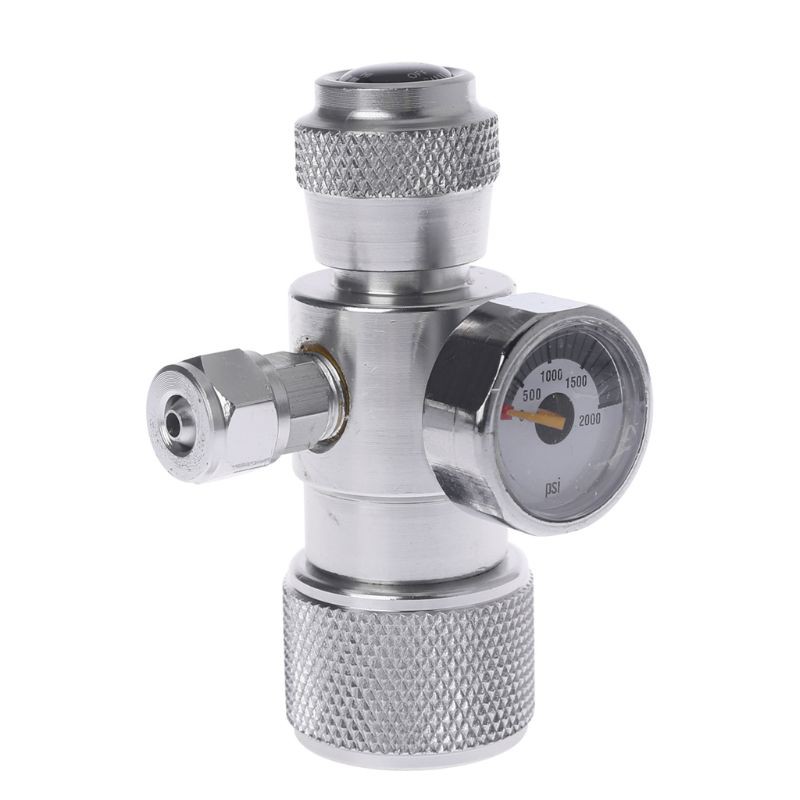

1 x CO2 Pressure Gauge

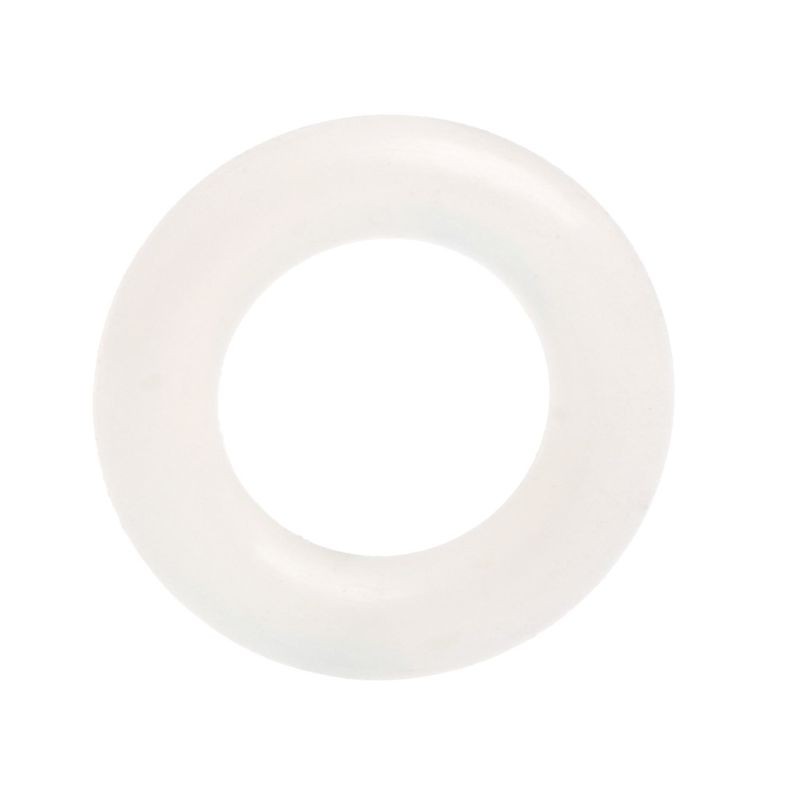

1 x Ring Washer
