Đồng hồ đo điện áp DC 120v 100a 200a 500a Lcd 12v 24v 48v 96v
Đồng hồ đo điện áp DC 120v 100a 200a 500a Lcd 12v 24v 48v 96v
Mô tả ngắn
Dụng cụ và thiết bị tiện ích > Dụng cụ điện và thiết bị lớn > Máy đo điện & đồng hồ vạn năng > Đồng hồ đo điện áp DC 120v 100a 200a 500a Lcd 12v 24v 48v 96v
Giới thiệu Đồng hồ đo điện áp DC 120v 100a 200a 500a Lcd 12v 24v 48v 96v

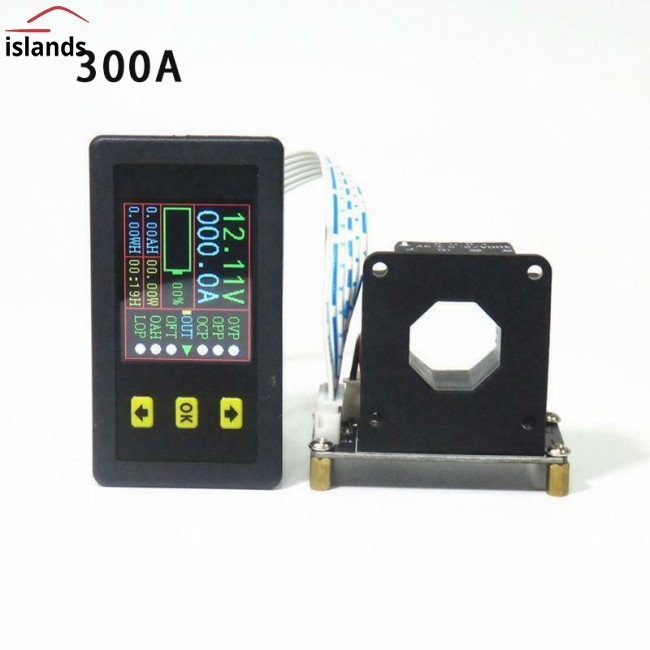

Ac9010h voltage meter is a type of new physical current voltage that can measure voltage, current, charge and discharge capacity, time and energy, etc. Meanwhile, it can also set the parameter to achieve overvoltage protection, over loading capacity, and limit protection, etc. Vac9010h use the non-contact detection of the hall to check the current, which can safely detect the current and use it convenient. Measured data and instrument used color lcd to display. The information will be comprehensive and humane. The meter is very suitable for monitoring the output voltage and current, as well as battery charging and discharging and other applications.
With the output and off function, flexible cab to open or disconnect the output (relay need).
With over voltage, over current, over power, litmited time, load protection function, etc.
Can calibrate online, give a convenience for the customer to correct the error in time.
LCD panel can be manually put out or less than 300m automatically screen out in one minute.

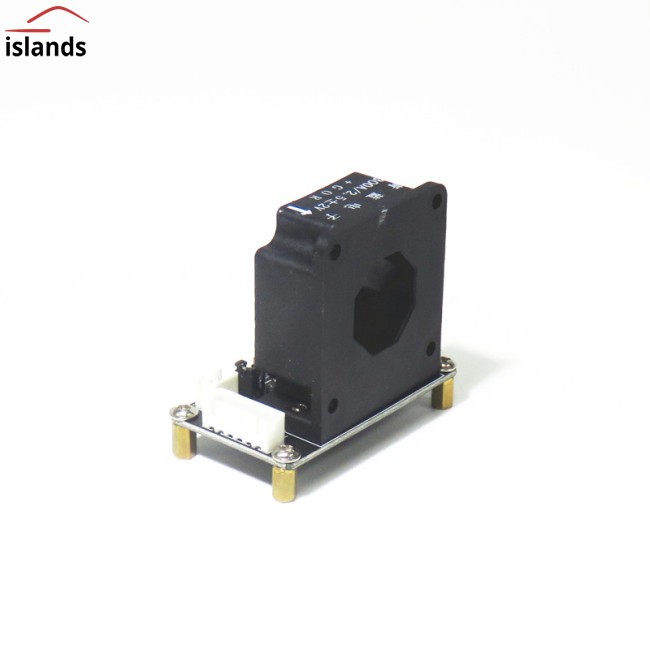

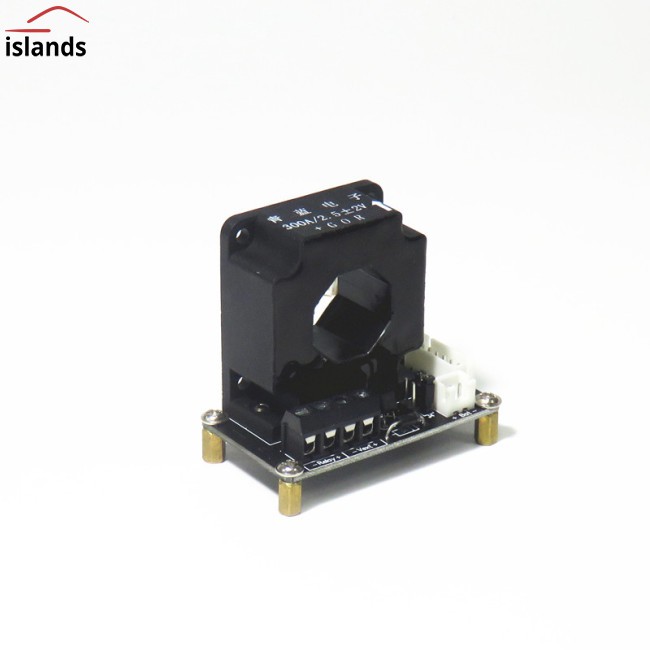

By detecting the current sensor of the hall, the current through the round hole of the thr wire through the thr sensor, both the current of the side direction can be detected. It is safe and convenient for users.
Applicable scope: charge monitoring and discharge of electric vehicle battery, photovoltaic electricity monitoring system and so on, the first current empty charge charging needs to clean.
Description:
Product category:Hall Coulombmeter
Type: VAC9010H
Optional Current: 100A/200A/300A/500A
Screen resolution: 0.1A
Voltage measurement range: Own power supply 12-90V ; External power supply 0-90V
Current accuracy: +-3%+-5 word
Accuracy voltage: +-2%+-5 word
Screen resolution tension: 0.01V
Screen resolution capacity: 0.1AH
Screen resolution time: 0.01H(1 min)
Measurement rate: 5 times/ second
Type of protection and define(OVP): 0.01V-90V
Type of protection and define(OPP): 0.01W-9.99KW
Type of protection and define(LOP): 0.01V-90V
Type of protection and define(OCP): 0.1-100A
Type of protection and define(OAH): 0.01AH-9999AH
Type of protection and define(OFT): 1min-99hour59min
Size: approx. 79x43x26mm(3.11x1.69x1.02in)
Installation opening: 76.5x39.2mm
Color: As pictures shown.
Quantity: 1 pc
Packing list:
1 set x Hall Coulombmeter
Note:The colors deviation might differ due to different monitor settings, please kindly understand.
