Giới thiệu Đồng Hồ Đo Dung Lượng Pin Wer 12v-84v
#12V-84V #Lead-acid #Battery #Capacity #Indicator #Voltage #Meter #Voltmeter #LCD #Monitor12V-84V Lead-acid Battery Capacity Indicator Voltage Meter Voltmeter LCD Monitor
Features:
Lead-acid and Lithium battery can be used to visually display battery state power;
With switch, easy to install and use, no need for external control switch;
The front is a PVC film, the surface can be waterproof;
Liquid crystal display, power saving, saving more than 50% power over conventional power
The following battery is universal
Lithium battery: 3 string 4 string 5 string........24 string 25 string 26 string

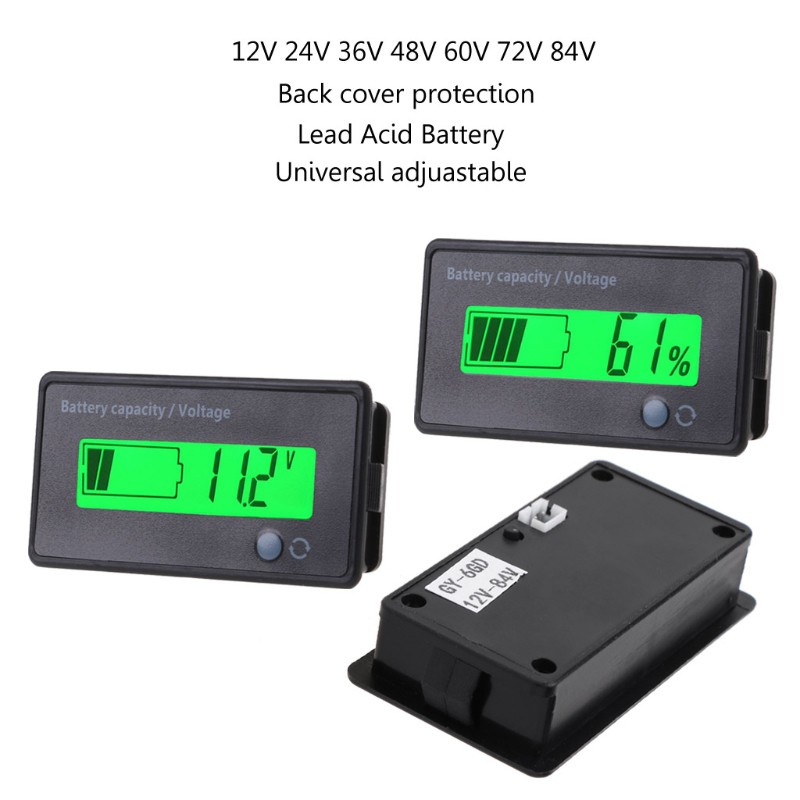

Lead acid: 12V 24V 36V 48V 60V 72V 84V
Specifications:
Voltage range: 9-100V
Operating current: <5mA

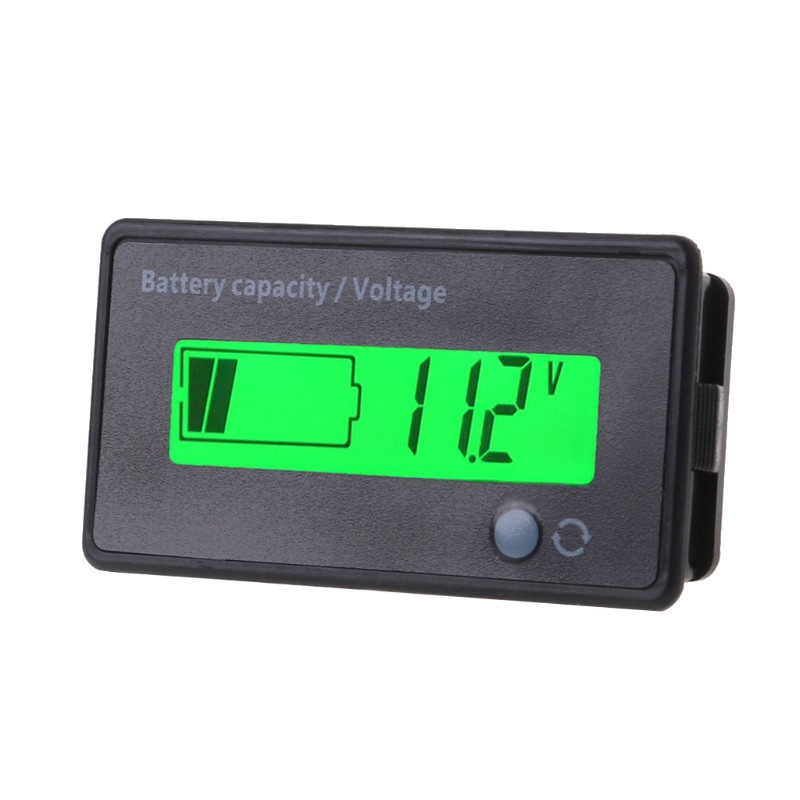

Display mode: LCD percentage% / voltage
Color: Green
Waterproof grade: surface waterproof
About installation

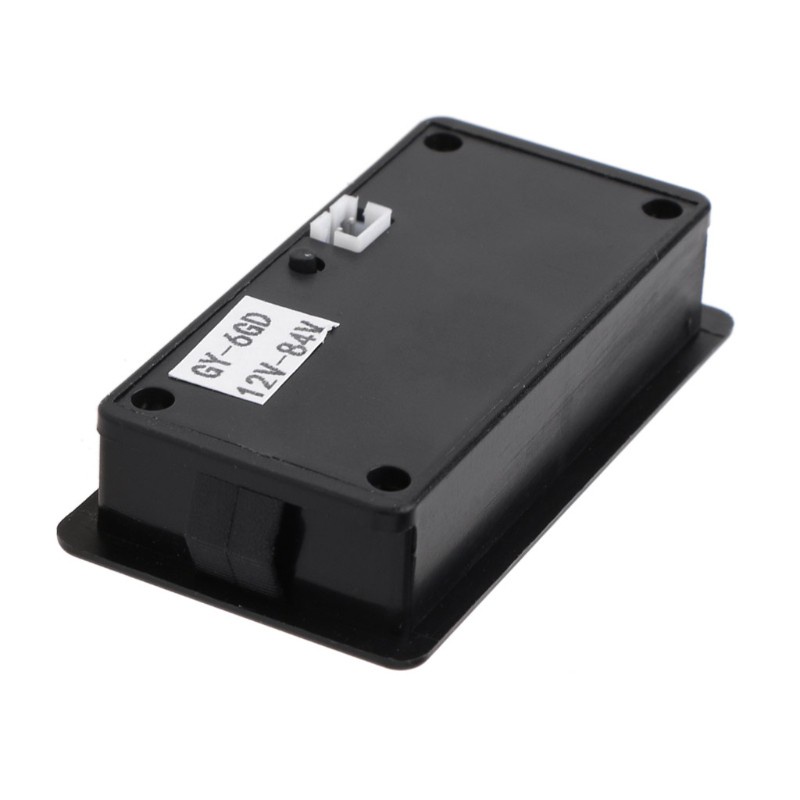

Installation method: shell with snap lock (without screws)

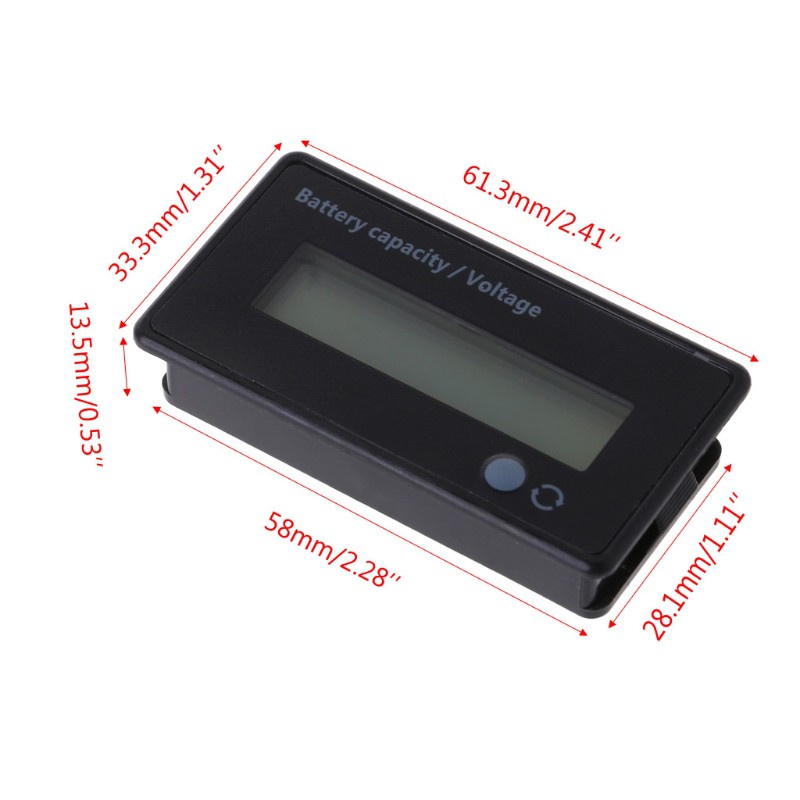

Product Size: 61.3*33.3*13.5mm
Embedded size: 58.5*28.5mm
Package include:

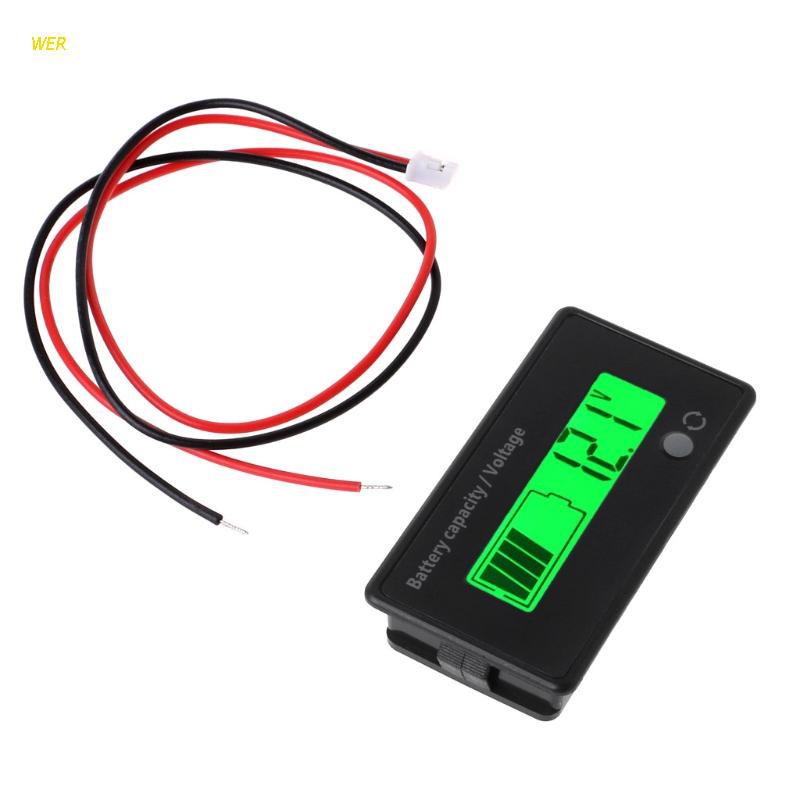

1 * 12V-84V Lead-acid Battery Capacity Voltage Indicator
1 * Cable
Instructions
How to set (If you don't understand, welcome to contact us for help)
S1：%/V Rotate display in 2s
Power percentage and voltage are displayed in turn recurrently and automatically；
S2：Inactivity sleep in 10s
Automatically sleep after battery capacity display for 10 s, save power, press the function key to wake up power display for 10 seconds;
S3：Turn on backlight
Power display turns on or off power backlight;
S4：Show logo(Applicable to small battery icon)
Logo icon is located in the underface of battery symbol on the left side of LCD, turn on and show the logo;
S5：Discharge mode selection
Power displays two kinds of battery discharge curve, different environments convert to select appropriate battery discharge modes;
Setting procedure
1. Disconnect the module power supply, press and hold the setting button until powering the power module. Display shows the current power setting parameters;
2. Press the setting button to select P / L / F ，(P = 12V lead acid, L = 3.7V lithium battery, F = 3.2V lithium iron phosphate battery);
3 press the function key to set the number of the battery string, according to the function keys and set the key up or down to choose the number of batteries in series;
4. Press the function key for a long time to enter the advanced setting interface, use setting key to select S1-S5, enter key to select or cancel the current mode;
5. Reenergize the power after setting. The power automatically saves setting data.
E.g. 10 lithium battery power, turn on power percentage and voltage automatic rotation display (S1 mode)
Operation: Disconnect display module power, press and hold the setting button, power the power module, press the setting button for a short time to select L, press the function key to select 10, press the function key for a long time to select S1 and re-power.
