Đồng hồ Kẹp kỹ thuật số NJTY 4000 Đếm Đồng hồ vạn năng dải tần tự động với NCV Kiểm tra Điện áp AC / DC AC Dòng điện Di động Cầm tay LCD Diaplay Đo điện trở Điện dung Tần số Liên tục Nhiệt độ Diode♠

Giới thiệu Đồng hồ Kẹp kỹ thuật số NJTY 4000 Đếm Đồng hồ vạn năng dải tần tự động với NCV Kiểm tra Điện áp AC / DC AC Dòng điện Di động Cầm tay LCD Diaplay Đo điện trở Điện dung Tần số Liên tục Nhiệt độ Diode♠

Want to own the professional clamp meter to test AC/DC voltage & AC current, capacitance, resistance, frequency, temperature, NCV or diode? You should try this clamp meter. This LCD Digital AC/DC clamp multimeter is a portable and professional clamp meter which has almost everything you need for a full multimeter. It is widely used for field, laboratory, shop and home applications.

Features:
MULTI-PURPOSE CLAMP METER WITH AUTO RANGE: Accurate AC/DC Voltage, AC Current, Diode, Capacitance, Frequency, Temperature, Resistance and NCV Test.
WITH CONTINUITY TEST & DATA HOLD FUNCTION: Continuity Test, Data Hold & Relative Value Test. Auto Power off Function. Maximum Display Value: 4000.
CONTINUITY TEST & OVERLOAD PROTECTION: Designed to Safely and Accurately Confirm the Circuit Conducts Electricity with Low Voltage Indication and Overload Protection. Shows "OL" on the LCD If Overrange.
EASY TO USE AND READ: Small and Portable to Carry and Use. High Resolution, Large & Clear LCD Screen Improves Visibility. Widely used in Your Life. Suitable for Electrical Equipment Testing and Maintenance.

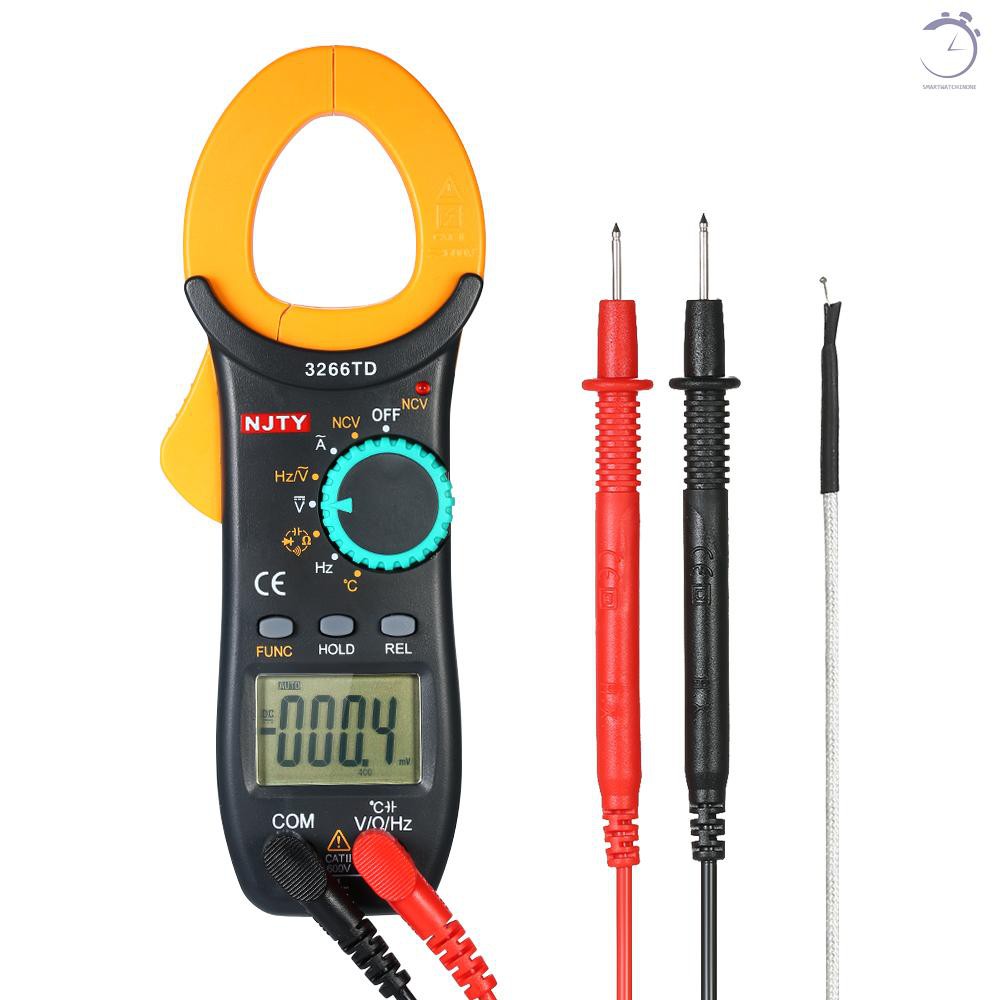

WHAT YOU WILL GET: 1 * Digital Clamp Meter, 2 * Test Leads, 1 * K-type Temperature Probe, User Manual(English), 1 * Storage Bag. LCD Display with Backlight, Convenient to Operate and Read.

Specifications:
Brand Name: NJTY
Material: ABS
Color: Black + Orange
Range Control: Auto Range
Sampling Speed: approx. 3 times / second
DC Voltage Range: 400mV/4V/40V/400V/600V
DC Voltage Max Resolution: 0.1mV
AC Voltage Range: 400mV/4V/40V/400V/600V
AC Voltage Max Resolution: 0.1mV
Resistance Range: 400Ω/4kΩ/40kΩ/400kΩ/40MΩ
Resistance Max Resolution: 0.1Ω/1Ω/10Ω/100Ω/10kΩ
AC Current Range: 40A/400A
AC Current Max Resolution: 10mA
Frequency Range: 10Hz/100Hz/1000Hz/10kHz/100kHz/1000kHz/10MHz
Frequency Max Resolution: 0.01Hz
Capacitance Range: 5nF/50nF/500nF/5μF/50μF/200μF
Capacitance Max Resolution: 1pF

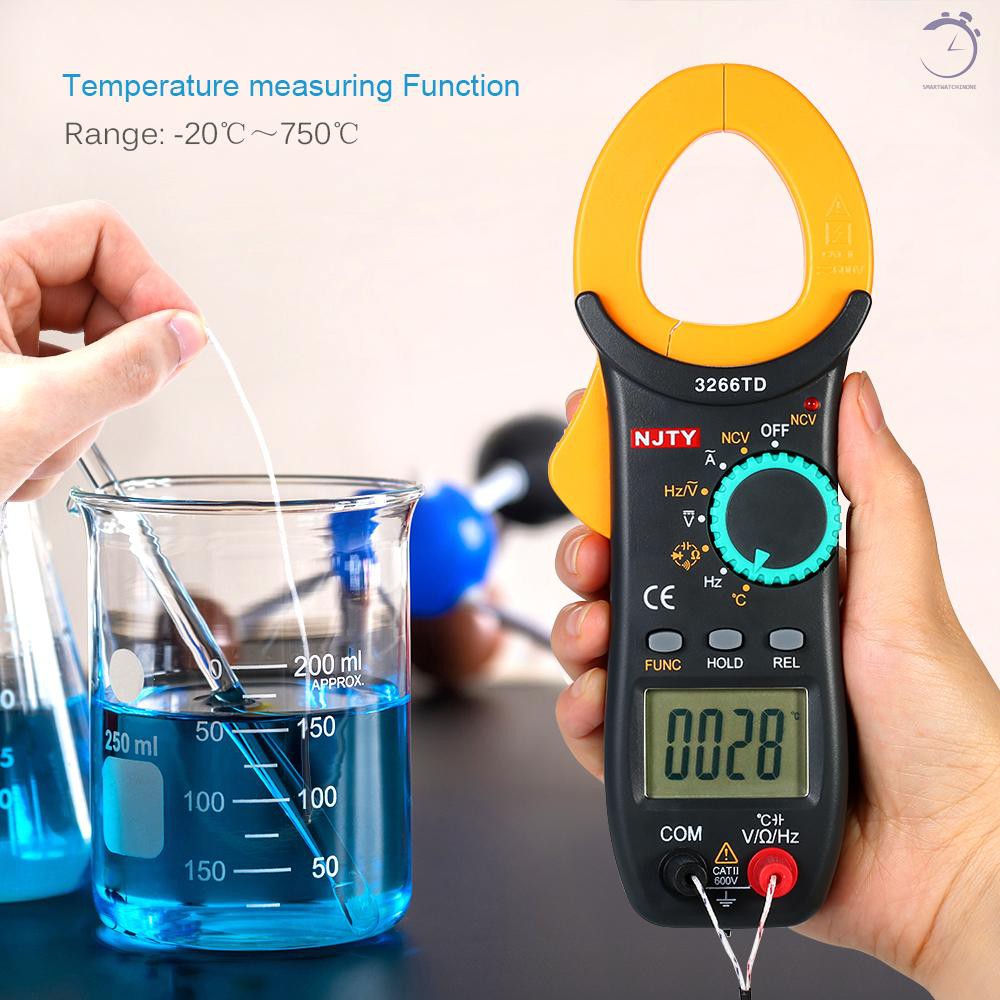

Temperature Measurement Range: -20℃～750℃
Temperature Max Resolution: 1℃
Operating Environment: Temperature 0℃ to 40℃, Humidity ≤ 75% RH
Storage Environment: Temperature -10℃ to 50℃, Humidity ≤ 80% RH
General Characteristic:
Display Count: 4000 (3 3/4 LCD)
Max Clamp Opening Size: 30mm / 1.2in
LCD Screen Size: 35 * 23mm / 1.4 * 0.9in
Diode: Around 1.5V
Continuity: YES
Capacitance: YES
Frequency: YES
Temperature: YES
Data Hold: YES
Overload Indication: Shows "OL" on the LCD
Auto Power Off: YES
Continuity Buzzer: YES
Low Battery Indication: YES
Overload Protection: YES
Input Impedance: ≥10MΩ
Power: AAA 1.5V x 2（Not Included）
Product Net Weight: 129g / 4.5oz
Product Size: 185 * 70 * 25mm / 7.3 * 2.8 * 1.0in
Package Size: 21.5 * 11 * 4cm / 8.5 * 4.3 * 1.6in
Package Weight: 277g / 9.8oz

Package List:
1 * Clamp Meter
2 * Test Lead
1 * K-type Temperature Probe
1 * Storage Bag
