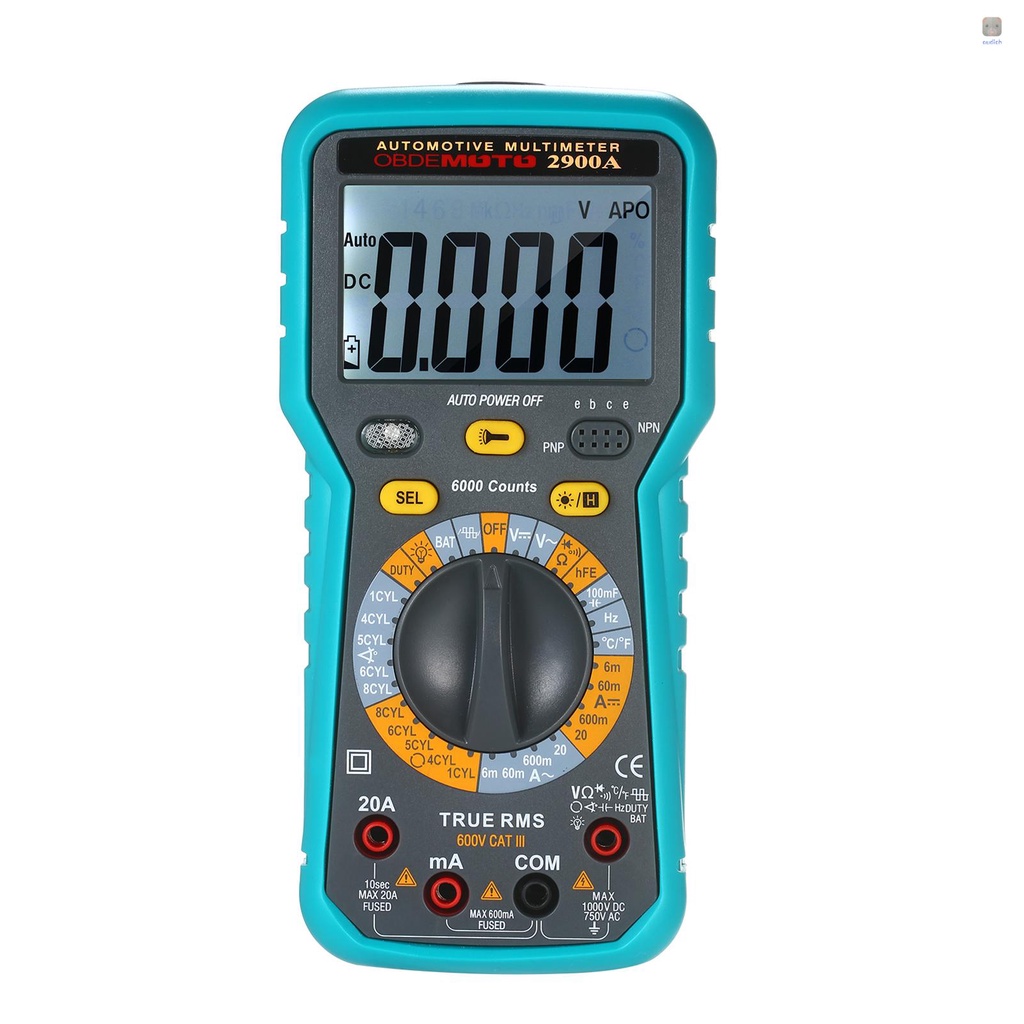

Đồng Hồ Vạn Năng Kỹ Thuật Số 6000 Count LCD Kèm Đèn Pin

Giới thiệu Đồng Hồ Vạn Năng Kỹ Thuật Số 6000 Count LCD Kèm Đèn Pin

The 6000 counts digital automotive multimeter is well designed with convenient operation, accurate reading, true RMS, clear full symbol LCD display and complete functions. It can measure DC/AC voltage, DC/AC current, resistance, capacitance, frequency, temperature, speed, closing angle, lamp test, positive and negative pulse, crystal diode, triode parameters and circuit on and off, which is very suitable for vehicle maintenance and debugging.



Features:

Multiple Measurement Functions: includes the measurement of dwell angle, rotational speed, duty cycle, DC/AC voltage, DC/AC current, resistance, capacitance, frequency, temperature, battery, positive and negative pulse, NCV measurement and test lamp measurement, and transistor hFE test, diode test, and on-off test.

Data Hold Function: locking the measured data for conveniently read and record.

More

Features: low battery indicator, 15 minutes auto-off function, probe pen slot designed and supporting bracket.

LCD Display with Backlight Function: 6000 counts clearly full symbol LCD displayed, manual on/off the backlight of the multimeter for easily check the readout in the dark environment.

Equipped with Protective Cover: in addition to the protection of the tester, but also can support the tester from multiple angles, convenient for observation.

Practical & Functional Tester: tester uses the latest software and technology,

Features of automatic calibration, high precision, and good stability, which can be widely used in the testing and maintenance on the vehicle.



Specifications:

Material: ABS

Maximum Display: 5,999 (6,000 display)

Dwell Angle Measurement Range: 1CYL: 0-180°, 4CYL: 0-90°, 6CYL: 0-60°, 8CYL: 0-45°

Accuracy: ±(1.2%+2)

Rotational Speed Measurement Range: 500~15000rpm

Rotational Speed Accuracy: ±(1.2%+2)

Duty Cycle Measurement Range: 0~100%

Duty Cycle Accuracy: ±(1.2%+2)

DC Voltage: 6V/60V/600V±(0.5%+3), 1000V±(0.8%+3)

AC Voltage(TRMS): 6V/60V/600V±(0.8%+3), 750V±(1.2%+3)

DC Current: 6mA/60mA/600mA±(1.2%+3), 20A±(2.0%+5)

AC Current(TRMS): 6mA/60mA/600mA±(1.2%+3), 20A±(2%+5)

Resistance: 600Ω±(0.8%+3), 6KΩ/60KΩ/600KΩ/6MΩ±(0.8%+2),60MΩ±(1.0%+5)

Capacitance: 6nF/60nF±(5%+3), 600nF/6uF/60uF/600uF±(3%+3), 6mF/60mF/100mF±(5%+3)

Temperature:

-40～400℃±(0.75%+4), 400～1000℃±(1.5%+15)

-40～752℉±(0.75%+4), 752～1832℉±(1.5%+15)

Frequency: 6Hz～10MHz±(5%+3)

Auto Power off: 15 minutes

Diode Test: Yes

hFE Test: Yes

Continuity Testing: Yes

Backlight: Yes

Data Hold: Yes

Range Select: Yes

Over Range Indication: Yes

Full Symbol Display: Yes

Full Automatic: Yes

RPM: 2 strokes, 4 strokes, the same function as MST-1000

True RMS: Yes

Flashlight: Yes

Working Environment: 0~40℃, <85%RH

Storage Environment: -10~50℃, <85%RH

Guaranteed Accuracy Environment: 23℃±5℃, <75

Power Supply: 1 * 9V 6F22 battery (NOT included)

LCD Size: 63 * 40mm

Item Size: 180 * 89 * 52mm / 7.09 * 3.51 * 2.05in

Item Weight: 306g / 10.79oz

Package Weight: 518g / 18.27oz

Package Size: 21 * 15
