Đồng Hồ Vạn Năng Kỹ Thuật Số TASI TA801A Kèm Bộ Phụ Kiện

Giới thiệu Đồng Hồ Vạn Năng Kỹ Thuật Số TASI TA801A Kèm Bộ Phụ Kiện

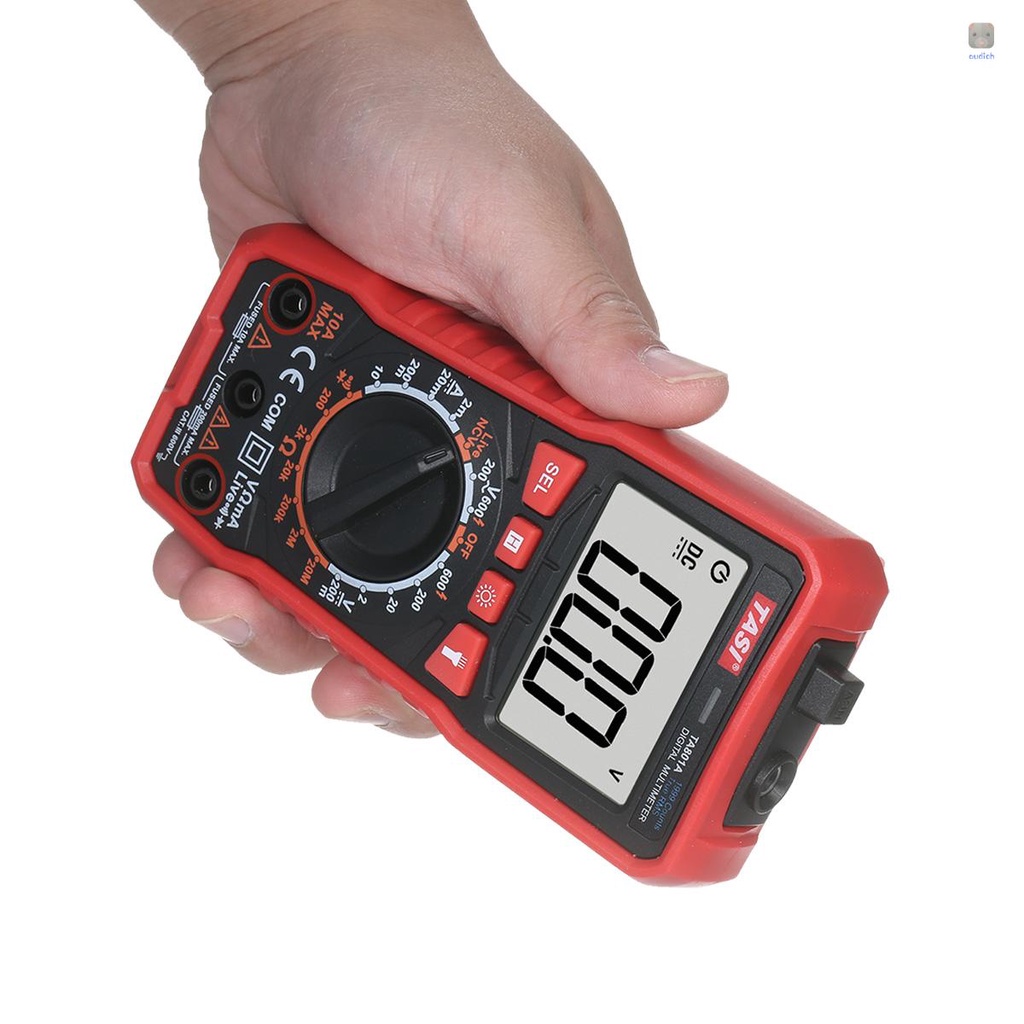

TA801A is a mini digital multimeter with 3 1/2 digit display and manual range. It

Features stable performance, high accuracy, high reliability and over-load protection function. It can measure multiple parameters, including DC/AC voltage, DC current, resistance, diodes, and carry out on/off circuit test, NCV detection, neutral and live wire identification.



Features:

Able to test DC/AC voltage, DC current, resistance, diodes, and carry out on/off circuit test, NCV detection, neutral and live wire identification.

Compact and lightweight design, making it extremely portable and easy to carry.

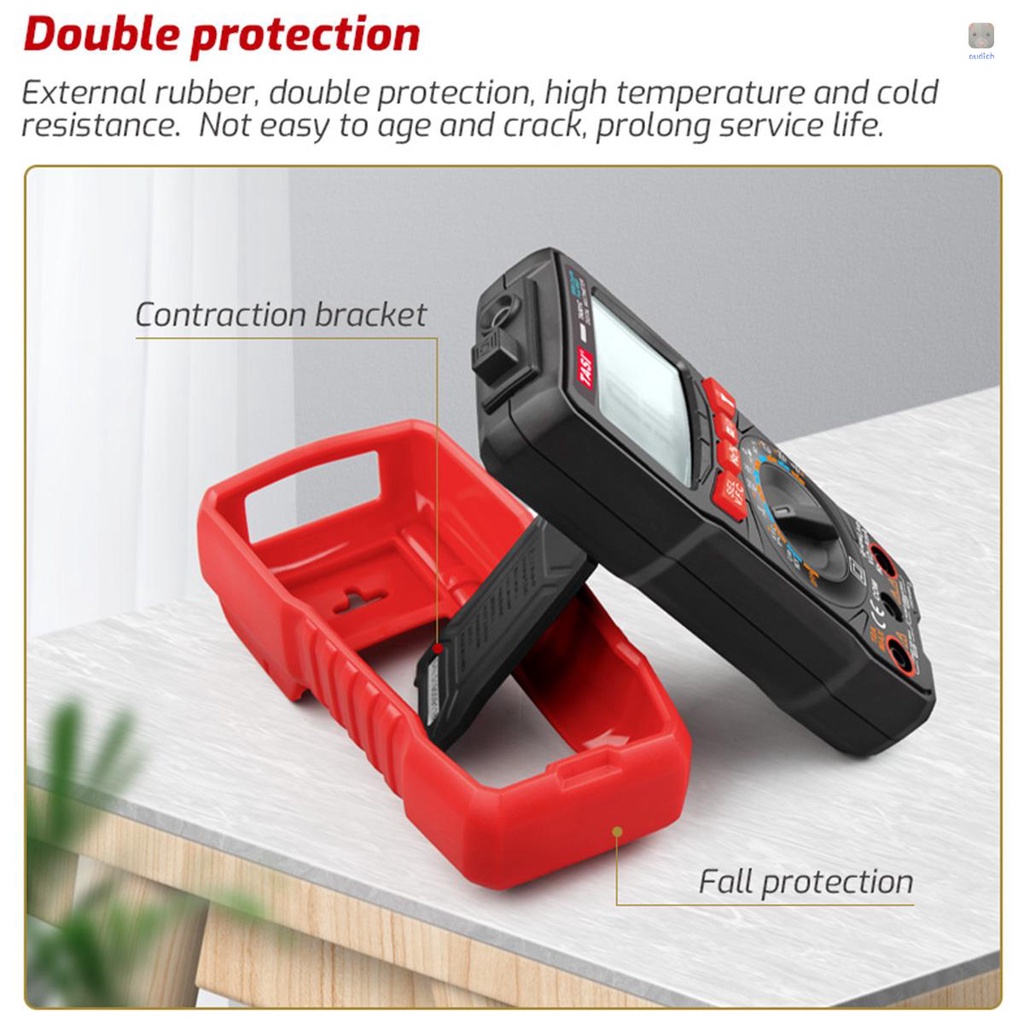

Comes with a protective rubber case to ensure durability, and two test leads slots for better storage.

Built-in flashlight makes it convenient to use at night or dark corner, and it also provides buzzer alarm and LED warning light.

Equipped with easy-to-read LCD display which shows 1999 counts clear readings, easy to read.

Ideal tool for home circuit installation, electronics repair, electrical facilities maintenance, automobile repair, home appliances repair.



Specifications:

Material: ABS

Brand: TASI

Model（Optional）         TA801A                                           TA801B                                           TA801C                                              TA801D

DC voltage              0.1mV~600V

±(0.5%+2)      0.1mV~600V

±(0.8%+5)      0.01uV~600V

±(0.5%+2)        0.1mV~600V

±(0.5%+3)

AC voltage              0.1V~600V

±(1.2%+3)       1mV~600V

±(1.0%+3)        0.01uV~600V

±(1.0%+3)        0.001V~600V

±(1.0%+3)

DC current              1uA~10A

±(1.0%+2)         1uA~10A

±(1.0%+2)         1uA~10A

±(1.0%+2)            0.01mA~600mA

±(1.2%+10)

AC current              N/A                                              0.01uA~10A

±(1.0%+5)      0.01uA~10A

±(1.0%+5)         0.01mA~600mA

±(1.2%+10)

Resistance              0.1Ω~20MΩ

±(0.8%+3)       0.1Ω~60MΩ

±(0.8%+2)       0.1Ω~100MΩ

±(0.8%+2)         0.1Ω~60MΩ

±(0.8%+10)

Capacitance             N/A                                              nF~60000μF

±(3.0%+5)      1nF~100000μF

±(3.0%+10)      1nF~60000μF

±(3.5%+20)

Frequency               N/A                                              10~10MHz

±(0.1%+5)        10~10MHz

±(0.1%+3)           40~10MHz

±(0.1%+3)

Diode                   2.2V                                             3.2V                                             3.2V                                                3V

Item Size: 1
