DIY Multifunction High-precision clock inside and outside Car temperature Battery voltage Monitor Panel Meter DC 12v

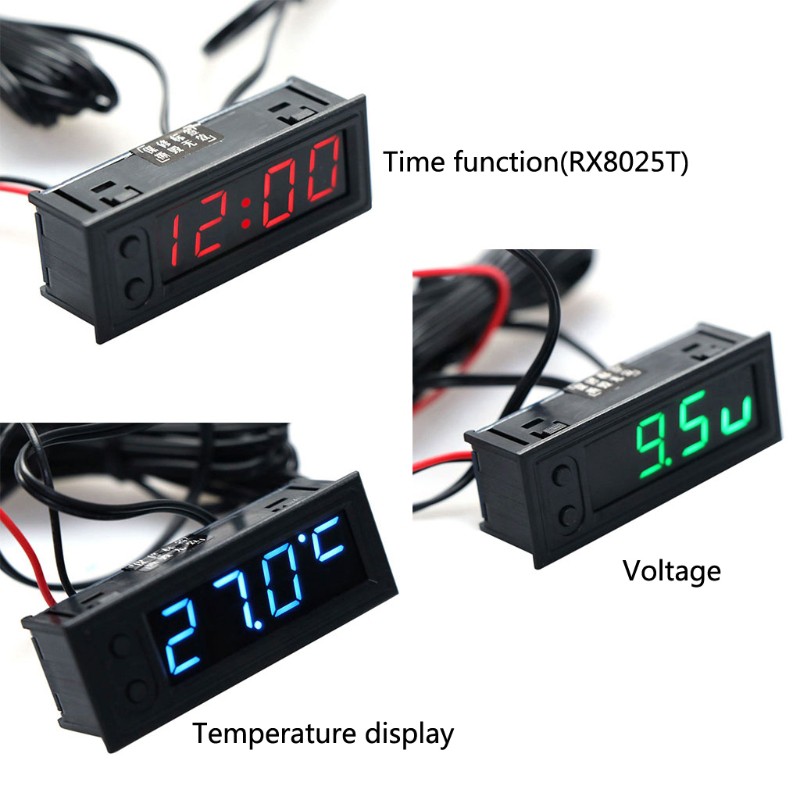

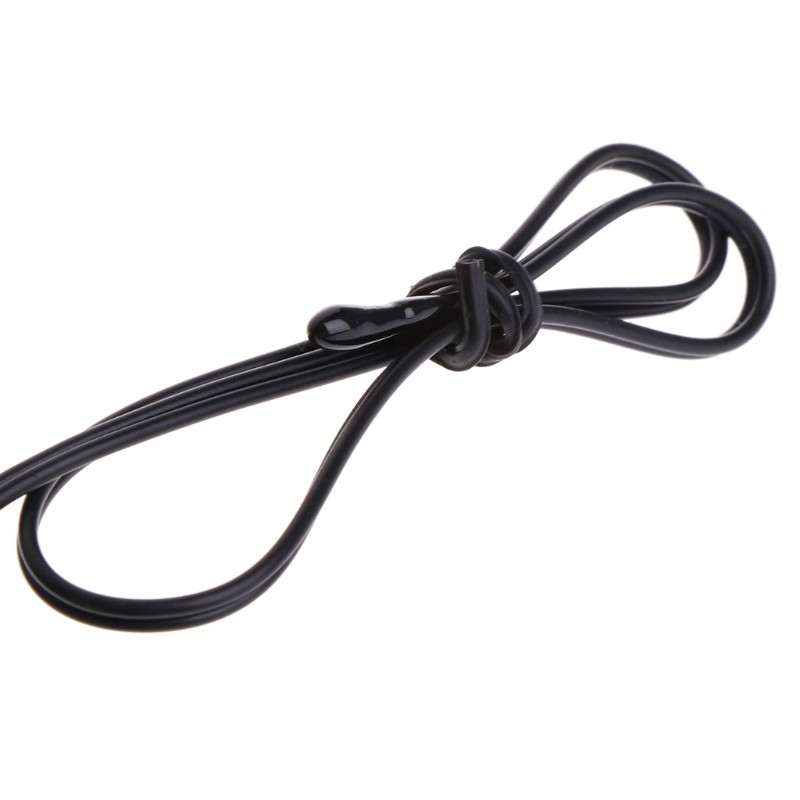

Description: Multi-functional electronic clock module, set time, inside and outside temperature, voltage as one. You can display a single item, or you can cycle through the items alternately and customize the item to be displayed. Time chip using Epson's RX8025T chip, this chip is a temperature compensated clock chip, time accurate. Standard 0.3 m +1.5 m module with two waterproof probes, temperature range -35 ~ 120 degrees. With brightness adjustment, 3 brightness adjustable. And automatic brightness function, can be dark at night, brighten during the day.

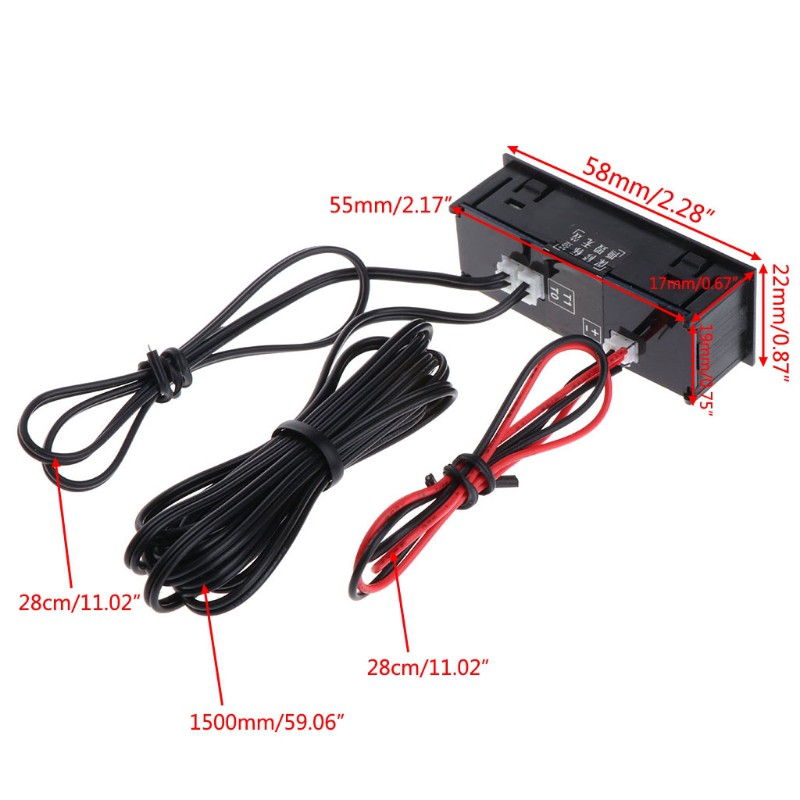

Specifications: 1, working voltage: DC 5.0 ~ 28V 2, frame size: 22 * 58 mm 3, Installation hole size: 19.5 * 56 mm 4, Voltage display range: 5.0 ~ 28V 5, temperature display range: -35 ~ 120 ℃ (Two temperature sensors ,0.3 meters +1.5 meters) 6, power lead length: 28CM
4.Df Switch the time interval in custom cycle display, the unit is second, the adjustment range is 1 ~ 9. For example, dF: 3, the switching interval is about 3 seconds to switch the display item once.(Please do not set to "0")
5.LL Display brightness level, the adjustment range is 1 ~ 3, LL: 1 is the darkest, LL: 3 is the brightest.
6.AL Auto brightness control switch, AL: 0 to turn off the automatic brightness control, AL: 1 to turn on the automatic brightness control. When set to AL: 1, the electronic clock will change the brightness to level 1 after 19:00 everyday and change this level to level 3 every day after 07:00 am.
note: After adjusting the AL option, press "Down" again to return to the normal display state, all parameters and time settings can be saved.
Package include: 1pc DIY Multifunction Clock Temperature Voltage Monitor Panel Meter
