Dụng cụ bơm nhiên liệu dầu Diesel DC 12V 12L / phút

Giới thiệu Dụng cụ bơm nhiên liệu dầu Diesel DC 12V 12L / phút

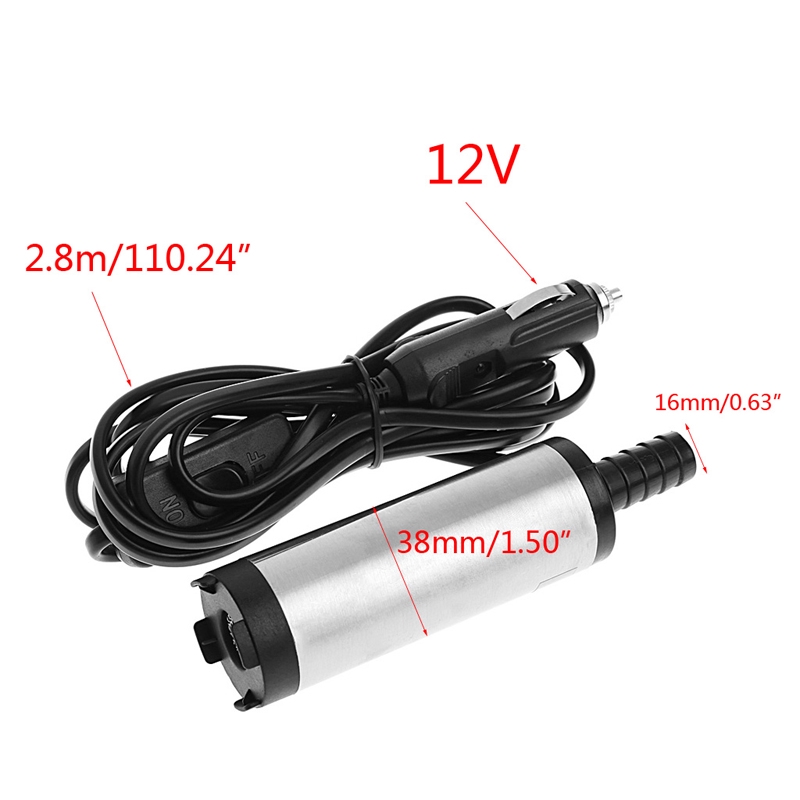

Technical Parameters
Voltage: 12V (DC) 3.8 cm small section
Power: 12v 1.5A
Cable length: 2.8m
Flow rate: 12L / min
Head: 2m
Exit diameter: 1.6cm
Speed: 8500r / min

The diameter of the nozzle is about 16mm
The diameter of the pump body is about 38mm

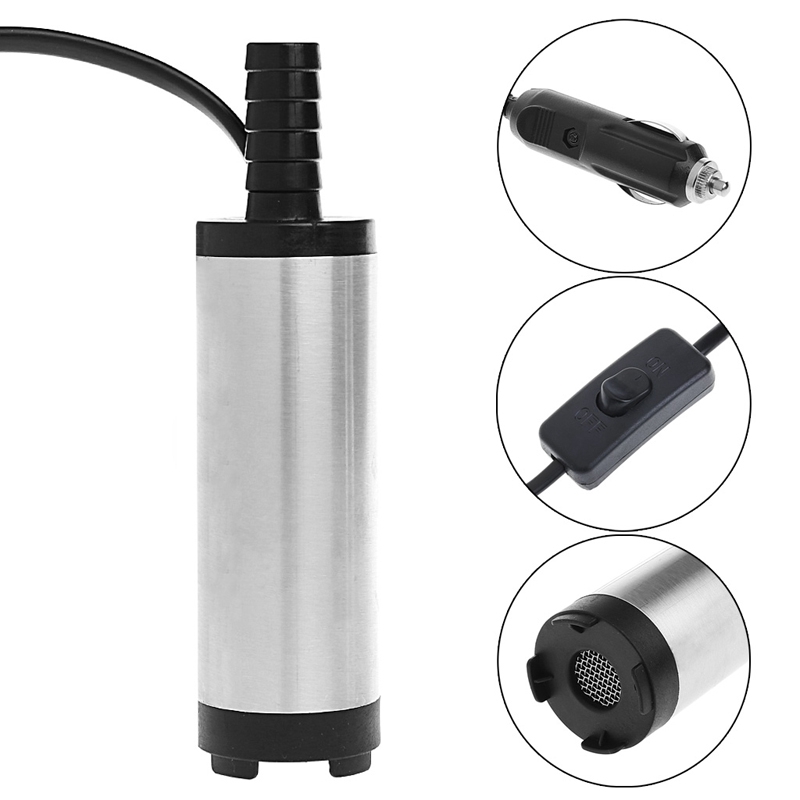

Product Description:
12V portable diving diesel fuel pump performance and stability. Fully sealed, insulated. This product is small. Light weight, easy to install and carry. Wire 3 meters long, the pump port diameter is 16 mm, since the tube with.
Applicable to harvesters, large farm machinery, engineering machinery, large wheel drag and other field operations refueling inconvenient means of transport and can not reach the gas station refueling equipment and machinery.
1. The pump with DC12V DC motor, low noise, fast speed.
2. The pumping oil pump sealing performance, the use of multi-channel seal to ensure that no leakage, extend the service life.
3. The pump with stainless steel shell, an increase of the thickness of the shell, so that the shell is more robust, not easy to deformation, but also to prevent the shell rust, rot muddy.
4. The bottom of the pump with a stainless steel filter in the filter, so that out of the diesel (or water) more clean. The bottom filter is equipped with threaded connection for easy disassembly, repair and replacement. Can achieve the purpose of repeated use.
5 The pumping pump power line is equipped with half-way switch, easy to operate.
6. The maximum pumping oil pump 12L / min.
7. After using the pump well, the pump should be timely from the oil (or water) out.
8. The oil pump should be connected to oil-free hose, and then the pump completely into the clean oil (or water).
9. Oil hose supplied.

Precautions:
1, the pumping is strictly prohibited pumping gasoline, alcohol and other flammable body! No-load operation and dry pumping.
2, the pump should be intermittent work (ie, the longest use of not more than 20 minutes, stop 10-15 minutes and then continue to use), be careful not to work long hours.
3, confirm the use of power supply voltage and pump voltage is consistent, the voltage tolerance ± 5%, pay attention to positive and negative.

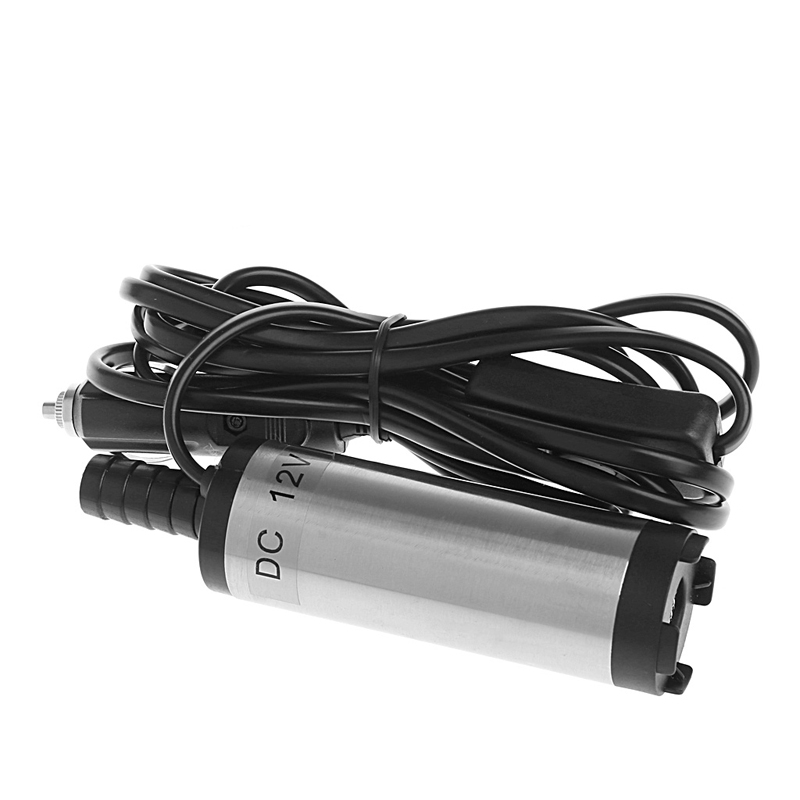

Package includes:
1Pc* DC 12V Submersible Transfer Pump Fuel Diesel Water Oil 12L/MIN
