Dụng Cụ Kiểm Tra Dây Cáp Cầm Tay Đa Năng

Giới thiệu Dụng Cụ Kiểm Tra Dây Cáp Cầm Tay Đa Năng

This instrument is a multi-functional handheld cable testing tool. It has wide application with reinforced cable types and multiple functions. It is a necessary testing tool for telecommunication engineering, wiring engineering and network maintenance person.



Features:

Works perfectly when RJ11 RJ45 cable is on power.

Trace RJ11, RJ45, cables or other metal wire (via adapter).

Easy and fast to locate the breakpoint without opening the wire's cover.

Network cable collation: judge short-circuit, breaking circuit, open circuit and crossing.

Test line level, positive and negative polarity.

Status of telephone line checking: test the working status of telephone line(idle, ringing, and off-hook) and judge TIP and RING line.

Check wire continuity.

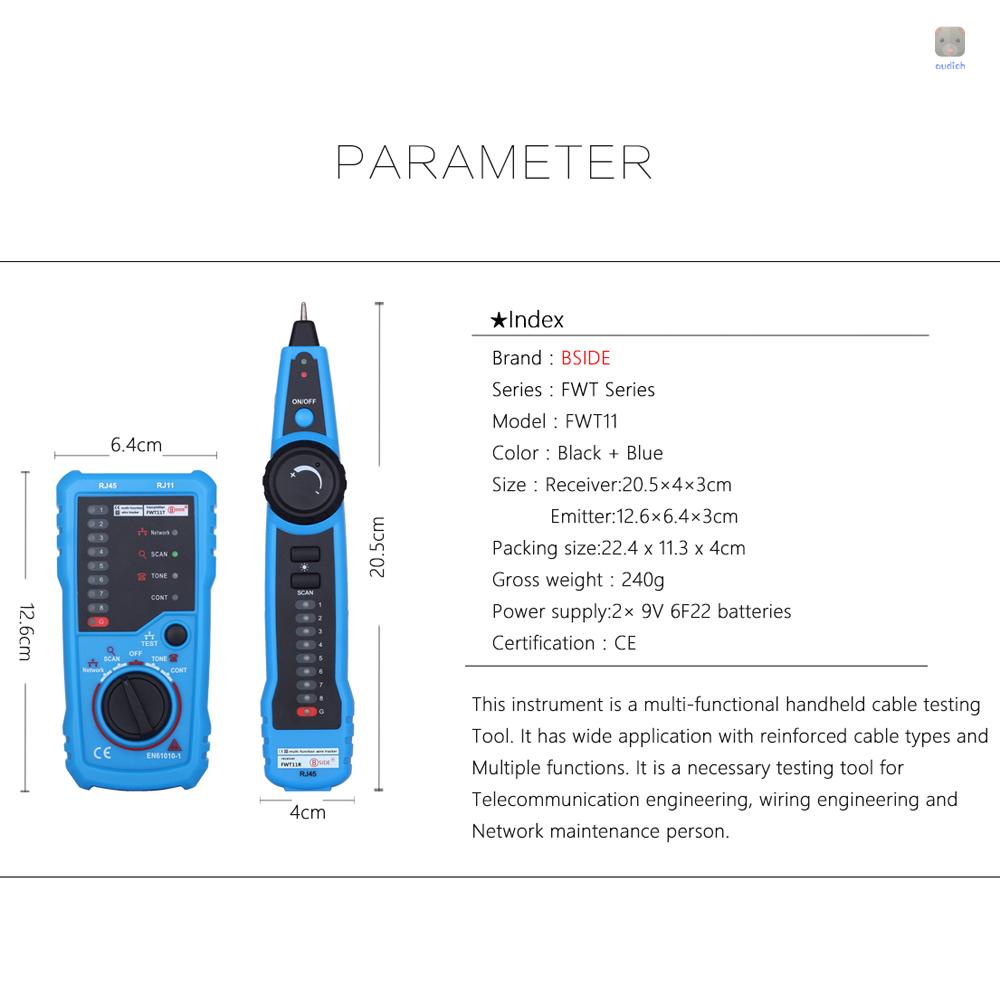

Specifications:

Work Temperature: 0~40°C，the maximum 80% relative humidity(no coagulation)

Storage Temperature: -10~50°C, the maximum 80% relative humidity [no coagulation, no battery]

Altitude: ＜2000 meters

Anti-explosion Rating: IP40

Distance of Sending Signal: ＞100 meters

Battery(NOT Included): Emitter: 1 * 6F22/9V Battery; Receiver: 1 * 6F22/9V Battery

Emitter Size: 12.6 * 6.4 * 3cm / 4.96 * 2.52 * 1.2in

Receiver Size: 20.5 * 4 * 3cm / 8.07 * 1.57 * 1.2in

Emitter Weight: 90g / 3.2oz

Receiver Weight: 76g / 2.66oz

Package Size: 22 * 10.5 * 3.5cm / 8.66 * 4.13 * 1.4in

Package Weight: 240g / 8.48oz



Package List:

1 * Emitter

1 * Receiver

1 * Clip Adapter Cable

1 * RJ45 Cable

1 * User Manual (English)



#cabletracker #Durable #electronicinstrument #testingtool #wiretracker #cabletestingtool #wiretracer #wiretester #analysisinstrument #professionaldesign
