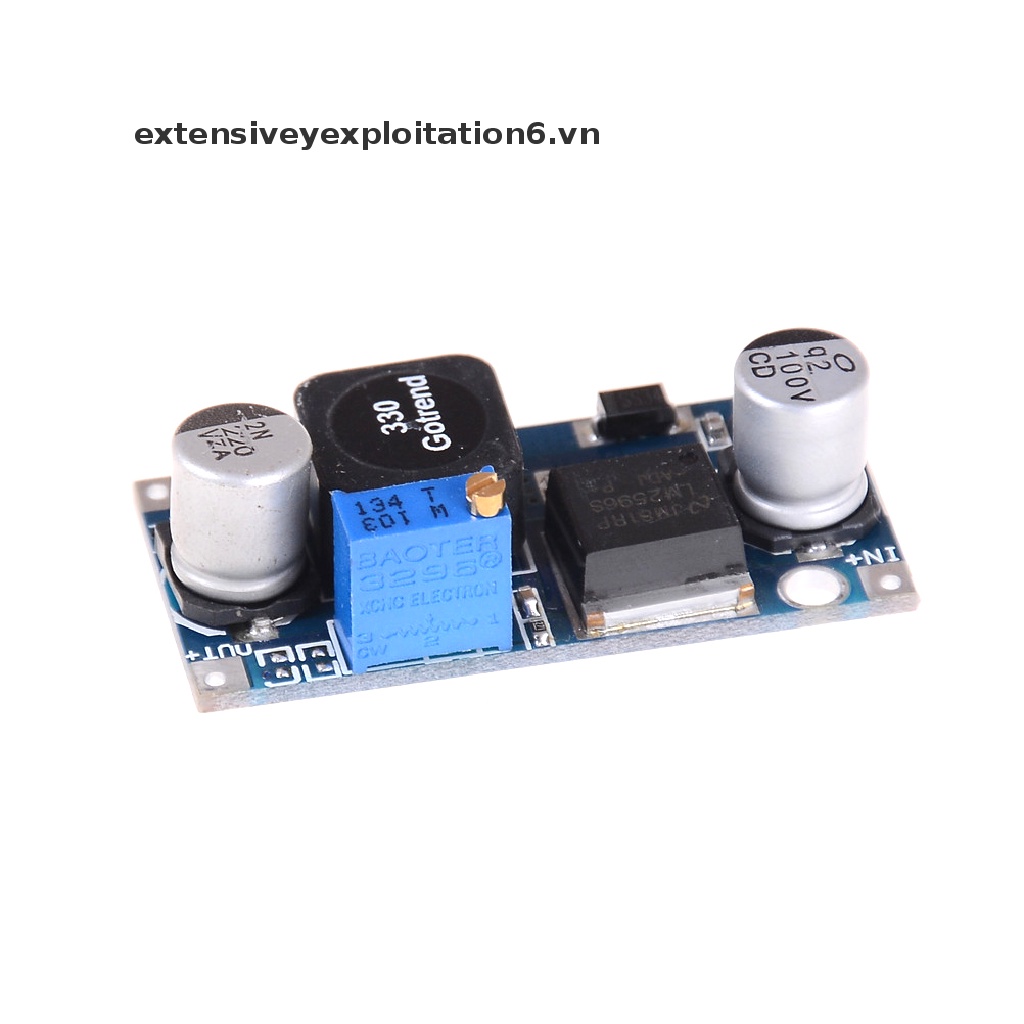

Giới thiệu / / E6vn / / Mô Đun Hạ Áp LM2596S 1.5V-30V DC-DC Chuyên Dụng
Description: Material: Electronic Component Color: See pictures Description: Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency) Switching Frequency: 150KHz Rectifier: Non-Synchronous Rectification Module Properties: Non-isolated step-down module (buck) Short circuit protection: current limiting, since the recovery Operating temperature: Industrial grade (-40 to +85 ) (output power 10W or less) Full load temperature rise: 40 Load regulation: 0.5% Voltage regulation: 2.5% Dynamic response speed: 5% 200uS Input voltage:4-35V 3.2-40VOutput voltage:1.23-35V(Adjustable) Output current:Rated current is 2A,maximum 3A(Additional heatsink is required) Dimension:4.3*2*1.4cm/1.69"*0.79"*0.55" (L*W*H) Quantity:1Pcc Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! Package includes: 1Pc x LM2596S DC-DC Buck Converter Step Down Module
