HW685 Current to Voltage Module 0/4-20mA to 0-3.3V/5V/10V Voltage Transmitter

Giới thiệu HW685 Current to Voltage Module 0/4-20mA to 0-3.3V/5V/10V Voltage Transmitter

HW685 Current to Voltage Module 0/4-20mA to 0-3.3V/5V/10V Voltage Transmitter
Features:
Wide supply voltage range, the output voltage to support multiple ranges.
Zero and range can be adjusted.
High stability, good linearity, industrial grade.
Current signal sampling resistor with high precision color ring resistance.
High precision, temperature drift small, high power.

Descriptions:
The use of current transmission can avoid the signal weakening.
Used for the end of the current signal transmission, the signal into a voltage signal for single-chip detection.
Current input support 4-20Ma, 0-20mA, voltage output support 0-3.3V 0-5V 0-10V.

Specifications:
4--20ma
0-2.5V range: J1 1,2 feet short, 3,4 feet shorted
0 - 3.3V range: J1 1,2 feet off, 3,4 feet off
0 - 5.0V range: J1 1,2 feet short, 3,4 feet shorted
0--10.0V range: J1 1,2 feet short, 3,4 feet off
0--20ma
0--3.3V range: J1 1,2 feet short, 3,4 feet shorted
0 - 5.0V range: J1 1,2 feet short, 3,4 feet shorted
0--10.0V range: J1 1,2 feet short, 3,4 feet off
Material: electronic components
Size: 42*25*13.5mm
Color: blue

Package included:
1 x Current to Voltage Module

Notes:
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3cm deviation.Thanks!

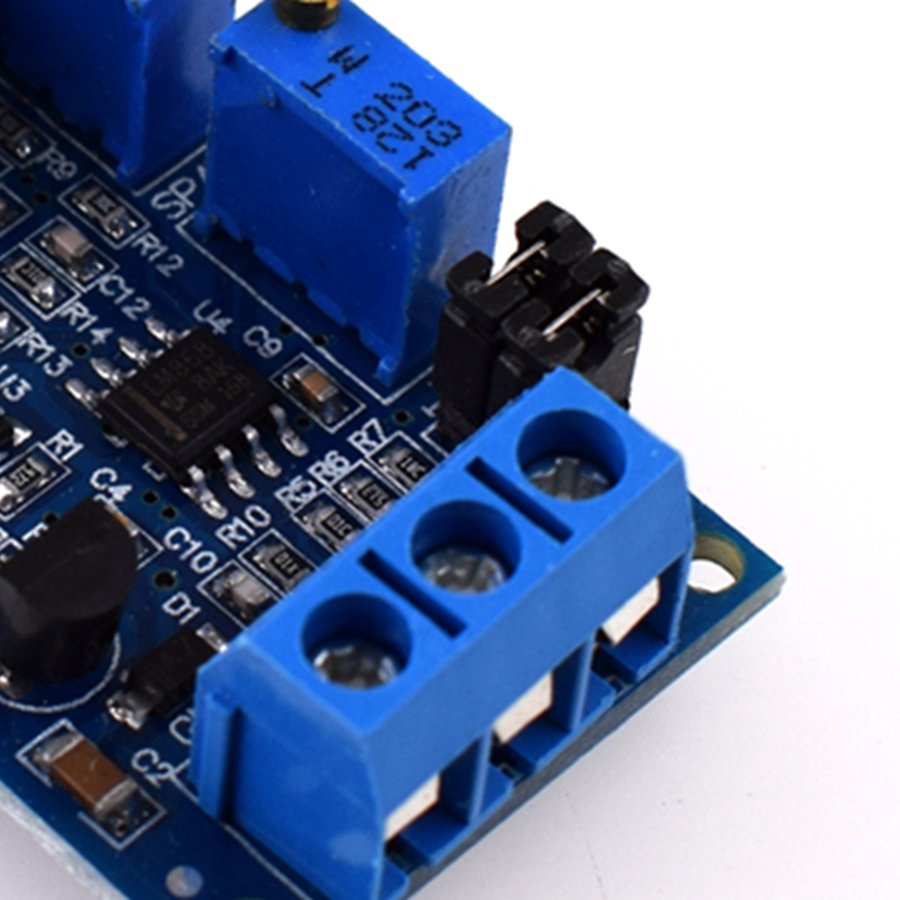

Hình ảnh sản phẩm
