Bộ điều chỉnh điện áp tự động Avr Mx341

Giới thiệu Bộ điều chỉnh điện áp tự động Avr Mx341

MX341 is a two phase sensed Automatic Voltage Regulator(AVR)and forms part of the exciation system for a brush-less generator.Excitation power is derived from a three-phase permanent magnet generator(PMG),to isolate the AVR control circuits from the effects of nonlinear loads and to reduce radio frequency interference on the generator terminals.sustained generator short circuit current is another feature of the PMG system.
The AVR senses the voltage in the main generator winding and control the power fed to the exciter stator and hance the main rotor to maintain the generator output voltage within the specified limits,compensating for load sprrd,temperature and power factor of the generator
The AVR has the faclity for droop CT connection,to allow parallel running with other similarly equipped generators
Colour:Black
Material:metal +PC
Size:15.3*13.9*3.9cm
Package Contents:
1 x Voltage Regulator
1 x User ManualOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

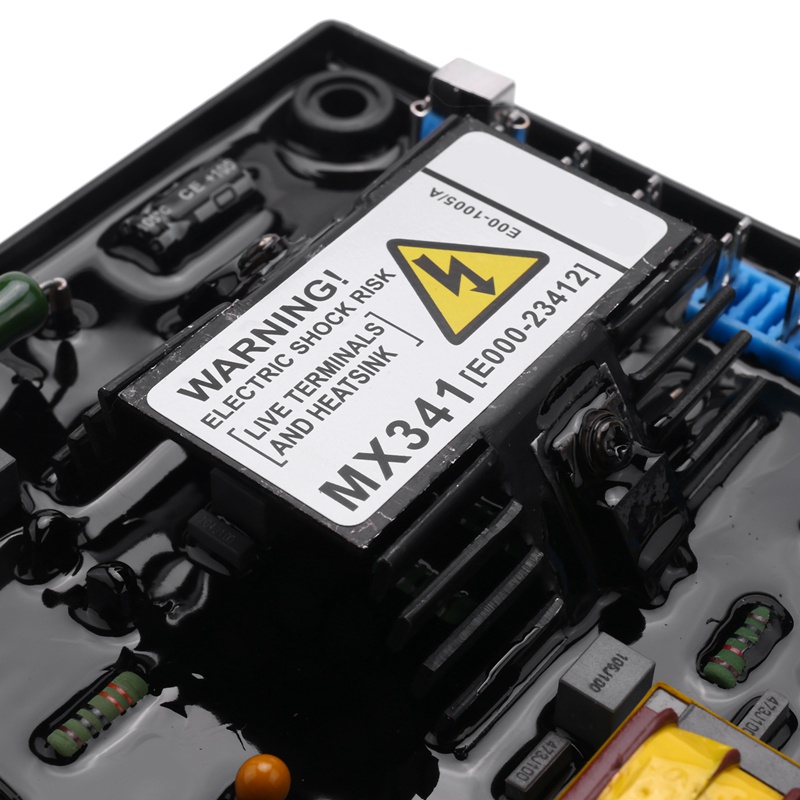

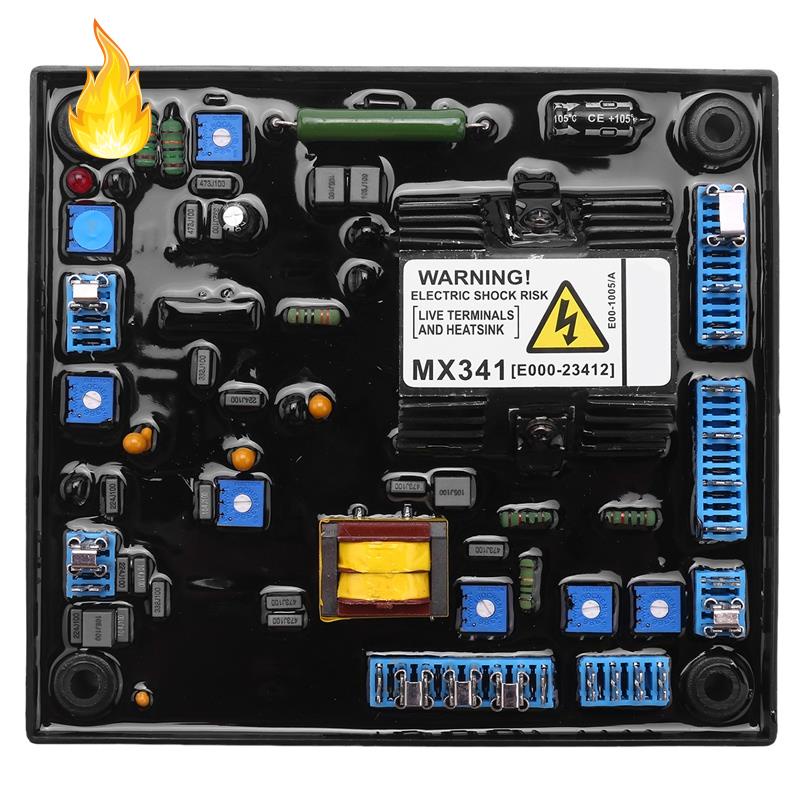

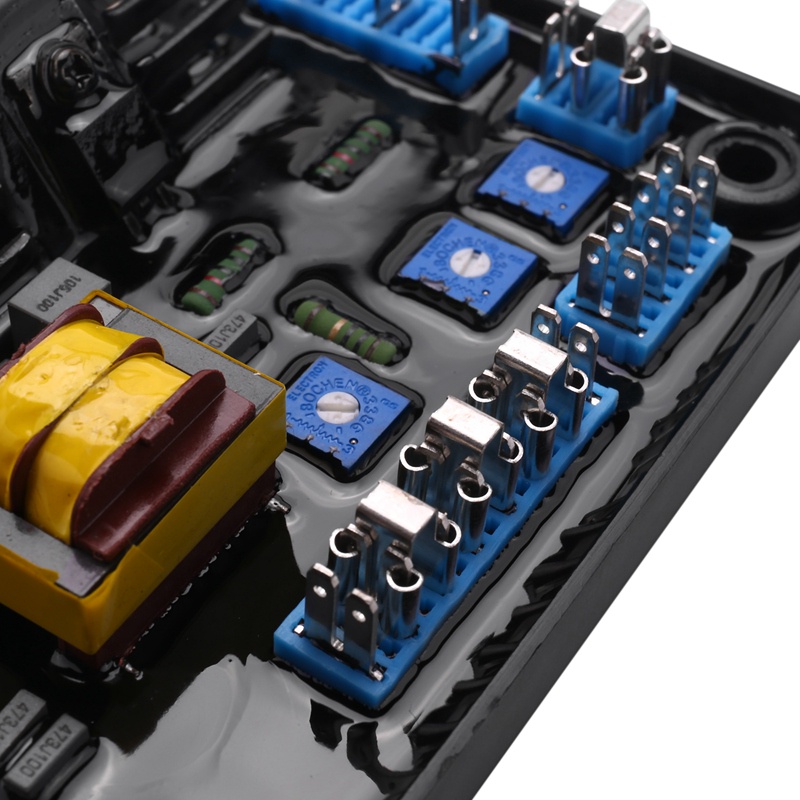

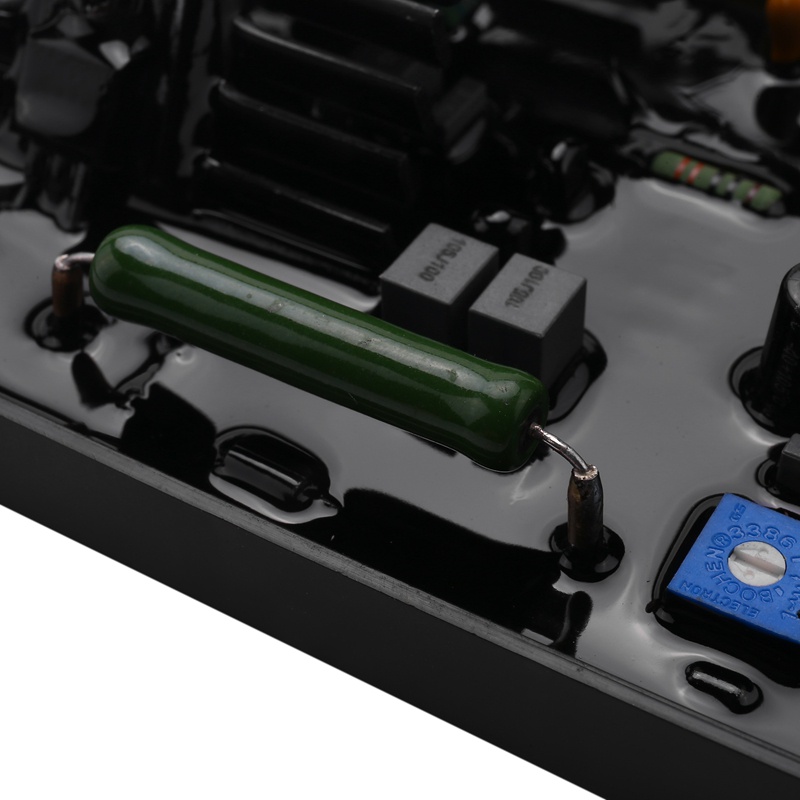

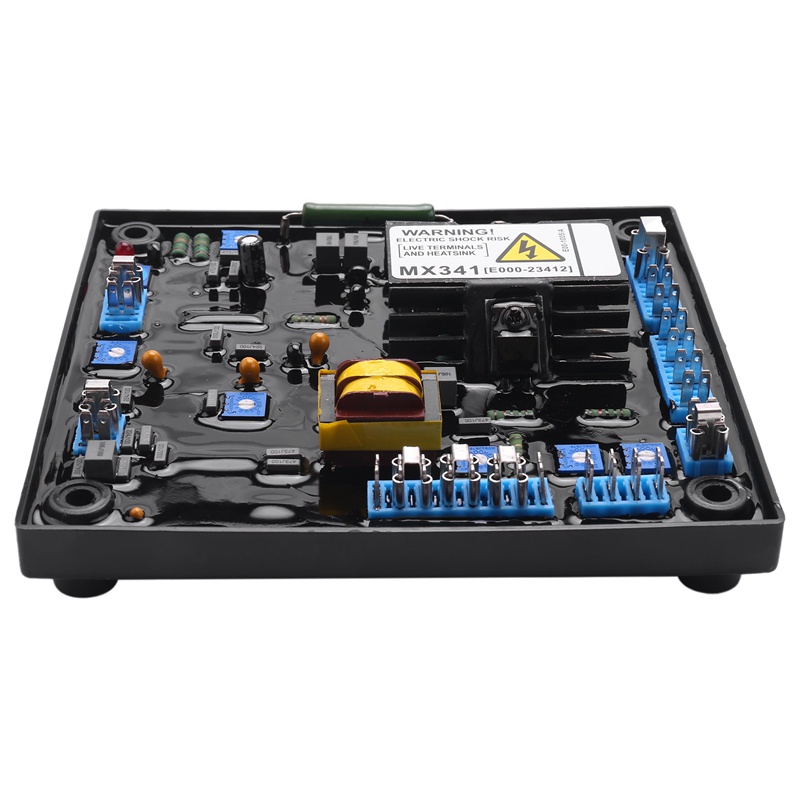

Hình ảnh sản phẩm
