Bộ điều khiển camera sau quan sát điểm mù 2 chiều kèm phụ kiện
Mô tả ngắn
Ô Tô & Xe Máy & Xe Đạp > Phụ kiện bên trong ô tô > Camera hành trình, camera lùi > Bộ điều khiển camera sau quan sát điểm mù 2 chiều kèm phụ kiện
- Giao hàng toàn quốc
- Được kiểm tra hàng
- Thanh toán khi nhận hàng
- Chất lượng, Uy tín
- 7 ngày đổi trả dễ dàng
- Hỗ trợ xuất hóa đơn đỏ
Sản phẩm tương tự
Giới thiệu Bộ điều khiển camera sau quan sát điểm mù 2 chiều kèm phụ kiện
Description:100% brand new and high quality
Features:
Smart switching before and after video.
High-speed, high-performance microcomputer processor.
Easy to install and easy to wire.
Electrical characteristics: Voltage: 9-16V Static power supply: <10mA Ambient temperature: -10 °C - 70 °C
Relative humidity: ≤95%
Operating mode:
Start ACC and automatically delay the display for 8 seconds.
The rear view is automatically displayed when the reverse gear is engaged. After exiting the reverse gear, it automatically switches to the front view and delays for 15 seconds.
In the standby mode, press the button and the front view will open until the next time the button is pressed to close the front view.
In the forward-looking normally open state, the reverse gear temporarily interrupts the front view and automatically switches to the rear view.

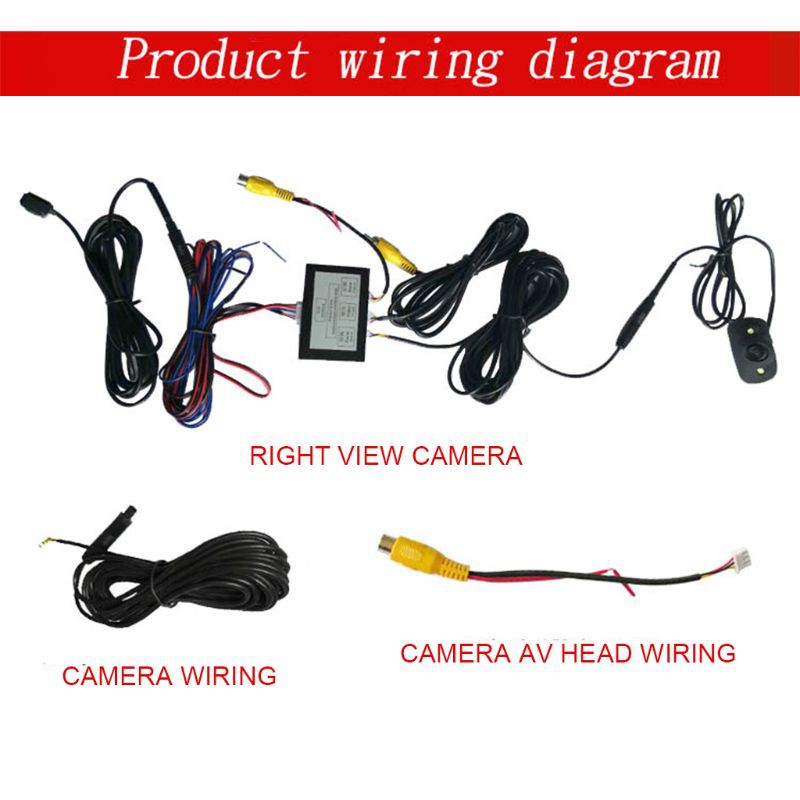

Wiring instructions:
Red line: ACC power supply positive.
Black line: ACC power supply negative pole, grounding.
Blue line: Reversing light.
Reversing camera only, other accessories demo in the picture is not included!
Specification:
Type: Reversing Camera
Material: ABS
Features: Reversing camera, Blind zone monitoring, Intelligent, High performance, Easy to install, Auto parts

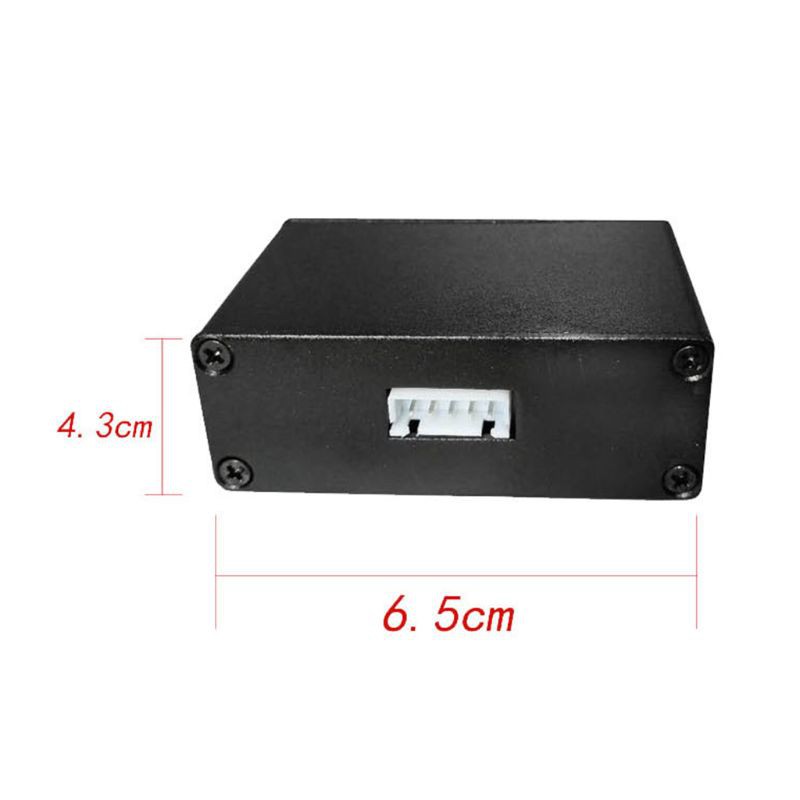

Dimension: app.4.3x6.5cm/1.69x2.56in
Color: Black
Quantity: 1 Set
Note:
1.The small red line on the side of the video input port of the camera is connected to the positive power supply of the front and rear camera.
2.The small red line of the output port is connected to the display trigger line. If the original display trigger line is connected to the reverse light, disconnect it from the backup light first, and then connect this small red line.
3.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
4.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

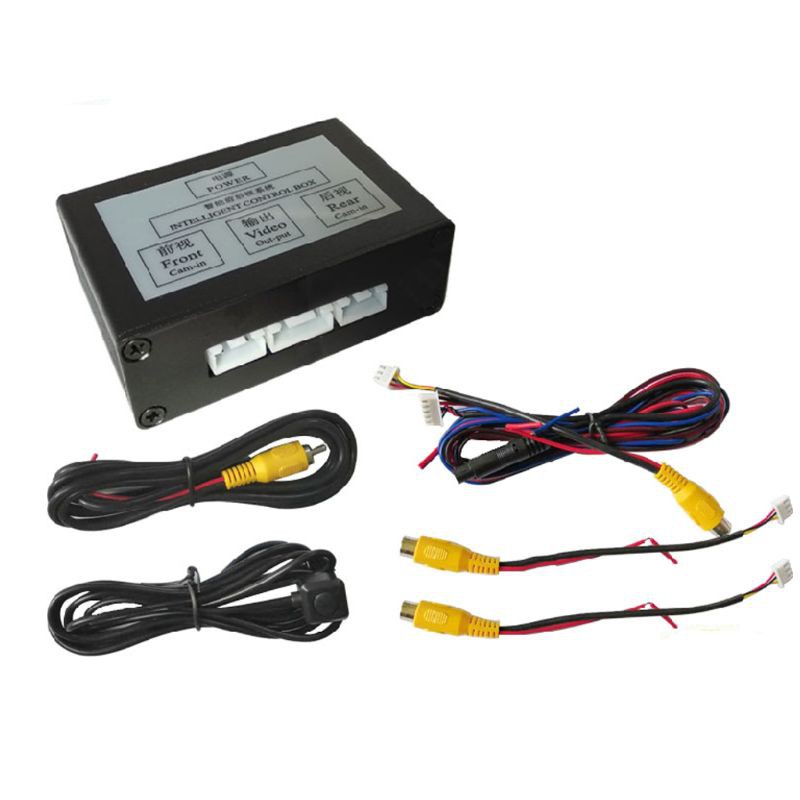

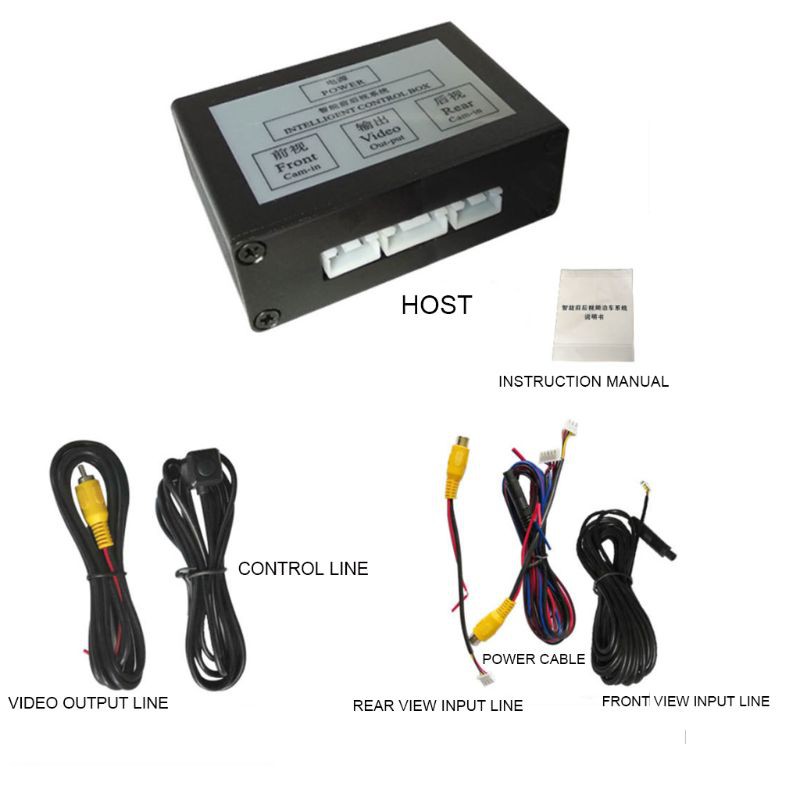

Package includes:
1 Pc x Host
1 Pc x Video output line
1 Pc x Control line
1 Pc x Power cable
1 Pc x Rear view input line
1 Pc x Front view input line
1 Pc x Introduction manual
