Functions:
100% brand new and high quality.
Can select cooling or heating working mode.
Set highest/ lowest upper limit temp to avoid accident.
Automatically start cooling or heating for constant temperature.
Temperature calibration, you can calibrate temp according to requirement.
High temp alarm, when measure temp reach to the setting temp, controller will alarm.
Feature:

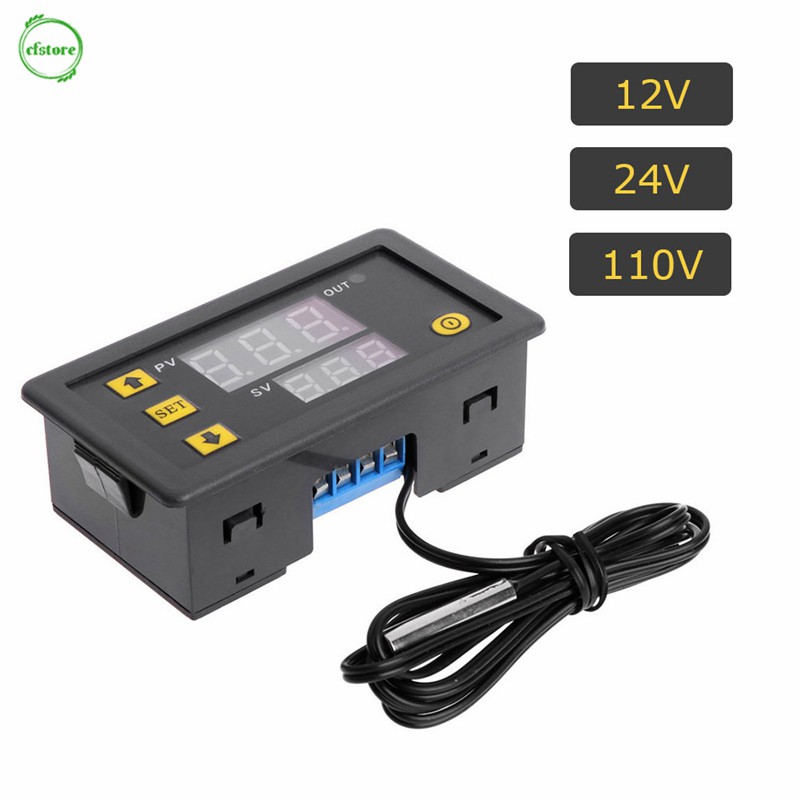

Power Supply:12V DC/24V DC/110V-220V AC
Temperature Control Range:-55°-120°
Resolution Ratio: 0.1°C(-9.9-99.9); 1°C(other range)
Color of Displaying: red/blue
Measurement accuracy: ±0.1°C
Control accuracy: 0.1°C
Sensor: NTC10K Waterproof sensor
Output: Relay Contact Capacity 10A 220V / 20A 12V / 20A 24V
Environmental requirements: -10-60°C , humidity 20%-85%RH

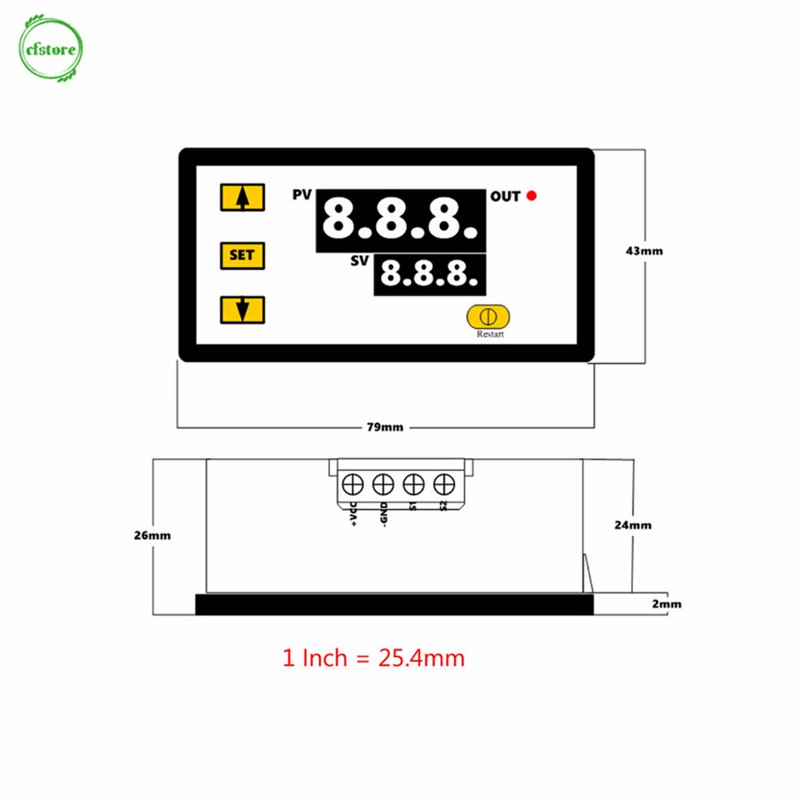

Dimension:79mm *43mm*26mm
Cutting Size:73mm*39mm
Sensor wire: 1 meter
W3230 ​Instructions:

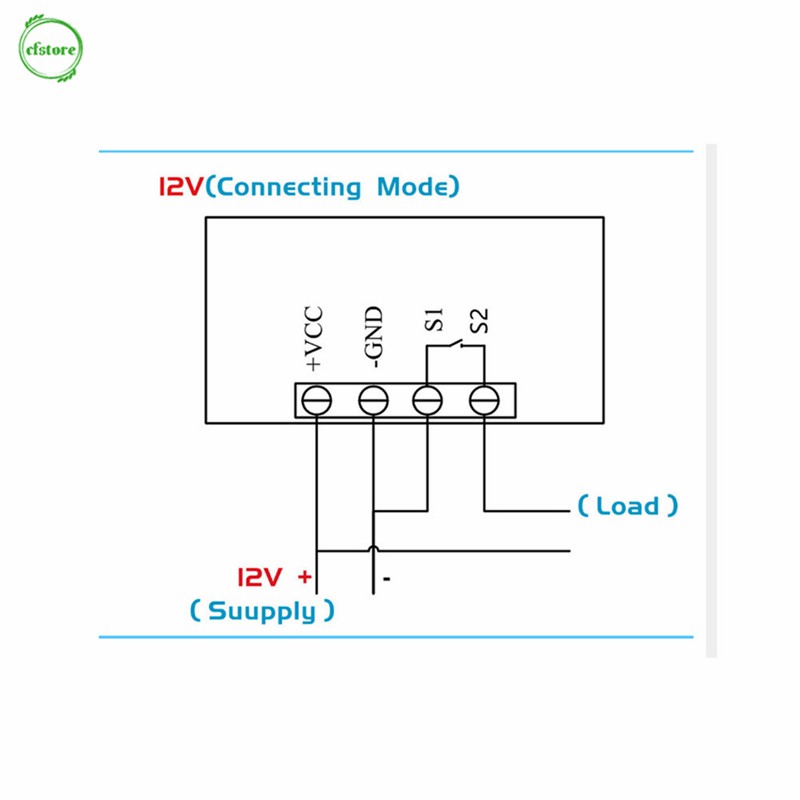

Connect the power supply and equipment to supply power to the controller. At this time, it is displayed as measuring temperature. Press SET once, the display temperature will flash, press +- to set the desired temperature (press +- to quickly raise and lower) After finishing, press SET to confirm the return. At this time, the controller automatically performs relay on/off according to the setting! The output of the thermostat is a 20A relay, which satisfies various high-power loads. When the control circuit is connected, the thermostat can be powered. At this time, the display shows the ambient temperature.
How to save settings
If you want to save the set data, set P7 to ON when the temperature is set and the power is off. In this case, the last setting will be retained when the power is turned off.
Reset
Due to some human reasons, the internal setting of the thermostat is confusing. It takes a lot of time to set the time. In this case, you can use this function to restore the factory settings. In the off state, press and hold the + and - buttons simultaneously. , then power on, all the above parameters are restored to the factory settings.
Package Included:
1 X Temperature Controller
NO Retail Box. Packed Safely in Bubble Bag.
