Bộ điều khiển nhiệt độ kĩ thuật số PID REX-C100(M) đầu ra rơ le loai K

Giới thiệu Bộ điều khiển nhiệt độ kĩ thuật số PID REX-C100(M) đầu ra rơ le loai K

Features:
This is a double universal programmable digital display temperature controller that supports many types of thermocouple sensor.
It is powered by 100 V ~ 240 V AC.

Specifications:

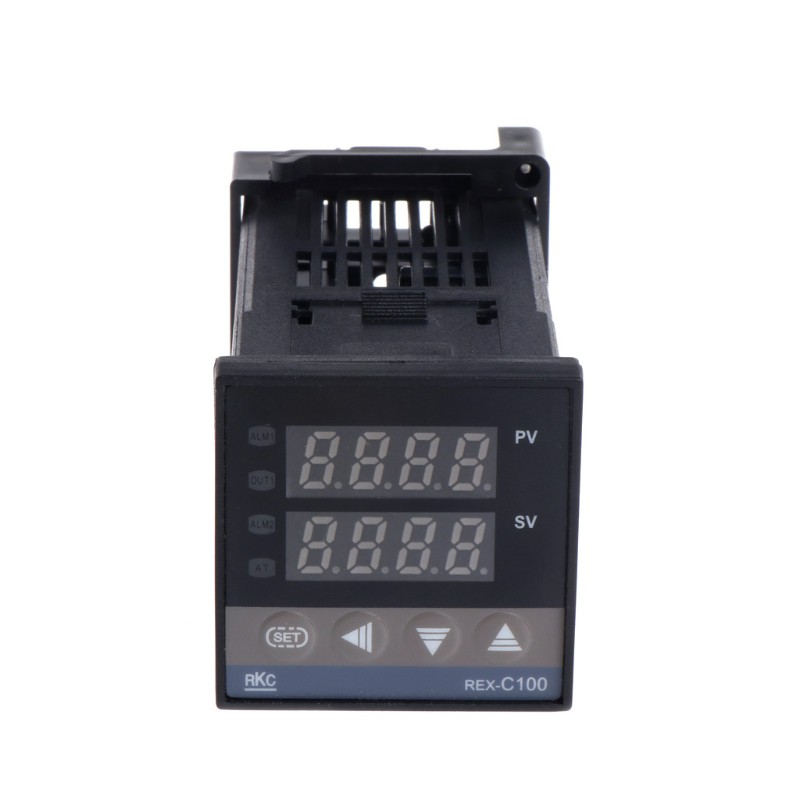

Screen: Double screen for Celsius (°C)
Range: 0-400°C (Only when with K-type thermocouple factory)
Thermocouple: K, J, S, E, R, Wre3 ~ Wre25
Main output: RELAY
PID cooling / heating control
1 Alarm RELAY: Normally open, capacity 250 V / 3A AC or 30 V / 3A DC
6 different Dual Output combinations with: high / low / high deviation / low deviation /interval / out of interval
Precision: 0.5%
Input: K type

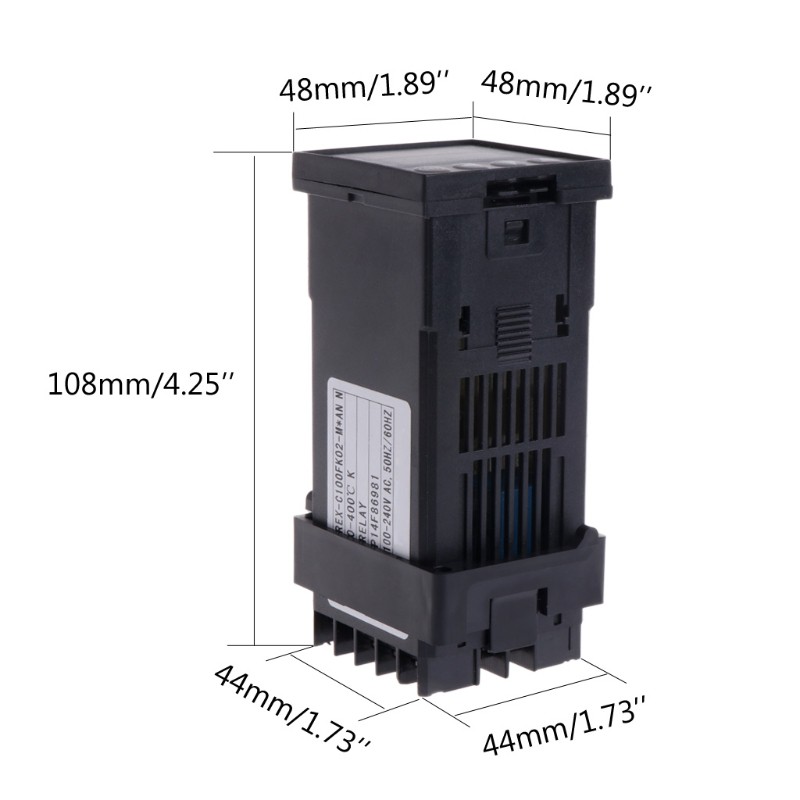

Dimension: DIN: 1/16 (48mm x 48mm x 110mm/1.89"x1.89"x4.25")
Individually programmable PID control parameters.
P, I, d, checkpoint, digital filter coefficient, and more
Control relay ready to connect
Compact design:
DIN 1/8 great factor to include / build-in to your product.
Control output: Relay

Specifications:
Quantity: 1 Pc

Note:
If you do not know how to use, please contact us to send PDF user manual
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Includes:
1 x Digital PID Temperature Controller Relay Output (DO NOT include thermocouple)
