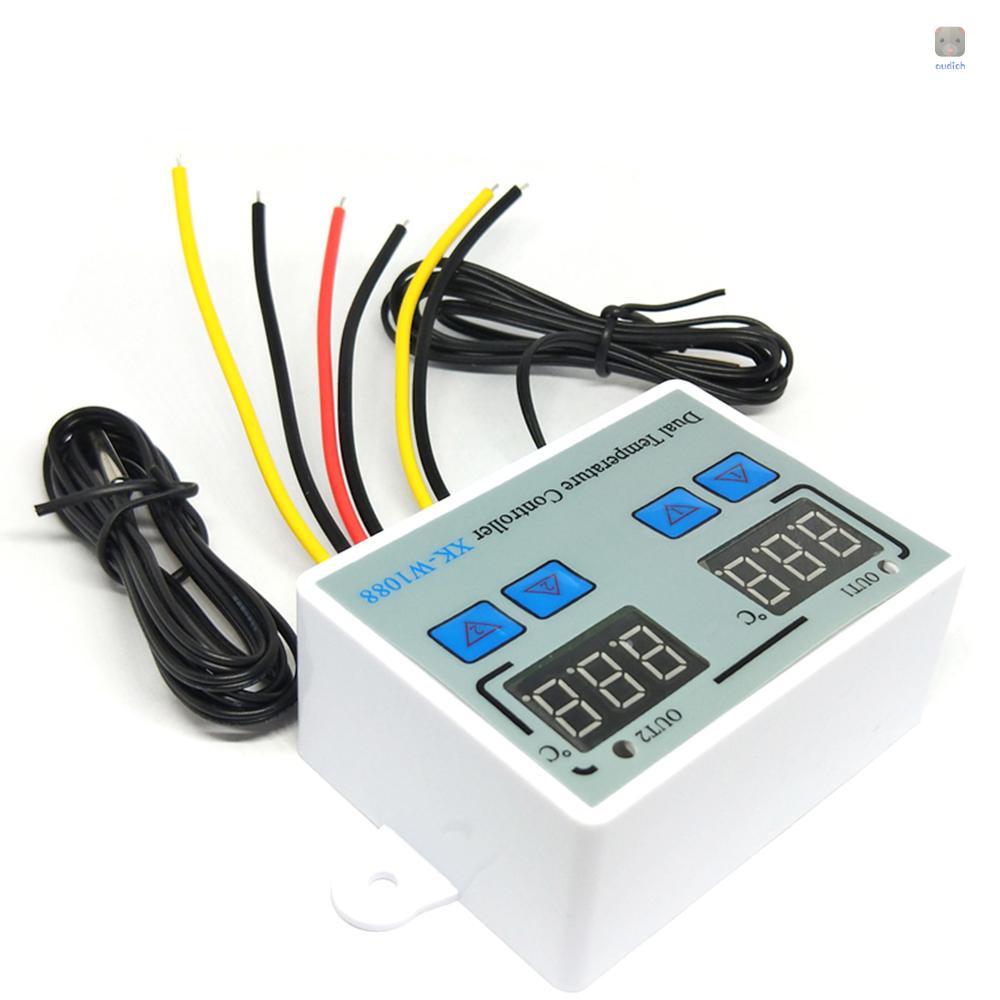

Bộ Điều Khiển Nhiệt Độ Kỹ Thuật Số Hai Rơ Le Cho Máy Ấp Trứng XK-W1088 AC110-220V

Giới thiệu Bộ Điều Khiển Nhiệt Độ Kỹ Thuật Số Hai Rơ Le Cho Máy Ấp Trứng XK-W1088 AC110-220V

It's perfect for various household, institutional & industrial heating and cooling applications.



Features:

Heating or cooling control

Red and blue dual led display

Independent Dual-way temperature controller

Temperature display resolution 0.1

Directly power output

Support high(low) temperature alarm and support for power loss (the parameters of the sudden power failure are still valid

Application range is like home temperature control, farm, various cold storage, greenhouse, aquarium, etc



Specifications:

Display Type: Digital

Material: ABS+PCB

Style:Standing Station

Temperature sensor: NTC 10K

Senor length:1.0m

Temperature measuring range:-55 ° C ~ 120 ° C

Resolution: 0.1 ° C

Accuracy:±1° C

Power supply: 110-220VAC 50/60Hz,  12V DC , 24V DC(Please choose power supply when ordering)

Power consumption: <3W

Storage temperature: -30 ° C ~ 75 ° C

Relative humidity: 20% ~ 85% (No condensate)

Relay contact capacity: Two Relay Max 10A,Direct Output

Item Size: 7.5*5.5*3.1cm / 2.95*2.16*1.22in

Item Weight: 80g / 2.82oz

Set startup temperature:

Press the "up" button once to display the starting temperature. Long press the "up" button for about 3 seconds,The required temperature can be set by the up and down keys

Set the stop temperature:

Press the button once to display the stop temperature. Long press the button for about 3 seconds and the stop temperature number flashes. The required temperature can be set by the up and down keys

Press "Up 1" Button & "Up 2"Button at the same time to setting mode

How to restore factory Settings

press the "Down 1" and "Down 2" button at the same time,  the factory setting is restored

Temperature correction

Press “Up 1 ”and “Down 1 ”at the same times for 3 second.  positive value = measured value + corrected value(group 2 temperature correction is the same method )

Note:

Heating Mode--Start temperature
Cooling Mode--Start temperature>Stop temperature

Code     Function                         Set Range         Default

P0       Compressor 1 delay time          0-60min           0min

P1       Compressor 2 delay time     0-60min           0min

P2       High temperature alarm value     -55~120°C     120°C

P3       Low temperature alarm value      -55~120°C     -55°C



Package List:

1 * Temperature Controller

2 * Waterproof Sensor
