Bộ Điều Khiển Tốc Độ Điện Tử 320a Esc Cho Hsp Hpi Hỗ Trợ 3s Lipo

Giới thiệu Bộ Điều Khiển Tốc Độ Điện Tử 320a Esc Cho Hsp Hpi Hỗ Trợ 3s Lipo

Double Way 320A Brush ESC Electric Speed Controller Governor for HSP HPI Support 3S Lipo

Specifications:
320A two-way electronic governor belt brake (have waterproof function).
Battery support: nickel metal hydride, nickel cadmium group 4 ~ 6 (4.8 V -7.2 V);
Lithium electricity 3 groups (7.4 V to 11.1 V)
Current parameters: forward 320A, backward 160A, , brake 270A.
BEC output: voltage 5.6 V, current 2A.( Receiver, steering gear power supply)
Size: 43 mm/1.69" (length) X 29 mm/1.14" (width) X 27 mm/1.06" (height).(contains cooling fin).
Weight: 40 g

Features:
Automatically find center position.
High frequency drive system.
Use low resistance field-effect tube.
Suitable for car, ship model use.

Operational Guidelines:
1. Correctly connect to power battery. Strips on both ends of the red line is positive, black for negative.(or connect standard DC battery plug, field plug / T / plug)
2. The red and black line of electric speed controller output connect the car 540 motor red and black line.
3. Switch on electricity the power switch, the motor issued a "do" sound, then open the transmitter power, the motor will be "Do, Re, Mi" sound, prove that remote signal is connected and electrically controlled successfully.

Special Note:
This electric speed controller use 3S (12 V) and can take no more than 380 motor.
Use 2S (8.4 V), can take no more than 540 motor.

Quality assurance, providing excellent after-sales service

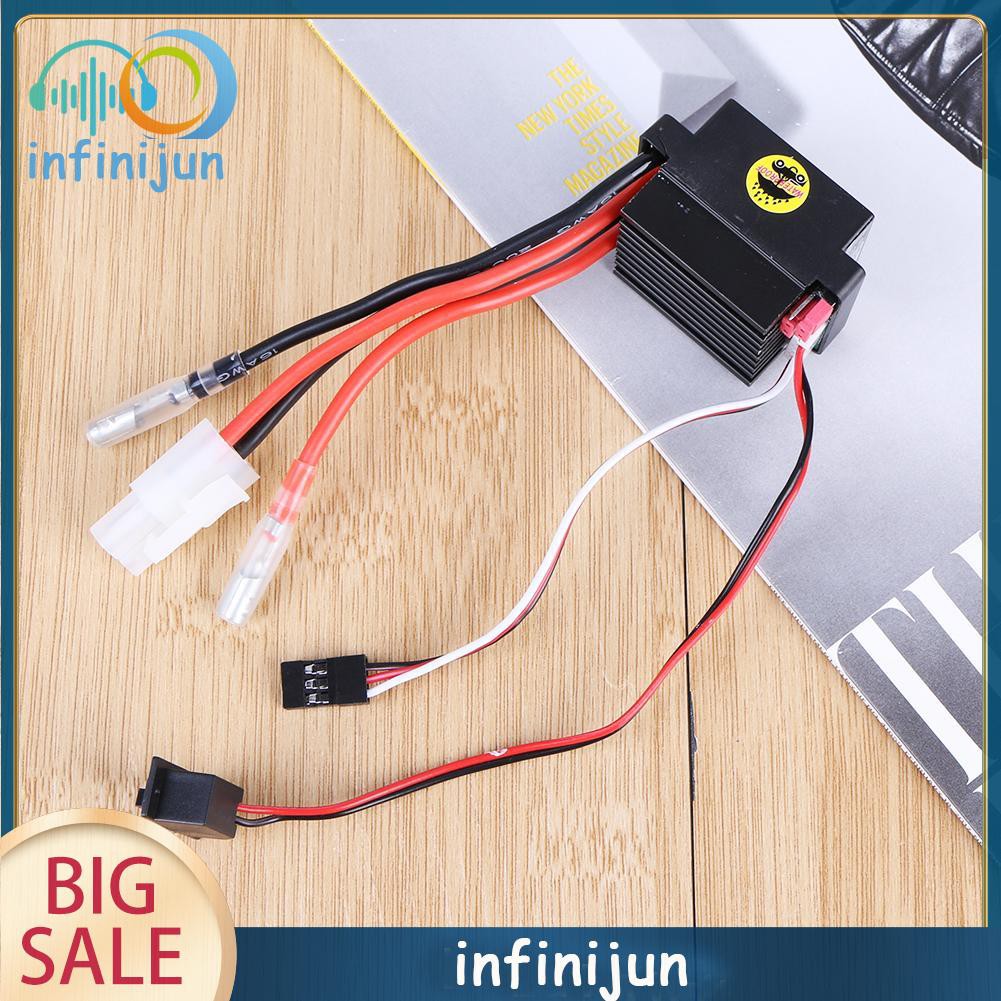

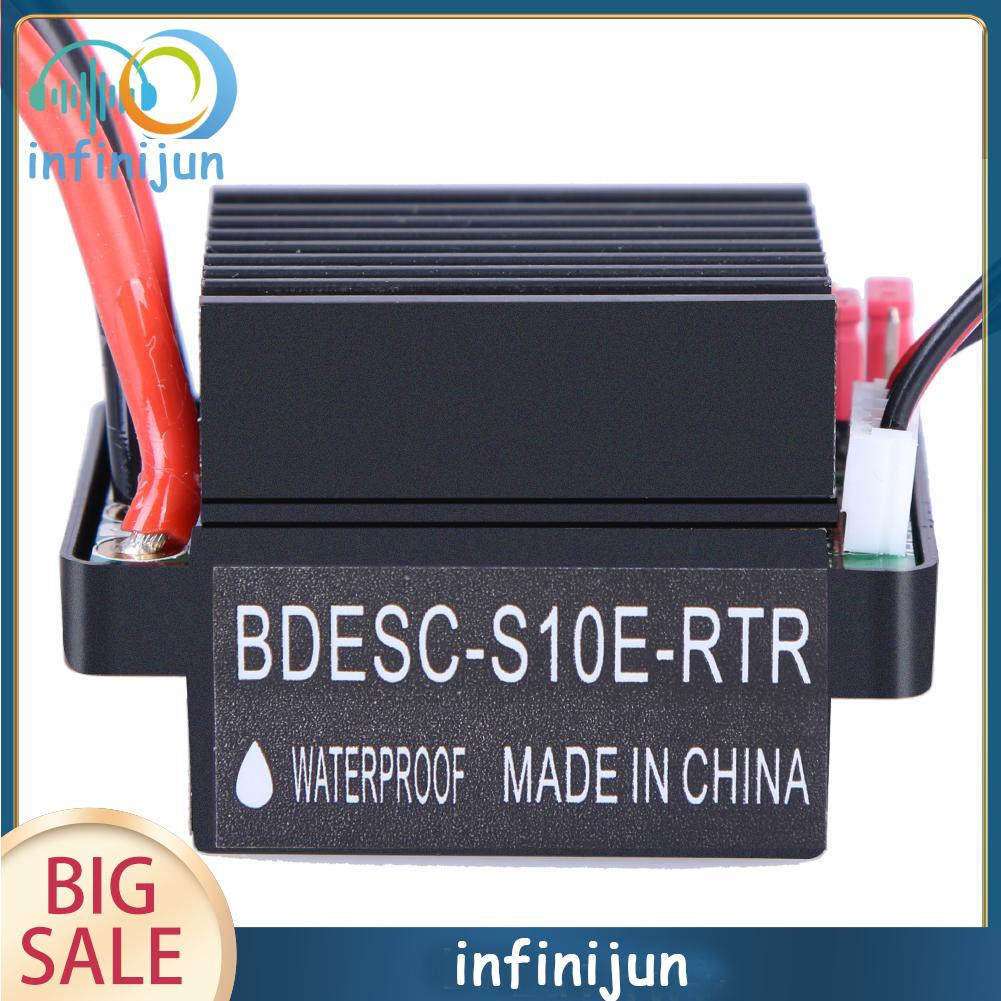

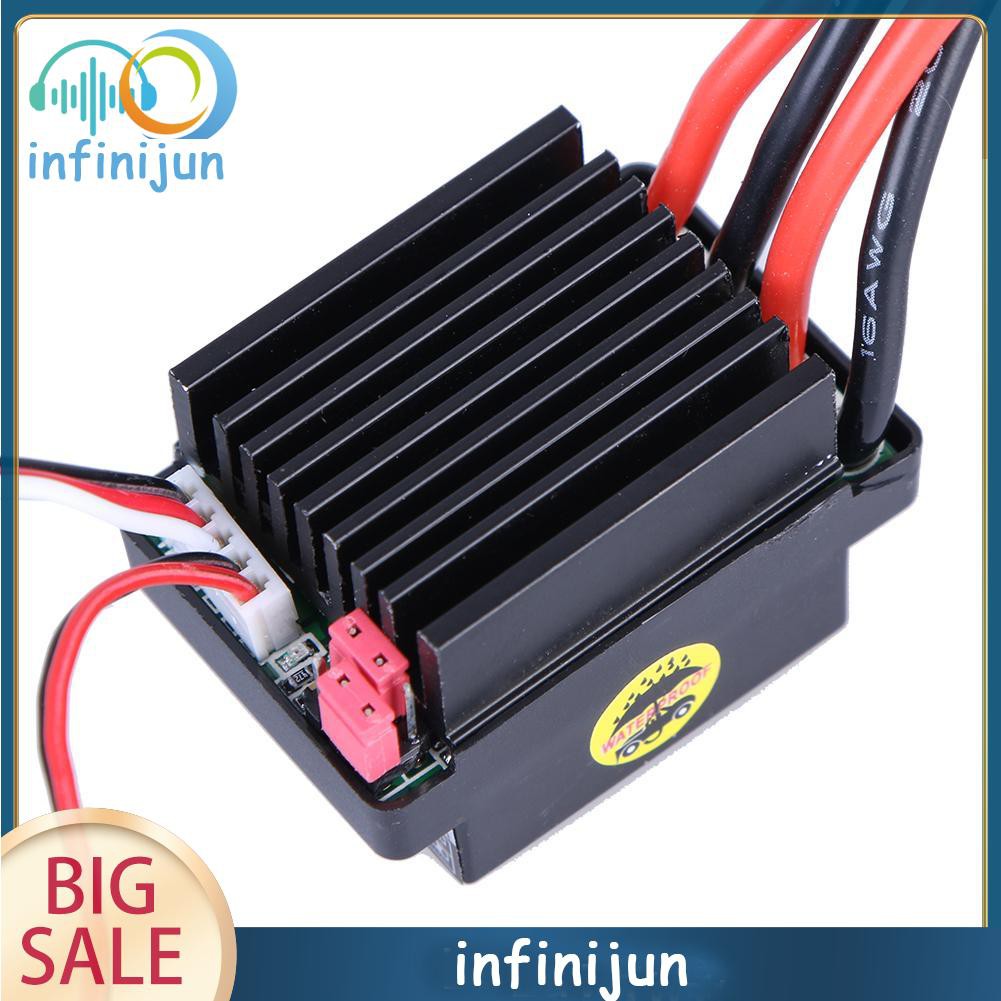

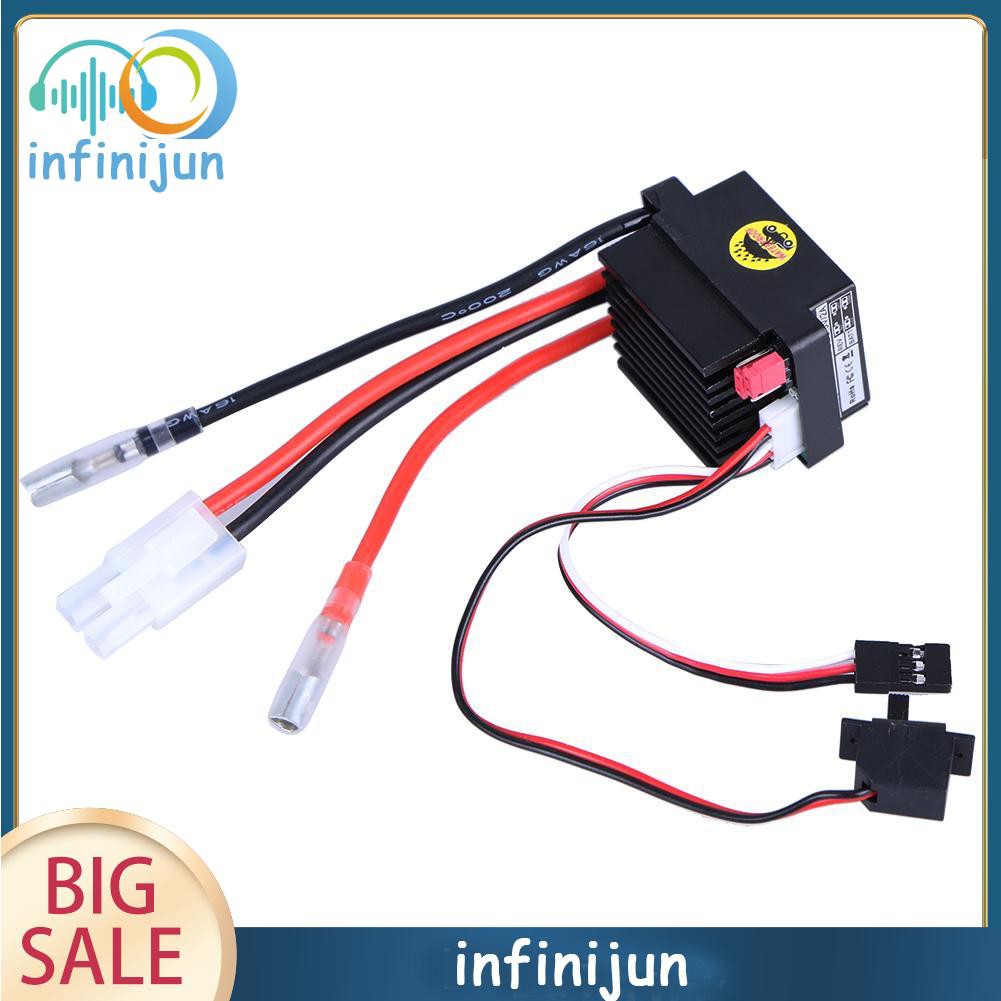

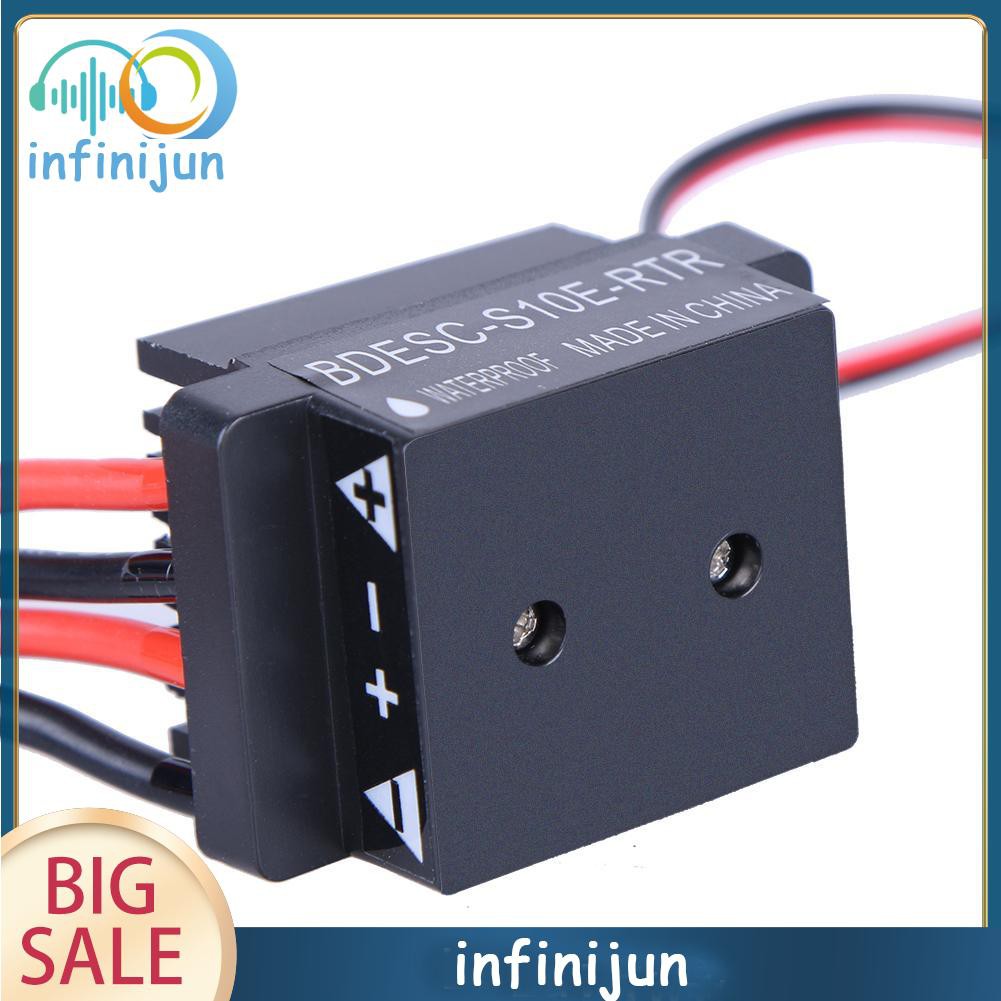

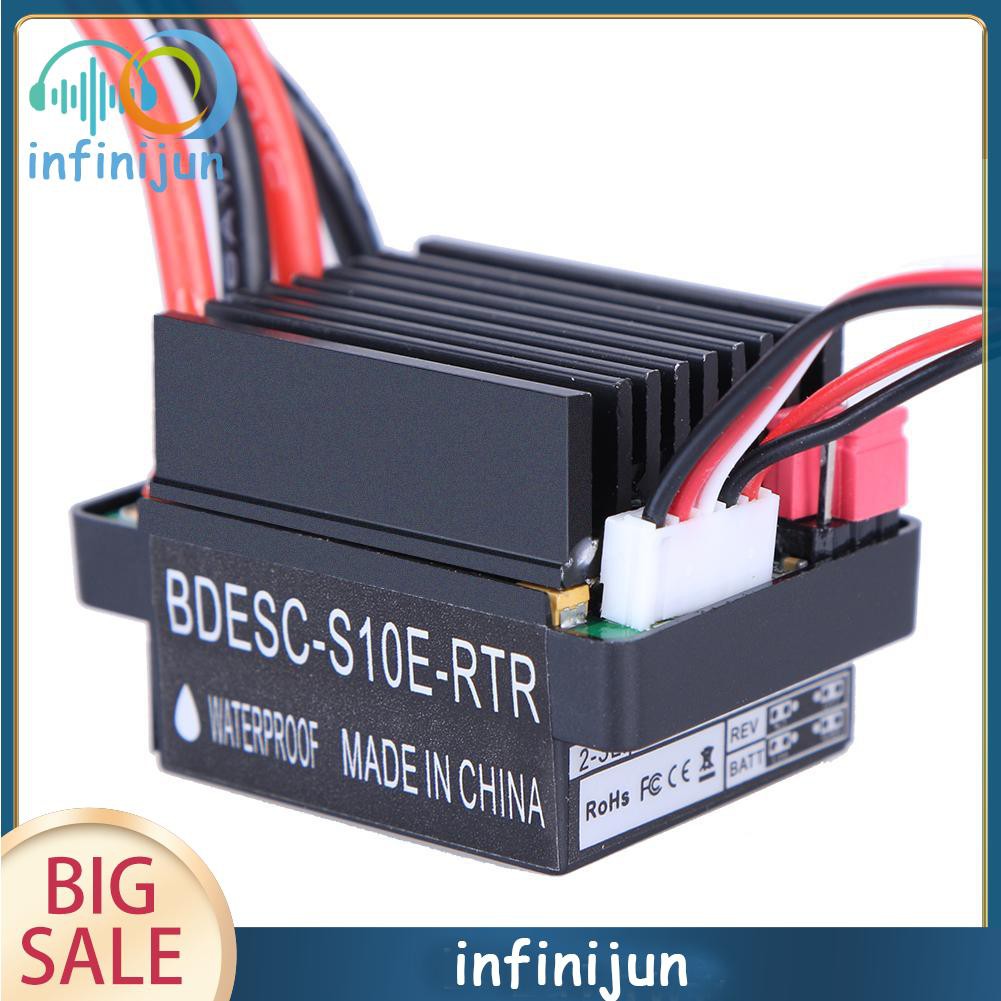

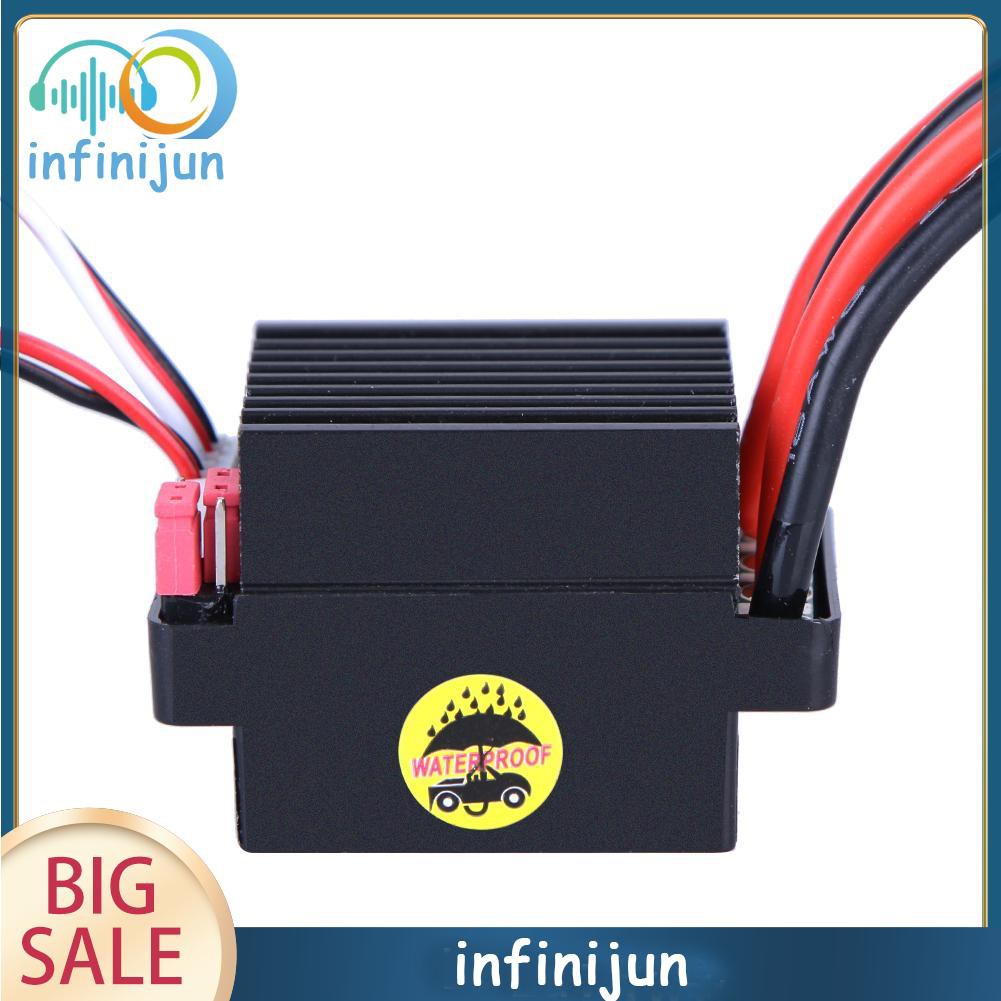

Hình ảnh sản phẩm
