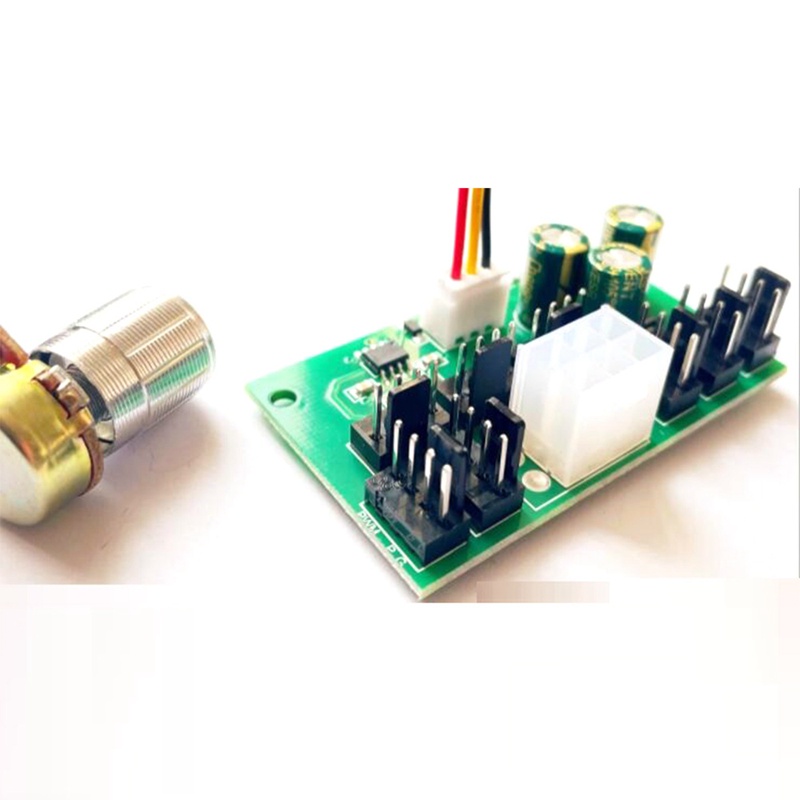

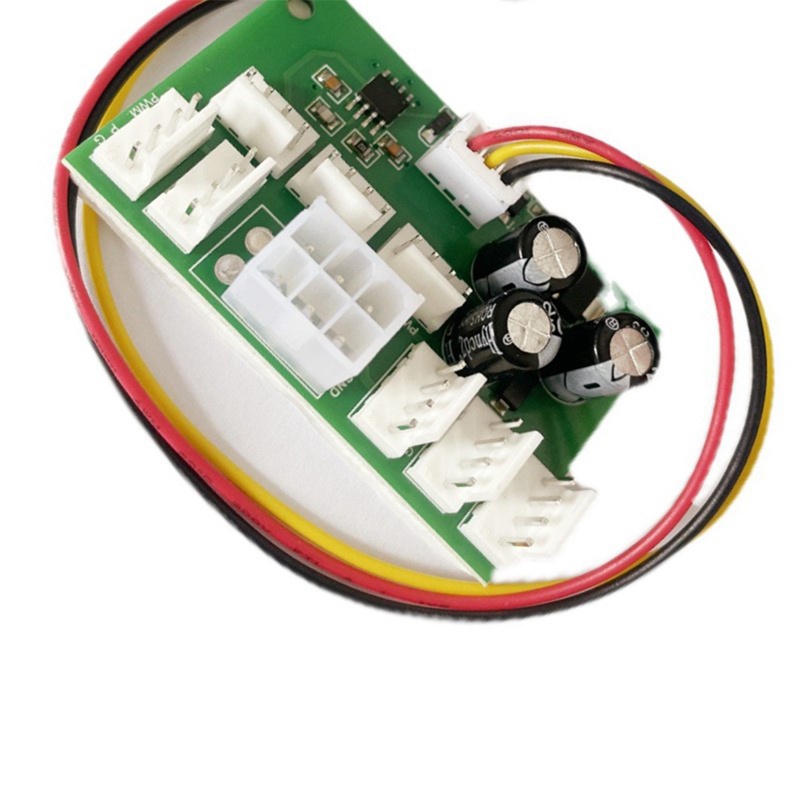

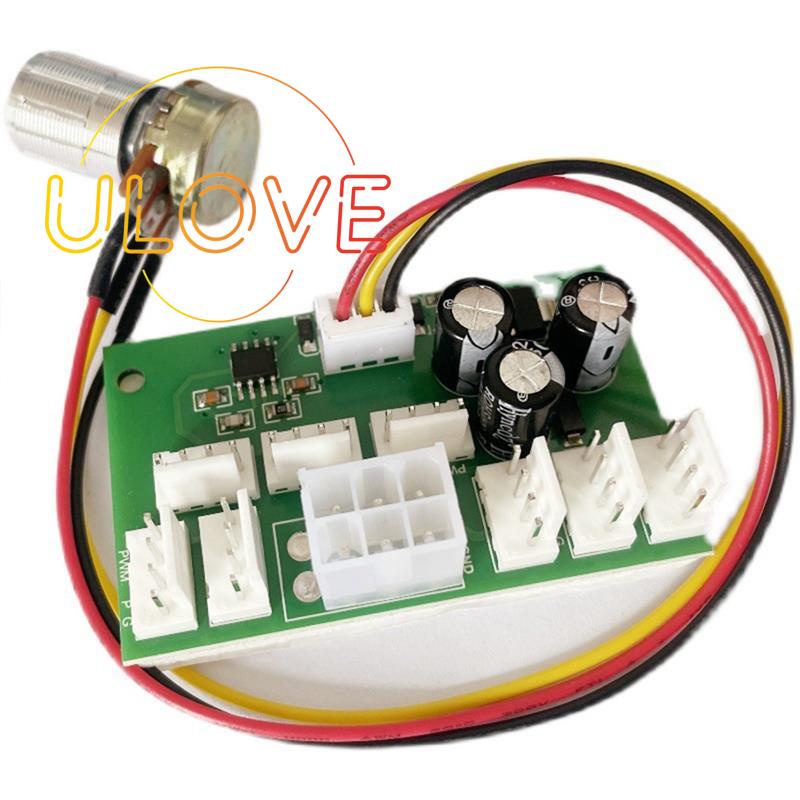

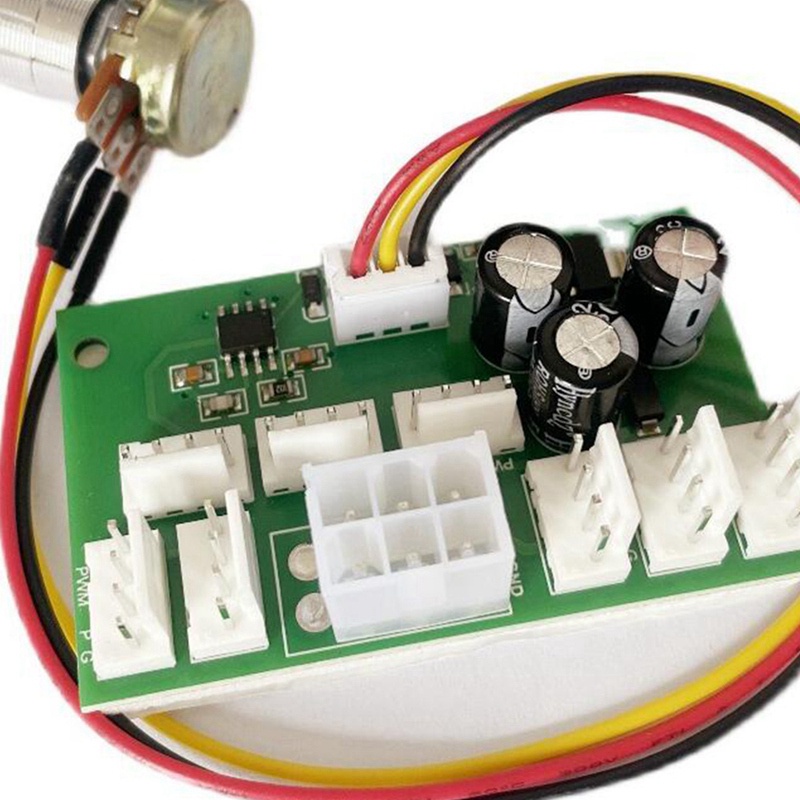

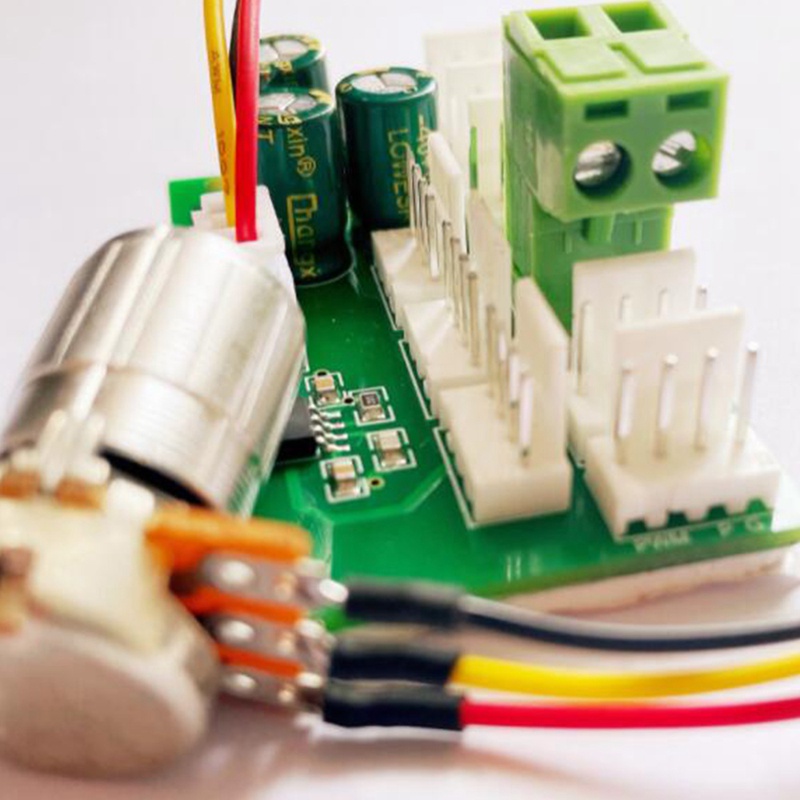

Bộ điều khiển tốc độ quạt tản nhiệt 8 kênh

Giới thiệu Bộ điều khiển tốc độ quạt tản nhiệt 8 kênh

Control power: 8 fans can be used at the same time, PWM fan speed control, 4-wire fan or 3-wire fan with PWM speed control port can be used in common. Note that the fan interface sequence is commonly used. The maximum power of a single fan is within 60W, and the total power is within 300W (note that the total power depends on the power supply of the chassis)
Quiescent current: 0.015A (standby state)
PWM duty cycle: 0%-100%
PWM frequency: 25khz
NOTE: The batches of raw materials are different, and the colors of the interfaces and s on the product are random(the specified color cannot be selected), which does not affect the use.

NOTE: The fan can only be used with PWM speed control function, and there must be a PWM speed control line.
NOTE: This el is PWM speed regulation, and the speed regulation frequency is about 25K. PWM is the speed control signal, P is the 12V positive pole, and G is the 12V negative pole. Do not make any mistakes in the wiring sequence, as mistakes will cause damage.
Type: Fan Speed Governor
working voltage: DC12V
colour:Green
Material:PCB+Plastic+Metal
size:60 x 35 x 16mm

Package Contents:
1 x Miner Fan Speed Controller

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
