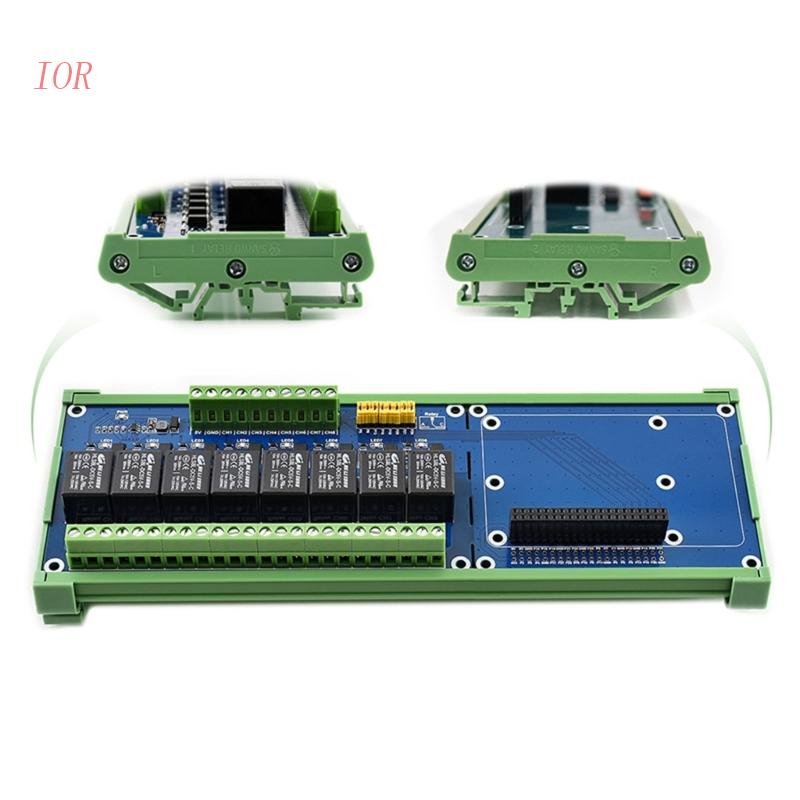

Giới thiệu IOR 8 Way 5V Relay Module High Power Relay Control Board Single Switch Relay Board
8 Way 5V Relay Module High Power Relay Control Board Single Switch Relay BoardFeatures: brand new and high quality
Supports Raspberry Pi A+/B+/2B/3B/3B+.
High quality relays, loads up to 5A 250V AC or 5A 30V DC.
Photo coupling isolation, prevent interference from high voltage circuit.
Standard rail mount bottom case.
Onboard LEDs for indicating relays status.
Relay control pin selection jumper, allows to control the relays by custom pins other than the default pins.
Reserved control Interface, allows to work with controllers like PLC.
Comes with development resources, including examples in wiringPi, bcm2835, python, python-bottle (webpage control), and crontab (cron job).
Specifications: Power supply voltage: 5V
Trigger signal: 3.3V/5V
Relay channels: 8-ch
Contact form: SPDT-NO,NC
Closed current: 6mA (per channel)
Connector: screw terminal block
Dimension: 232x72 (mm)
Mounting hole size: 3.0mm
Package Includes: 1 x 8 channel relay extenstion board
1 x Rail mount bottom case
1 x Screws set
( not include Raspberry Pi)
note: Due to the problems of lighting effects and angles, there will be certain tolerances in the product, please understand.
Please allow 0-1cm error due to the manual measurment.
