Giới thiệu JDY-10 BLE Bluetooth 4.0 Audio 2 Trong Suốt Truyền Kèm Tương Thích với CC2541 Module Bluetooth
Welcome to our shop 👑Kingzizi👑, all the products in this shop are at a favorable price💕, and have quality assurance💕, you can rest assured to buy💕, we will give you the best and highest quality shopping experience! 🌹🌹🌹Description

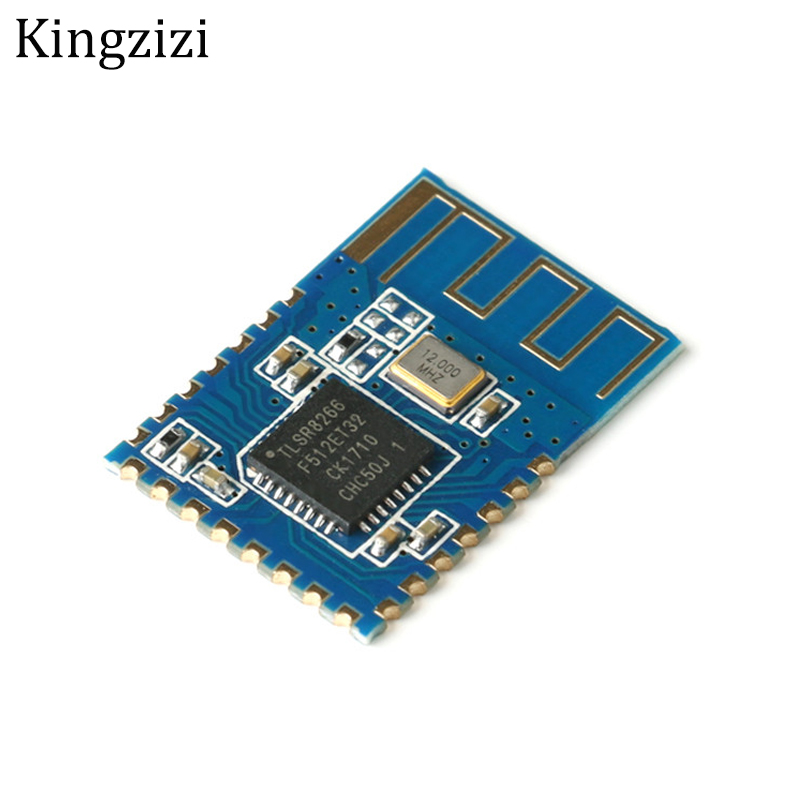

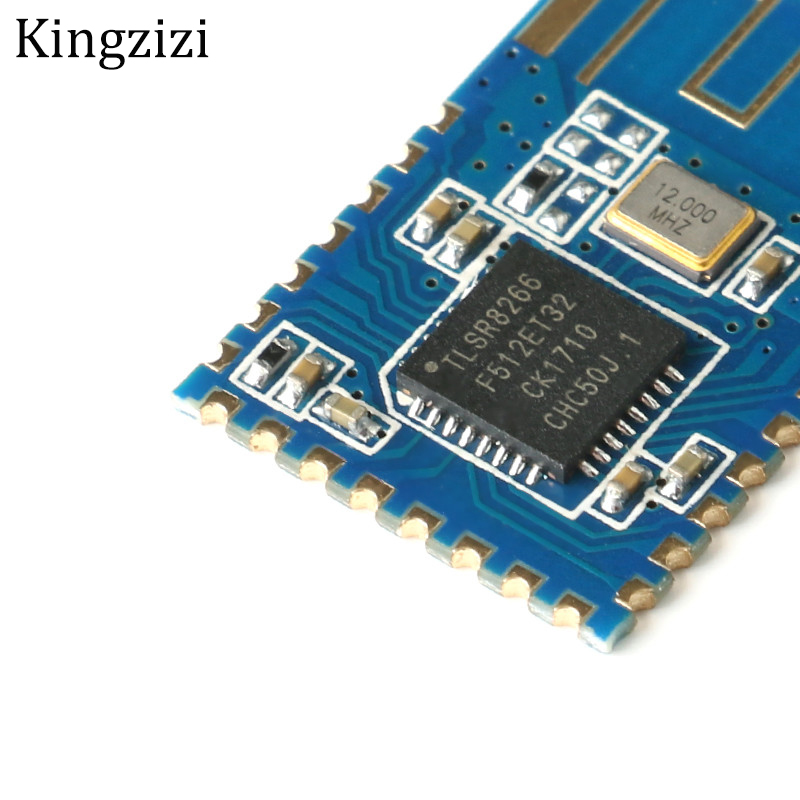

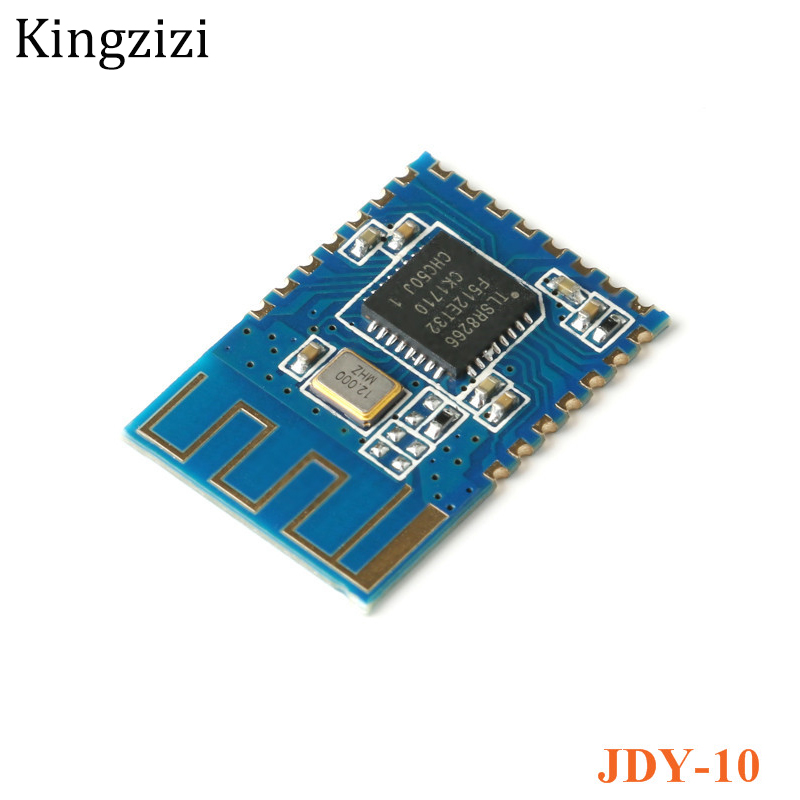

JDY-10 transparent transmission module is based on Bluetooth 4.0 protocol standard, working frequency range is 2.4GHZ range, modulation mode is GFSK, maximum transmission power is 8db, maximum transmission distance is 80 meters, low power consumption, small size, strong signal, data transmission Stable and other characteristics.
Product Features
Support for Android, IOS mobile phone data penetration
Support low power consumption (standby current can reach several uA)

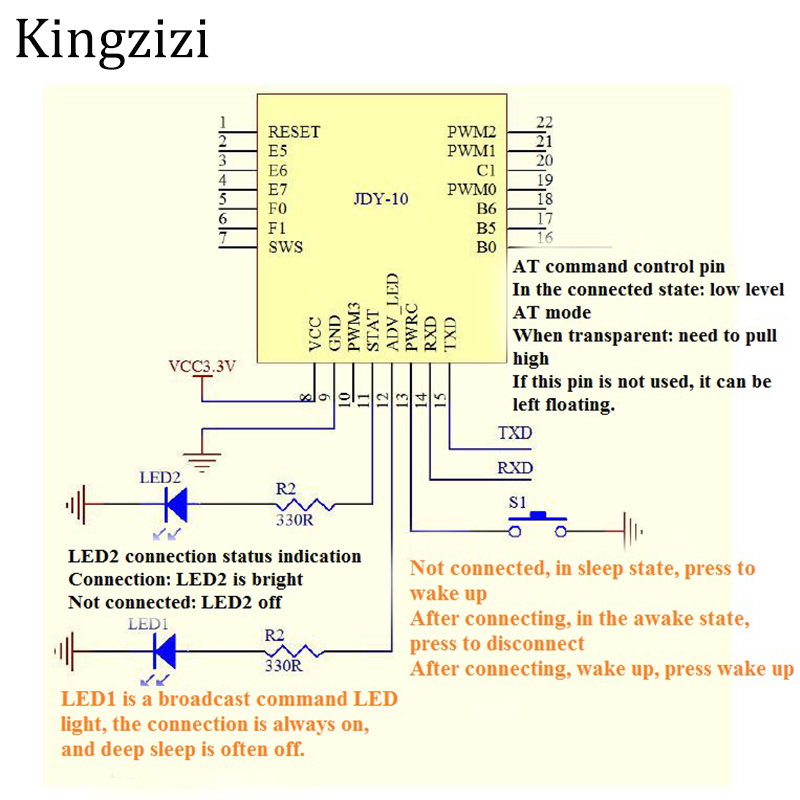

Support GPIO and UART peripheral interface
Support AT command operation
Can be certified by FCC/CE and other standards
WeChat transparent transmission function
Product parameters
Operating voltage: 1.9 – 3.6V
Working temperature: -40 - 85 °C
Maximum transmission power: +8dbm
Antenna: PCB onboard antenna
Receive sensitivity: -92dbm
Wake mode: 9MA
Suspen mode: 30-800 uA
Deep Sleep mode: 5 uA
Product application range
Bluetooth LED lighting
Motor adjustment and other products
Anti-lost alarm and other products
Sports Health Care
Small appliances
Automotive Electronics
#1 pc JDY-10 BLE Bluetooth 4.0 Uart Transparent Transmission Attachment Compatible with CC2541 Bluetooth Module
#JDY-23 #Bluetooth5.0 #module #BLE5.0 #CC2541 #Bluetooth
