Bộ Khuếch Đại Tín Hiệu Ăng Ten TV 8 Chiều 87-2350MHz Chuyên Dụng
Mô tả ngắn
Dụng cụ và thiết bị tiện ích > Dụng cụ điện và thiết bị lớn > Thiết bị khác > Bộ Khuếch Đại Tín Hiệu Ăng Ten TV 8 Chiều 87-2350MHz Chuyên Dụng
- Giao hàng toàn quốc
- Được kiểm tra hàng
- Thanh toán khi nhận hàng
- Chất lượng, Uy tín
- 7 ngày đổi trả dễ dàng
- Hỗ trợ xuất hóa đơn đỏ
Giới thiệu Bộ Khuếch Đại Tín Hiệu Ăng Ten TV 8 Chiều 87-2350MHz Chuyên Dụng
Professional 8-way distribution amplifier with IRS Loop-through can be connected directly to a Multiswitch subscriber output whereby the SAT and TERR/Radio signals are passed through the distribution amplifier before terminating at the outlet plate. The IRS Loop-through can also be used to cascade multiple units to create large scale Master Antenna TV systems (MATV). When used a s a standard TERR and Radio distribution amplifier, it offers a professional, low noise, high gain solution.Features:
The distribution amplifier is designed to meet the requirements of the modern Integrated TV & Satellite Integrated Reception System.
The range

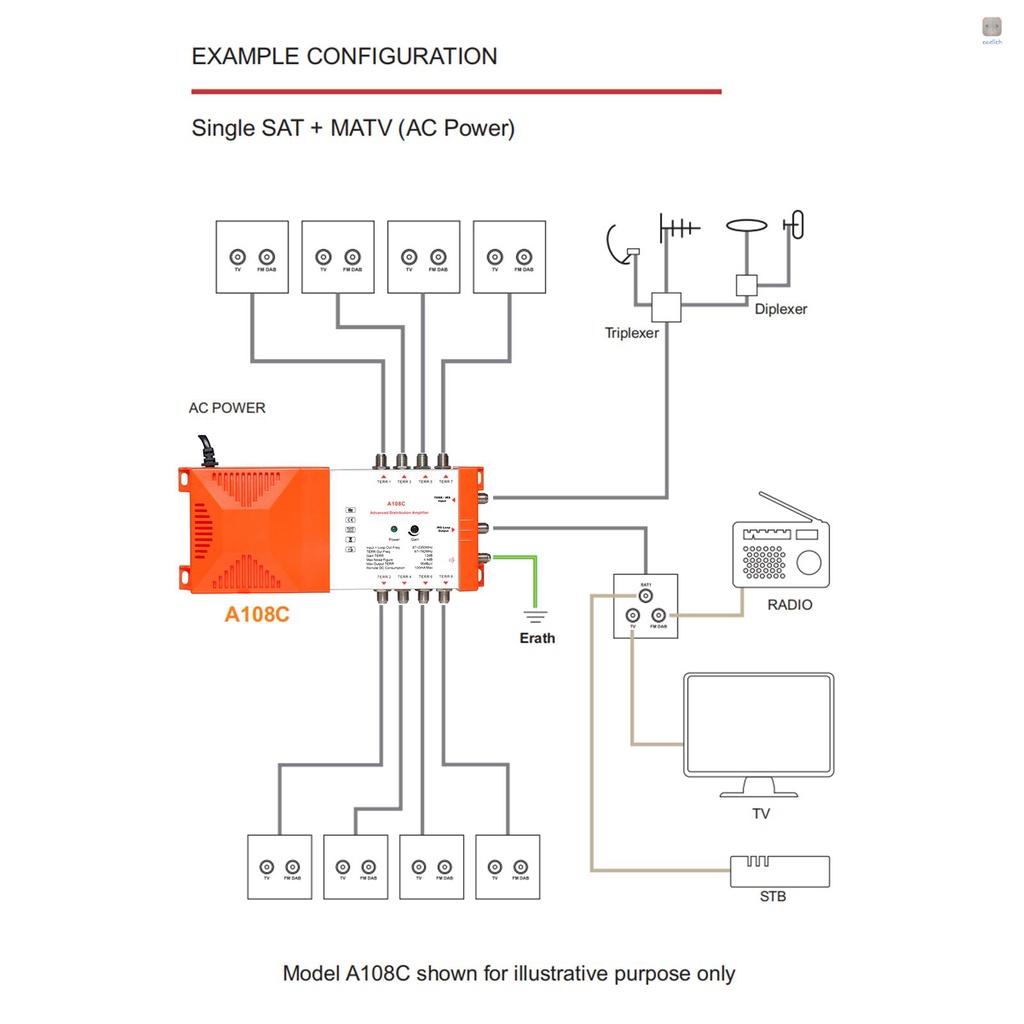

Features an IRS Loop-through which enables the 8-way distribution amplifier to be connected directly to a Multiswitch subscriber output.
Used as a Terrestrial TV and Radio Distribution Amplifier (MATV), the distribution amplifier provides unrivalled low noise, high gain performance and reliability. The RED compliant distribution amplifier includes a high rejection 4G Filter and
Features a 15dB Gain Control which ensure that the 8-way distribution amplifier can be applied to most signal level scenarios.
The unit can be powered via the AC mains lead supplied or, in the absence of mains supply can be remotely powered via any of the TERR Outputs using a suitable PSU (not included).
Wall mounted installation; the amplifier can be fixed with 4 equipped screws easily to the relevant wall, surface, or cabinet. It’s intended for indoor use only.
Note: Size and color may be slightly different due to manual measurement and different light conditions. Thanks for understanding.
Specifications:
Plug: EU/ US (Optional)
Color: White & Orange
Material: ABS + Metal
Input＞Loop Out Frequency: 87~2350MHz
TERR Out Frequency: 87~782MHz
Gain TERR: 12dB
Max. Noise Figure: ≤4dB
Max. Output TERR: 90dBμV
Remote DC Consumption: 100mA Max.
Item Size: 240 * 95 * 37mm / 9.45 * 3.74 * 1.46in
Power Cord Length: about 135cm / 53in
Item Weight: 509g / 1.12lbs
Package Size: 25.5 * 12 * 5cm / 10.04 * 4.72 * 1.97in
Package Weight: 596g / 1.31lbs
Package List:
1 * Distribution Amplifier
4 * Screw
Hình ảnh sản phẩm
