Bộ linh kiện bảng mạch điều khiển bằng giọng nói 5V
Mô tả ngắn
Thiết Bị Điện Tử > Loa > Máy nghe nhạc > Bộ linh kiện bảng mạch điều khiển bằng giọng nói 5V
- Giao hàng toàn quốc
- Được kiểm tra hàng
- Thanh toán khi nhận hàng
- Chất lượng, Uy tín
- 7 ngày đổi trả dễ dàng
- Hỗ trợ xuất hóa đơn đỏ
Sản phẩm tương tự
Giới thiệu Bộ linh kiện bảng mạch điều khiển bằng giọng nói 5V
#5V #Voice #Control #Switch #Suite #DIY #Kits #Electronic #Circuit5V Voice Control Switch Suite DIY Kits Electronic Circuit
Working Principle:
Q1 and Q2 composed of two audio amplifier circuit, the audio signal is accepted by the MK1 C1 is coupled to the base of Q1 pole, amplified and fed directly from the collector to the base of Q2 to a negative square wave at the collector of Q2, with to trigger the bistable circuit
R1, C1 circuit frequency response is limited to about 3kHz to high sensitivity range
The power is turned on, the state of the bistable circuit Q4 off, Q3 saturated, D3 does not shine
When MK1 received control signal, and a negative square wave output after two enlarged, negative spikes through D1 add to the base of Q3, the circuit rapidly flip, D3 is lit after differential processing
When MK1 again connected to the control signal, the circuit and flipped, D3 is off
Circuit board reserved for the terminal J1 access outside the control equipment and other devices through the J1 connector relay voice. (Then relays required at both ends of the relay coil anti and a diode)
Specifications:
Suite Name: Clap switch kit
Operating Voltage: 4.5-5V
PCB Size: 4.9x2.7cm/1.93x1.06inch
Quantity: 1 Set
Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Contents:

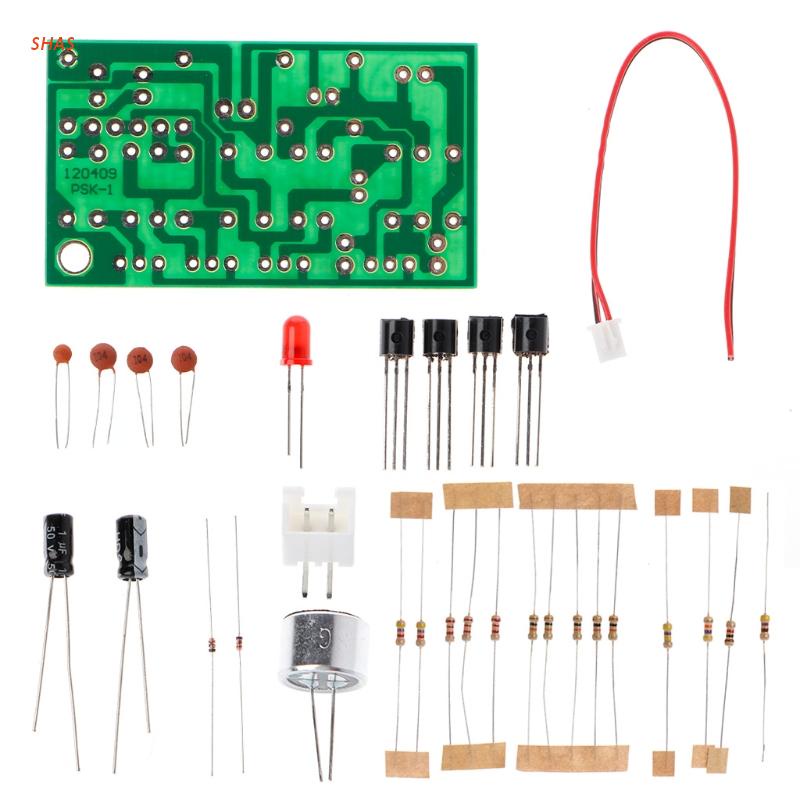

1 Set x Clap Acoustic Control Switch Suite
