Mạch Điều Khiển Động Cơ Bước TB6600 4A 9~40V CNC

Giới thiệu Mạch Điều Khiển Động Cơ Bước TB6600 4A 9~40V CNC

Feature：

Brand new and high quality.
Product Features:

Material: Electrical components

Color: See pictures

42/57/86 TB6600 Stepper Motor 32-segment driver updated version 4.0A 40VDC for CNC milling machine

Specifications:

This unit is an upgraded version of TB6600, the breakdown of increase to 32 segments, for high targeting purposes. Applicable stepper motor: 42.57, 86 Phase type phase (4 wire 6 wire 8 wire line)
1. 9 V-42V DC power supply;
2. H-bridge Bipolar constant-phase flow-driven;
3. the maximum output current of 4.0A eight optional;
4. up to 32 segments of six types of sub-modes available;
5. the input signal is high-speed optical insulation;
6. standard common anode single pulse interface;
7. HOLD function offline;
8. semi-closed chassis can accommodate the most demanding environment;
9. provide semi-automatic current locking function;
10. built-in thermal protection and overcurrent protection.
11.Size: 9.6*5.5*2.7cm
Package included:
1x TB6600 Single Axis 4A Stepper Motor Driver Controller 9~40V Micro-Step CNC
Note:
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

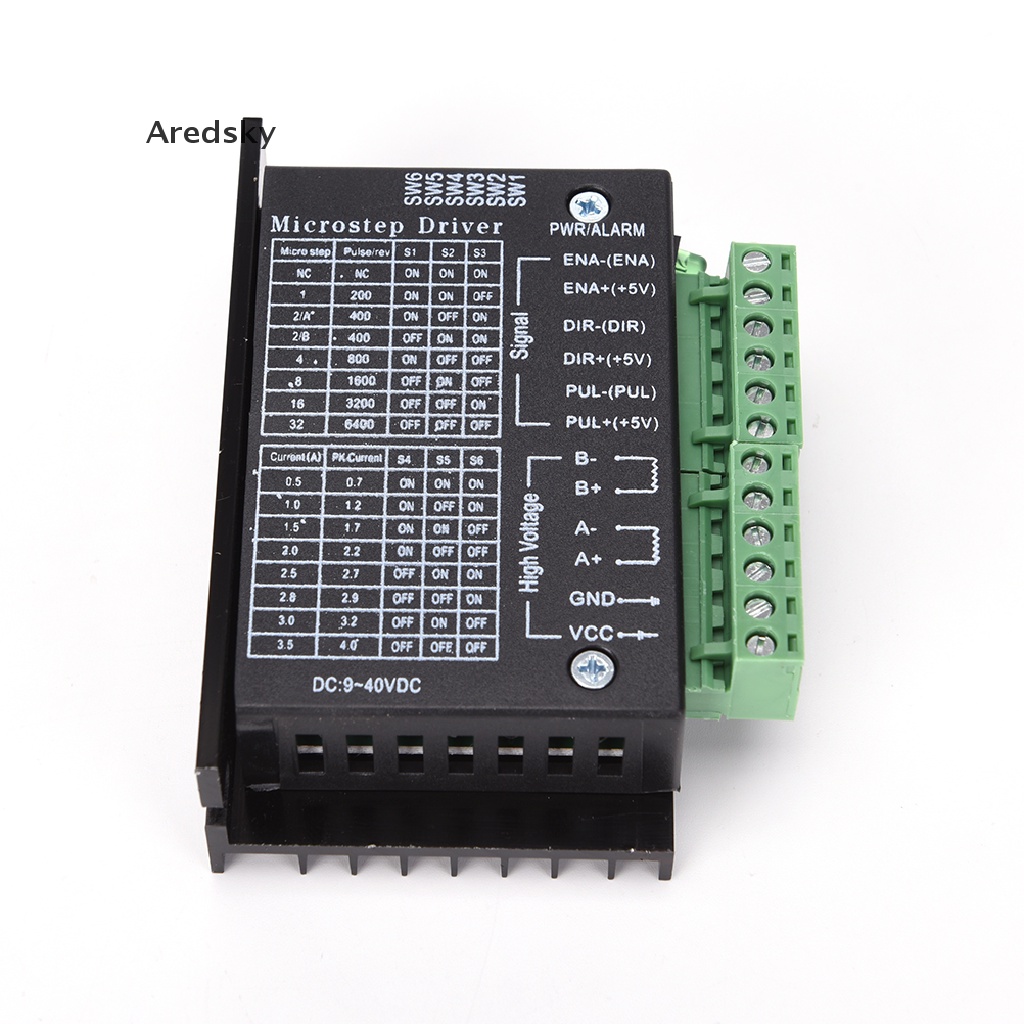

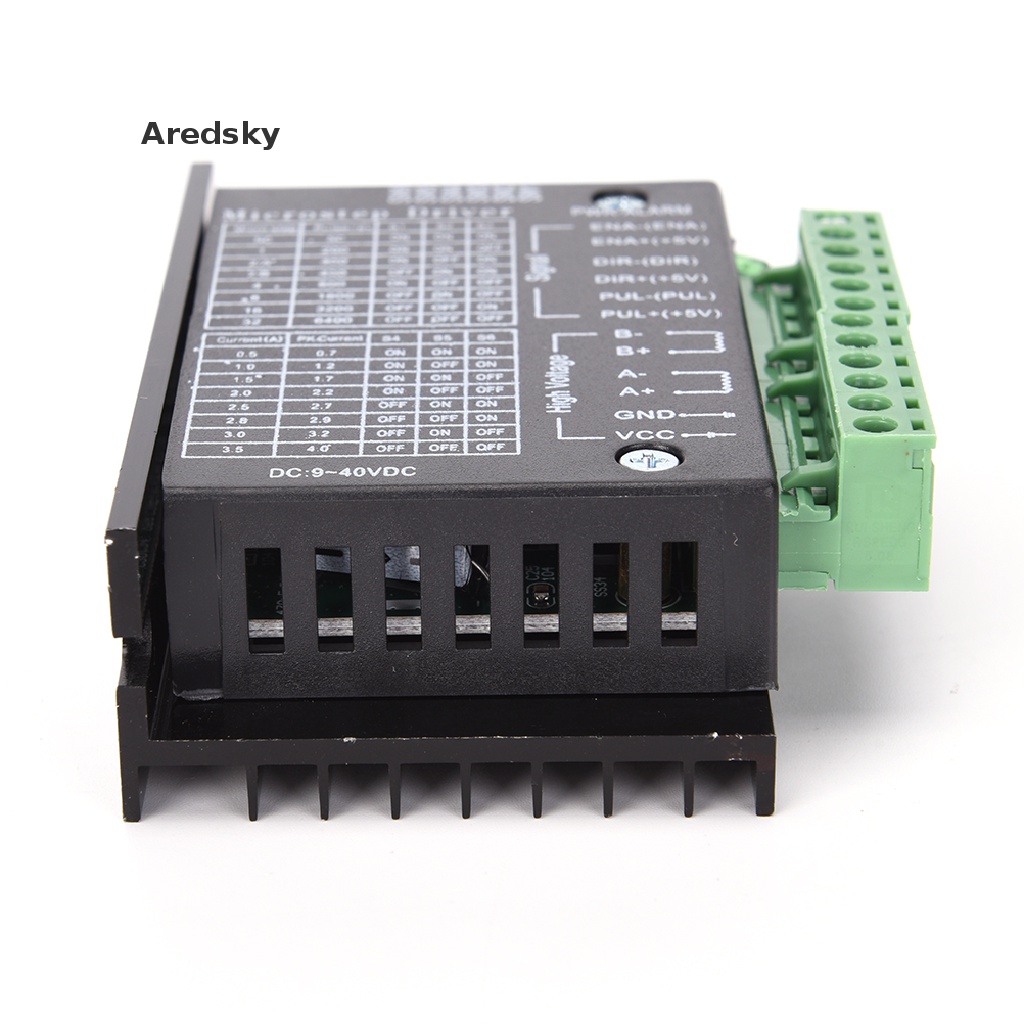

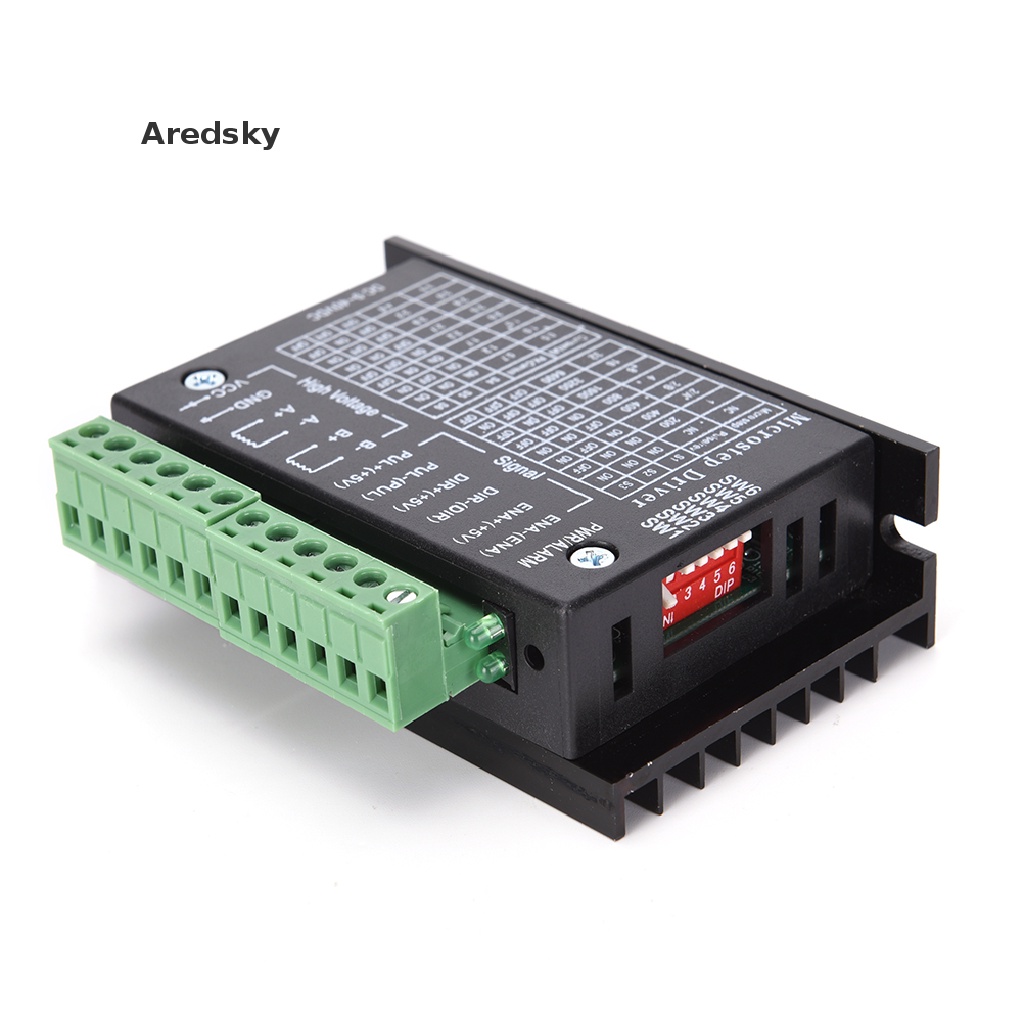

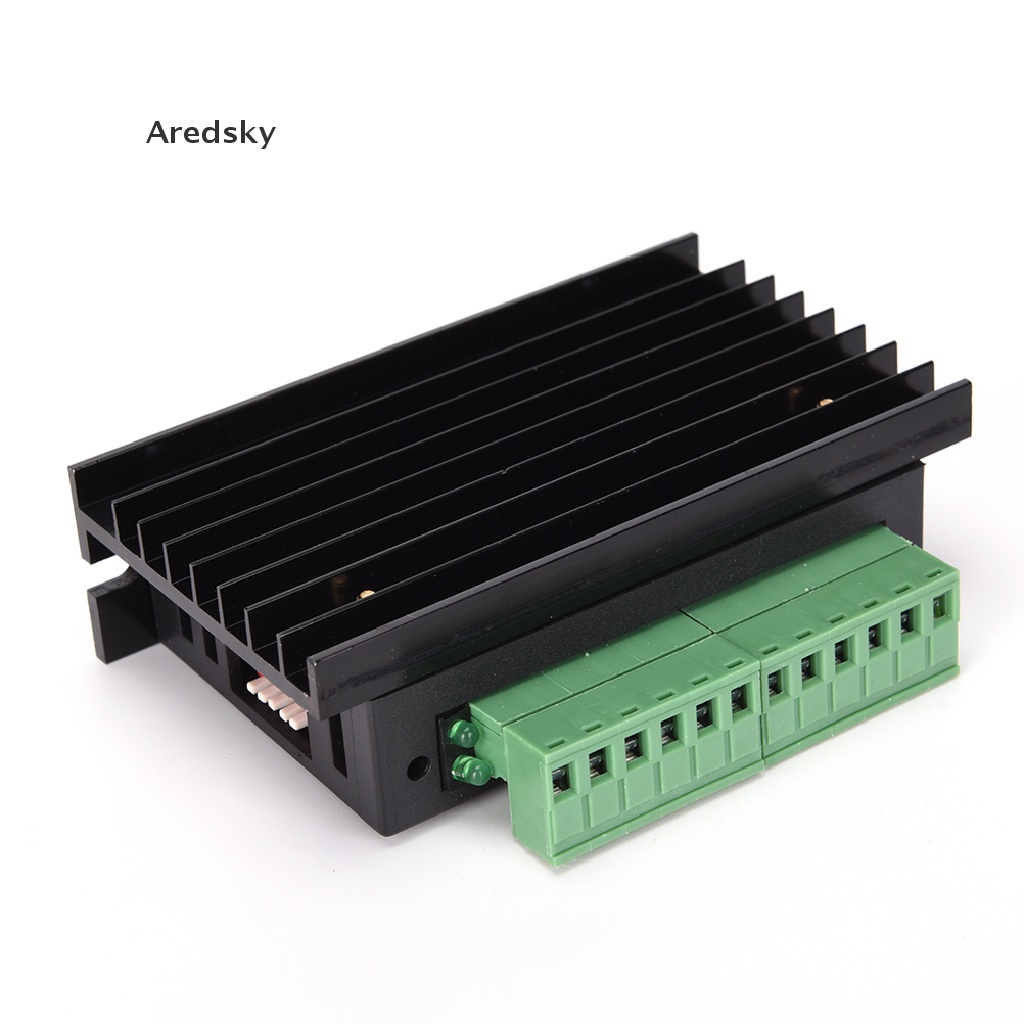

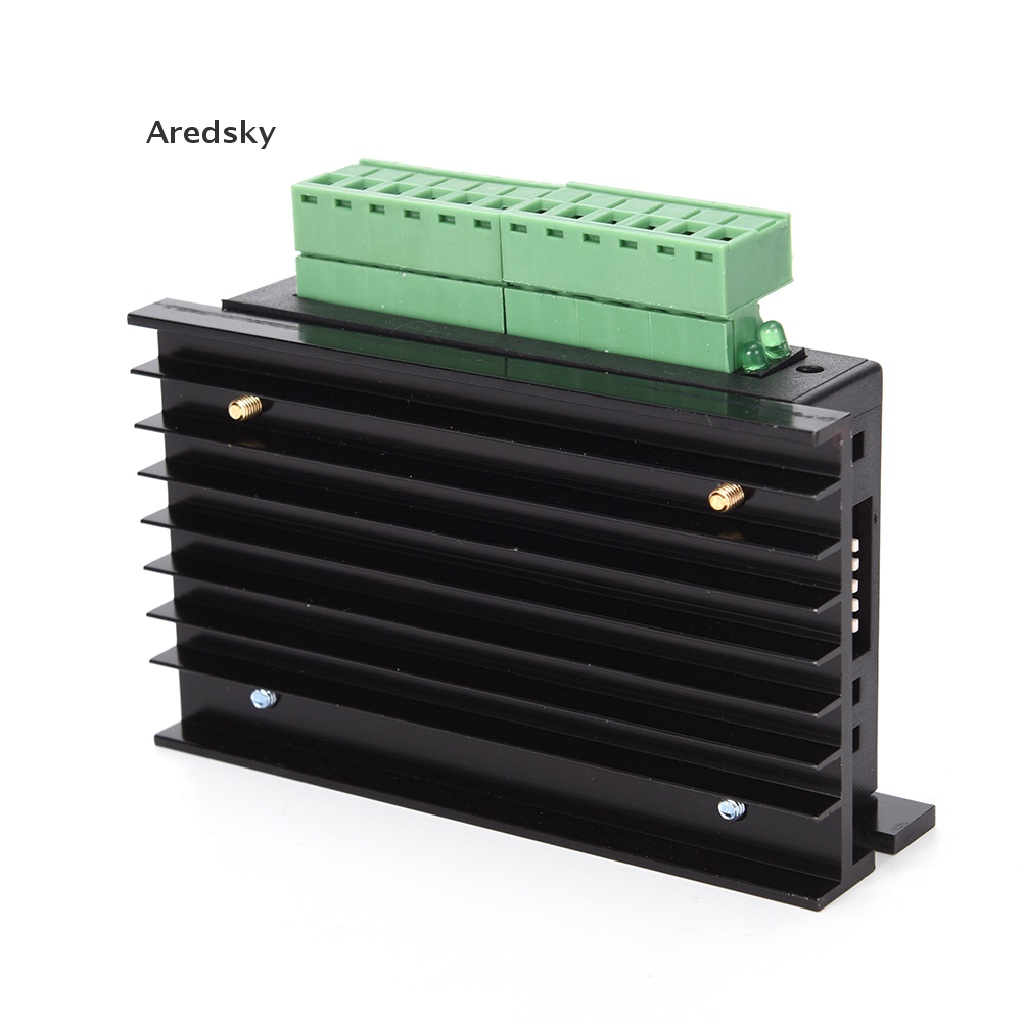

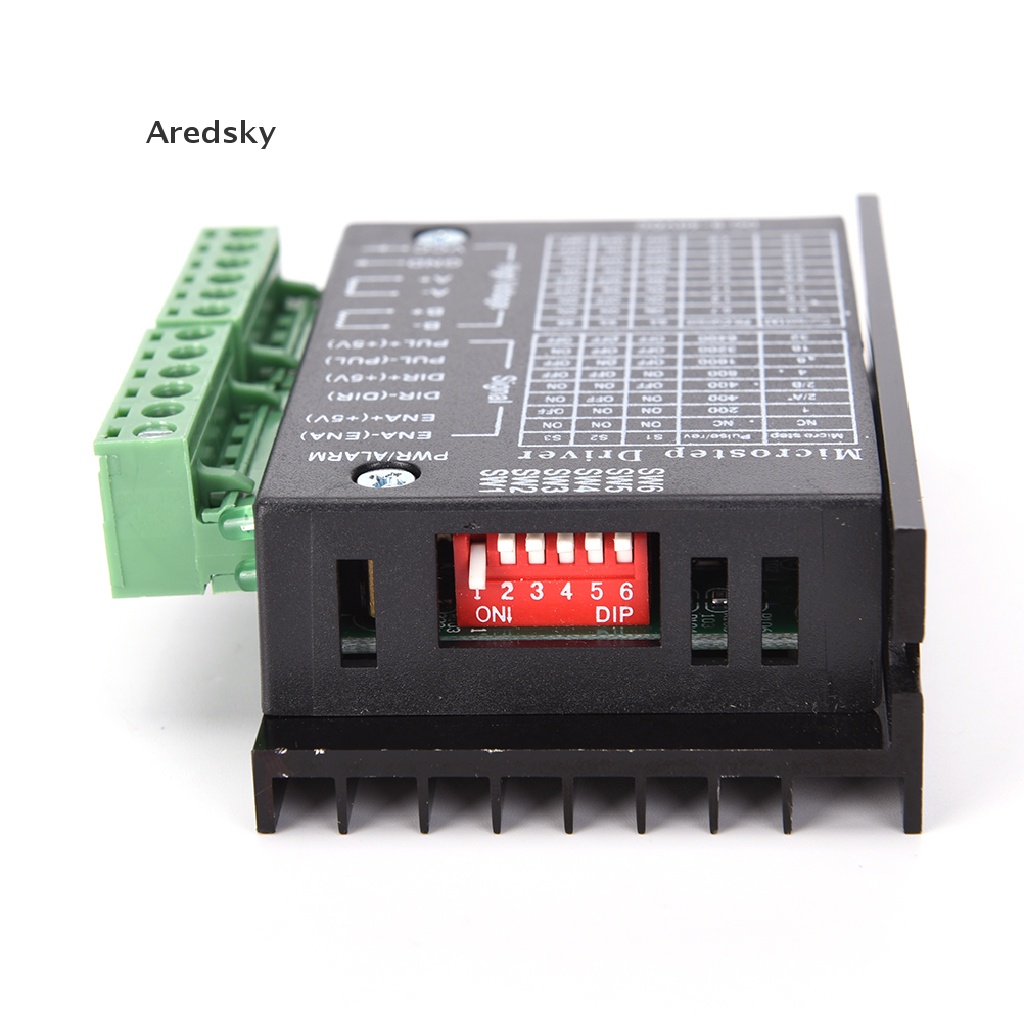

Hình ảnh sản phẩm
