Mainboard ASUS ROG STRIX X670E-I GAMING WIFI DDR5

Giới thiệu Mainboard ASUS ROG STRIX X670E-I GAMING WIFI DDR5

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Modela

ROG STRIX X670E-I GAMING WIFI DDR5
CPU hỗ trợ

AMD

Chipset

X670

RAM hỗ trợ

2 x DIMM, Max. 64GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz ECC and Non-ECC, Un-buffered Memory

Khe cắm mở rộng

AMD Ryzen™ 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot(s)

Ổ cứng hỗ trợ

M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)
AMD X670 Chipset
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
2 x SATA 6Gb/s ports

Cổng kết nối (Internal)

Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
USB
1 x USB 3.2 Gen 2 connector (support(s) USB
Type-C® )
1 x USB 3.2 Gen 1 header(s) support(s)
additional 2 USB 3.2 Gen 1 ports
Miscellaneous
1 x Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x RTC Battery header
1 x Thermal Sensor header
1 x 2 pin Power_BTN header
2 x USB Type-C® connectors to Install ROG
FPS-II card*
ROG FPS-II card
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Clear CMOS header
1 x Front Panel header
1 x Alteration mode switch
2 x USB 2.0 header(s) support(s) additional
3 USB 2.0 ports

Cổng kết nối (Back Panel)

2 x USB4® port(s) with Intel® JHL8540 USB4®
controller (2 x USB Type-C®)
5 x USB 3.2 Gen 2 port(s) (5 x Type-A) (1
port supports ROG STRIX HIVE)
3 x USB 2.0 port(s) (3 x Type-A)
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet port

LAN / Wireless

Wi-Fi 802.11 a/b/g/n/ac

Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO

Kích cỡ

Mini-ITX Form Factor
6.7 inch x 6.7 inch( 17cm x 17cm)

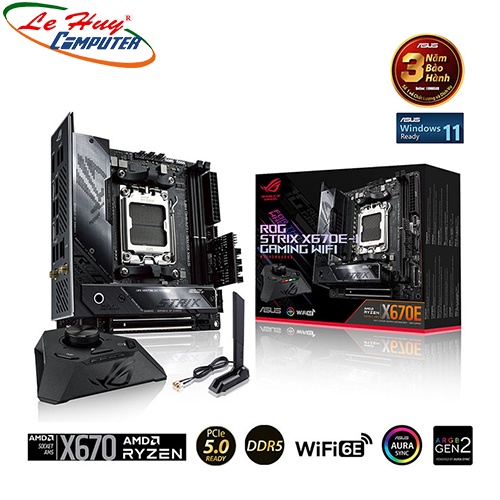

Hình ảnh sản phẩm
