Máy kiểm tra cáp mạng đa năng SC8108

Giới thiệu Máy kiểm tra cáp mạng đa năng SC8108

Description:

Item type:multi-network cable tester

Type of Tester Cable: STP/UTP twin twisted cable, coaxial cable, telephone line Tester Port

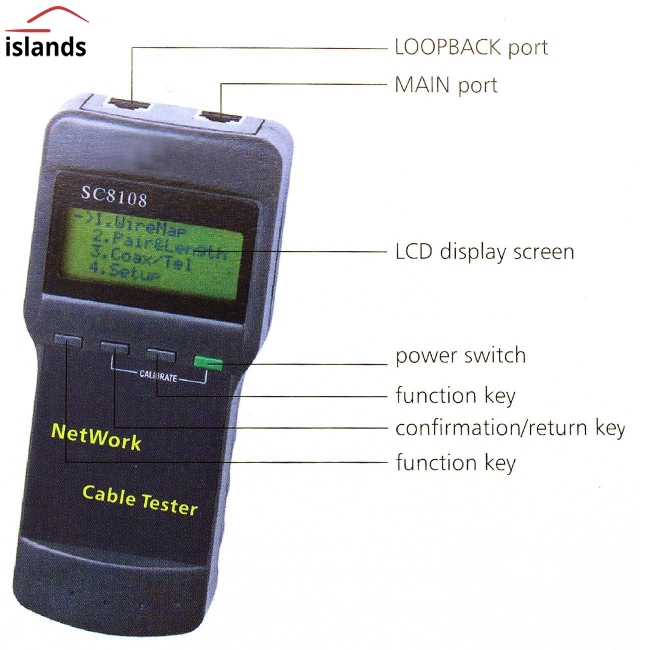

Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer RJ45 port (R)

(BNC and RJ11 converters (not included in the set), can be used to measure and check the continuity of coaxial cable and telephone line)

Length Measurement of Twin Twisted Cable:

Scope: 1 to 350M (3 to 1,200 FT) calibration

Calibration accuracy: 3% (±0.5m or ±1.5 ft) (calibrating cable > 5 M)

Shipment accuracy: 5% (±0.5m or ±1.5 ft) (AMP, AT&T Class 5 cable)

Unit of Measurement: Display in meter (M) or feet (FT)

Length Calibration:

User can set self-calibration factor by a given length cable.

The length of calibrating cable is more than 5M

Wire Sequence and Locating Cable Error:

Check errors such as open circuit, short circuit, reverse connection, cross over or cross-talk interference

Locating Cable:

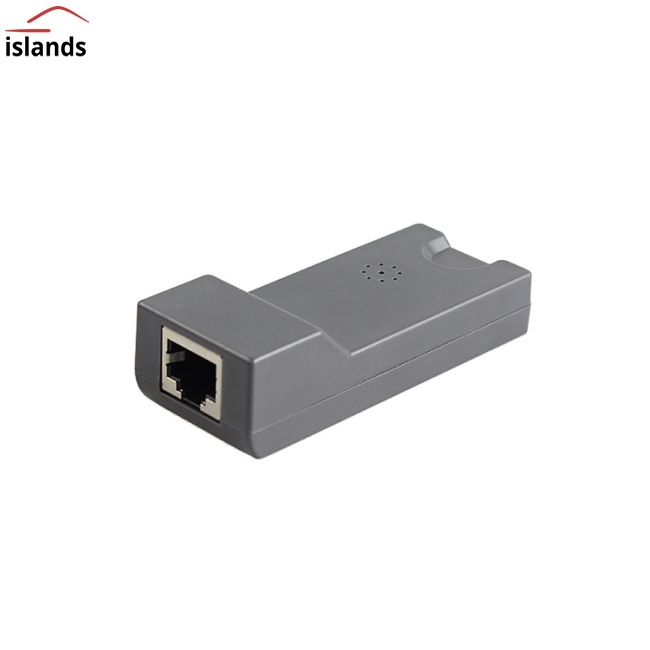

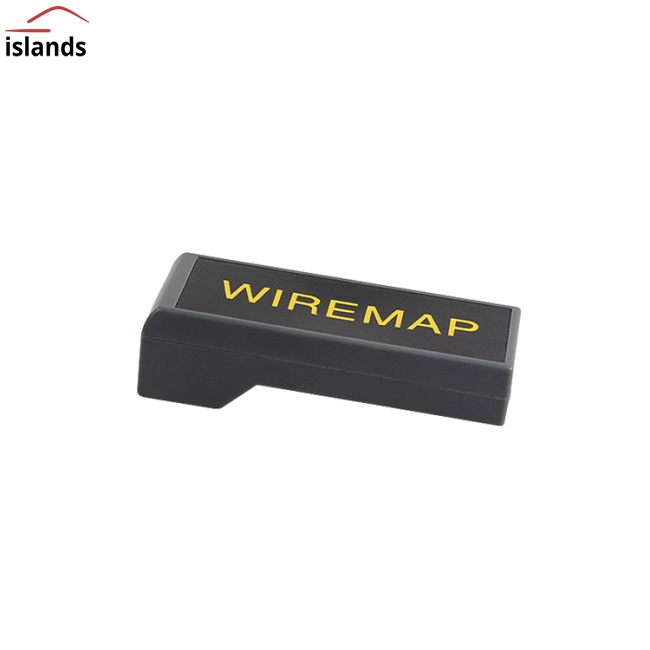

Included 1 far-end passive test jack

Powerd by: 4 x AAA batteries

Automatic Time-delay Shut Off Time: The tester is idle for 30 minutes

Working Ambient Temperature: -10°C to 60°C

LCD size: 6.6 cm

Package Include:

1 x multi-network cable tester

1 x far-end test jack

Note:

The colors deviation might differ due to different monitor settings.

Hình ảnh sản phẩm
