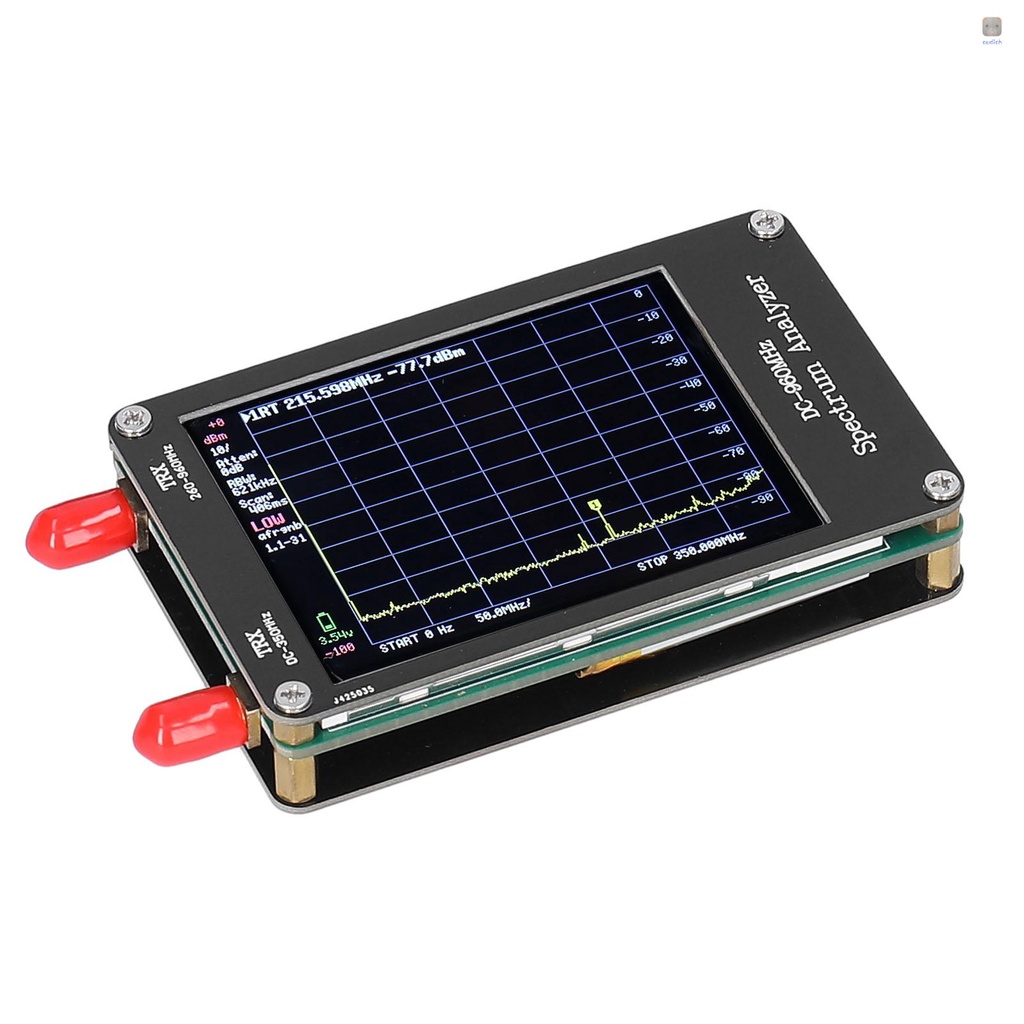

Máy Phân Tích Cầm Tay USB Type-C 2.8inch Với 4 Chế Độ Chiếu Sáng 100KHz-350MHz Và 260-960MHz

Giới thiệu Máy Phân Tích Cầm Tay USB Type-C 2.8inch Với 4 Chế Độ Chiếu Sáng 100KHz-350MHz Và 260-960MHz

This spectrum analyzer is made of fine quality material, practical, easy to operate and use, has a long service life. With 2.8inch color touching display, and two inputs, MF/HF/VHF input for 0.1MHz-350MHz, and UHF input for 260MHz-960MHz. Totally 4 operation modes design, low input mode, high input mode, low output mode, high output mode, you can adjust according to your demands. You can have a try.



Features:

2.8inch color touching display showing 290 scan points covering up to the full low or high frequency  ranges.

Equipped with two inputs, MF/HF/VHF input for 0.1MHz-350MHz, and UHF input for 260MHz-960MHz.

With switchable resolution bandpass filters for both  rangess between 2.6KHz and 640KHz.

Input step-attenuator from 0dB to 31dB for the MF/HF/VHF input.

It not only can be used as spectrum analyzer but also can be used as signal generator, MF/HF/VHF sinus output between 0.1MHz-350MHz, UHF squarewave output between 260MHz-960MHz.

A built-in calibration signal generator that is used for automatic self test and low input calibration.

Totally 4 operation modes design, low input mode, high input mode, low output mode, high output mode, you can adjust according to your demands.

Connected to a PC via USB it becomes a PC controlled spectrum analyzer.

The built-in USB Type-C rechargeable battery allowing a minimum of at least 2 hours portable use.

Two types optional, you can choose with antenna and without antenna according to your demands.



Specifications:

Name: Spectrum Analyzer

Material: ABS

Color: black

Battery: 1 * lithium battery, 5V, 600mAh (included)

Display resolution: 320*240 pixels

Screen diagonal: 2.8inch

Rechargeable interface: USB Type-C

Item size: 100 * 62 * 18mm / 3.94 * 2.44 * 0.71in

Item weight: 116g / 4.09ounce

Package size: 130 * 100 * 40mm / 5.12 * 3.94 * 1.57in

Package weight: 147g / 5.19ounce

User interface:

Display resolution 320*240 pixels

Screen diagonal 2.8inch

16 bits per RGB pixels

Resistive touching control

Jog switch control

USB serial port control

Optional TTL USART port (SW not yet implemented) on the internal PCB

Linear power supplys to refrain switching noise

The input/output specification is split over the 4 modes.

Low input mode spec:

Input frequency  ranges from 100KHz to 350MHz.

Input impedance 50 ohm when input attenuation set to 10dB or more.

Selectable manual and automatic input attenuation between 0dB and 31dB in 1dB step.

Absolute maximum input level without attenuation of +10dBm.

Absolute maximum input power with 30dB attenuation of +20dBm for short period.

Input intercept point of third order modulation products (IIP3) with 0dB attenuation of +15dBm.

1dB compression point at +2dBm with 0dB attenuation.

Power detector resolution of 0.5dB and linearity ranges frequency of +/-1dB.

Absolute power level accuracy after power level calibration of +/-1dB.

Lowest discernible signal using a resolution bandwidth of 30KHz of -102dBm.

Frequency accuracy equal to the sele
