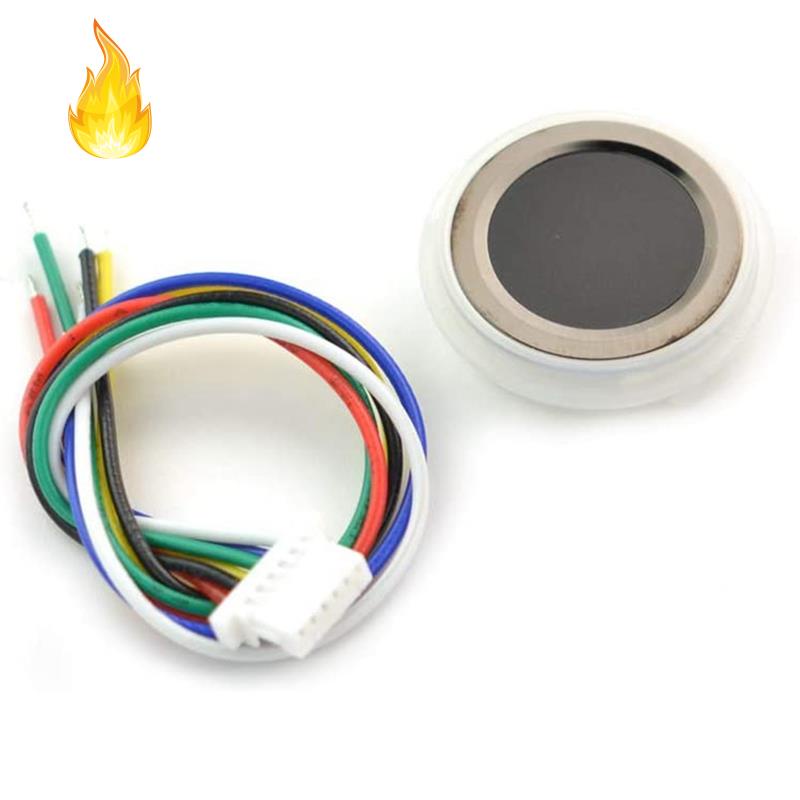

Máy quét vân tay cảm ứng cho Arduino

Giới thiệu Máy quét vân tay cảm ứng cho Arduino

This capacitive fingerprint sensor supports fingerprint capture, image processing, fingerprint storage, fingerprint comparison, and so on.
Taking ID809 high-performance processor and semiconductor fingerprint sensor as the core, the sensor adopts built-in IDfinger6.0 algorithm, which can complete all fingerprint identification work independently.
The product supports UART communication. When working with the Arduino library, it can easily realize functions like fingerprint registration, fingerprint deletion, etc. Also, we provide upper computer software that helps users to operate this sensor.
This fingerprint sensor comes with round breathing LEDs and has a simple structure, small size, and delicate appearance. The sensor offers fast recognition speed and high security.
What's more, it supports 360-degree arbitrary angle recognition and deep self-learning function, high performance and low power consumption.

CNC metal ring, plus aperture,Applications,Fingerprint door-lock,Drawer Lock,Identity Recognition,Authorization
Operating Voltage: 3.3V
Operating Current: less than 60mA
Communication Method: UART
Storage Capacity: 80 fingerprints
1:1 verification time: 300~400ms
Pixel Resolution: 508dpi
Number of Pixels: 160x160
Fingerprint Detection Area: 8.0mm x 8.0mm
Working Environment: ‐40‐60℃/ less than RH 90%
Dimension: diameter 21mm/height 5mm
colour: black
Material: metal

Package Contents:
1 x capacitive fingerprint scanner/sensor
1 x PH1.0 6P cableOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
