Mô Đun Biến Áp Tần Số Cao 15kv 3.7v Core 18650 Tự Lắp Ráp

Output voltage: 15KV Output current: 0.4A
High-voltage two-pole ignition distance: 0.5 cm

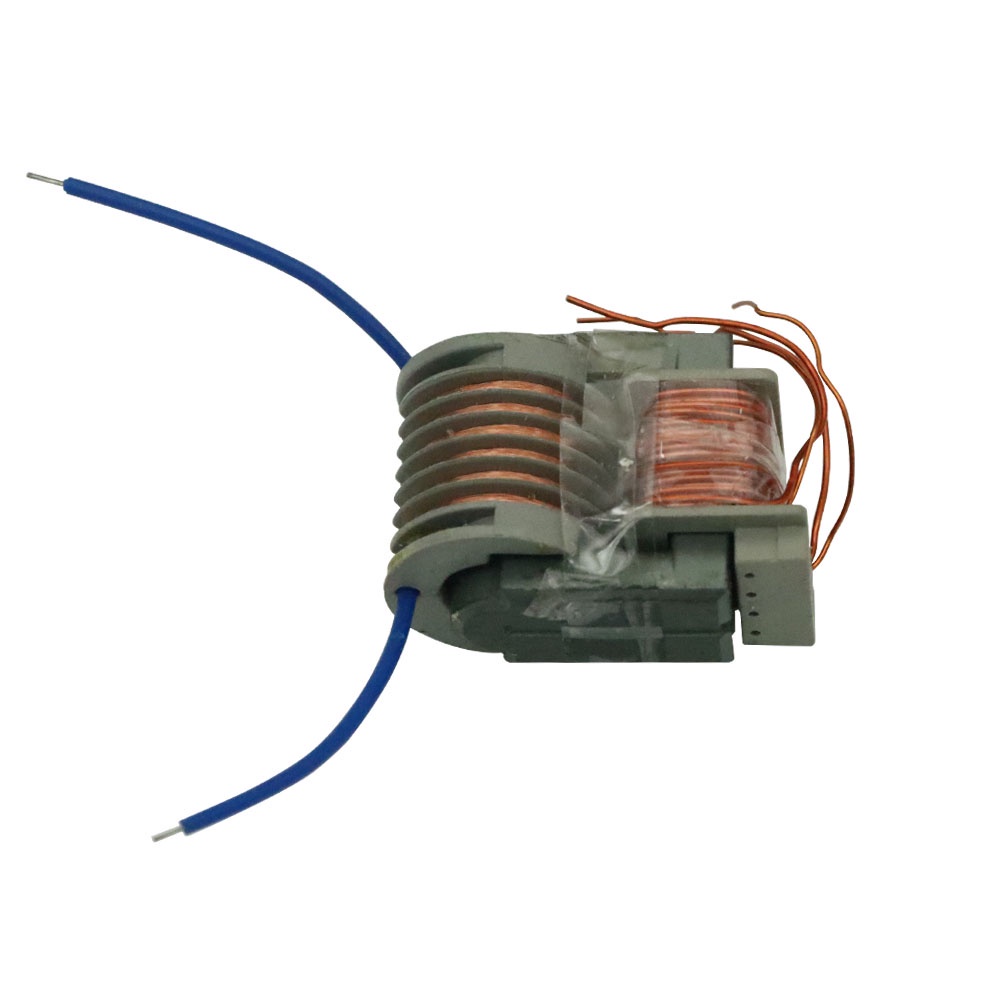

Package A Includes:1pc Step-up Coil Module
Input voltage: 3.7V-4.2V Input current: 2A

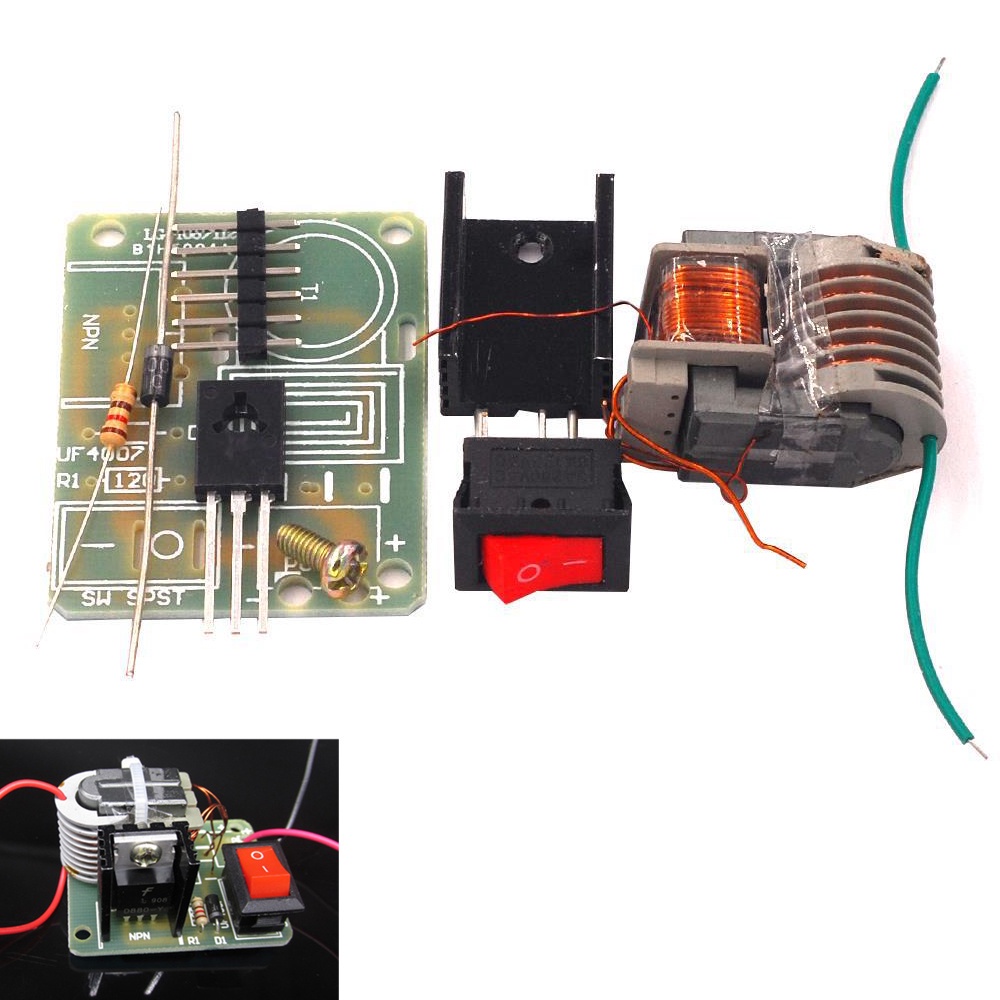

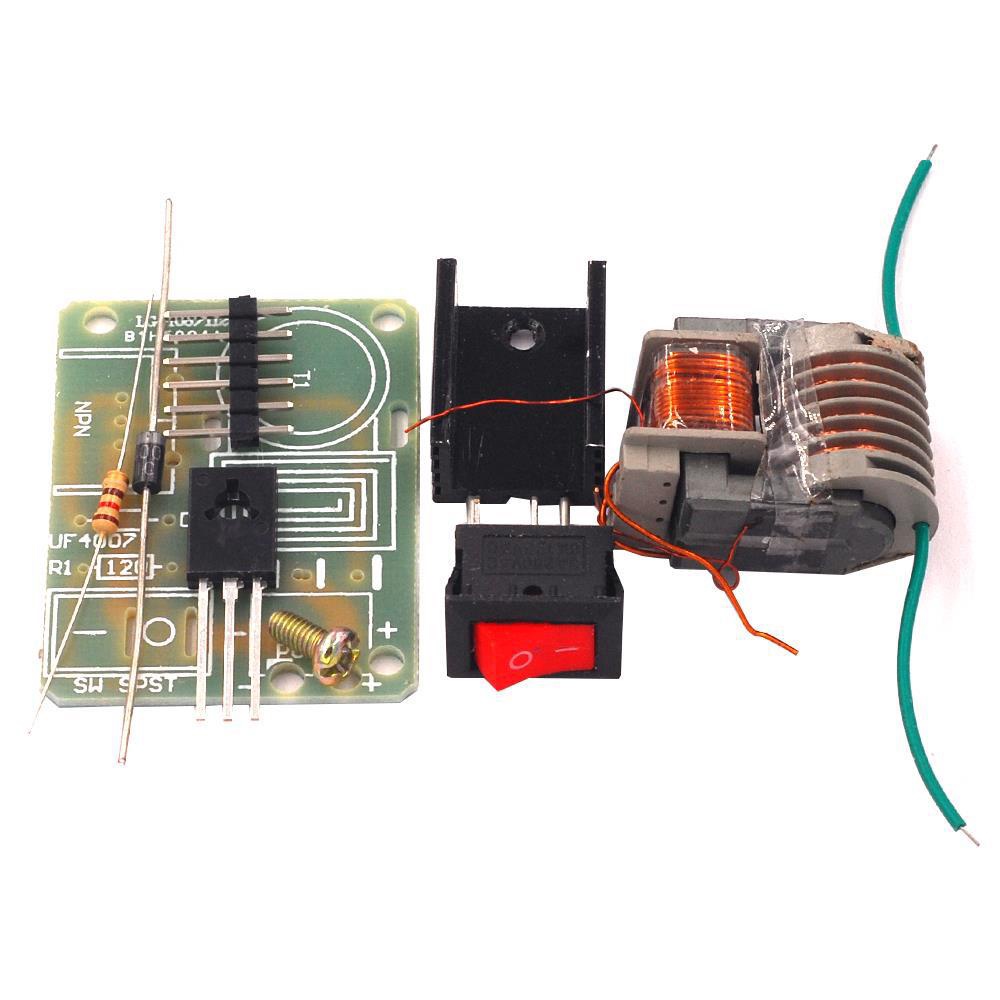

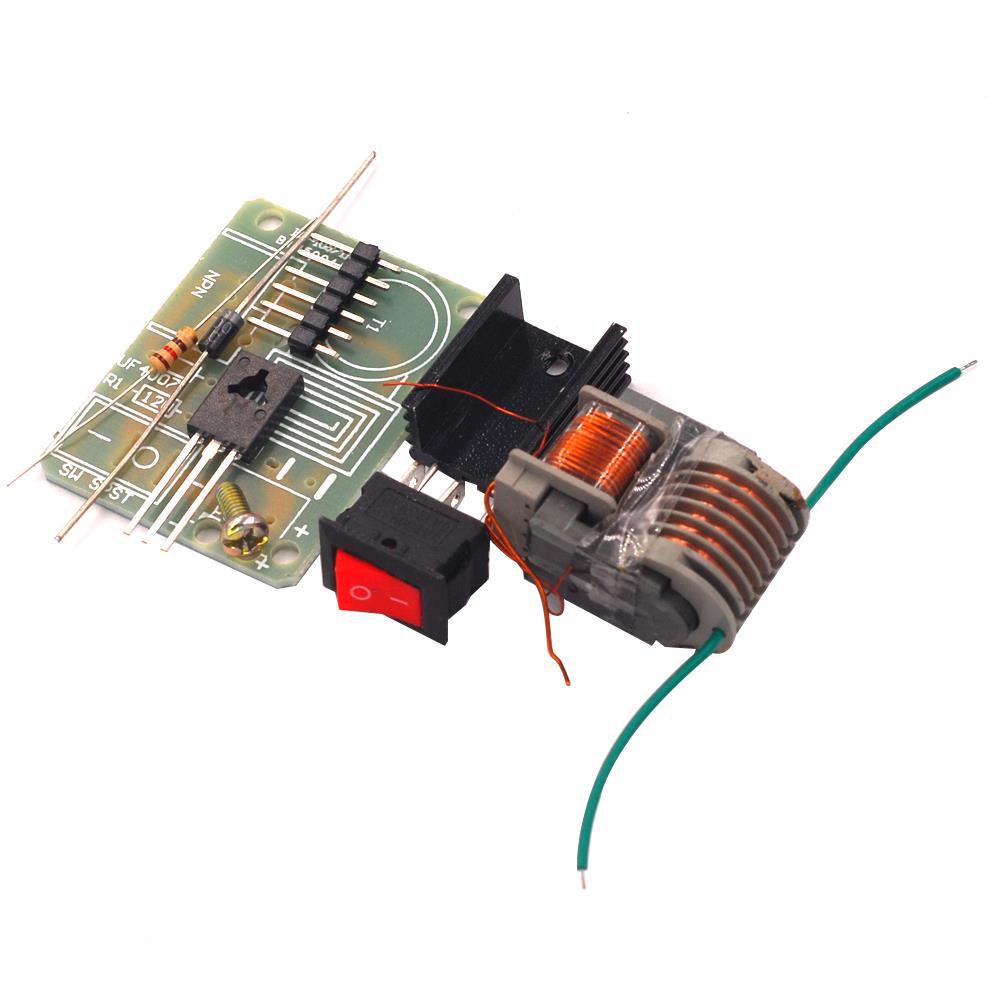

Package B Includes:15KVE-1 booster coil, 120 ohm resistor, 107 diode, dedicated triode, heat sink, one screw, one small switch, one pin.
According to the successful production of the circuit diagram, the coil output is high-frequency high-temperature electricity. When it breaks down in the air, it is a light purple arc with no hum, but the temperature is very high. It can easily ignite paper plastic and even very thin iron wire (such as junior high school chemical test). The scene where fine wire is burned in oxygen, but not as intense as in oxygen.)

Product use precautions:
1. After the transformer is successfully manufactured, it must be sealed with epoxy resin or insulating wax for long-term use. In the air-loaded operation, the coil breakdown will be damaged due to insufficient air insulation strength!
2. After the kit is successfully manufactured, the input voltage is 3.7V, that is, the 18650 rechargeable battery. If you need to increase the input voltage, you need to increase the resistance (the default resistance of the kit is 150 ohms), otherwise the triode will burn out easily. (maximum boost 12V)
