Mô Đun Cách Ly Quang 4 Kênh Pc817 3.6-30v

Giới thiệu Mô Đun Cách Ly Quang 4 Kênh Pc817 3.6-30v

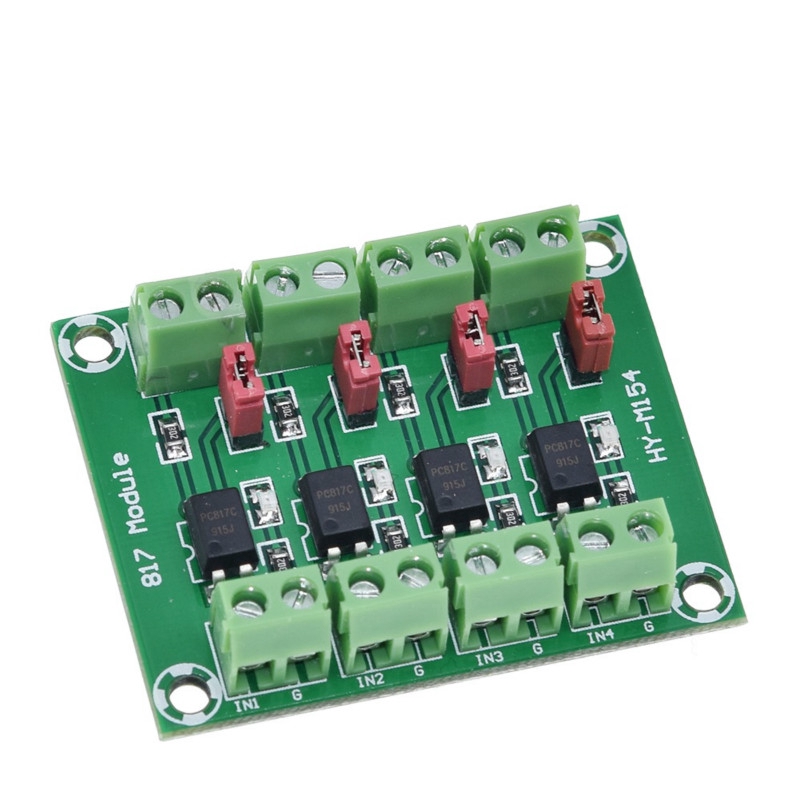

PC817 4 Channel Optocoupler Isolation Board Voltage Converter Adapter Module 3.6-30V Driver Photoelectric Isolated Module

This module is used when the actual operation requires isolation control and voltage conversion.

It can realize 3.3V or 5V to control the interface of 3.6--24V voltage level. After the control terminal is turned on, the controlled terminal will also be turned on.

Photoelectric isolation has strong anti-interference ability. Can drive big behindPower triodes, MOS tubes, etc., where high voltage driving is required, can also directly drive low power 24V relays.

If it is a pulse signal, please note that the limit of 817 is below 4KHZ. If the control signal is greater than 4KHZ, please do not use this module, it will not work properly.

Module parameters:

1, the drive terminal signal voltage: 3.6-24V

2, the output voltage range: 3.6-30V (output current depends on the specific situation, but the maximum is not 10MA, the total power is certain, the voltage and current are inversely proportional)

3, through the jumper cap can achieve whether the output is high potential output or low output.

4. The 4th and 817 on the board are independent, which can realize simultaneous control of different voltages, etc.

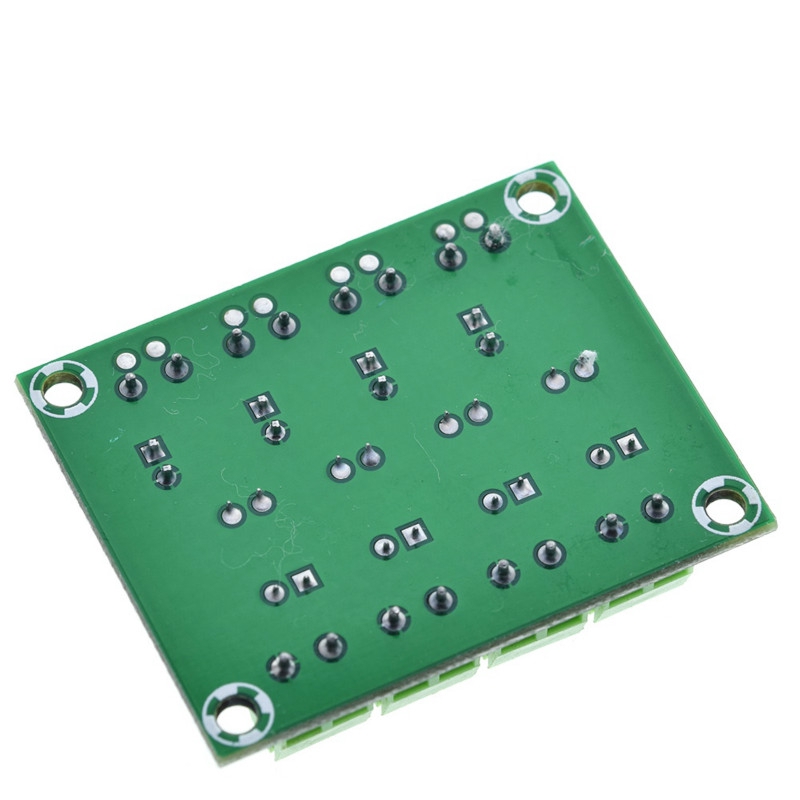

5: Board size:Length: 48mm;Width: 38mm; Long side hole distance: 42mm; Wide side hole distance: 32mm




Before purchase:
1.All the goods are ready stock, we will arrange the shipment at once if we receive the order.
2.Please read the item description, if you have any question, do not hesitate to contact us.


Shipment：
1.1-2 days to ship(except for the pro-order item) and 10-15 days shipment.
2.If you have not received the item after 15 days shipment,Please contact us.

After purchase:
1.If you are satisfied，please give us 5 stars praise.
2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems.
if you receive a defect item,please contact us at once with item picture or vide



#PC817 #4 #Channel #Optocoupler #Isolation #Board #Voltage #Converter #Adapter #Module #3.6-30V #Driver #Photoelectric #Isolated #Module
