Mô Đun Cảm Biến Áp Suất Hx711 24 Bit

Giới thiệu Mô Đun Cảm Biến Áp Suất Hx711 24 Bit

HX711 Weighing Sensor Dual-Channel 24 Bit Precision A/D Module Pressure Sensor module

This module uses 24 high precision A/D converter chip hx711. It is a specially designed for the high precision electronic scale design, with two analog input channel, the internal integration of 128 times the programmable gain amplifier. The input circuit can be configured to provide a bridge type pressure bridge (such as pressure, weighing sensor mode), is of high precision, low cost is an ideal sampling front-end module.

1.Two selectable differential input channels
2.On-chip active low noise PGA with selectable gain of 32, 64 and 128
3.On-chip power supply regulator for load-cell and ADC analog power supply
4.On-chip oscillator requiring no external component with optional external crystal
5.On-chip power-on-reset
6.Simple digital control and serial interface: pin-driven controls, no programming needed
7.Selectable 10SPS or 80SPS output data rate
8.Simultaneous 50 and 60Hz supply rejection
9.Current consumption including on-chip analog power supply regulator: normal operation < 1.5mA, power down < 1uA
10.Operation supply voltage range: 2.6 ~ 5.5V
11.Operating Temperature Range:-20 degree ~ +85 degree





Before purchase:
1.All the goods are ready stock, we will arrange the shipment at once if we receive the order.
2.Please read the item description, if you have any question, do not hesitate to contact us.
3.Use the vouchers for more saving.

Shipment：
1.1-2 days to ship(except for the pro-order item)
2.If you have not received the item after 15 days shipment,Please contact us.

After purchase:
1.If you are satisfied，please give us 5 stars praise.




#HX711 #Weighing #Sensor #Dual-Channel #24 Bit #Precision #A/D #Module #Pressure #Sensor #module

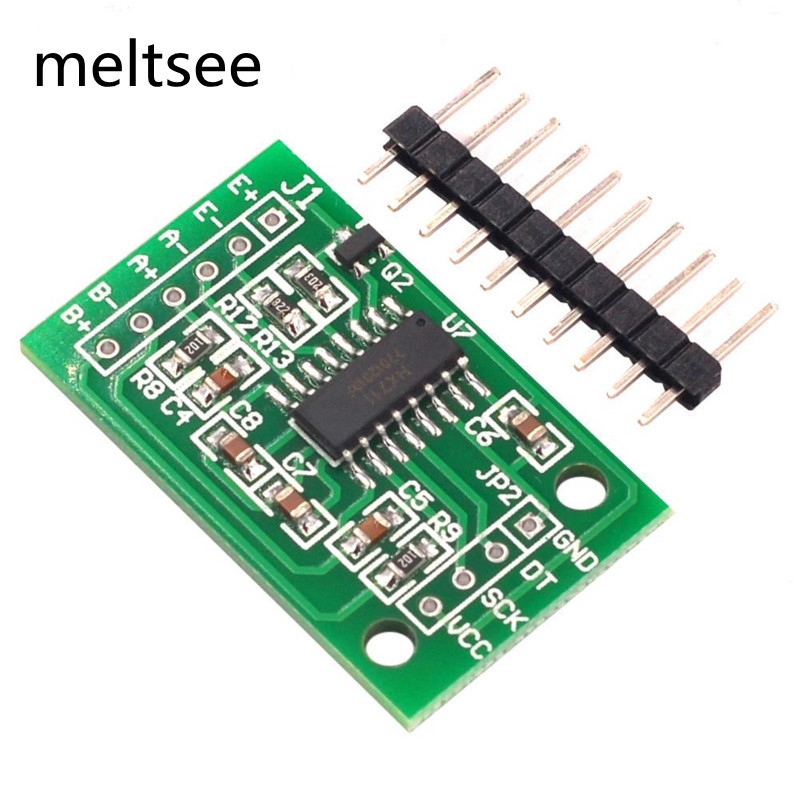

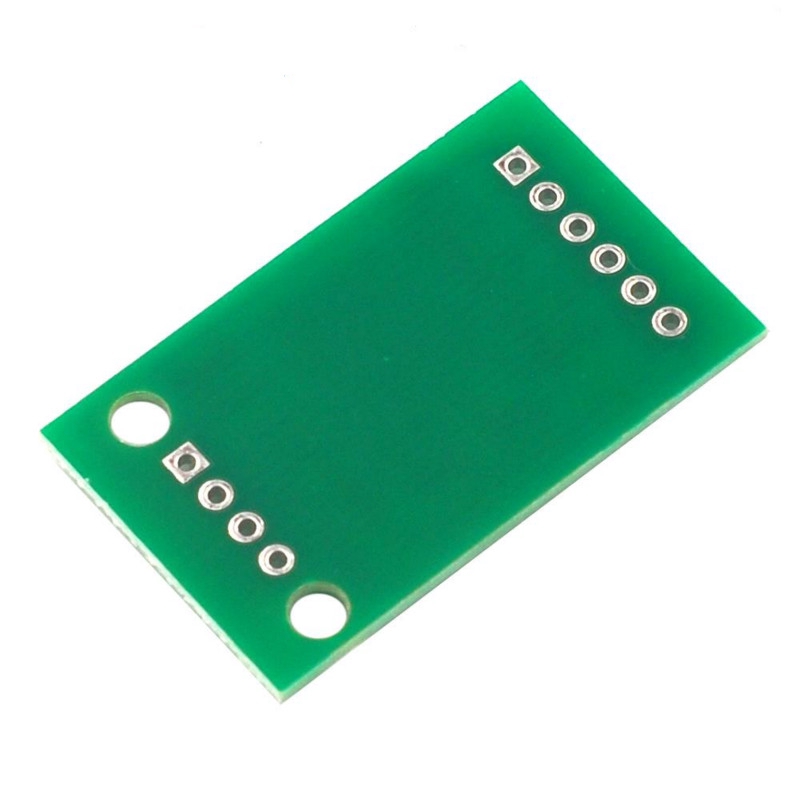

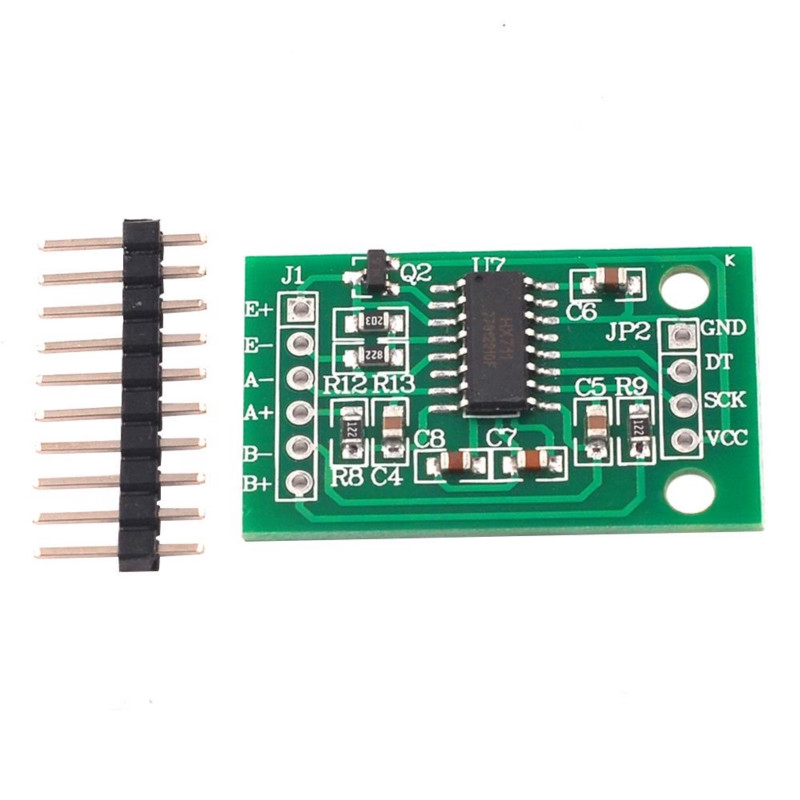

Hình ảnh sản phẩm
