Mô Đun Cảm Biến Áp Suất Nhiệt Độ I2C / Spi Bmp280 3.3v Bmp180 Bmp085

Giới thiệu Mô Đun Cảm Biến Áp Suất Nhiệt Độ I2C / Spi Bmp280 3.3v Bmp180 Bmp085

I2C / SPI BMP280 3.3V Digital Module Replace BMP180 Bmp085 Temperature Barometric Pressure Sensor Module

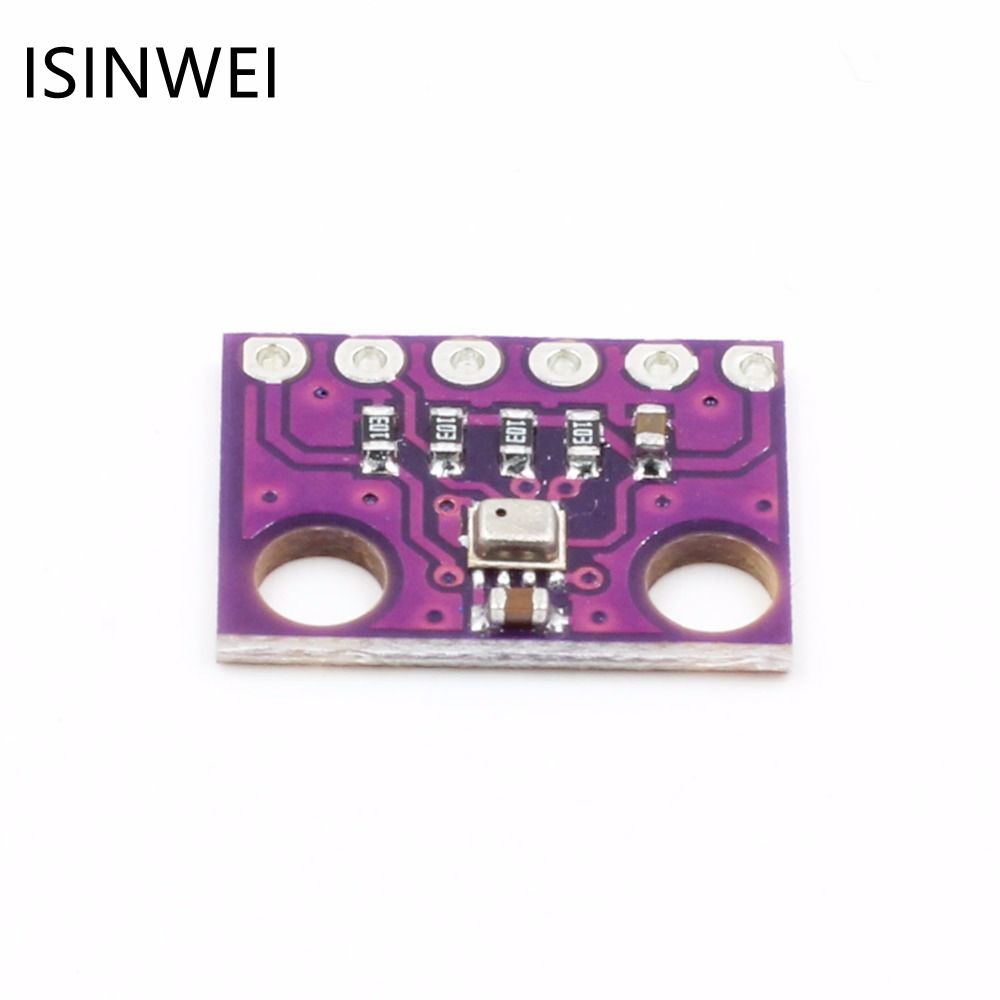

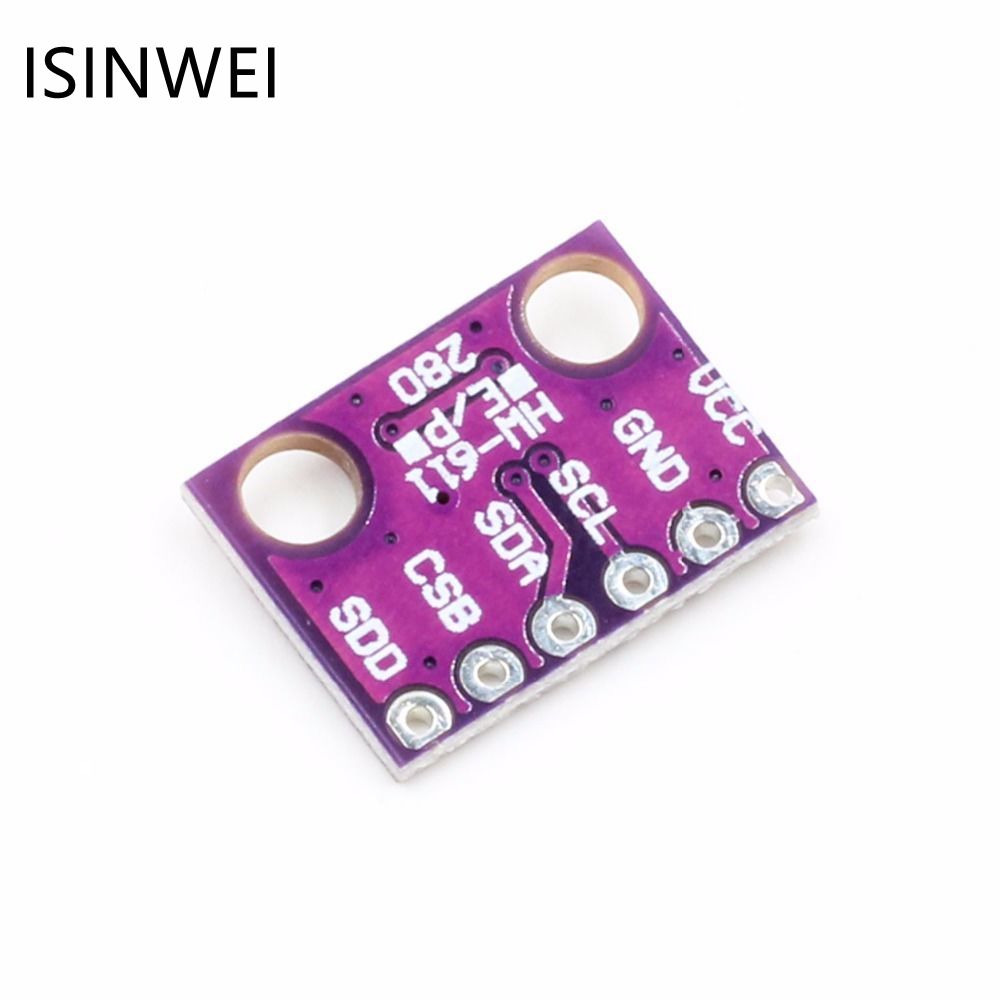

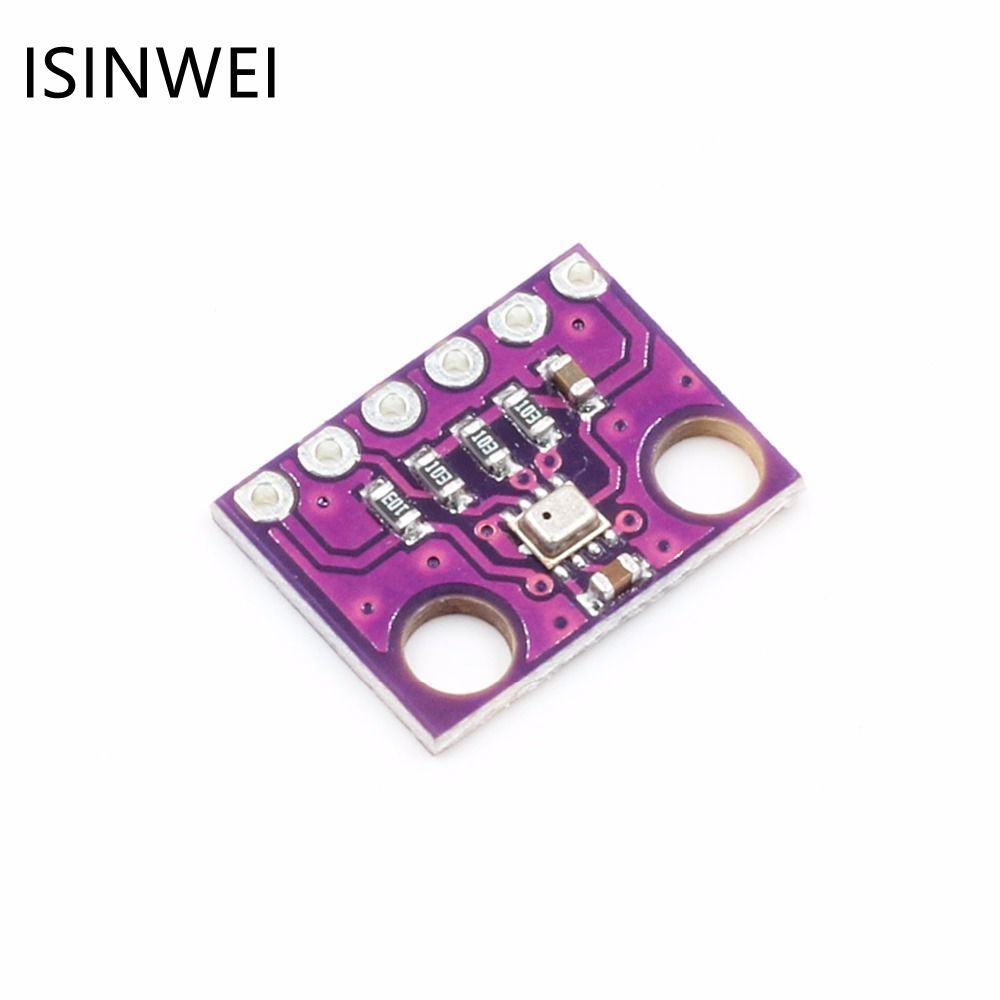

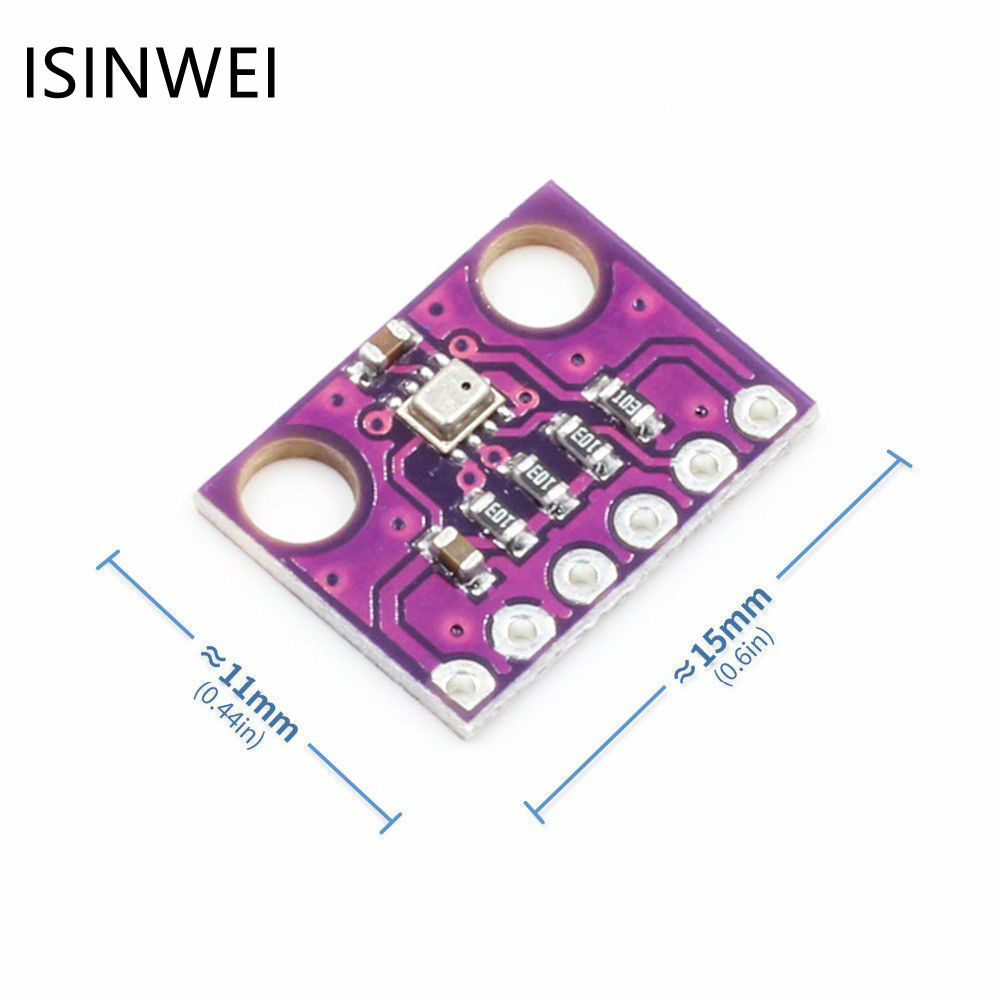

BMP280, the precision sensor from , is soldered onto PCB.
It uses both I2C and SPI (supports 3-, 4-wire SPI) interface

The board has selectable I2C address jumper (solder link GS2), I2C pull-up resistors, 7 pin header 2.54mm, and two mounting holes 3.5mm.
Default setting of the board; single power rail Vdd=Vdd_IO (solder link GS1), pull-ups resistors (R2, R3) 10k, protocol selector resistor 0ohm (R1), decoupling capacitors 0.1uF on both power supply pins Vdd & Vdd_IO.
If you connect board to both power rails VDD_IO 1.8V and VDD 3.3V be sure to remove the power rail jumper GS1!
BMP280 Features
Package 2.5 mm x 2.5 mm x 0.93 mm metal lid LGA
Digital interface I2C (up to 3.4 MHz) and SPI (3 and 4 wire, up to 10 MHz)
Supply voltage VDD main supply voltage range: 1.71 V to 3.6 V
VDDIO interface voltage range: 1.2 V to 3.6 V
Current consumption 1.8 uA @ 1 Hz humidity and temperature
2.8 uA @ 1 Hz pressure and temperature
3.6 uA @ 1 Hz humidity, pressure and temperature
0.1 uA in sleep mode
Operating range -40...+85 C, 0...100 % rel. humidity, 300...1100 hPa- Humidity sensor and pressure sensor can be independently enabled/disabled


Package included:
1*BMP280 Module

#I2C #SPI #BMP280 #3.3V #Digital #Module #Sensor
