Mô Đun Cảm Biến Áp Suất Nhiệt Gy-68 Bmp180 Gy68 Bmp085 I2C 1.8v 3.6v 3.5mhz
Mô tả ngắn
Máy Tính & Laptop > Linh Kiện Máy Tính > Khác > Mô Đun Cảm Biến Áp Suất Nhiệt Gy-68 Bmp180 Gy68 Bmp085 I2C 1.8v 3.6v 3.5mhz
- Giao hàng toàn quốc
- Được kiểm tra hàng
- Thanh toán khi nhận hàng
- Chất lượng, Uy tín
- 7 ngày đổi trả dễ dàng
- Hỗ trợ xuất hóa đơn đỏ
Sản phẩm tương tự
Giới thiệu Mô Đun Cảm Biến Áp Suất Nhiệt Gy-68 Bmp180 Gy68 Bmp085 I2C 1.8v 3.6v 3.5mhz

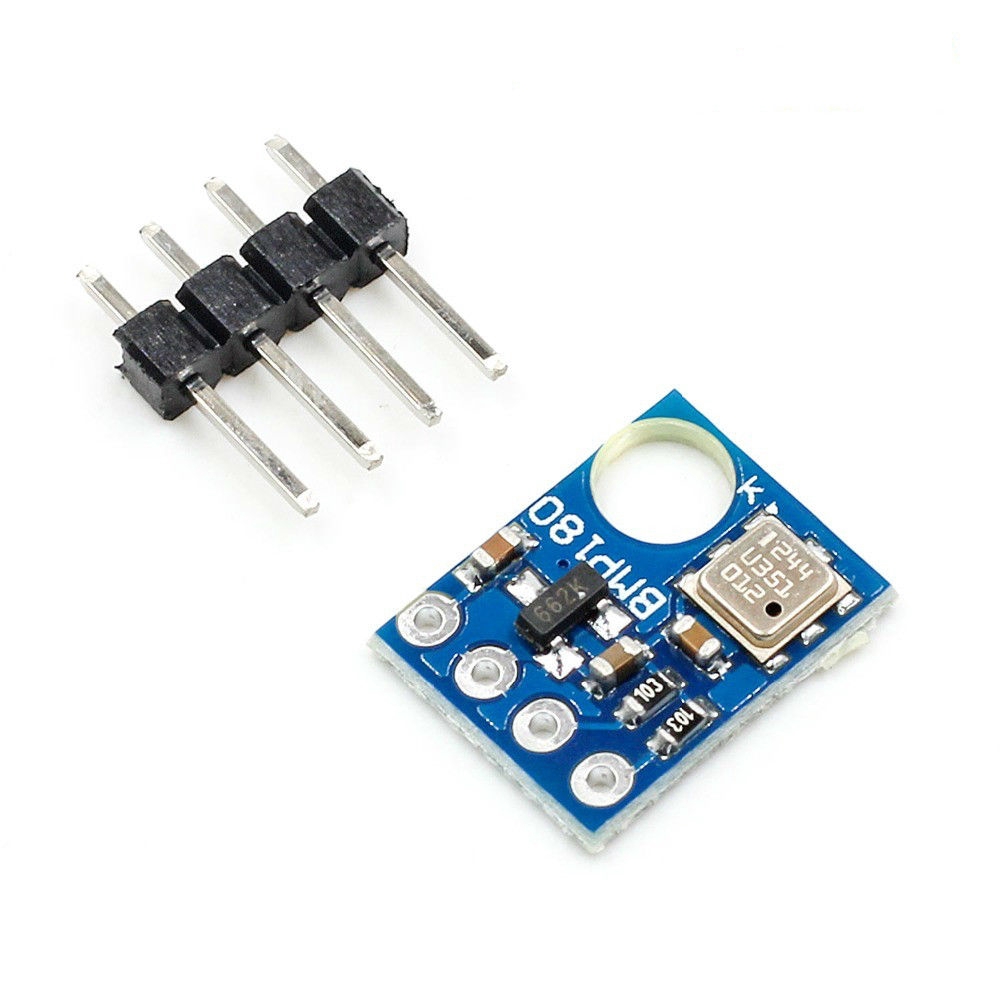

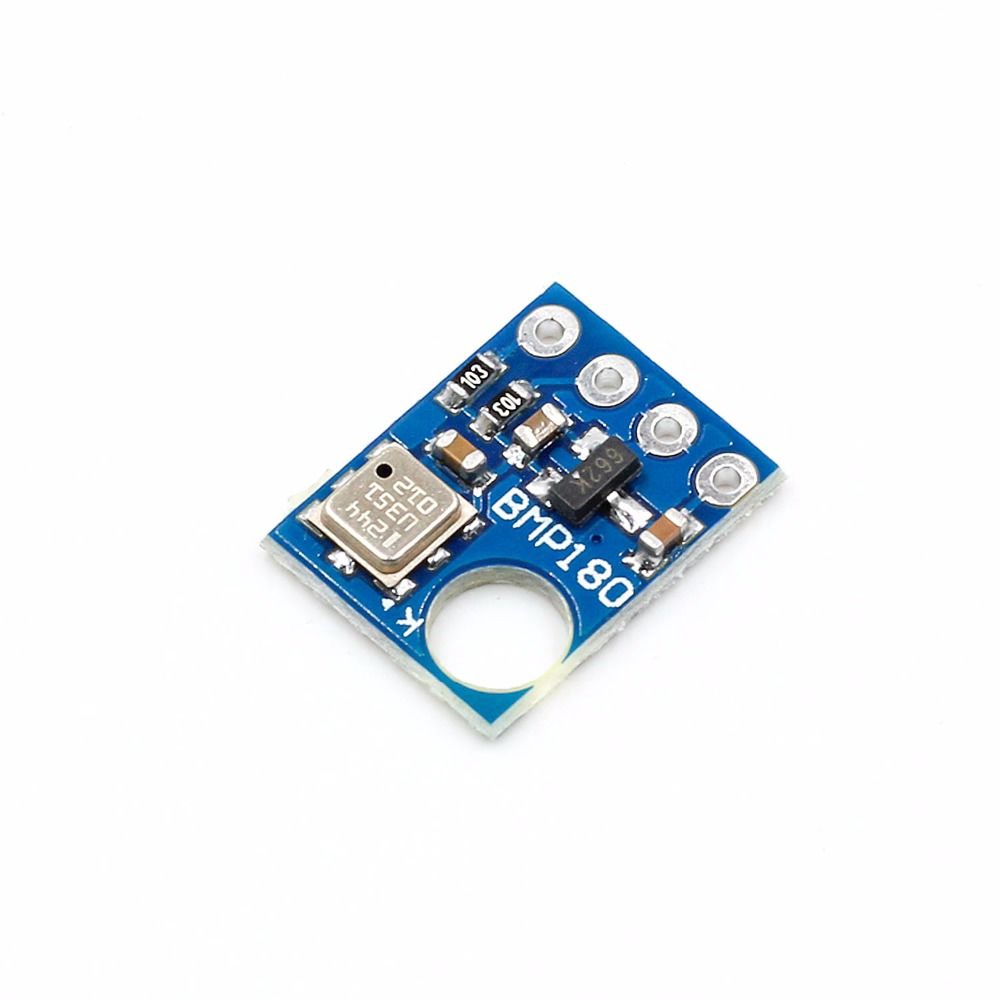

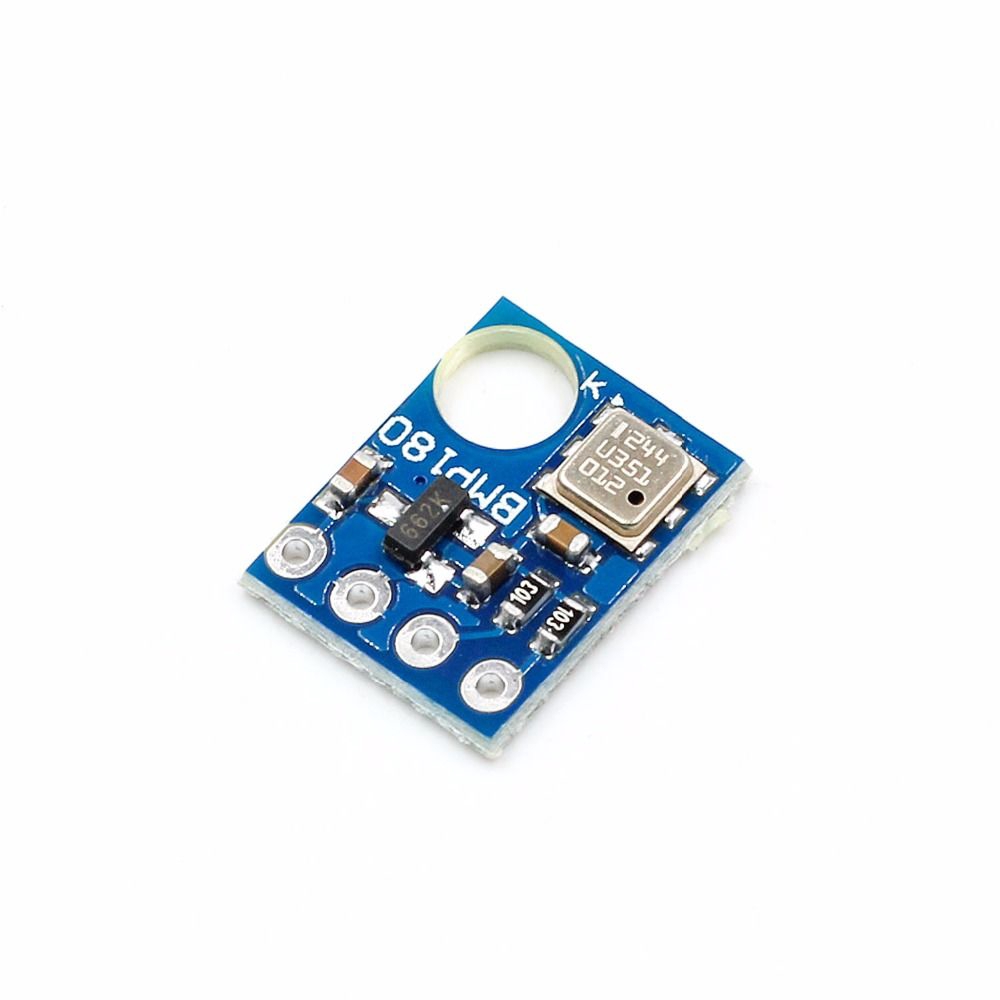

GY-68 BMP180 GY68 Replace BMP085 Digital Barometric Pressure Sensor Board Module I2C Interface 1.8V 3.6V 3.5MHZDescription:
Measuring the absolute pressure of the enviroment using a digital barometer such as this has some interesting applications. By converting the pressure measured into altitude, you have a reliable sensor for determining the height of your robot, plane .
Using a sensor as capable as the BMP180 you can achieve accurary of 1m, with noise of only 17cm in ultra high resolution noise. The device will operate at only 0.3uA meaning low current draw for battery powered applications.
The BMP180 comes fully calibrated and ready to use. As the device operates over I2C we've added optional I2C pull ups that can be enabled using the PU (pull up) jumper on the board for your convenience and ease during breadboarding.
Using I2C, the device provides pressure and temperature as 16bit values, which are used along with calibration data within the device are used to provide a temperature compensated altitude calculation.
Features:
1.8V to 3.6V Supply Voltage
Low power consumption - 0.5uA at 1Hz

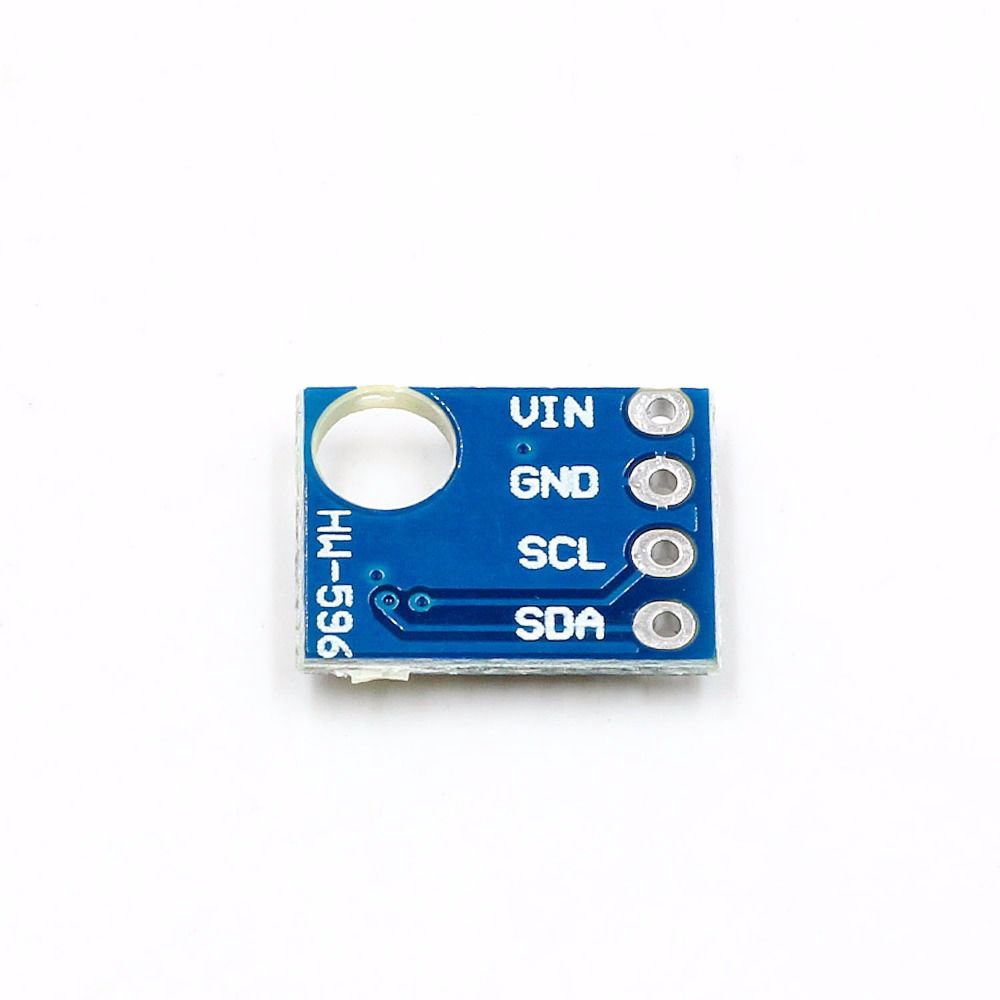

I2C interface
Max I2C Speed: 3.5Mhz
Very low noise - up to 0.02hPa (17cm)
Full calibrated
Pressure Range: 300hPa to 1100hPa (+9000m to -500m)
Weight: 1.18g

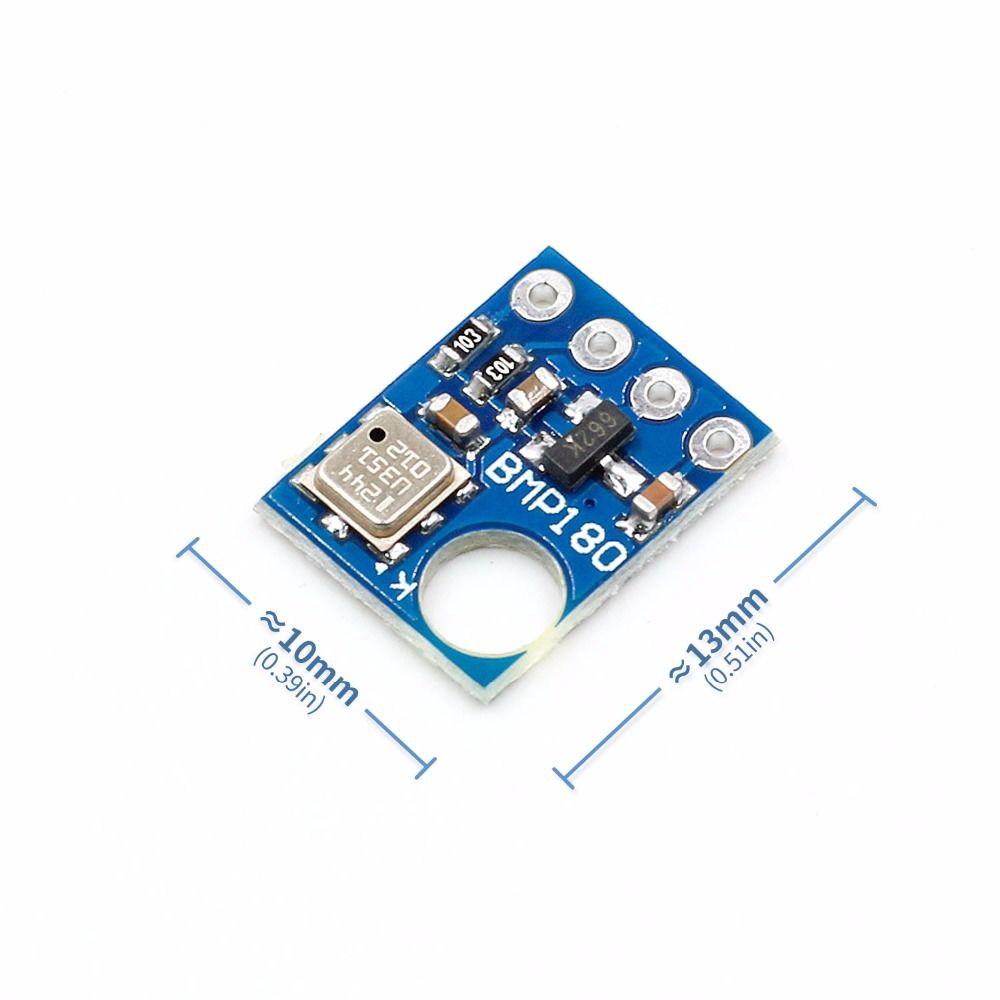

Size: 21mm x 18mm
Shipping Included:
1PCS* Digital Barometric Pressure Sensor Board Module
#GY-68 #BMP180 #GY68 #Replace #BMP085 #Digital #Barometric #Pressure #Sensor #Board #Module #I2C #Interface
Hình ảnh sản phẩm
