Giới thiệu Mô Đun Cảm Biến Dò Kim Loại Dc 3v-5v 60mm
Welcome to our shop 👑Kingzizi👑, all the products in this shop are at a favorable price💕, and have quality assurance💕, you can rest assured to buy💕, we will give you the best and highest quality shopping experience! 🌹🌹🌹DIY Kit Metal Detector Kit Electronic Kit DC 3V-5V 60mm Non-contact Sensor Board Module DIY Part Metal Detector
Introduction:
Operating Voltage: DC 3-5V
Operating Current: 40mA
Standby Current: 5mA
Detection Distance: 60mm
Alarm mode: Sound/Light
Difficulty: Easy
PCB Size : 86*61mm
Feature:
1. Game entertainment
2. Security check
3. Search for metal products
5. Car detection
5. Traffic Statistics
6. Elevator floor control
7. Production equipment position detection
8. Production equipment development and design
9. Electronic Product Design
10. Play equipment development
11. Metal proximity switch
12. Metal detection in human body

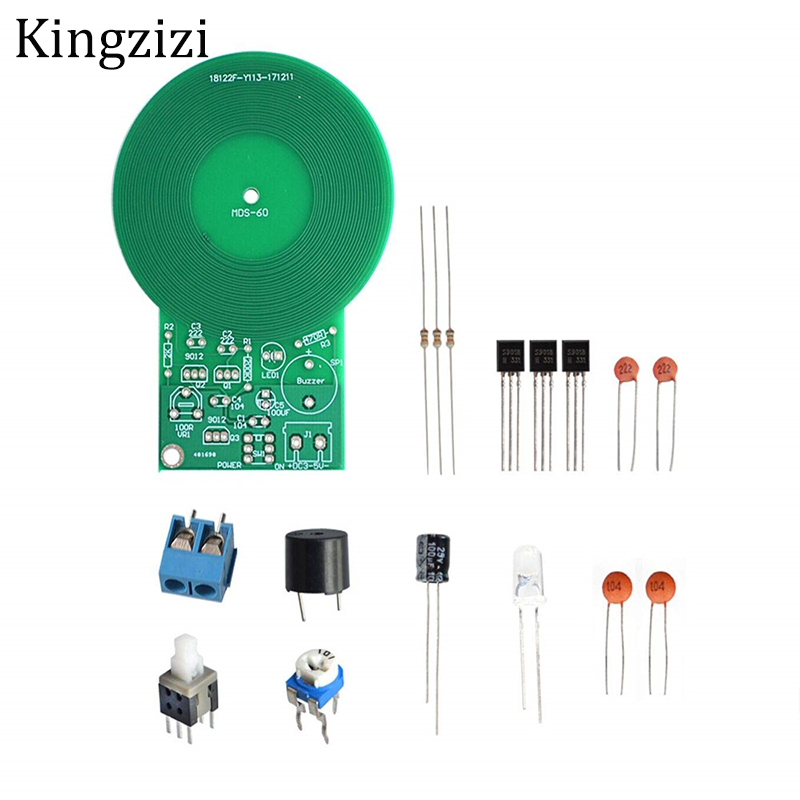

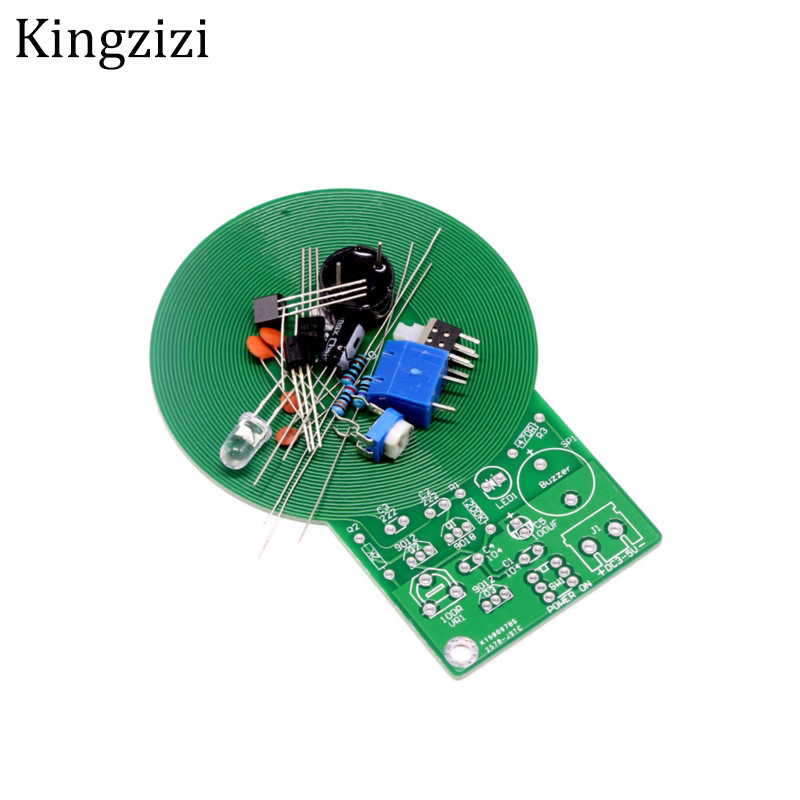

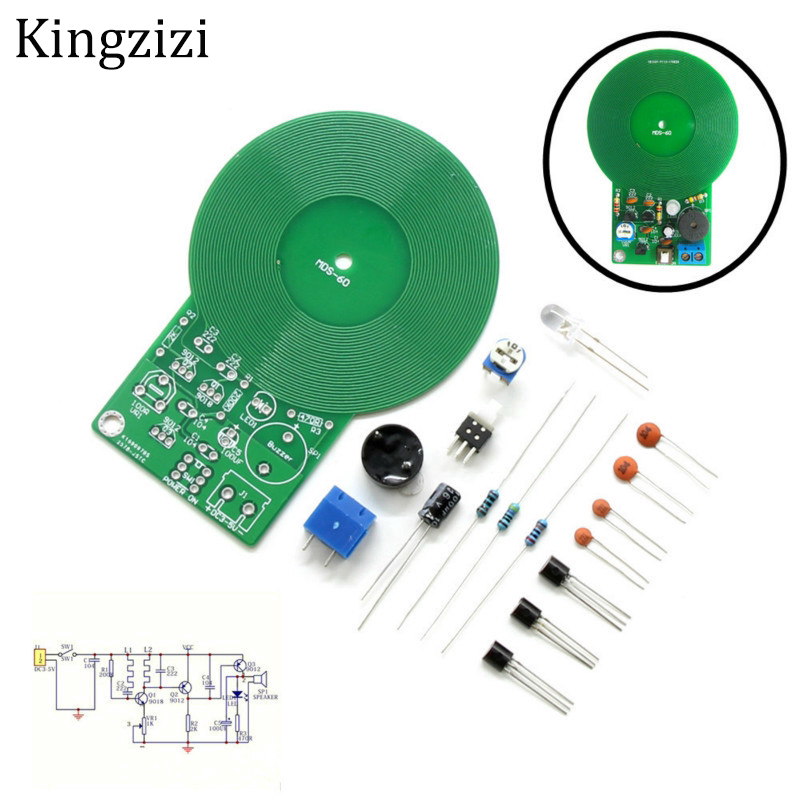

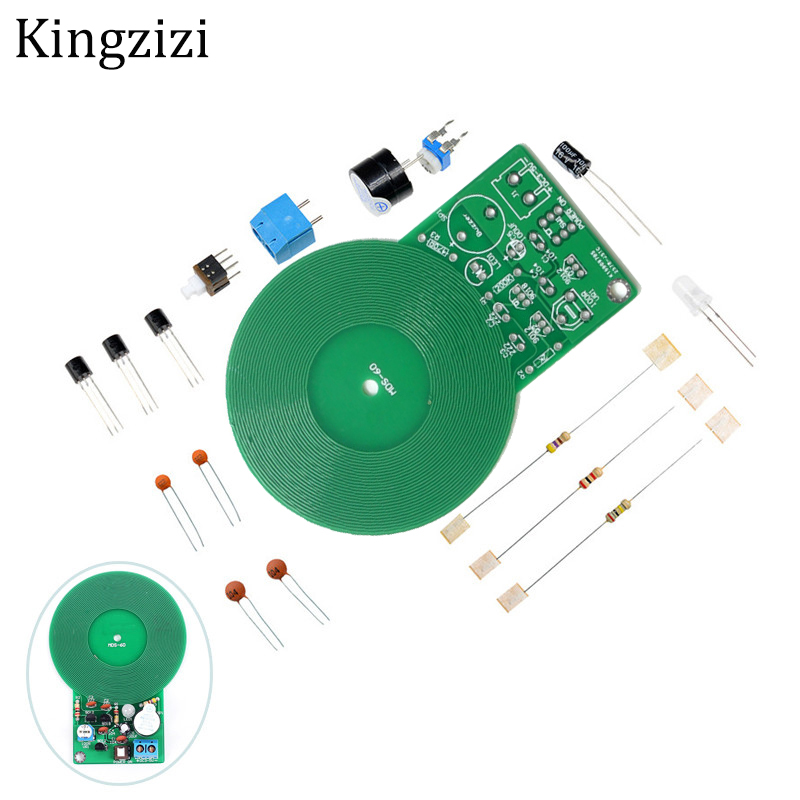

Component listing:
NO. Component Name PCB Marker Parameter QTY
1 Metal Film Resistor R3 470ohm 1
2 Metal Film Resistor R2 2K 1
3 Metal Film Resistor R1 200K 1
4 Potentiometer VR1 100R 1
5 Ceramic Capacitor C2,C3 0.022uf 2
6 Ceramic Capacitor C1,C4 0.1uf 2
7 Electrolytic Capacitor C5 100uf 1
8 Red LED LED1 5mm 1
9 S9012 Q2,Q3 TO-92 2
10 S9018 Q1 TO-92 1
11 Power Switch SW1 6*5mm 1
12 Buzzer SP1 9*12mm 1
13 Power Socket J1 KF301-2P 1

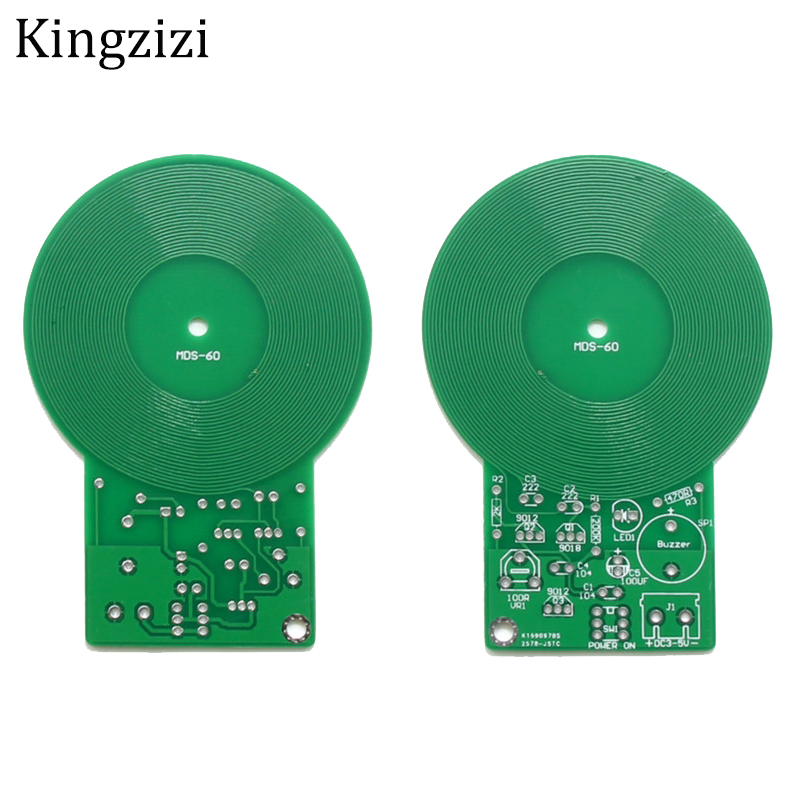

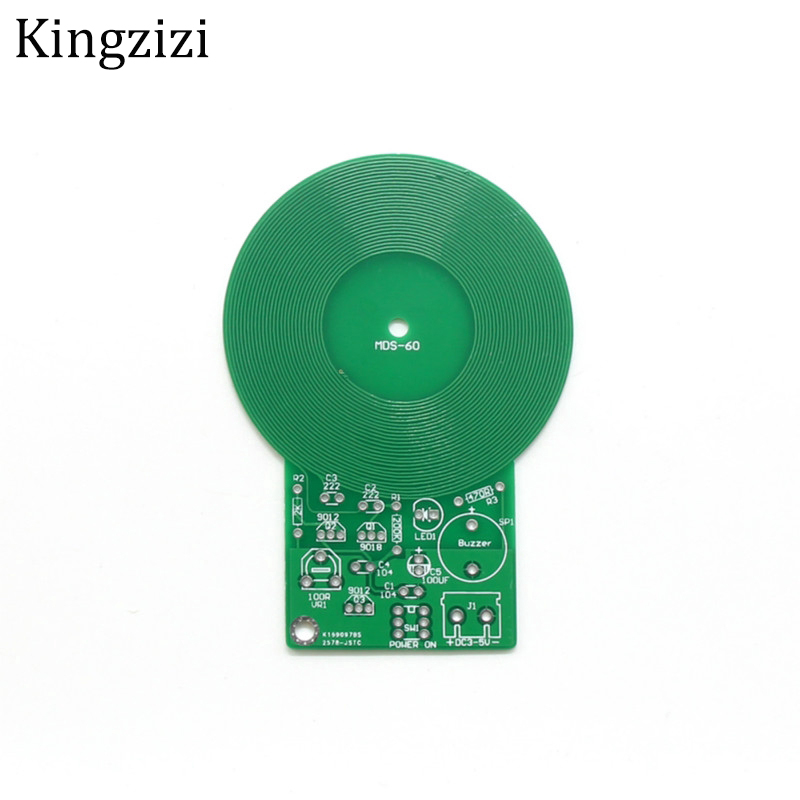

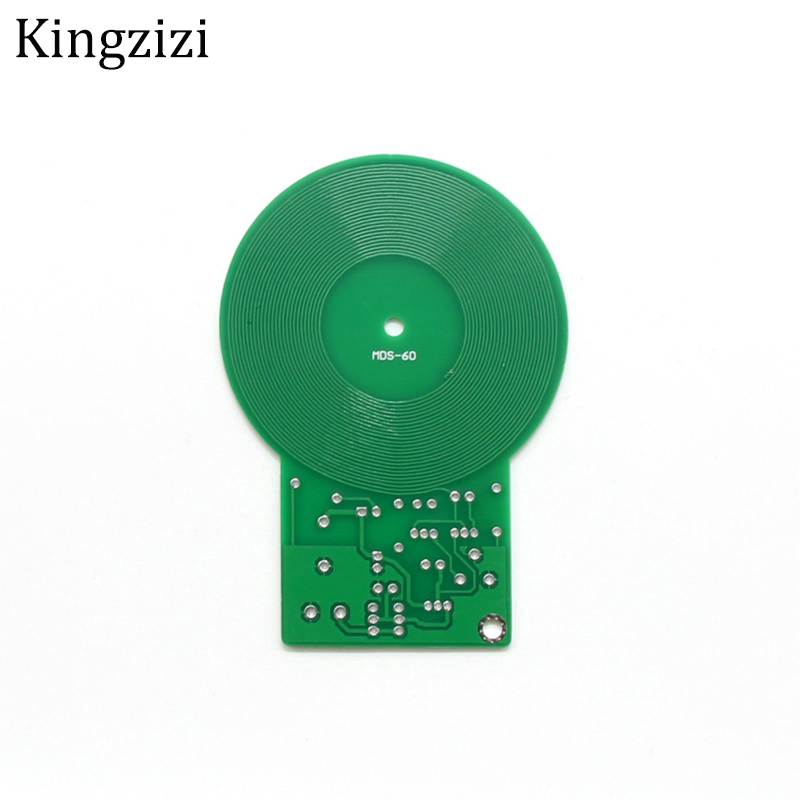

14 PCB MDS-60 1
