Giới thiệu Mô Đun Cảm Biến Đo Nhịp Tim Max30100
MAX30100 Heart Rate Oximetry Sensor Module Heart Rate Sensor Breakout Ultra-Low Power ConsumptionDownload address: https://pan.baidu.com/s/1uW3Ls6SeDqgm9gETQQKRtA
Description:
Heart Rate click carries Maxim's MAX30100 integrated pulse oximetry and heart-rate sensor. It's an optical sensor that derives its readings from emitting two wavelengths of light from two LEDs - a red and an infrared one - then measuring the absorbance of pulsing blood through a photodetector. This particular LED color combination is optimized for reading the data through the tip of one's finger. The signal is processed by a low-noise analog signal processing unit and communicated to the target MCU through the mikroBUS I2C interface. Developers of end-user applications should note that the readings can be negatively impacted by excess motion and changes in temperature. Also, too much pressure can constrict capillary blood flow and therefore diminish the reliability of the data. A programmable INT pin is also available. Uses 3.3V power supply.
Key features:
Optical sensor: IR and red LED combined with photodetector Measures absorbance of pulsing blood I2C interface plus INT pin 3.3V
Power supply Key Benefits: Motion artefact resillence Ambient light cancellation Ready-to-use examples save development time Supported in all MikroElektronika compilers Applications Developing algorithms for pulse oximetry and heart rate readings through the tip of a finger.
Size: 16mm * 15mm
Before purchase:
1. All the goods are in stock and we will dispatch immediately if we receive the order.
2.Please read the item description, if you have any question, do not hesitate to contact us.
3.Use the vouchers for more saving.
Shipment：
1.1-2 days to ship(except for the pro-order item)
After purchase:
1.If you are satisfied，please give us 5 stars praise.
2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems.
#MAX30100 #Heart #Rate #Oximetry #Sensor #Module #Heart #Rate #Sensor #Breakout #Ultra-Low# Power #Consumption

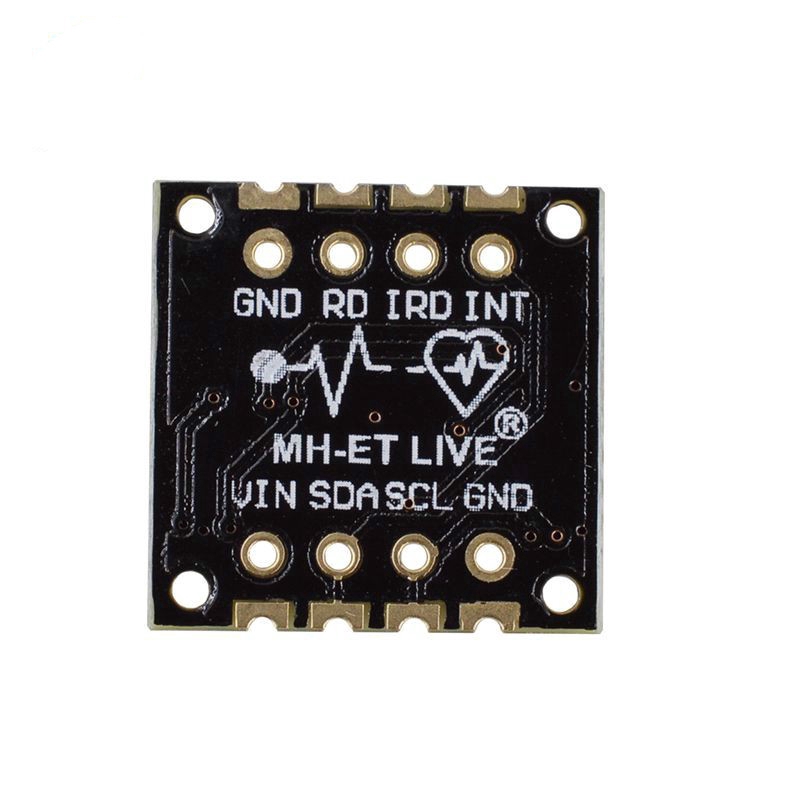

Hình ảnh sản phẩm
