Mô Đun Cảm Biến Gõ Búa Ky-031 3pin Ky031

Giới thiệu Mô Đun Cảm Biến Gõ Búa Ky-031 3pin Ky031

KY-031 Percussion Knocking Knock Sensor Module 3pin Diy Starter Kit KY031


5
60-Day Buyer Protection
Money back guarantee
KELI Store
98.0% Positive Feedback
566 Followers
Contact
FollowVisit Store
Store Categories
Top Selling
recommend item image
US $3.31
242 Sold
5.0
recommend item image
US $4.09
65 Sold
4.6
recommend item image
US $0.84
97 Sold
4.8
recommend item image
US $1.46
87 Sold
4.9
US $1.38
86 Sold
4.9
View More ‎
product Description:

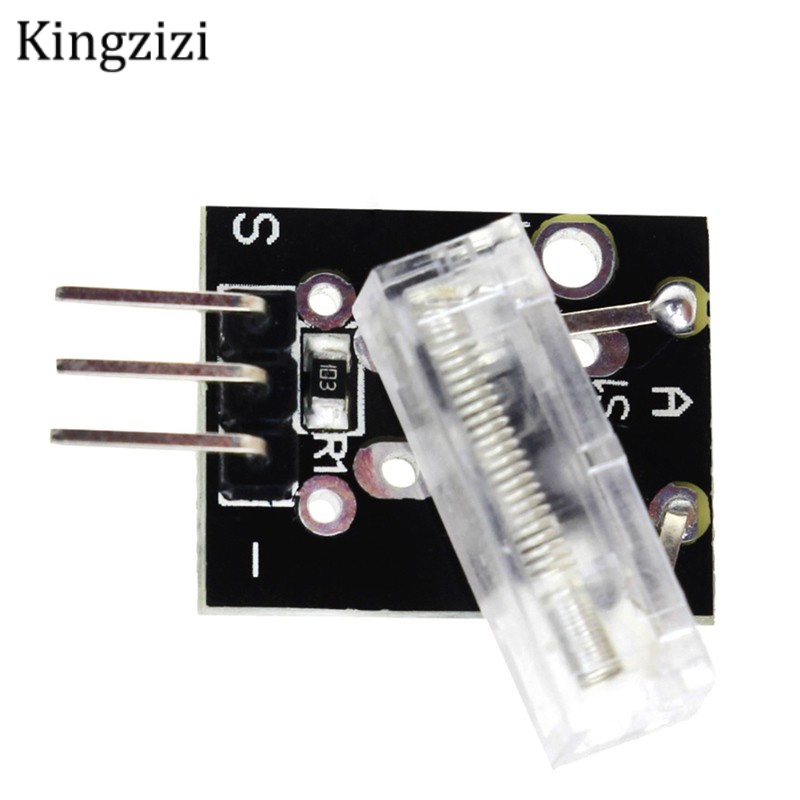

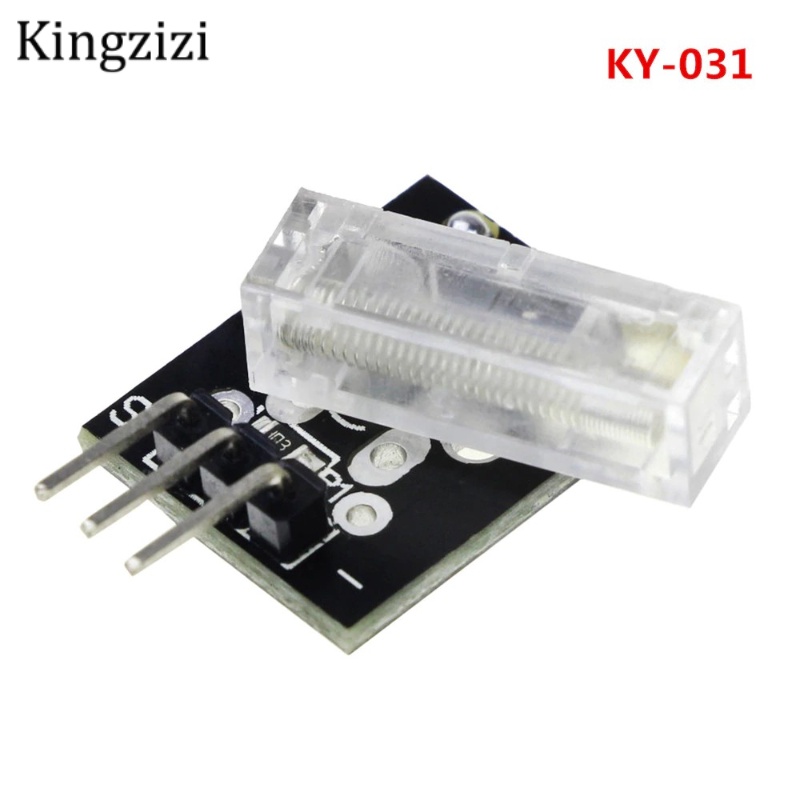

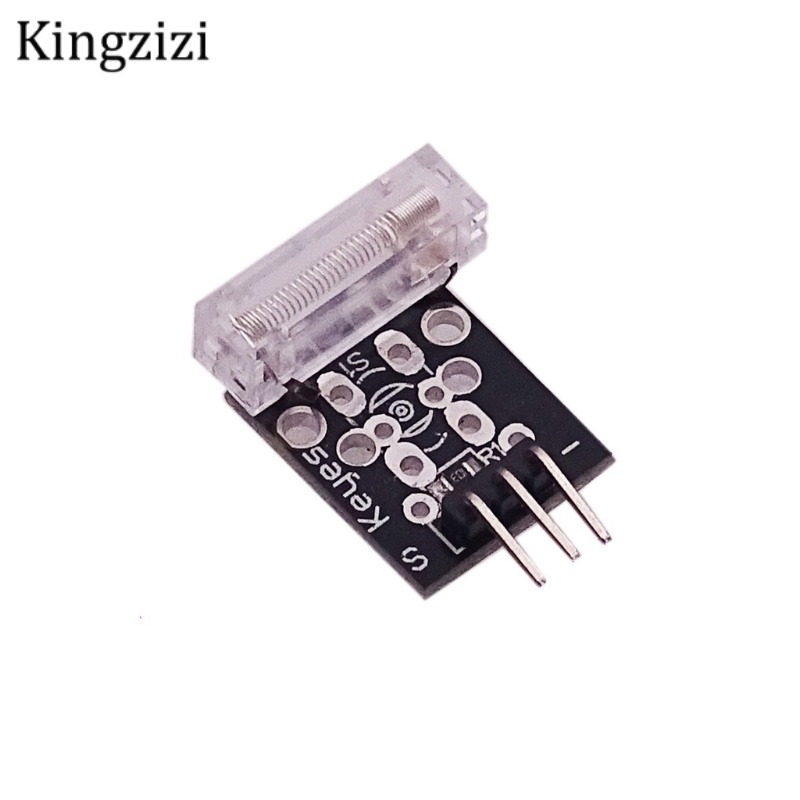

Knock sensor module and a digital 13 interface, built-in LED build a simple circuit to produce percussion flasher. Interface comes with digital LED, will knock sensor connected digital 3 interface, when percussion sensor senses measure to percussive signals, LED flashing light.
Size: 30x18x6mm (approx)
Routines source code:

int Led = 13;// define LED Interface

int Shock = 3;// define the percussion Sensor Interface

int val;// define numeric variables val

void setup ()

pinMode (Led, OUTPUT) ;// define LED as output interface

pinMode (Shock, INPUT) ;// define knock sensor output interface

void loop ()

val = digitalRead (Shock) ;// read digital interface is assigned a value of 3 val

if (val == HIGH) // When the percussion when the sensor detects a signal, LED flashes

digitalWrite(Led, LOW);

else

digitalWrite(Led, HIGH);
