Mô Đun Cảm Biến Khoảng Cách Xa Tof10120 10-180cm Cho Arduino Uart I2C Iic

Giới thiệu Mô Đun Cảm Biến Khoảng Cách Xa Tof10120 10-180cm Cho Arduino Uart I2C Iic

ToF Laser Range Sensor Module TOF10120 Distance Measuring Sensor 10-180CM For Arduino UART I2C IIC

Product introduction:
TOF10120 range sensor provides accurate and repeatable long range distance measurement for high-speed autofocus (AF). The innovative time-of-flight technology allows. performance independent of object reflectance.TOF10120's time-of-flight sensing technology is realized by Sharp's original SPAD (Single Photon Avalanche Diodes ) using low-cost standard CMOS process. It enables accurate ranging result, higher immunity to ambient light and better robustness to cover-glass optical cross-talk by special optical package design.

Product parameters:
Ranging Range 100 ～ 1800mm
VCC 3 ～ 5V
ICC_VDD 35mA
Topr － 20 ＋ 70 °C
Tstg － 40 ＋ 85 °C
Communication protocol
Bits per Second:9600
Data Bits : 8
Parity : None
Stop bits : 1
Flow Control : None

Application:
940nm laser classified as class 1 under operation condition
by IEC 60825-1:2014-3rd edition

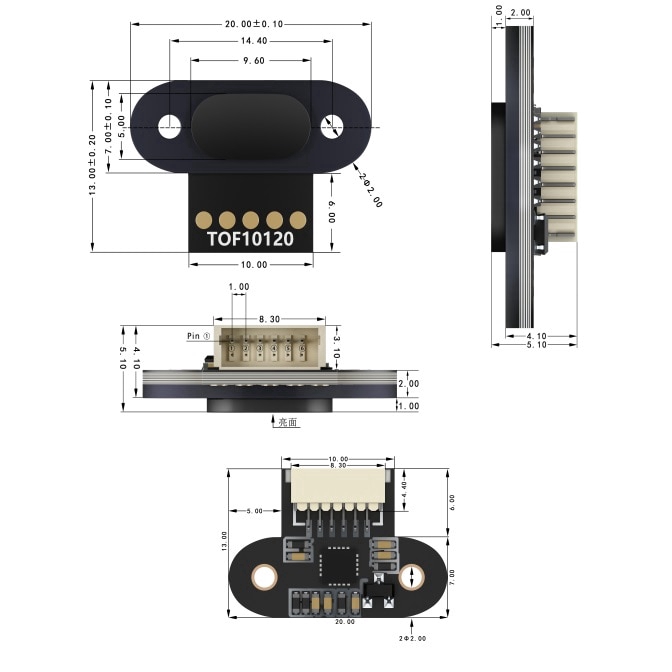

Small ceramic package(20×13.2×2.0mm)
Long range absolute range measurement up to 1.8m
within 5％ accuracy at indoor
Reported range is independent of the target reflectance
Operates in high infrared ambient light levels
Advanced optical cross-talk compensation
High speed ranging MAX 30ms
Standard solder reflow compatible
No additional optics
Single power supply
Txd interface for device control and data transfer
High-speed AF
Continuous AF for video
User detection for Personal Computers/
Laptops/Tablets
Robotics (obstacle detection)
White goods (hand detection in automatic)

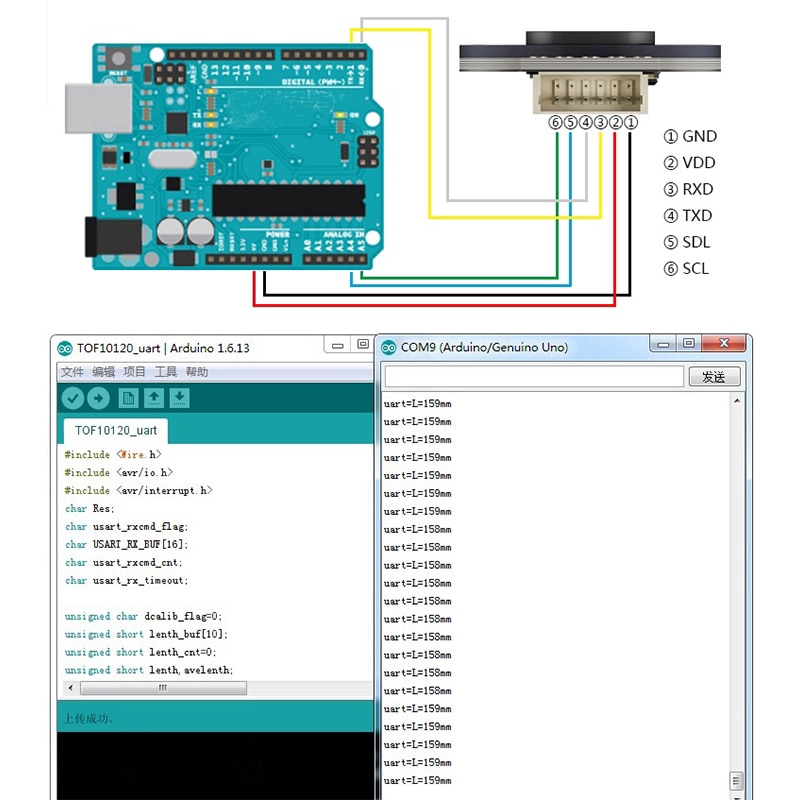

①GND Black
②VCC Red
③RXD Yellow
④TXD white
⑤SDA blue
⑥SCL purple
