Mô đun cảm biến nhận diện màu DC 3-5V TCS230 TCS3200

Giới thiệu Mô đun cảm biến nhận diện màu DC 3-5V TCS230 TCS3200

"Color sensor principle:
TCS230 adopts 8-pin SOIC surface-mount package, with 64 photodiodes integrated on a single chip. These diodes are divided into four types. Among them, 16 photodiodes have a red filter; 16 photodiodes have a green filter; 16 photodiodes have a blue filter; the remaining 16 have no filters and can transmit all light information. These photodiodes are arranged in a cross in the chip, which can greatly reduce the unevenness of incident light radiation, thereby increasing the degree of color recognition; on the other hand, 16 photodiodes of the same color are connected in parallel and distributed evenly In the diode array, the color position error can be eliminated. When working, the required filter is dynamically selected through two programmable pins. The typical output frequency of this sensor ranges from 2 Hz to 500 kHz, and the user can also select 100%, 20% or 2% output scale factor, or power-off mode through two programmable pins. The output scale factor enables the output of the sensor to adapt to different measurement ranges and improves its adaptability. For example, when using a low-speed frequency counter, you can select a small scale value to match the output frequency of the TCS230 with the counter.

Introduction:
1. The original imported chip TCS3200 PCB board adopts gold plating process
2. TCS3200 is an upgraded version of TCS230 with better effect
3. Power supply 3-5v
4. Anti-light interference
5. White LED can be controlled to turn on and off.
6. Can detect the color of non-luminous objects
7. PCB size: (L)33mm*(W)25mm

Shipping list:
Color sensor module 1"

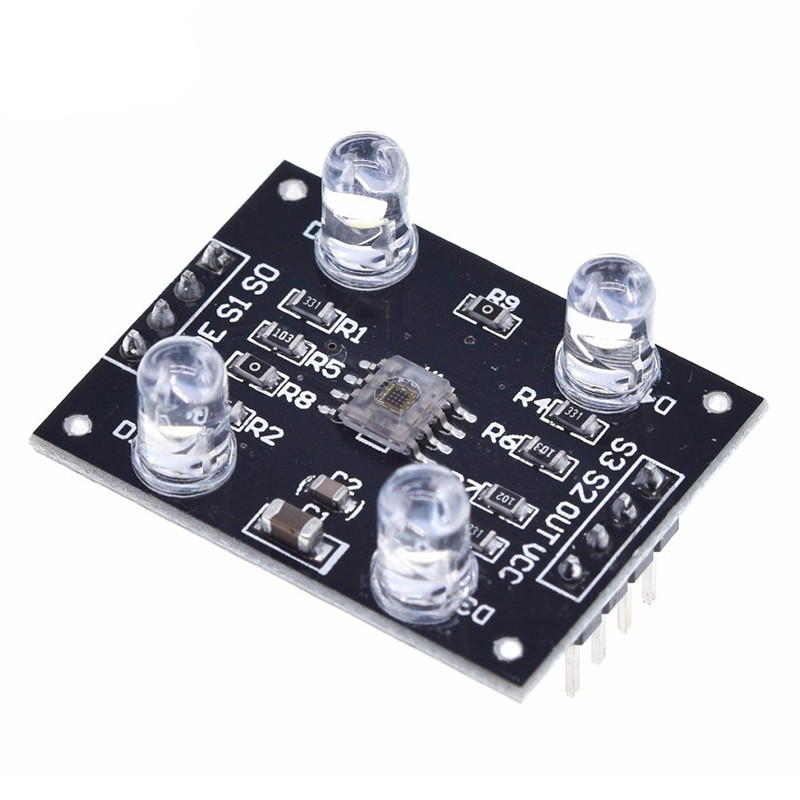

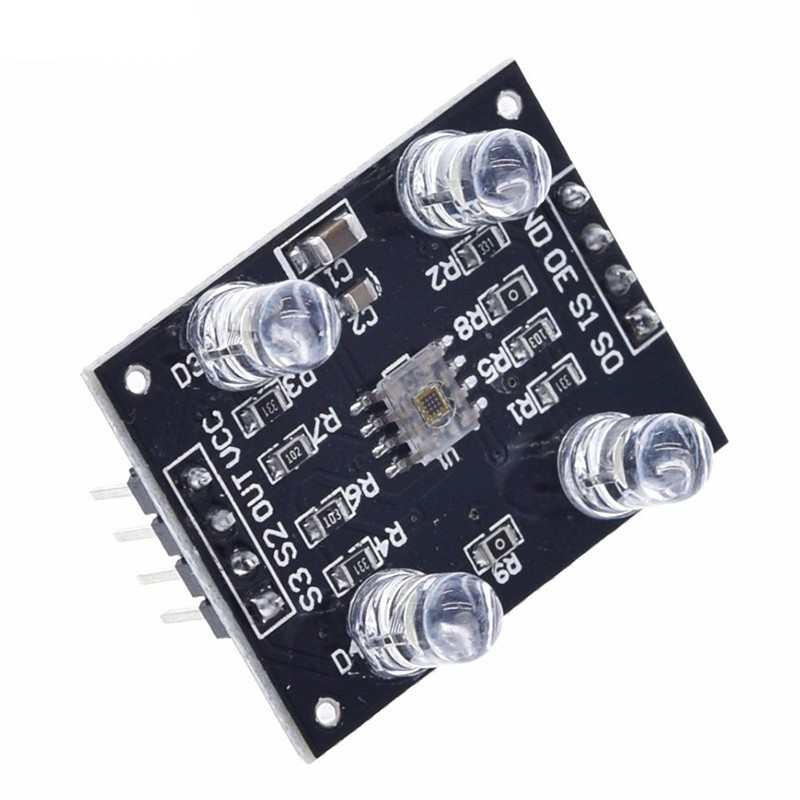

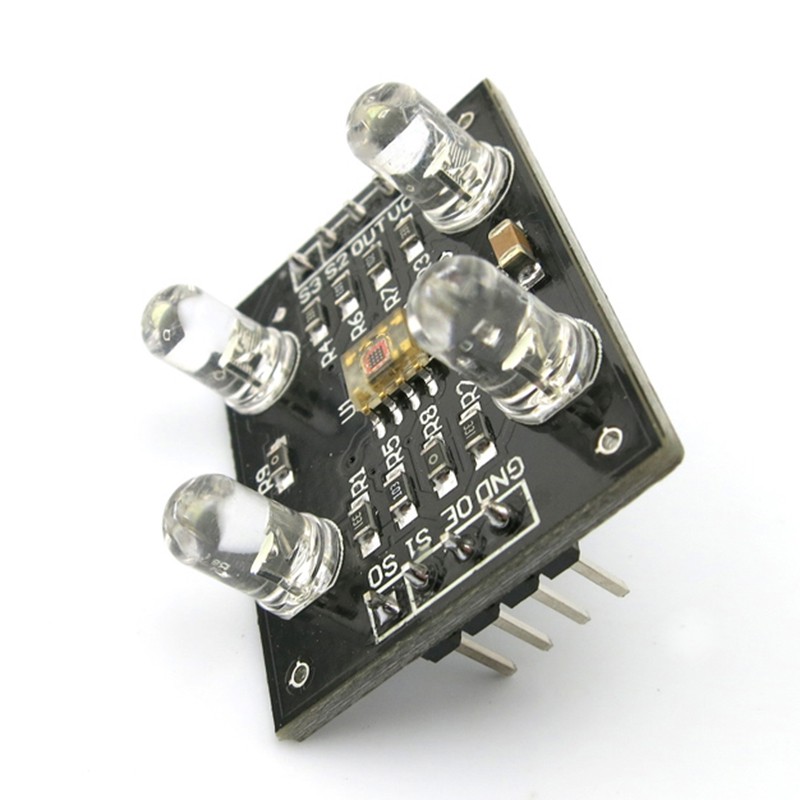

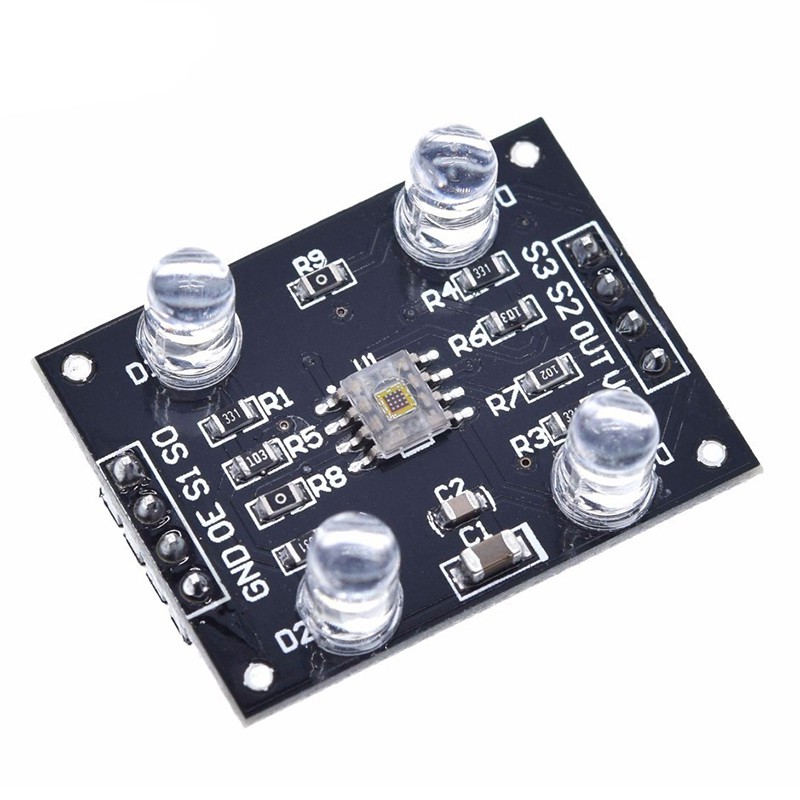

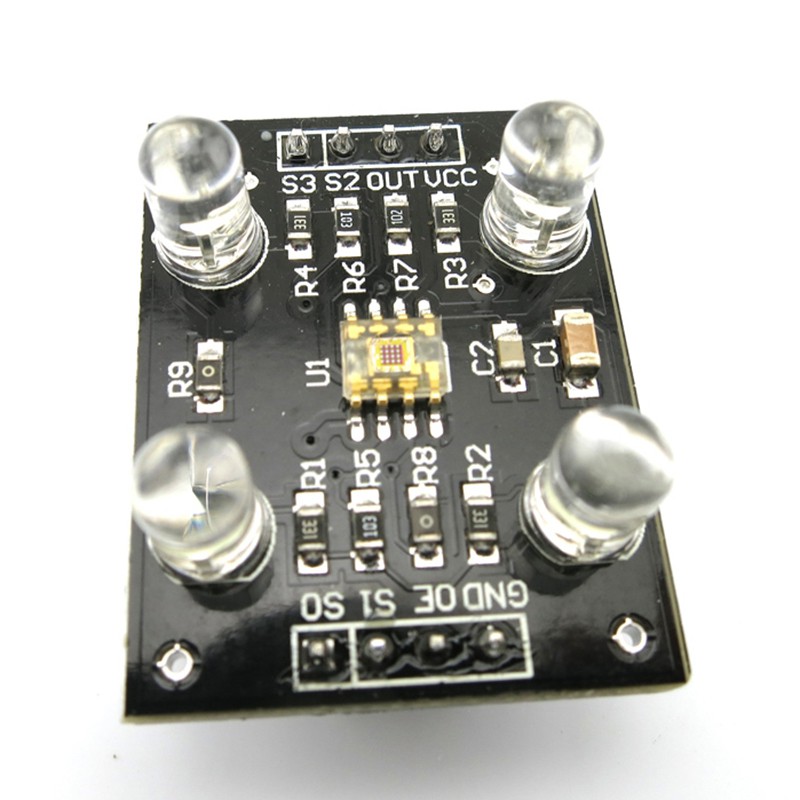

Hình ảnh sản phẩm
