Mô Đun Cảm Biến Oxy Max30100

Giới thiệu Mô Đun Cảm Biến Oxy Max30100

MAX30100 Oxygen Sensor Module Heart Rate Pulse Heart Rate Sensor Module

Introduction to the MAX30100
The MAX30100 is an integrated pulse oximeter and heart rate monitoring sensor module. The device integrates 2 LEDs, a photodetector, optimized optics and a low noise analog signal processor.
Pulse oximetry and heart rate signals can be detected. The MAX30100 uses a supply voltage of 1.8V and 3.3V. The power supply can be controlled by software. The current consumption in standby mode is negligible, and the power supply connection can always be maintained.

Main Application
Fitness equipment
Medical monitoring equipment
Wearable device

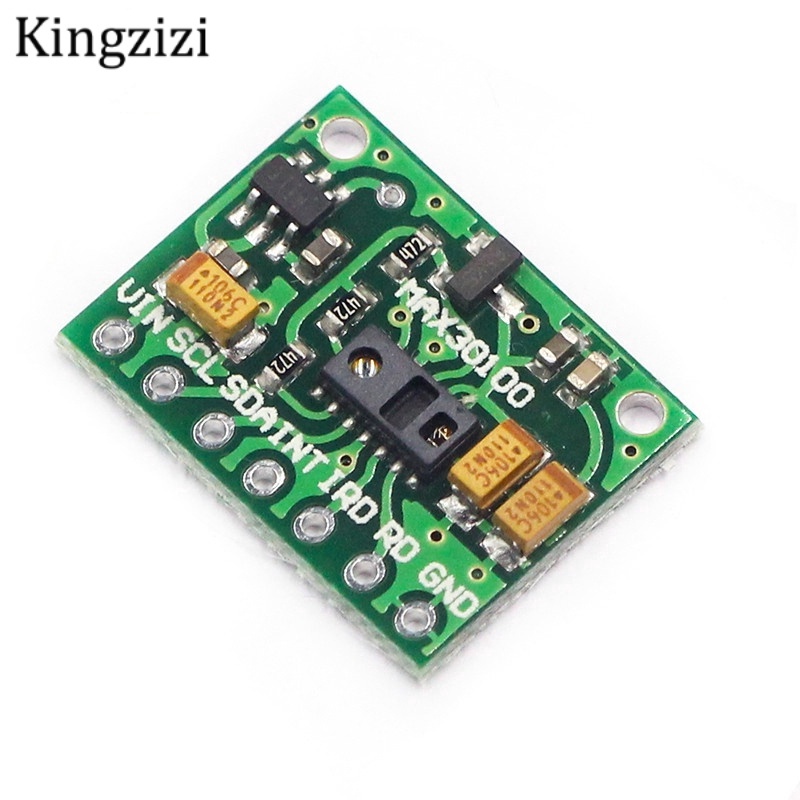

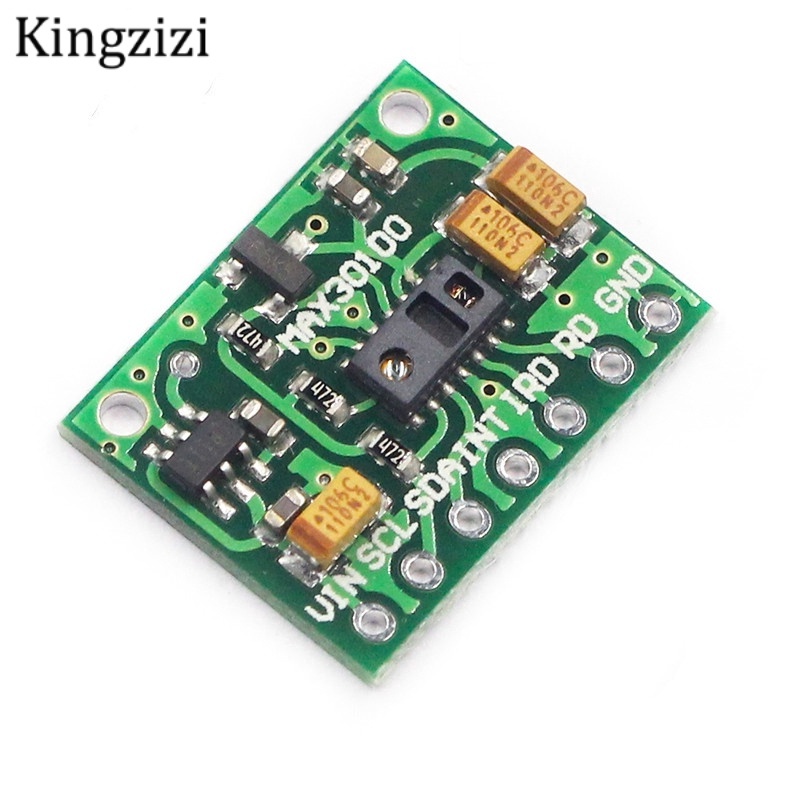

Pin Definition
VIN: Power Input 1.8v~5.5v
SCL:IIC-SCL
SDA: IIC-SDA
INT:MAX30100 INT
IRD: MAX30100 IR_DRV
RD:MAX30100 R_DRV
GND: Ground


Before purchase:
1.All the goods are ready stock, we will arrange the shipment at once if we receive the order.
2.Please read the item description, if you have any question, do not hesitate to contact us.
3.Use the vouchers for more saving.

Shipment：
1.1-2 days to ship(except for the pro-order item)

After purchase:
1.If you are satisfied，please give us 5 stars praise.
2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems.
if you receive a defect item,please contact us at once with item picture or vide



#MAX30100 #Oxygen #Sensor #Module #Heart #Rate #Pulse #Heart #Rate #Sensor #Module
