Mô Đun Điều Chỉnh Điện Áp 150w 10a Dc-Dc 10-32v Sang 12-35v Cc Chuyên Dụng Cho Xe Hơi

Giới thiệu Mô Đun Điều Chỉnh Điện Áp 150w 10a Dc-Dc 10-32v Sang 12-35v Cc Chuyên Dụng Cho Xe Hơi

150W Boost Converter DC-DC 10-32V to 12-35V Step Up Voltage Charger Module

Description:
Module Properties: non-isolated step-up module (BOOST)

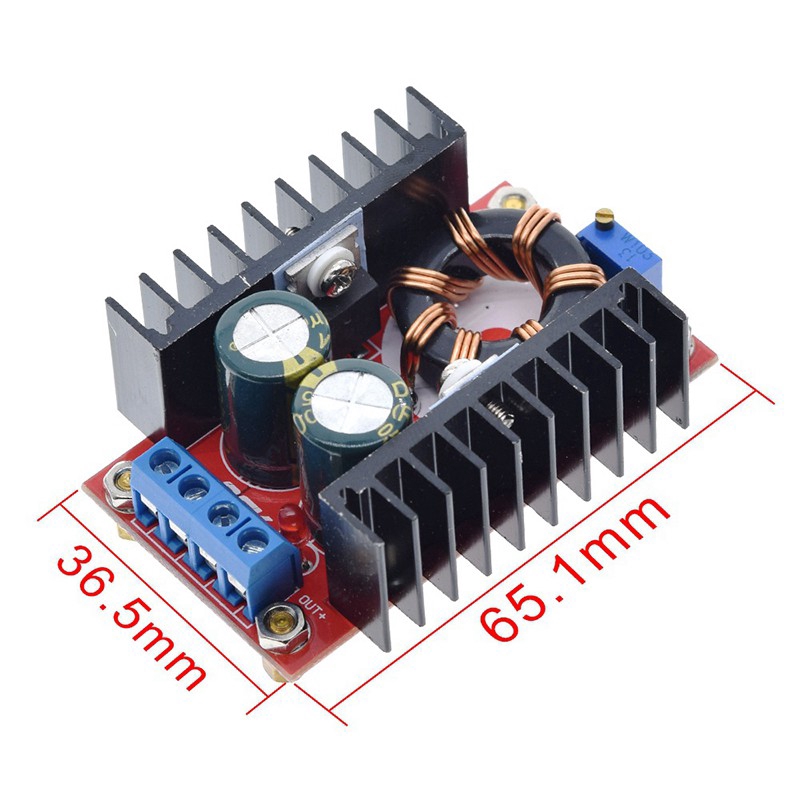

65 * 56.5 * 23 (length * width * high) (mm)
Input voltage :10-32V
Output voltage: 12-35V (adjustable)
Output Current: 6A (MAX)
Input Current: 10A (MAX) (Please enhance heat dissipation if more than 10A)
Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)
Easy to drive 65W 90W dual-core notebook.
Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45°c
Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)
Output Ripple: 2% (MAX) 20M-bandwidth
Operating Temperature: Industrial (-40°c to +85°c) (ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Full load temperature rise: 45°c
No-load current: 25mA typical
Voltage regulation: ± 0.5%
Dynamic response speed: 5% 200uS
Short circuit protection: None (Please Install fuses and protection circuits at Input port.)

Input Reverse Polarity Protection: None (Please Series diode at the input port.)Some Applications:
1. DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V(adjustable freely), However, the output voltage can not be less than the input voltage.
2. Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need.

Package:
1 x 150W Boost Converter

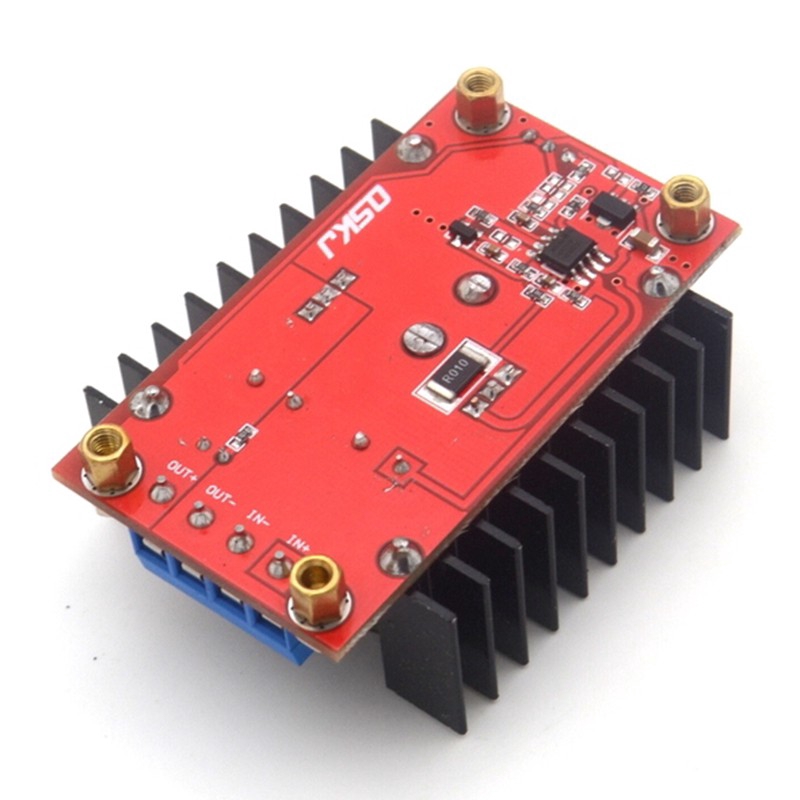

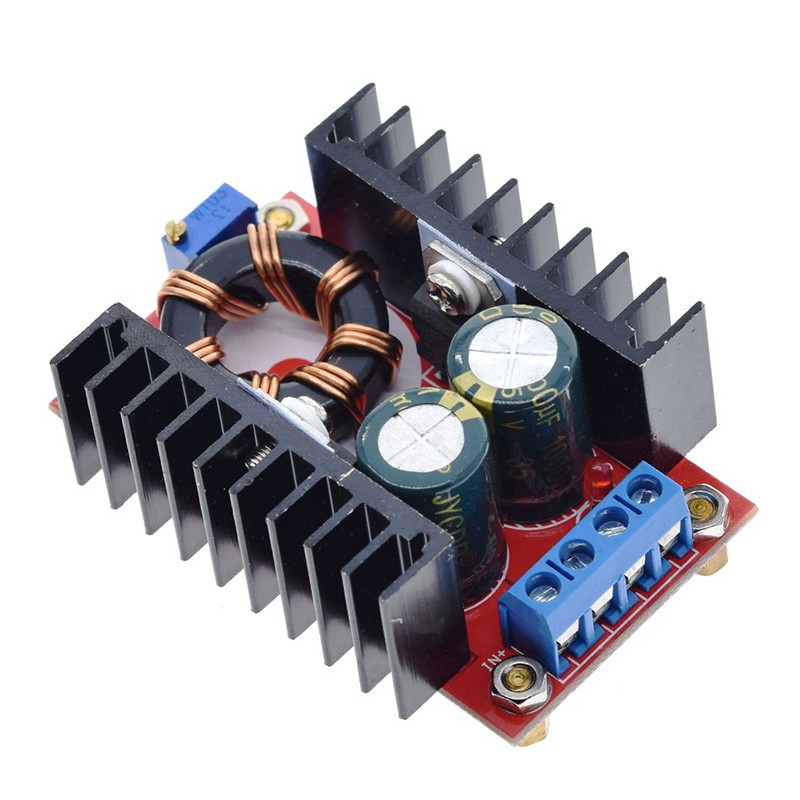

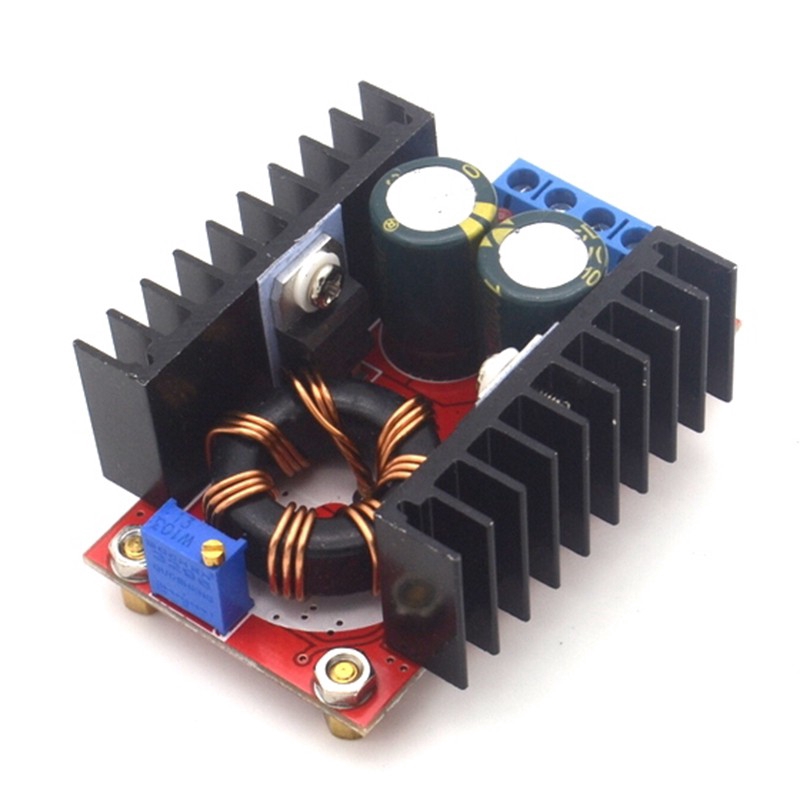

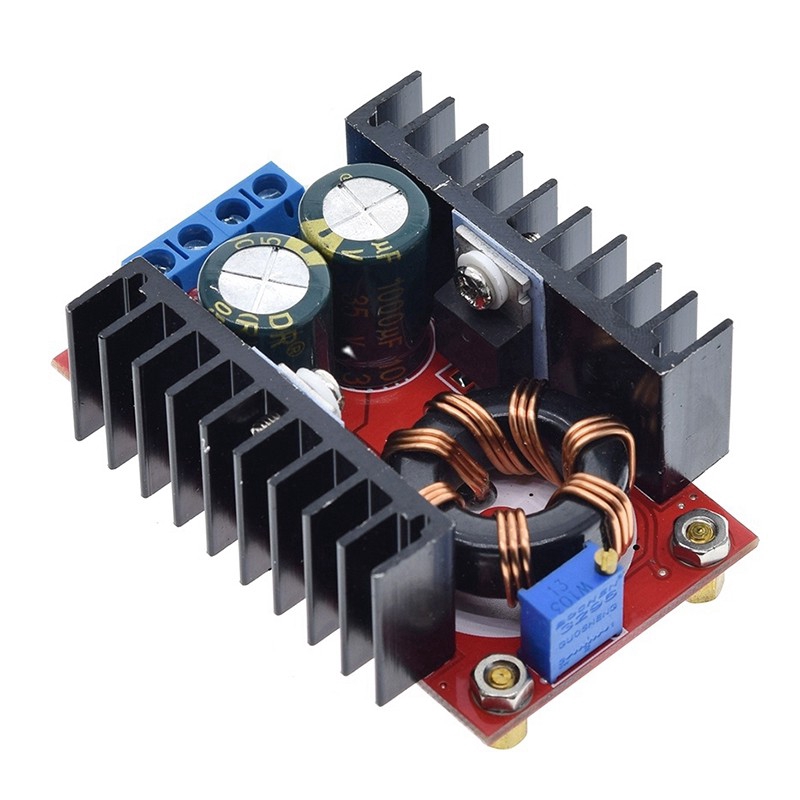

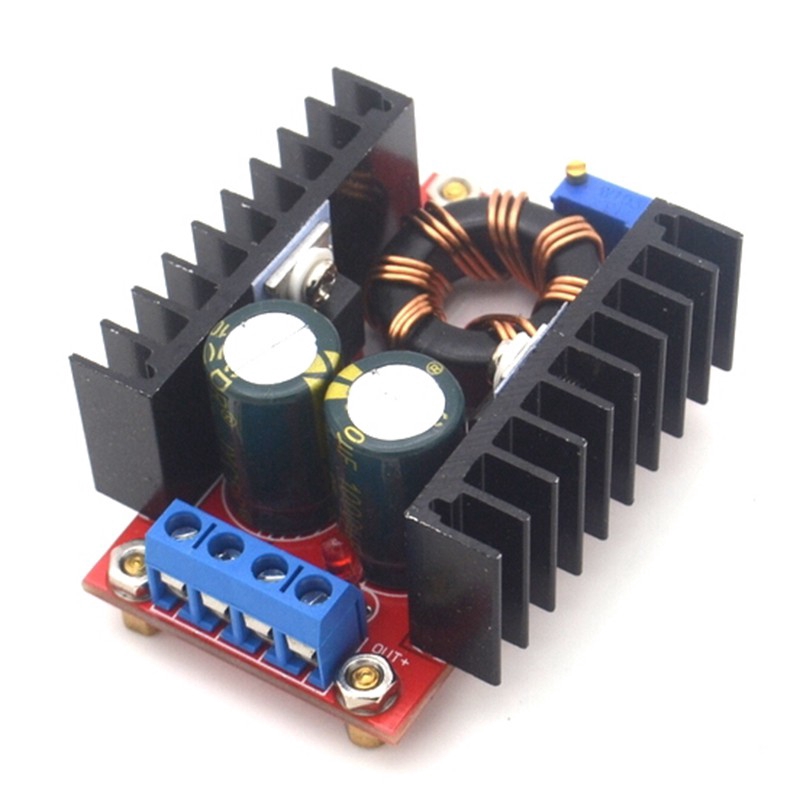

Hình ảnh sản phẩm
