Giới thiệu Mô Đun Điều Chỉnh Điện Áp Tự Động
#SK80 #Adjustable #Automatic #Buck-boost #Module #Constant #Voltage #Current #DC #DigitalSK80 Adjustable Automatic Buck-boost Module Constant Voltage Current DC Digital Control Regulated Laboratory Power DIY
Description:
100% brand new and high quality
Features:
Digitally adjusted voltage and current, convenient and fast, industrial quality, high precision, can be directly used in engineering projects.
Using professional power LCD, the interface is clear, the operation is very simple, and it has a nearly perfect protection mechanism.
Hardware protection: input terminal anti-reverse protection, reverse connection does not burn; output terminal short circuit protection, short circuit does not burn; output terminal is anti-reverse, no additional anti-reverse diode is required when charging the battery；
Software protection: overvoltage protection (OTP), overcurrent protection (OCP), overpower protection (OPP), overtemperature protection (OTP), input undervoltage protection (LVP).

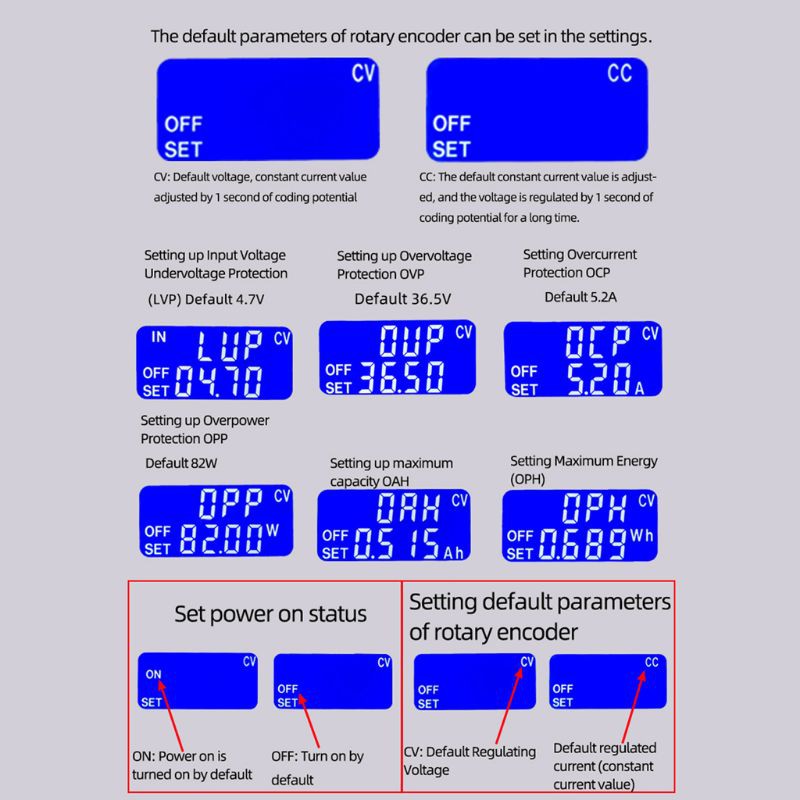

The default adjustable voltage or constant current value can be set, which can be quickly adjusted in various applications.
Voltage and current can be locked to prevent misoperation.
Full of materials, stable performance and wide range of uses.
Buck-boost Module only, other accessories demo in the picture is not included.

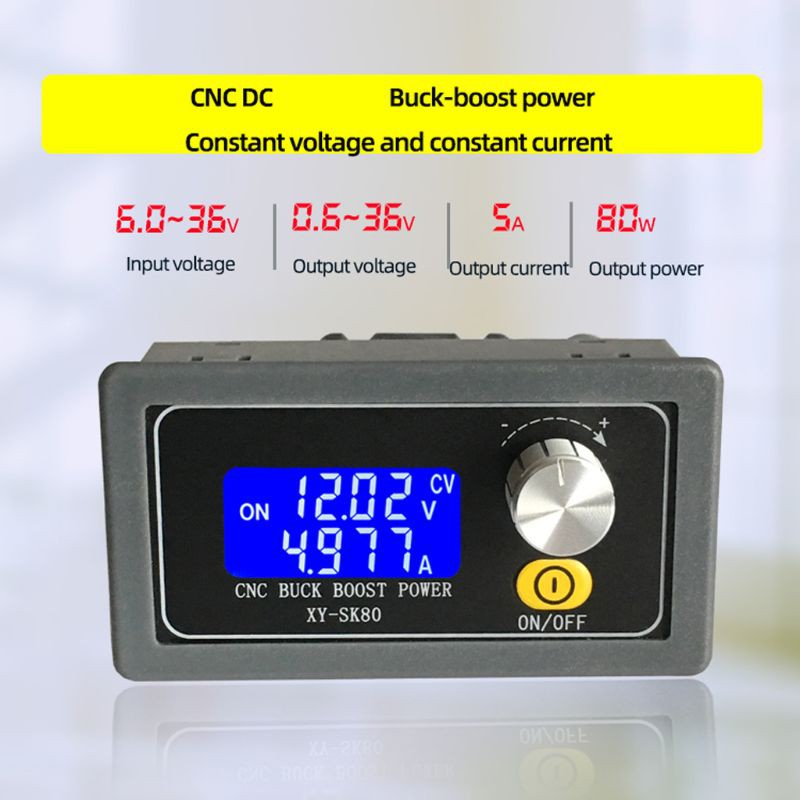

Product Parameters:
Input voltage: DC6.0V-36V (under-4.7V has undervoltage protection LVP, it is recommended to use the input voltage higher than 7V, when the input voltage is lower than 7V, the output power will be reduced, the lower the input voltage, the smaller the output power)
Output voltage：DC0.6V-36V
Output current：0-5.100A
Output power: under natural heat dissipation 80W

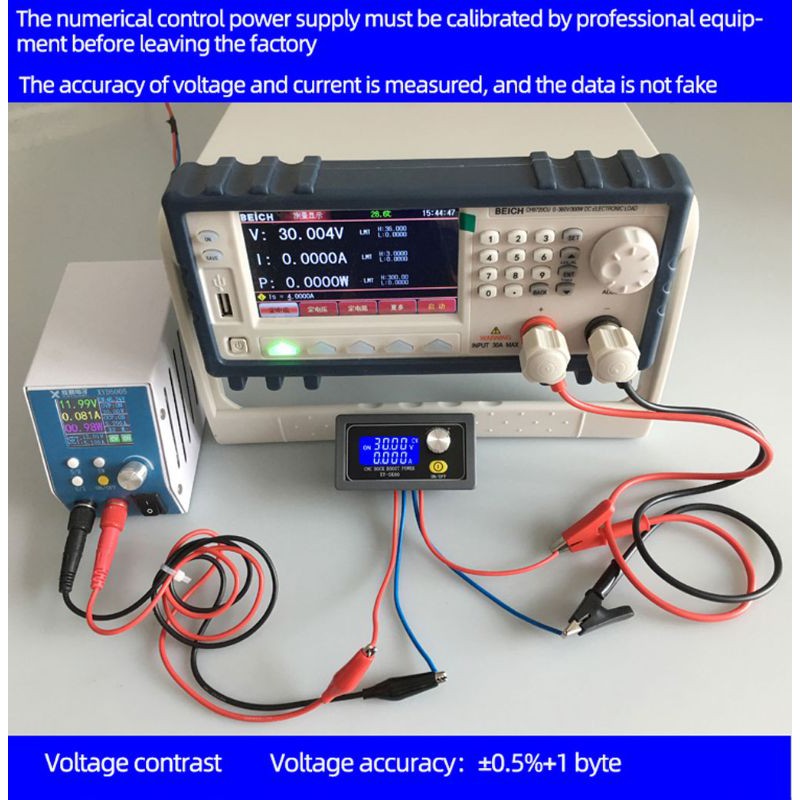

Voltage accuracy: ±0.5%+1 byte，Resolution：0.01V，Factory calibrated accuracy
Current accuracy：±0.5%+3 bytes，Resolution：0.001A，Factory calibrated accuracy
Conversion efficiency: about 88%
Soft start: Yes
Input reverse connection protection: Yes, reverse connection does not burn
Anti-backflow at the output: Yes, can be directly connected to the battery
Output short circuit protection:Yes, the output can be shorted directly
Temperature protection (OTP): Yes, 100 ℃
Working frequency：180KHZ
After setting to CC, the constant current value is adjusted by default.
When driving the LED, the fast dimming can be achieved by rotating the code positioner, which is very convenient!
Specification:
Type: Buck-boost Module
Material: Electronic component
Dimension: app.7.9x4.2x2.4cm/3.11x1.65x0.94in
Color: Black
Quantity: 1 Pc
Note:
1.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

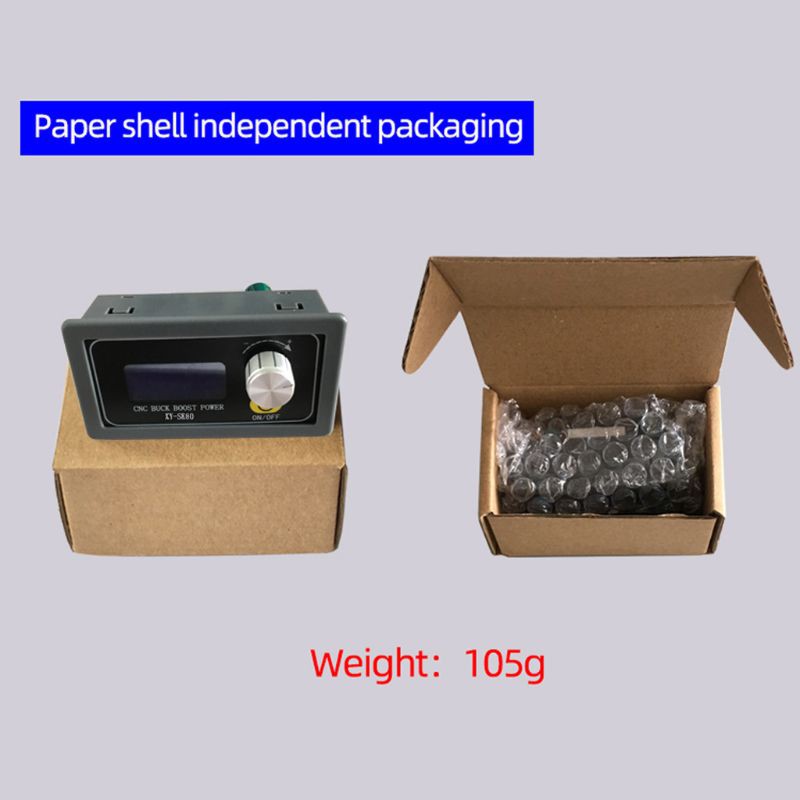

Package includes:
1 Pc x Buck-boost Module
