Giới thiệu Mô Đun Điều Chỉnh Điện Áp Xh-M404 Dc 4-38v 8a Pwm Dc-Dc Xl4016E1
XH-M404 DC 4-38V 8A Voltage Regulator Module Digital PWM Adjustabl DC-DC Step Down Voltage Regulator XL4016E1Description:
1. The input voltage range of 4-38V, the output voltage range of 1.25-36V.
2. The digital display is the output voltage.
3. Adjust the potentiometer knob: clockwise to adjust the output voltage is increased; counter-clockwise, the output voltage is reduced; after re-regulate the voltage connected load and prevent damage to the load.
4. more than 5A current, please enhance heat dissipation.
5. The low voltage display precision 0.01V, high-voltage display accuracy 0.1V
Product Name: DC voltage regulator module.
Product Type: XH-M404.
Voltage mode: PWM modulation.
Input voltage: DC4-38V.
Output voltage: DC1.25 ~ 36V.
Maximum current: 8A (long work proposals 5A).
Maximum power: 200W.
Conversion efficiency: 94%.
Switching Frequency: 180KHz.
Protection: short circuit protection, input reverse polarity protection, over-temperature protection (over temperature cut off the output).
Before purchase:
1.All the goods are ready stock, we will arrange the shipment at once if we receive the order.
2.Please read the item description, if you have any question, do not hesitate to contact us.
3.Use the vouchers for more saving.
Shipment：
1.1-2 days to ship(except for the pro-order item) and 10-15 days shipment.
2.If you have not received the item after 15 days shipment,Please contact us.
After purchase:
1.If you are satisfied，please give us 5 stars praise.
2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems.
if you receive a defect item,please contact us at once with item picture or vide
#XH-M404 #DC #4-38V #8A #Voltage #Regulator #Module #Digital #PWM #Adjustabl #DC-DC #Step #Down #Voltage #Regulator #XL4

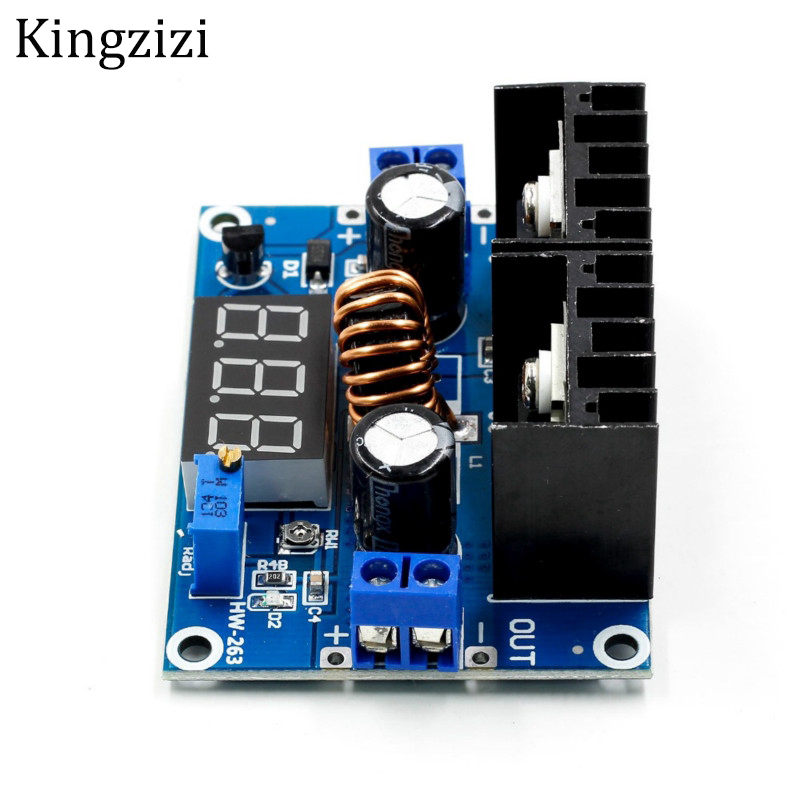

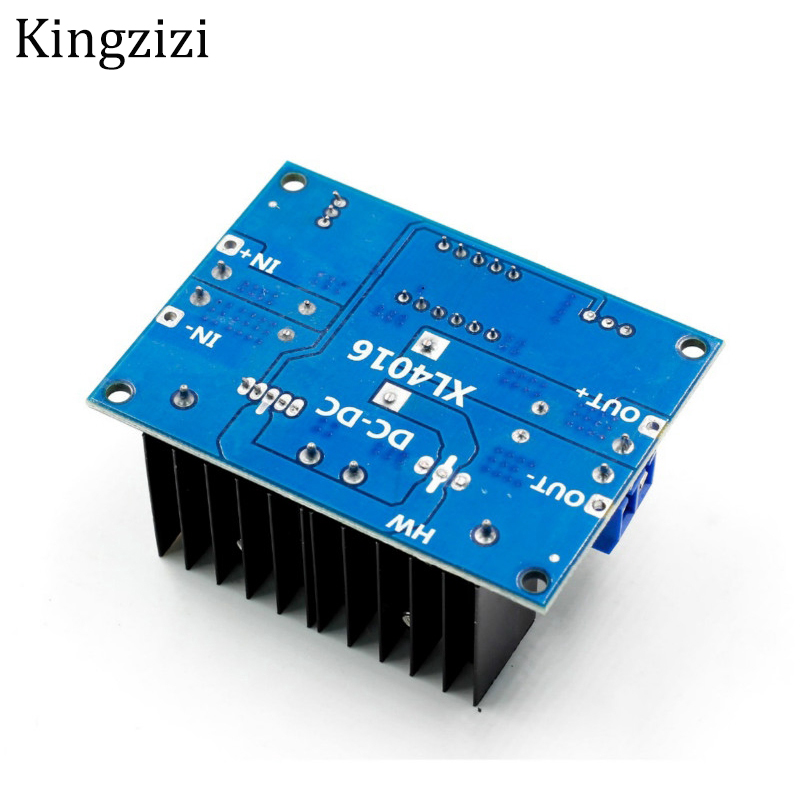

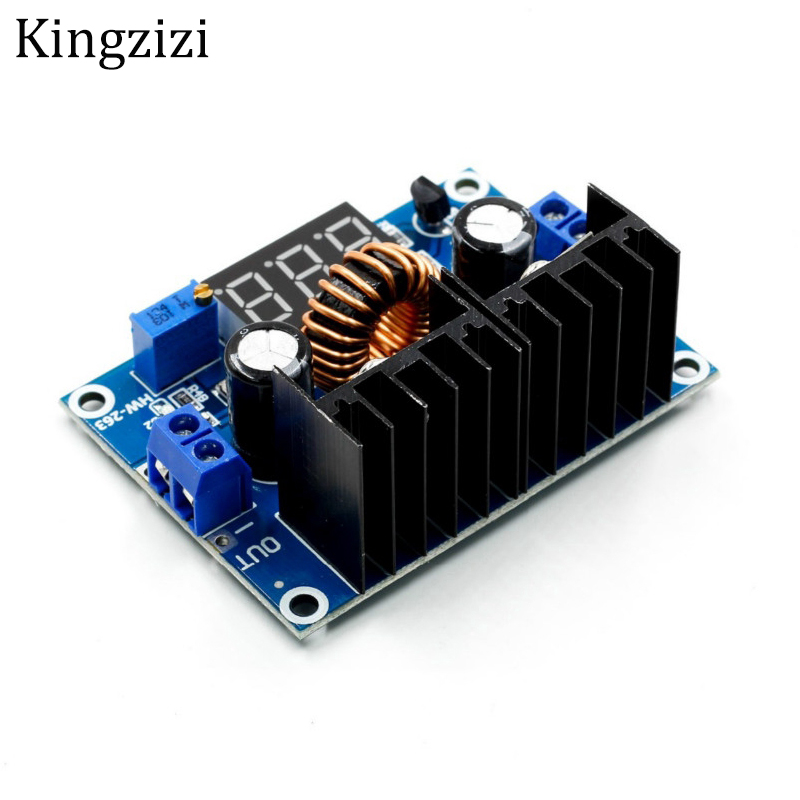

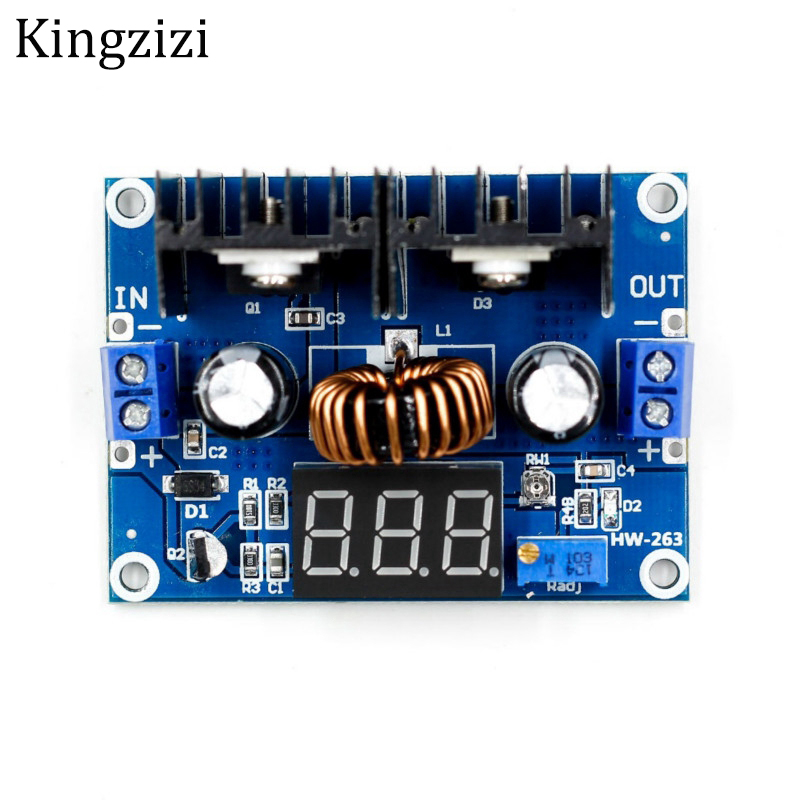

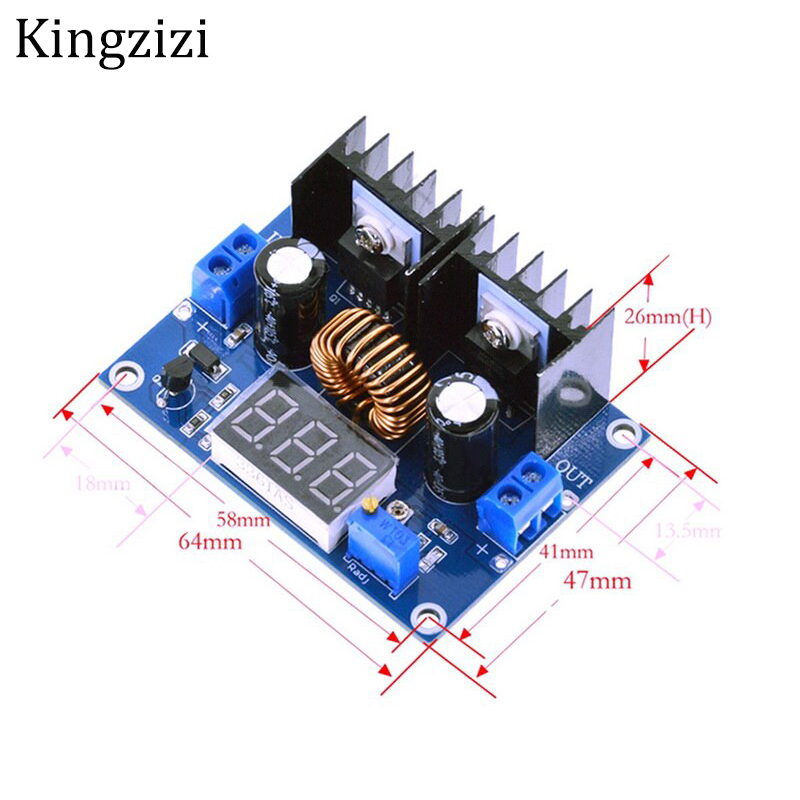

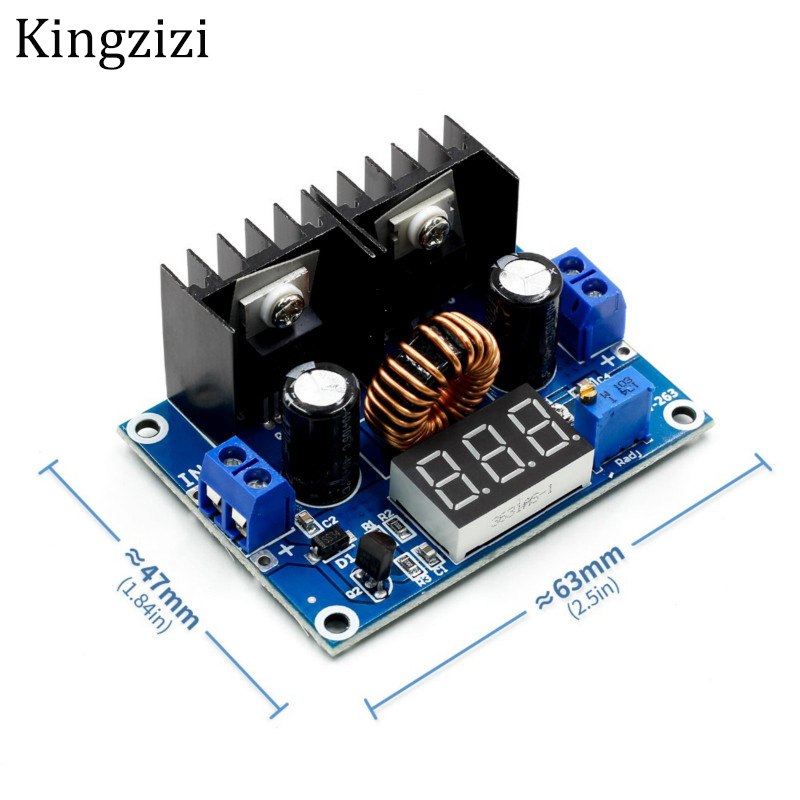

Hình ảnh sản phẩm
