Description:
The default mode for remote control shipment is jog mode. If you need to change the mode or multiple remotes control one receiver at the same time or one remote control multiple receivers, please do the following:
Clear code -
Press the learning button on the receiver 8 times in succession, the LED goes out, the LED flashes 8 times, and the clearing is completed. (If you need to change the working mode of the same remote control, please clear the code before learning)
Learning the code -
First step:
Press the learning button on the receiving board according to the number of times you need to select the working mode, and then the LED of the receiving board is always on.
Jog mode: Press the decoding module to learn the button once.
Self-locking mode: Press the decoding module to learn the button twice.
Interlock mode: Press the decoding module to learn the button 3 times.
Step 2: Press any button on the remote control. After the receiver receives the signal, the LED of the receiver board flashes three times and then turns off. The code is successful. (If you enter the learning pair code mode, there is no remote control signal, after 10 seconds, the learning pair code mode is automatically exited.)
Note: If you have selected a mode after clearing the code, then the first step to select other modes is invalid, you must clear the code and then learn! ! !
If you want to control multiple receivers at the same time, enter the learning mode, press the learning button LED, then press any button on the remote control.
4. Product parameters:
1. Two-way H-bridge motor drive, can drive two DC motors or one 4-wire two-phase stepper motor at the same time;
2. Module supply voltage 3V-14V;
3. The signal input voltage is 2.2-6V, supporting 3.3V and TTL level;
4. Single working current is 5A, peak current can reach 9A, low standby current (less than 10uA);
5. Mounting hole diameter: 2 mm.
6. Weight: 14g
Package Include:

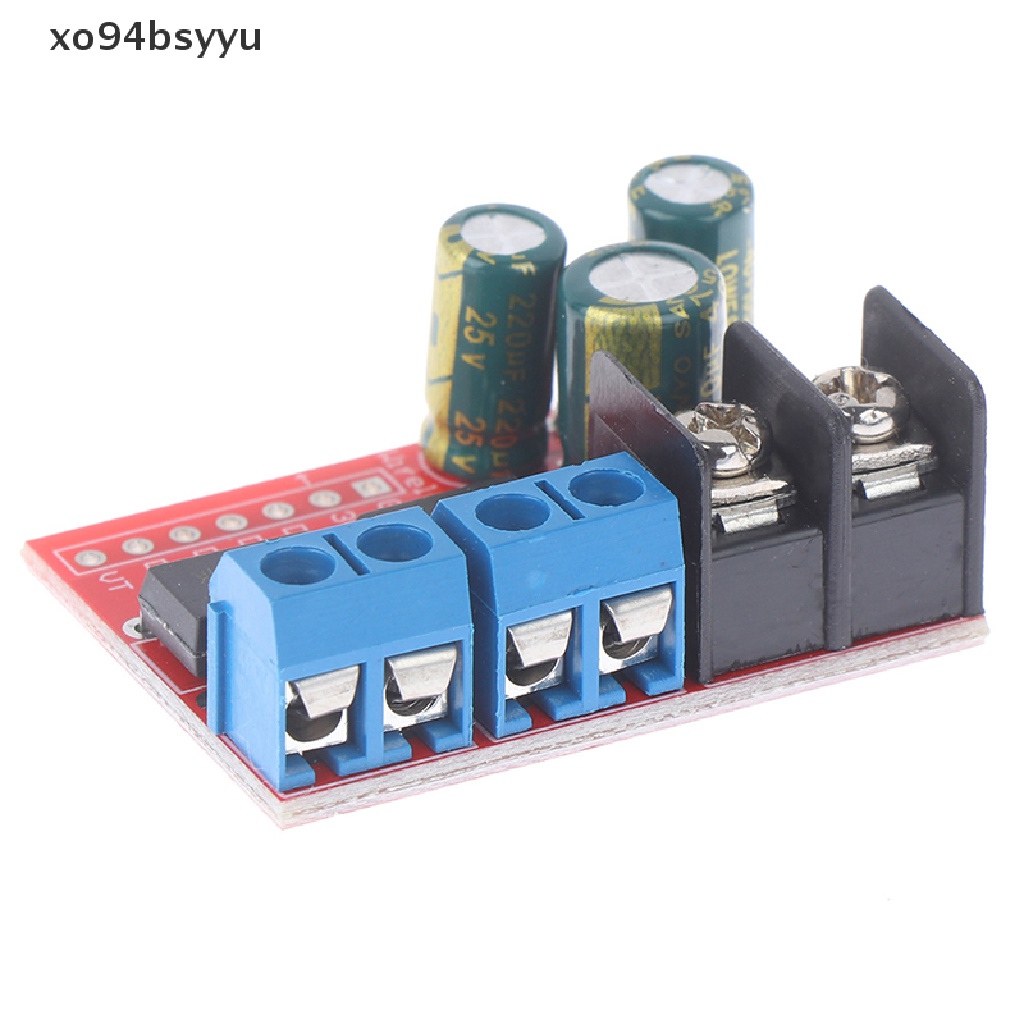

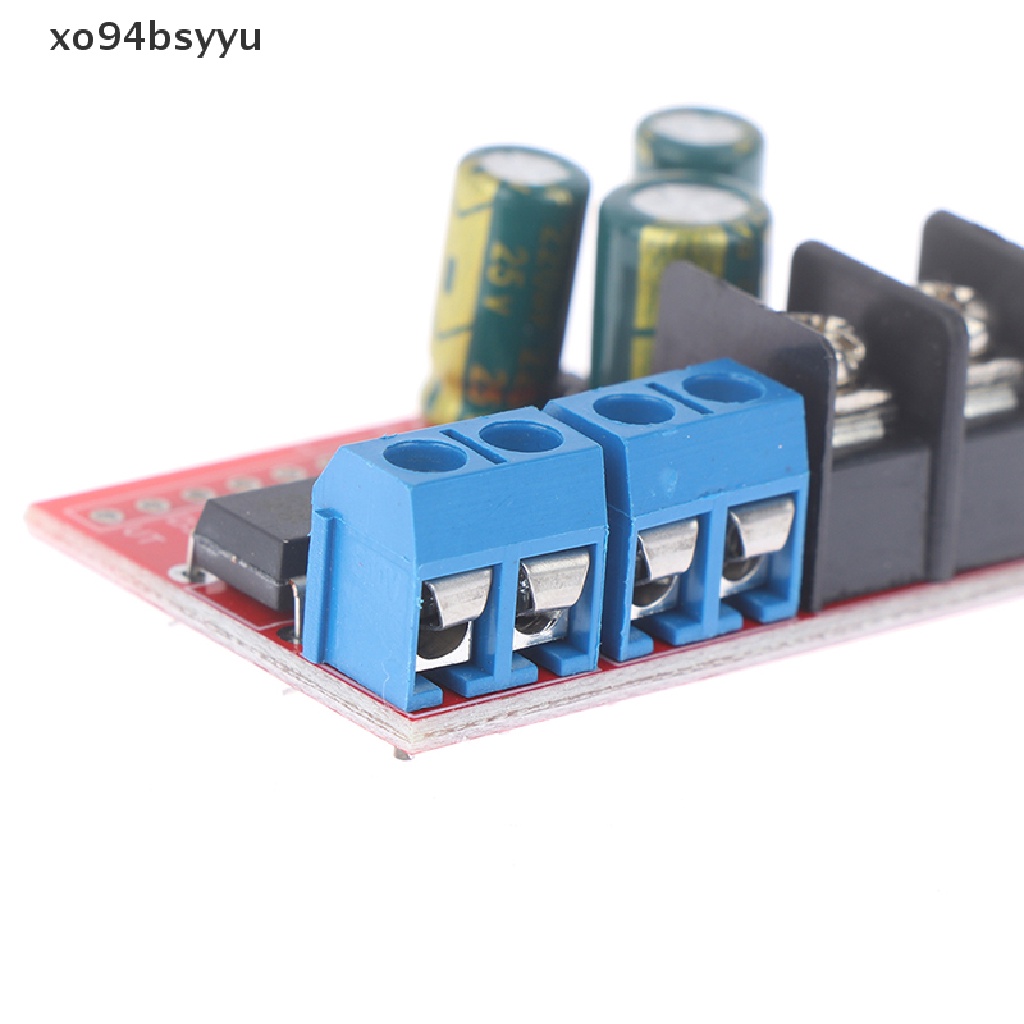

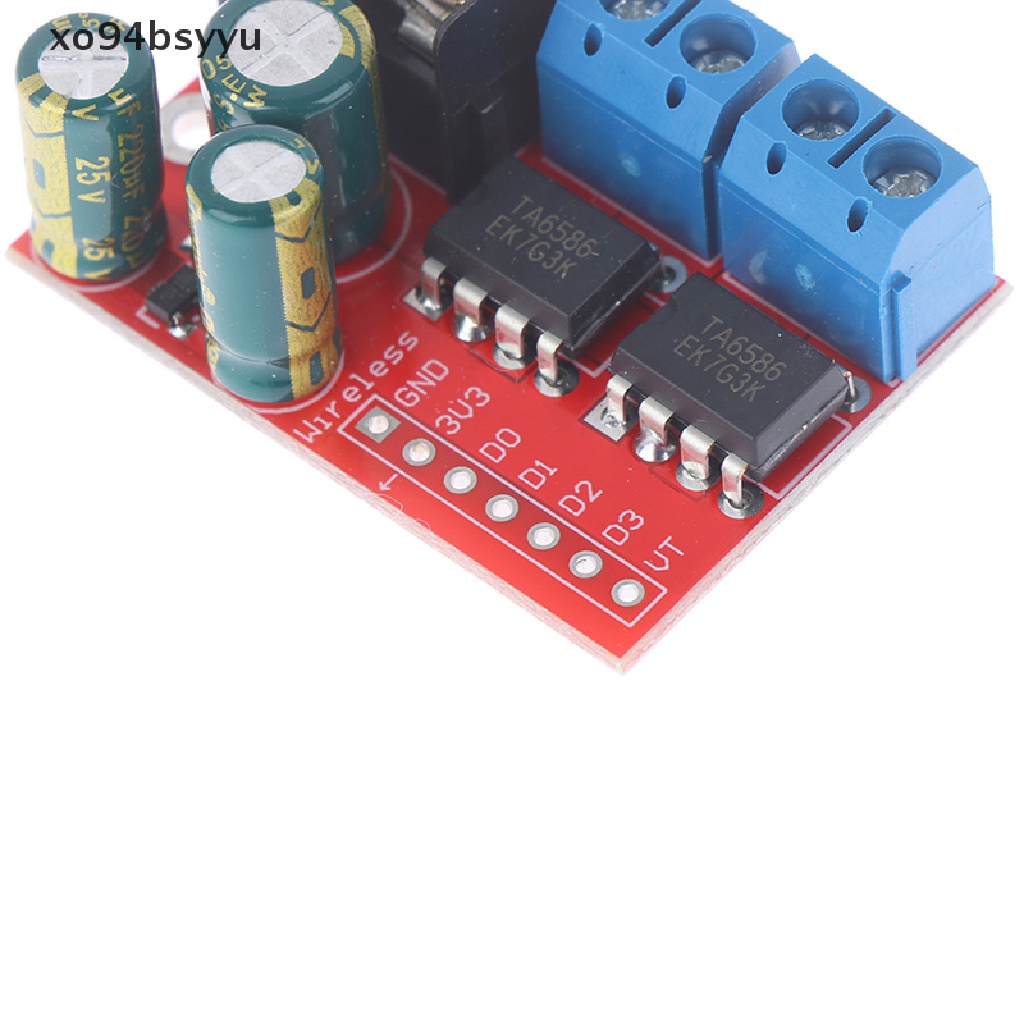

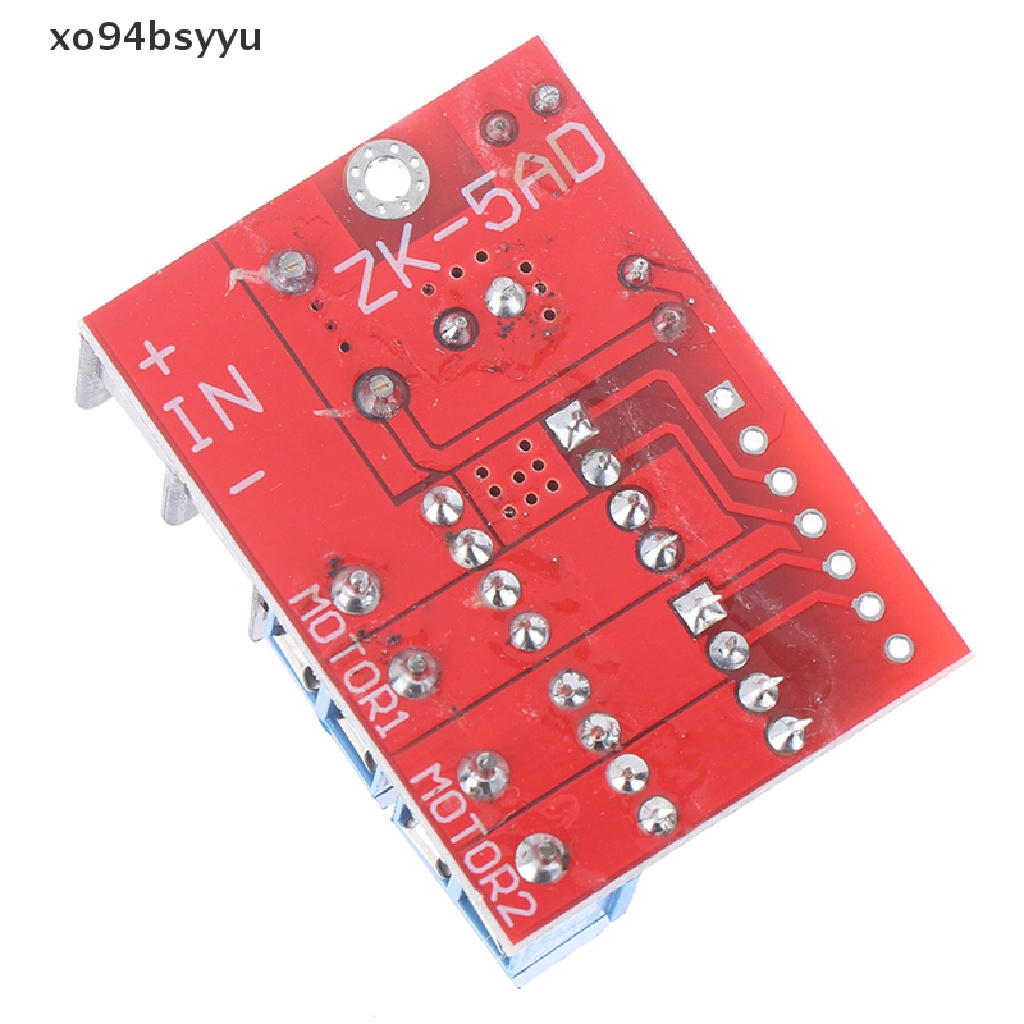

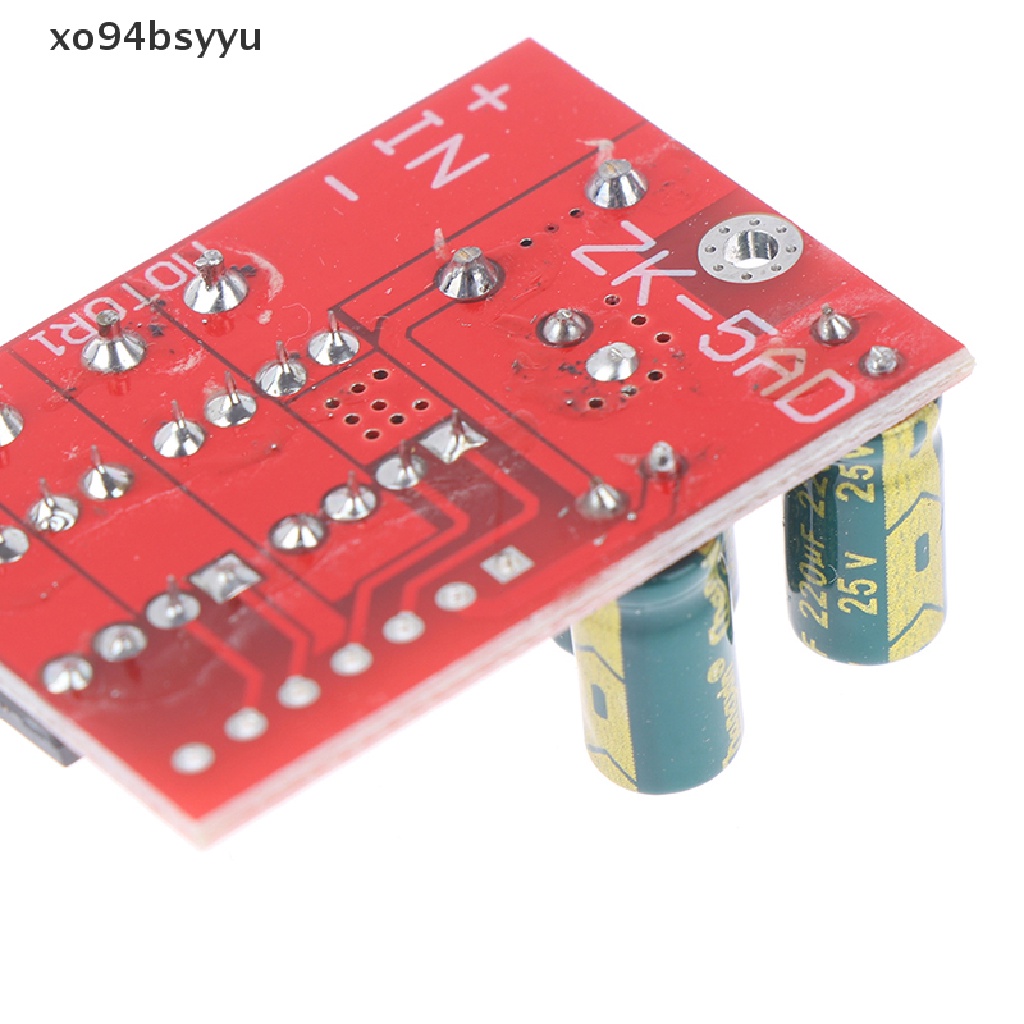

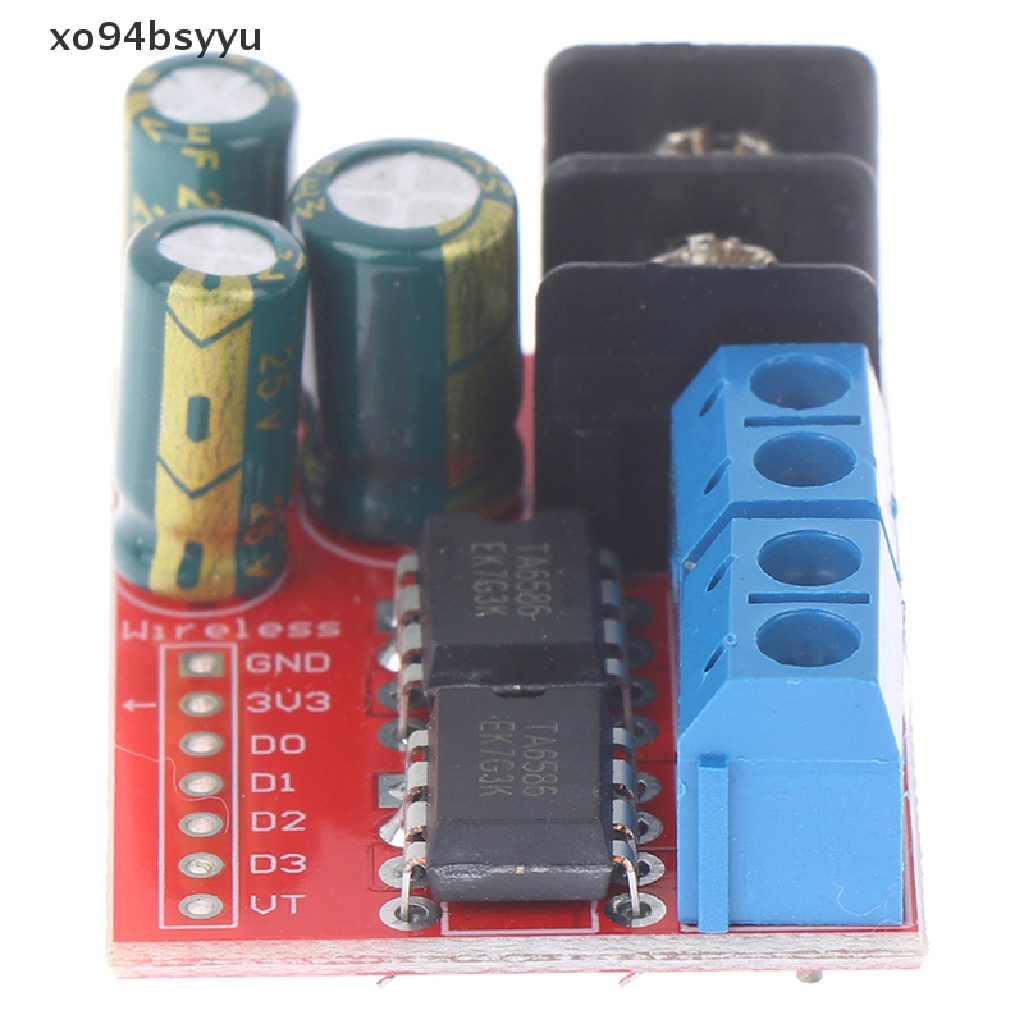

1PC x 5A dual DC motor drive module can be controlled by remote control, reverse PWM speed regulation, double H bridge super L298N 5AD
