Mô Đun Điều Khiển Tốc Độ Động Cơ 1803bw Pwm Dc 1.8v 3v 5v 6v 12v 2a

Giới thiệu Mô Đun Điều Khiển Tốc Độ Động Cơ 1803bw Pwm Dc 1.8v 3v 5v 6v 12v 2a

Ultra low voltage DC motor governor
Input DC1.8-15V voltage range
Applicable current within 2A
Size: length 32mm*32mm height 14mm

special reminder:
The DC motor speed regulator is connected to the DC power supply, and it must not be directly connected to the household 220V AC power, otherwise the damage will be at your own risk!

This is a 2A current governor. The continuous current is greater than 0.5A. The 775 motor and the stroller motor cannot be driven. Don't buy it wrong. It is not recommended to supply power greater than 12V, such as 12V lead-acid batteries, which may cause damage to the governor.

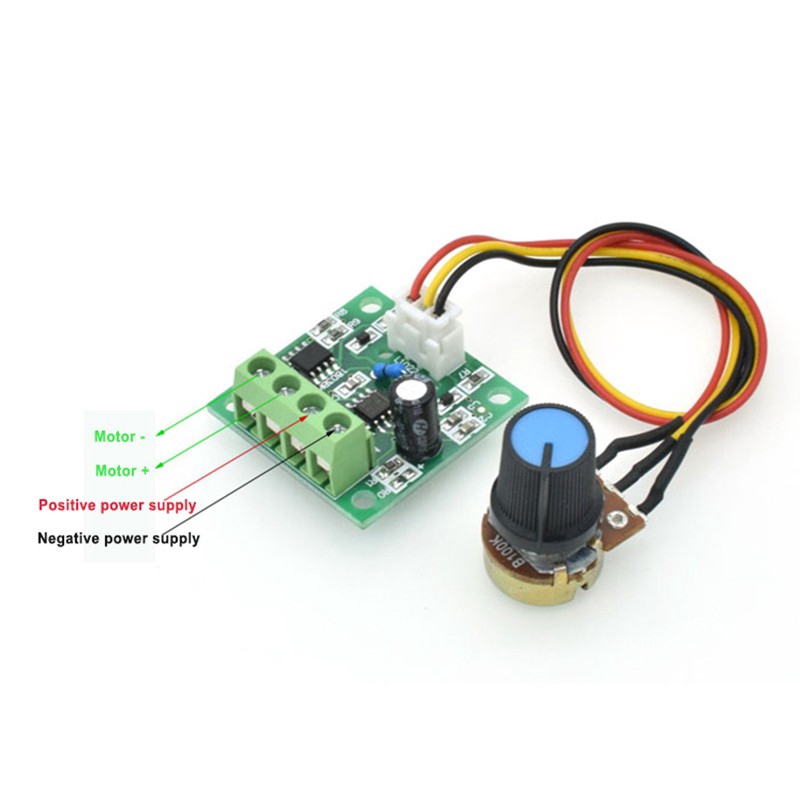

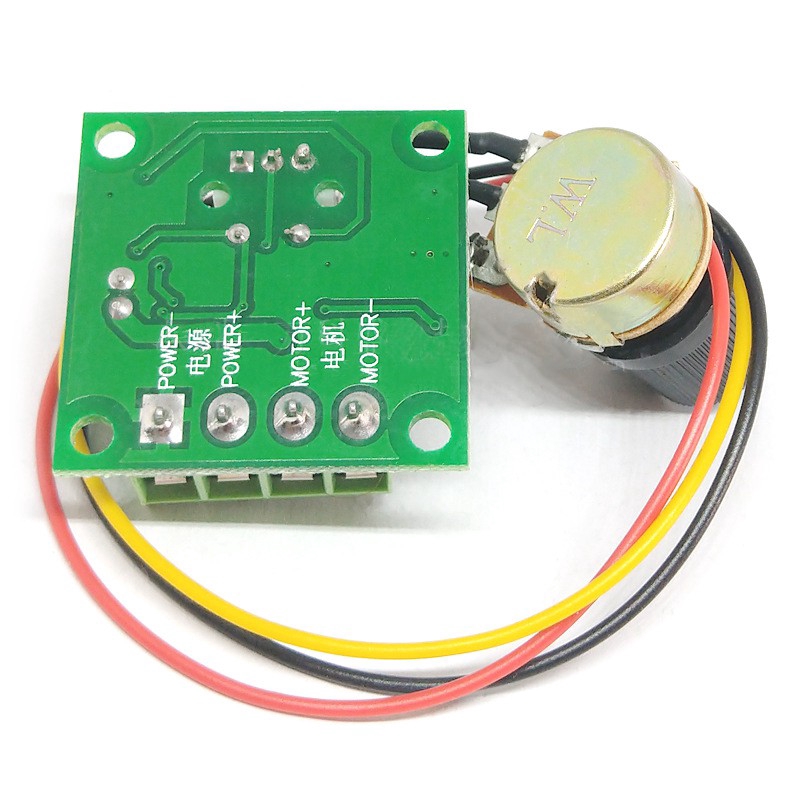

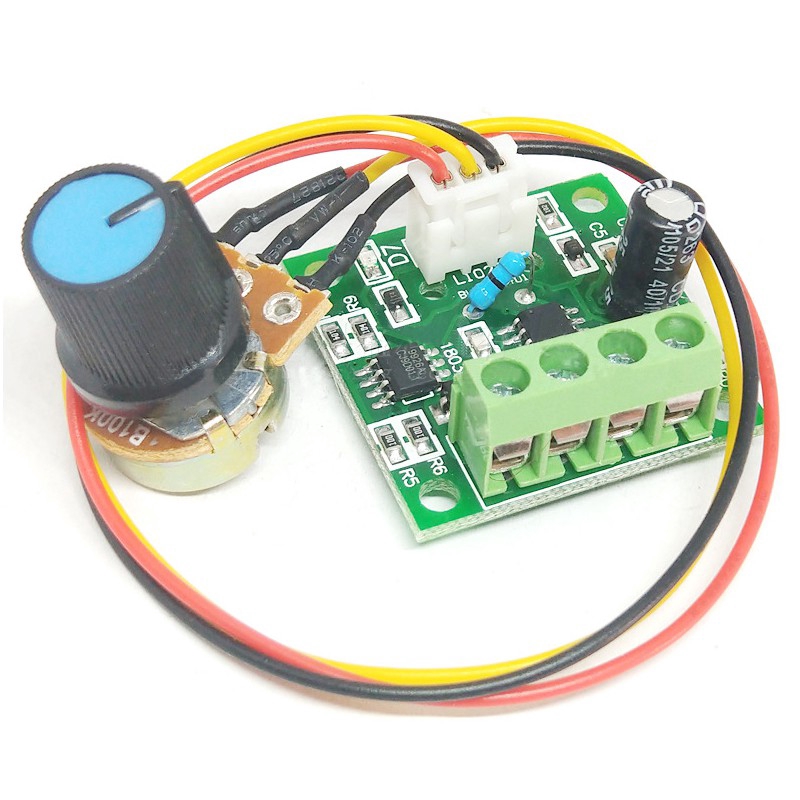

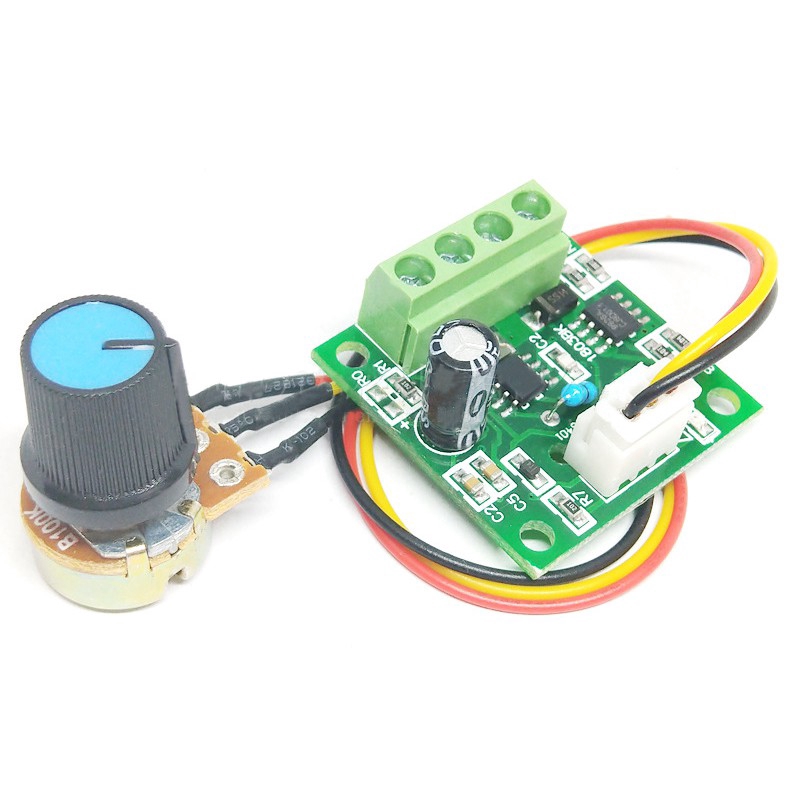

DC PWM motor governor board 1.8V 3V 5V 6V 12V 2A speed control module 1803BW

Description:
Product Name: Dot Circle 2A08
Input voltage: DC 1.8-12V (specific voltage should be equal to the motor rated voltage)
Output voltage: Linear under load (no load voltage and input equal)
Output current: 2A
Overload protection: fuse
Speed type: Tuning
Support motor: DC brush motor
Forward rotation reverse: not supported
Speed range: 2-100%
Speed control mode: linear with switch potentiometer 270 degrees
Knob opening: 7MM
Size of the collection: 32mm*32m*15mm
Product net weight: 13 grams

Note:
The input voltage should be equal to the rated voltage of the motor.
The input voltage must be positive and negative

Package:
1 * PWM DC motor governor board 1.8V 3V 5V 6V 12V 2A speed control module 1803BW

Hình ảnh sản phẩm
